Gallery
By: Model2019
Price: $20.00 USD

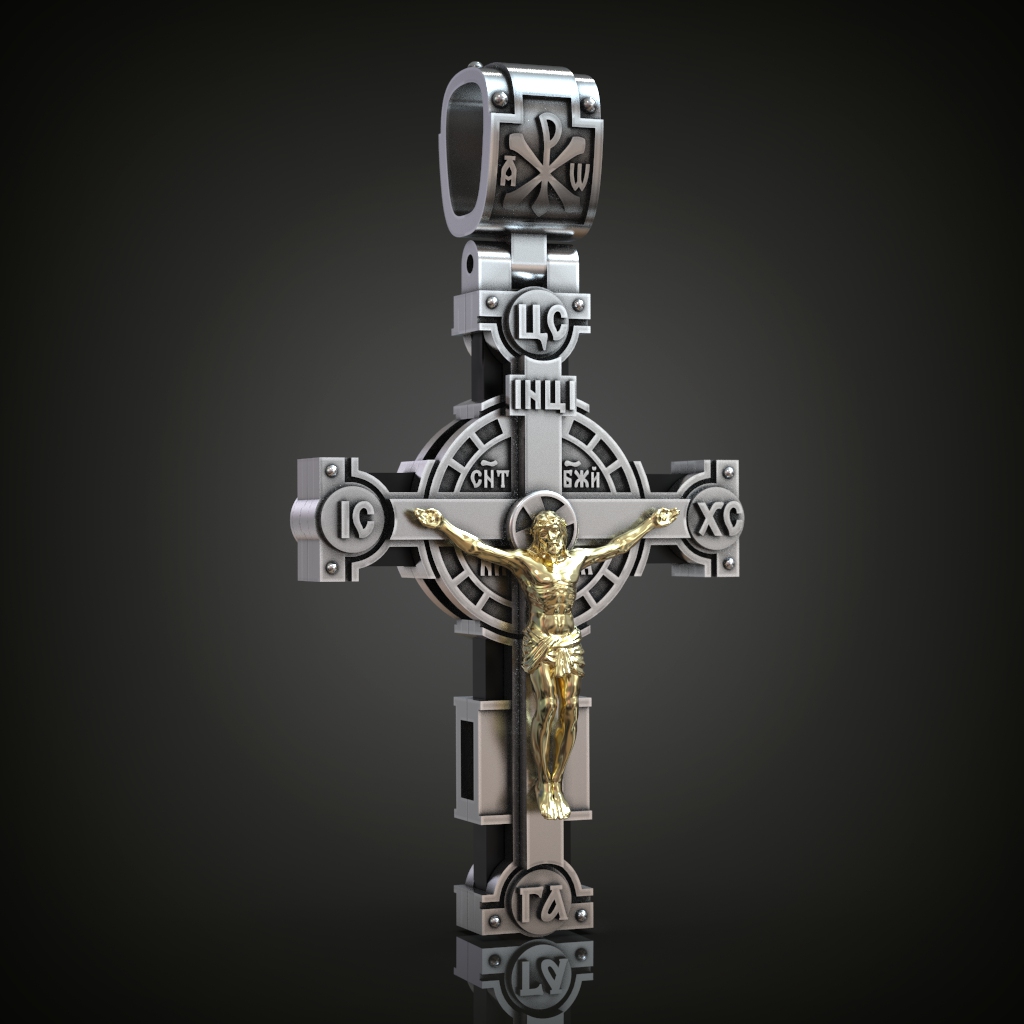

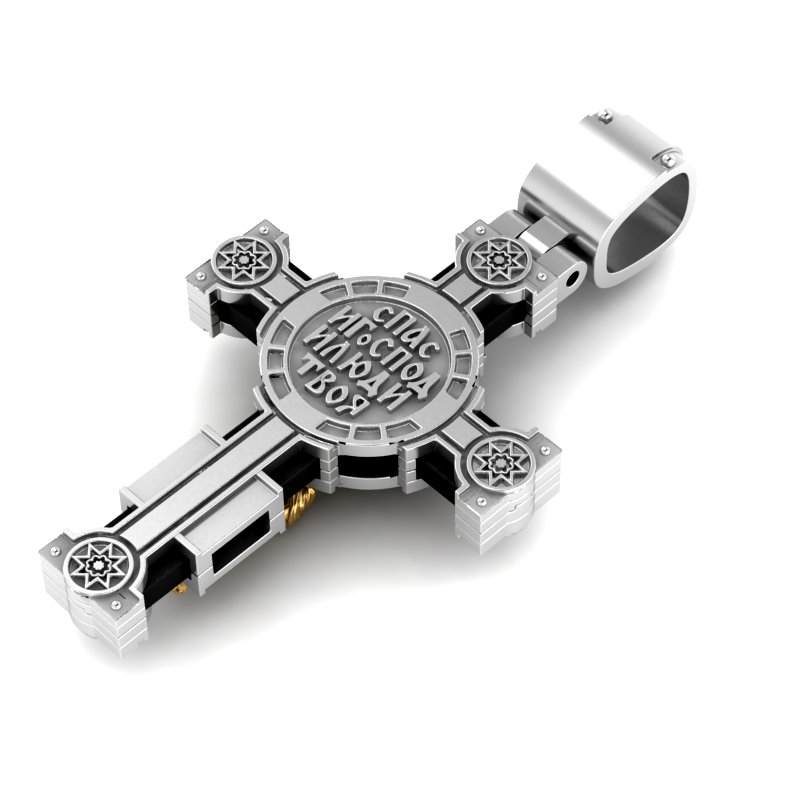

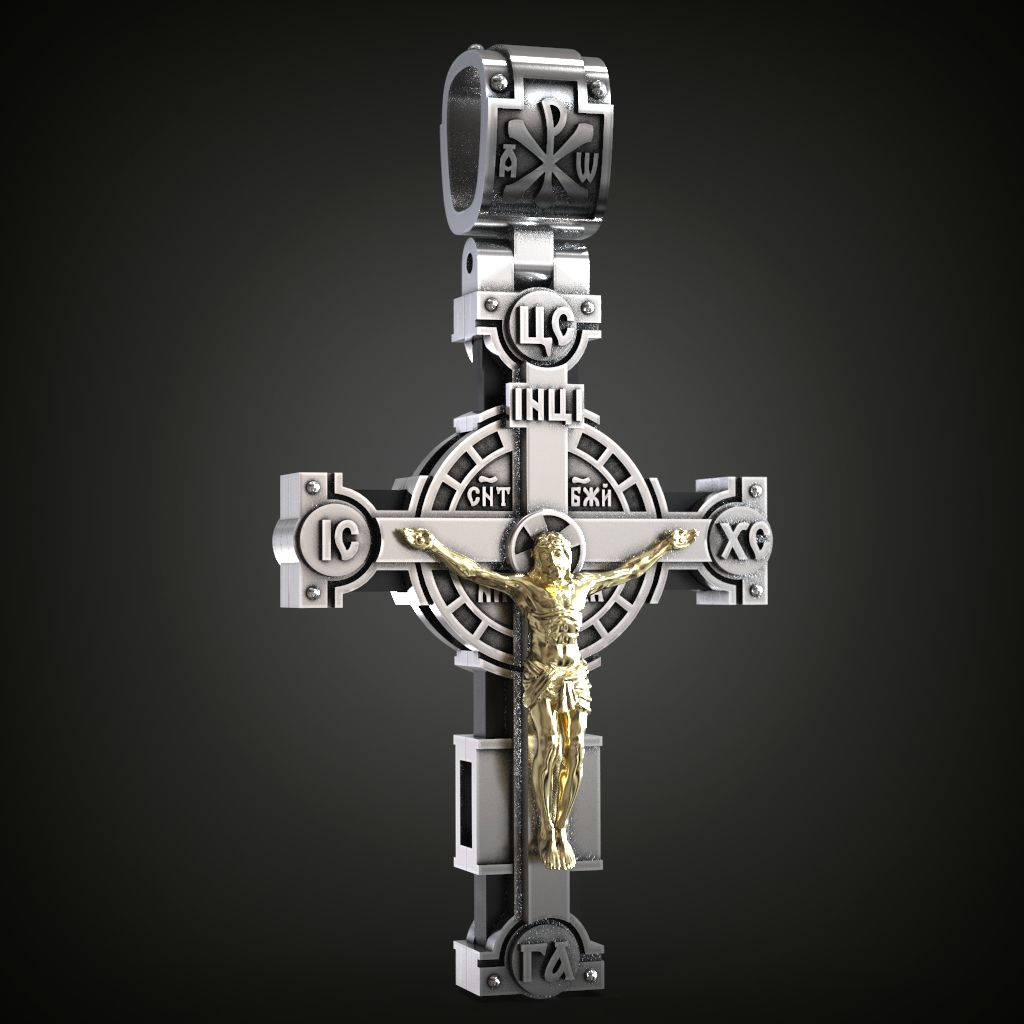

A multi-component Eastern Orthodox crucifix pendant designed for layered assembly and two-tone finishing. The obverse features a high-relief Corpus Christi, with the IC XC titulus (Jesus Christ) and markings for ЦС (King of Glory) and ГА (Adam's Head) at the appropriate positions. The reverse side is inscribed with the traditional Cyrillic prayer 'СПАСИ И СОХРАНИ' (Save and Protect) within a central circular frame. The design's construction involves several interlocking plates to create significant depth. The large, articulated bail is engraved with a Chi Rho symbol and offers an internal clearance of 8.20mm by 6.50mm, accommodating heavy chains. The CAD model specifies overall dimensions of 54.00mm in height and 29.00mm in width.
No gems specified.

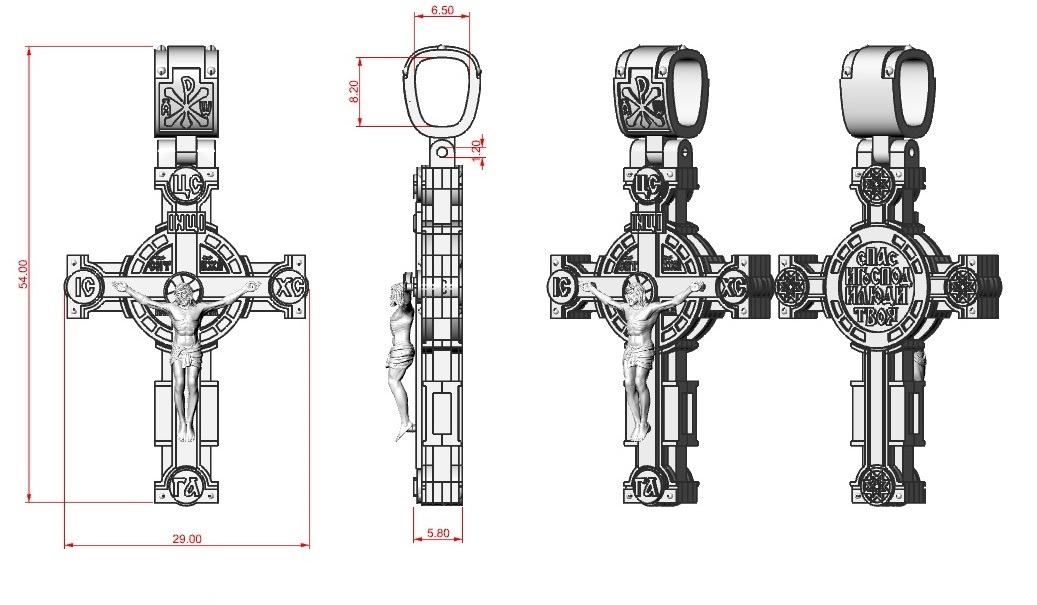

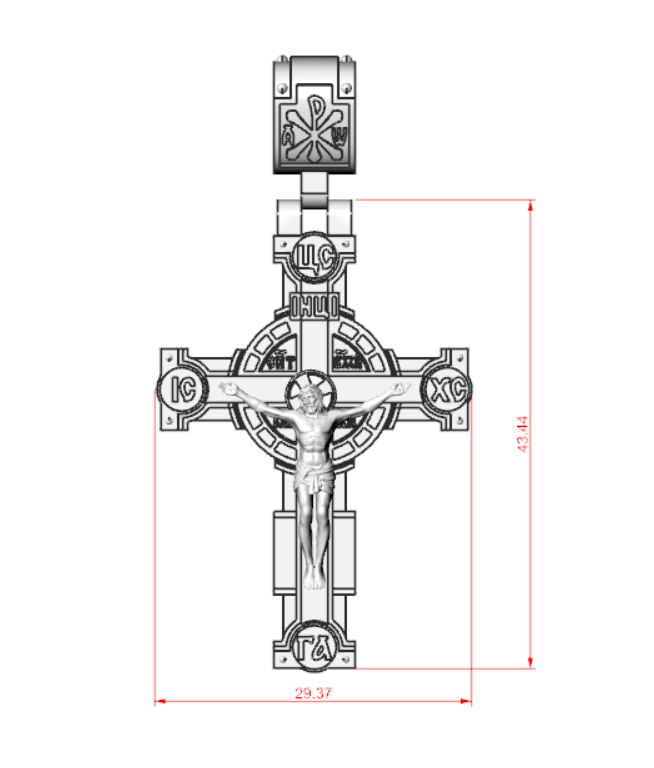

Total Height: 54.00 mm Width: 29.00 mm Max Thickness: 5.80 mm Bail Inner Clearance: 8.20 mm (height) x 6.50 mm (width)
Not applicable

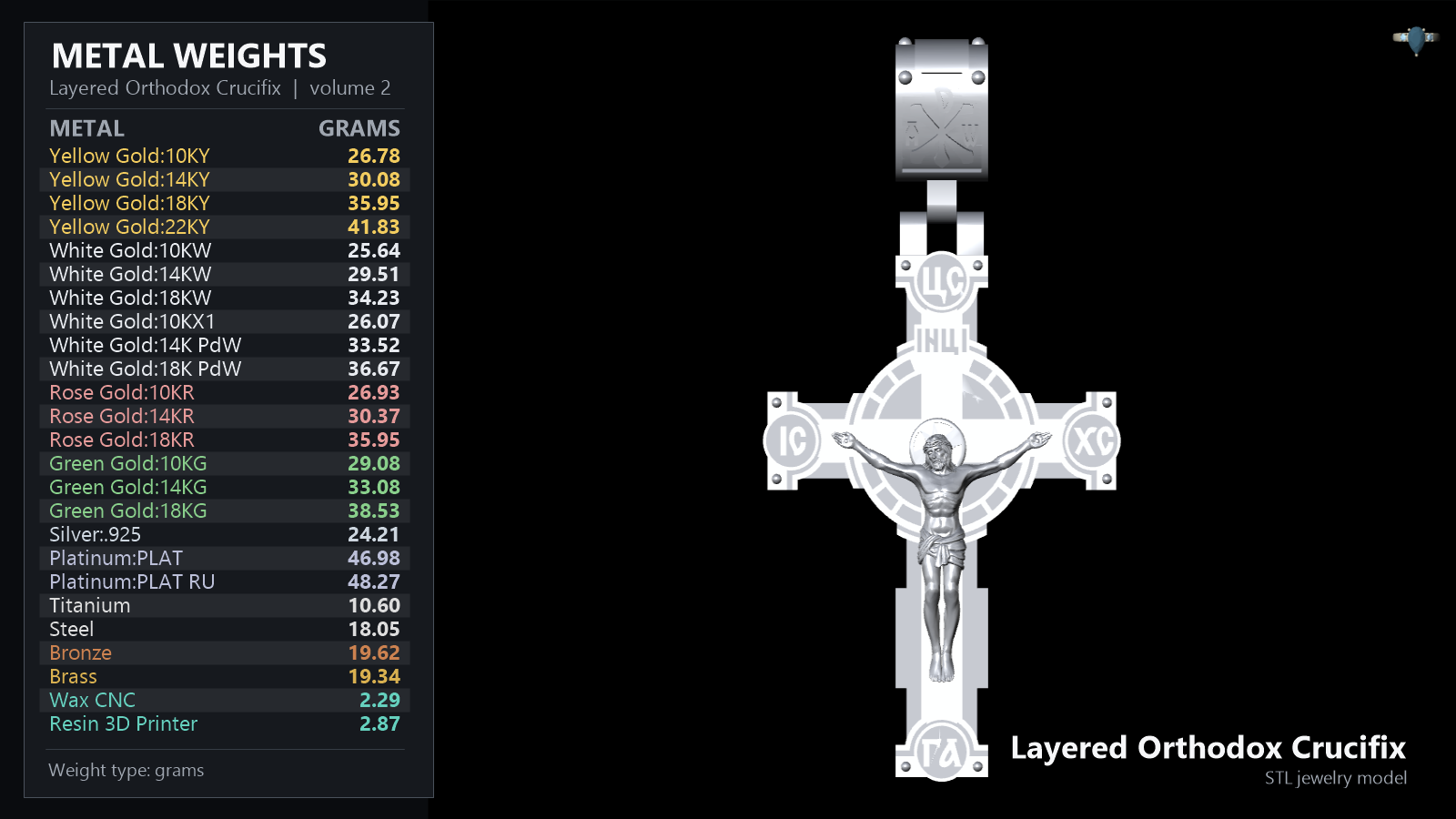

Estimated weights for a single piece: - Yellow Gold 10KY: 26.78 g - Yellow Gold 14KY: 30.08 g - Yellow Gold 18KY: 35.95 g - Yellow Gold 22KY: 41.83 g - White Gold 10KW: 25.64 g - White Gold 14KW: 29.51 g - White Gold 18KW: 34.23 g - White Gold 10KX1: 26.07 g - White Gold 14K PdW: 33.52 g - White Gold 18K PdW: 36.67 g - Rose Gold 10KR: 26.93 g - Rose Gold 14KR: 30.37 g - Rose Gold 18KR: 35.95 g - Green Gold 10KG: 29.08 g - Green Gold 14KG: 33.08 g - Green Gold 18KG: 38.53 g - Silver 925: 24.21 g - Platinum (PLAT): 46.98 g - Platinum (PLAT RU): 48.27 g - Titanium: 10.60 g - Steel: 18.05 g - Bronze: 19.62 g - Brass: 19.34 g - Wax for CNC: 2.29 g - Resin for 3D Printer: 2.87 g

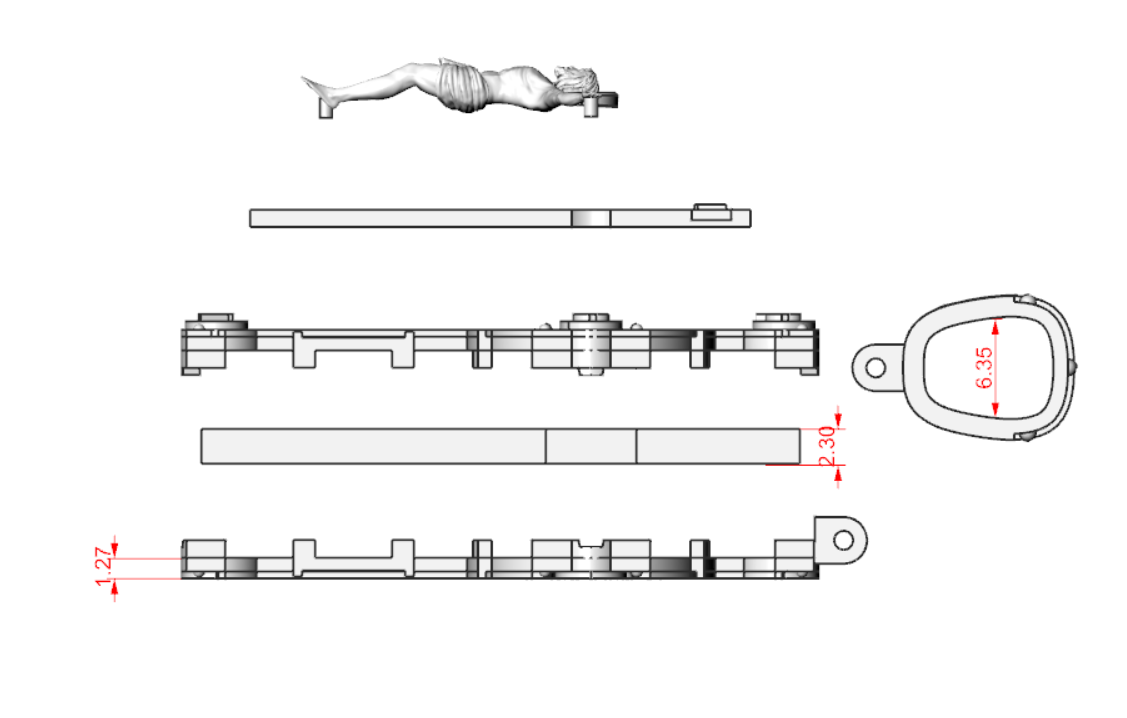

Production & Compatibility The model is provided as a multi-part assembly, optimized for professional production. This layered structure is ideal for creating two-tone pieces by casting components in different metals or applying selective plating after casting. The clean geometry is suitable for lost-wax investment casting via high-resolution SLA/DLP 3D printers using castable resins. The design is also specified for CNC wax milling, with a calculated wax weight of 2.29 grams for the complete assembly.
Q: What size chain will fit the bail? A: The bail is designed with a generous inner clearance of 8.20mm in height and 6.50mm in width, making it suitable for thick or substantial chains and cords.
Q: What is the meaning of the inscription on the back of the crucifix? A: The reverse side features the Cyrillic text 'СПАСИ И СОХРАНИ,' a traditional Eastern Orthodox prayer which translates to 'Save and Protect' in English.
Q: Is this crucifix model a single solid piece? A: No, this is a layered, multi-part model designed for assembly. This allows for easier production of two-tone versions, where the central Corpus Christi can be a different color from the main cross structure, as depicted in the renders.
crucifix pendant · orthodox cross · russian cross · byzantine cross · christian jewelry · religious pendant · save and protect · cyrillic prayer · layered jewelry · two tone pendant · corpus christi · jesus cross · mens pendant · large pendant · spiritual jewelry · faith pendant · eastern orthodox · chi rho bail · detailed crucifix · adams head cross
