Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: Model2019
Price: $25.00 USD

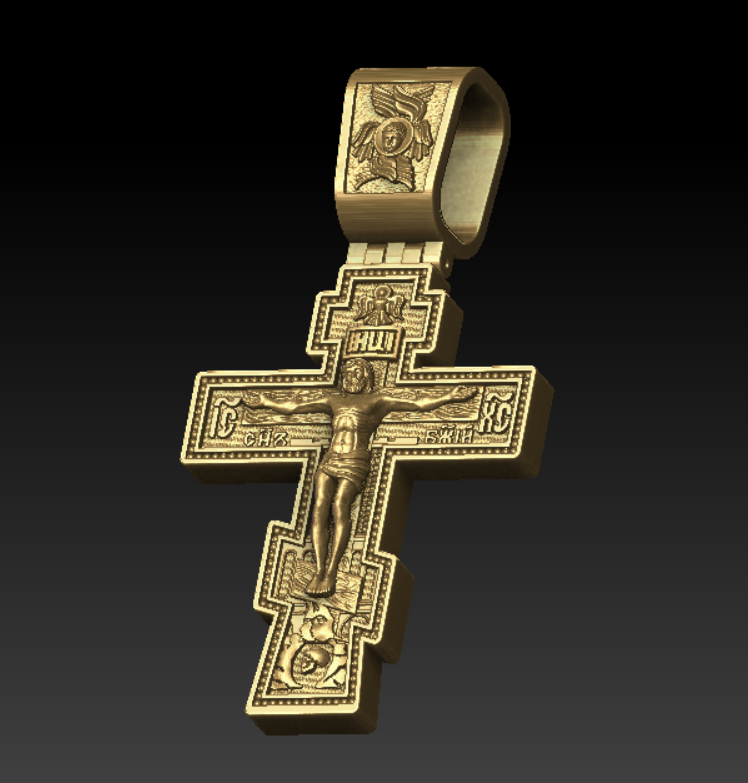

A large-format Eastern Orthodox three-bar cross pendant, this model measures 47.70mm in height by 35.63mm wide. The front features a high-relief Crucifixion scene, including a 29.85mm corpus Christi, the skull of Adam at Golgotha, and Cyrillic inscriptions. An articulated bail, displaying a Seraph relief, has an inner passage of 14.71mm by 9.34mm to accommodate large chains. The reverse side bears the 'Спаси и Сохрани' (Save and Protect) prayer against a textured background. The total model volume is 4191.138 mm³, prepared as a watertight mesh suitable for SLA/DLP printing or CNC wax milling.
No gems specified.

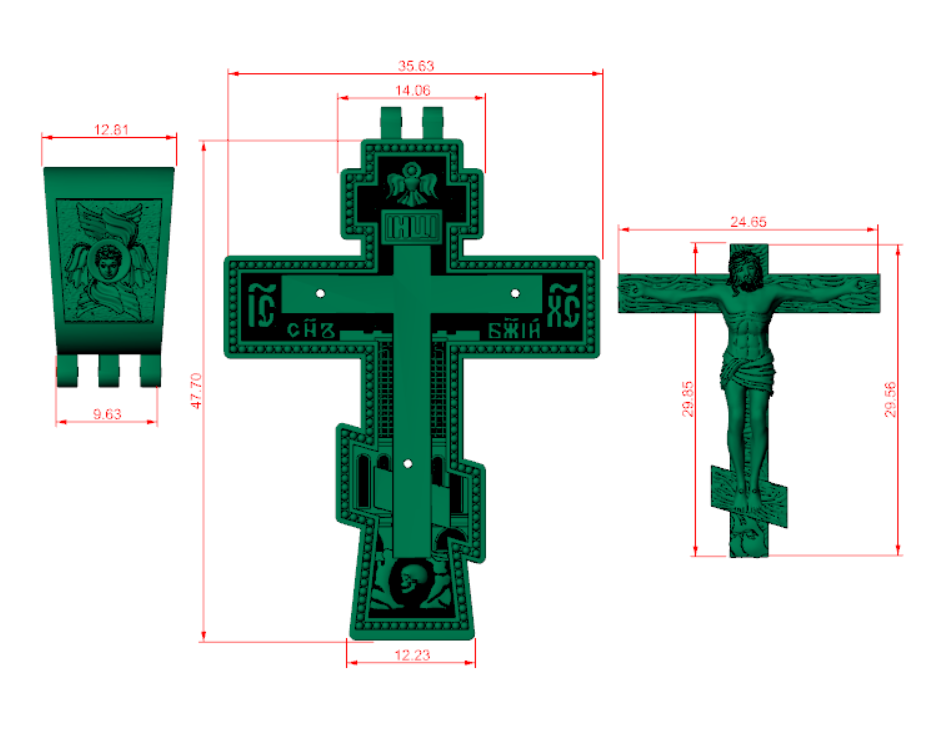

Pendant Dimensions: Overall Height (with bail): 47.70 mm Width: 35.63 mm

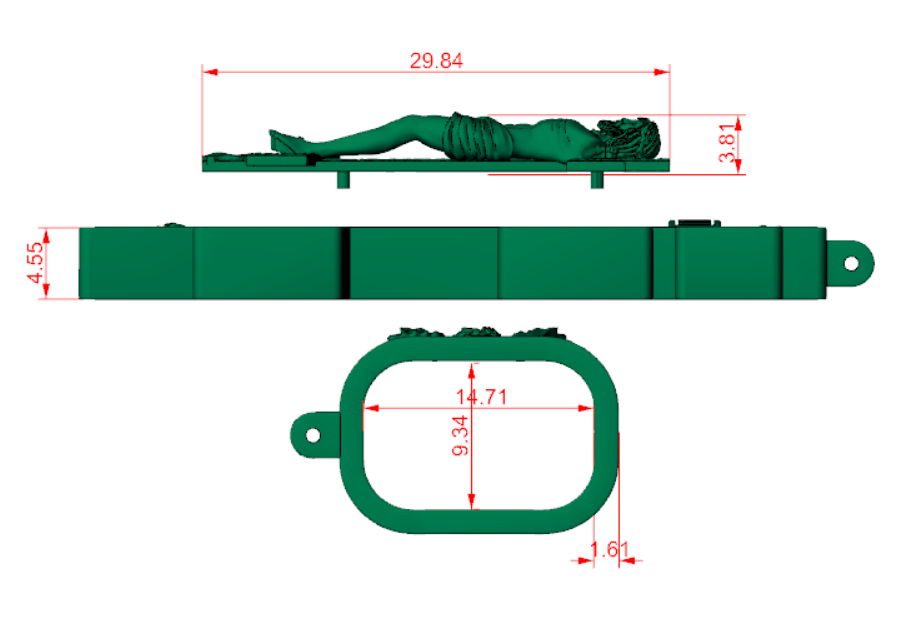

Bail Dimensions: Height: 12.61 mm Inner Passage: 14.71 mm × 9.34 mm
Not applicable

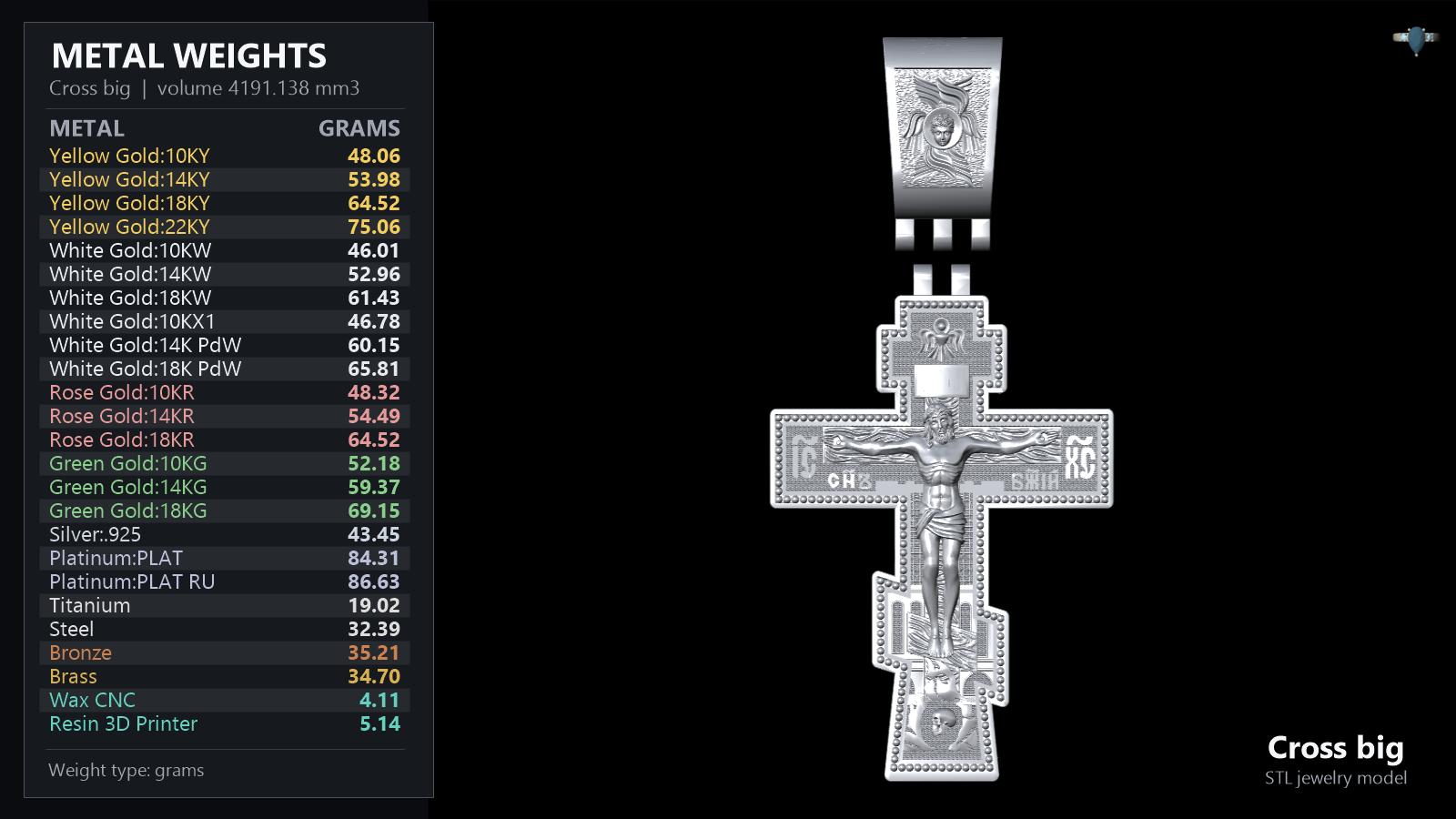

Based on a model volume of 4191.138 mm³: - Silver 925: 43.5 g - Yellow Gold 14K: 54.0 g - Yellow Gold 18K: 64.5 g - White Gold 14K: 53.0 g - Platinum (PLAT): 84.3 g - Steel: 32.4 g - Bronze: 35.2 g

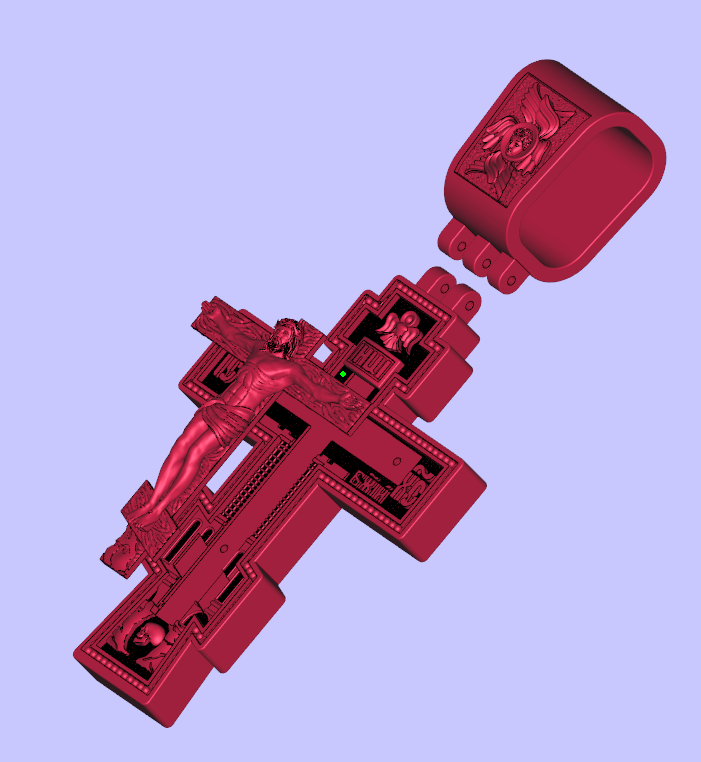

Production & Compatibility This two-part model (cross body and separate corpus figure) is optimized for high-resolution 3D printing on SLA, DLP, or MSLA systems (e.g., Asiga, Formlabs) using castable resins. The clear relief and substantial volume also make it an excellent candidate for 4-axis CNC wax milling. The separate corpus allows for differential finishing or casting in a different metal before assembly.
Q: What is the maximum chain size this bail can accommodate? A: The articulated bail has a large inner passage measuring 14.71mm wide by 9.34mm high, designed to fit wide or heavy chains as well as thick leather cords.

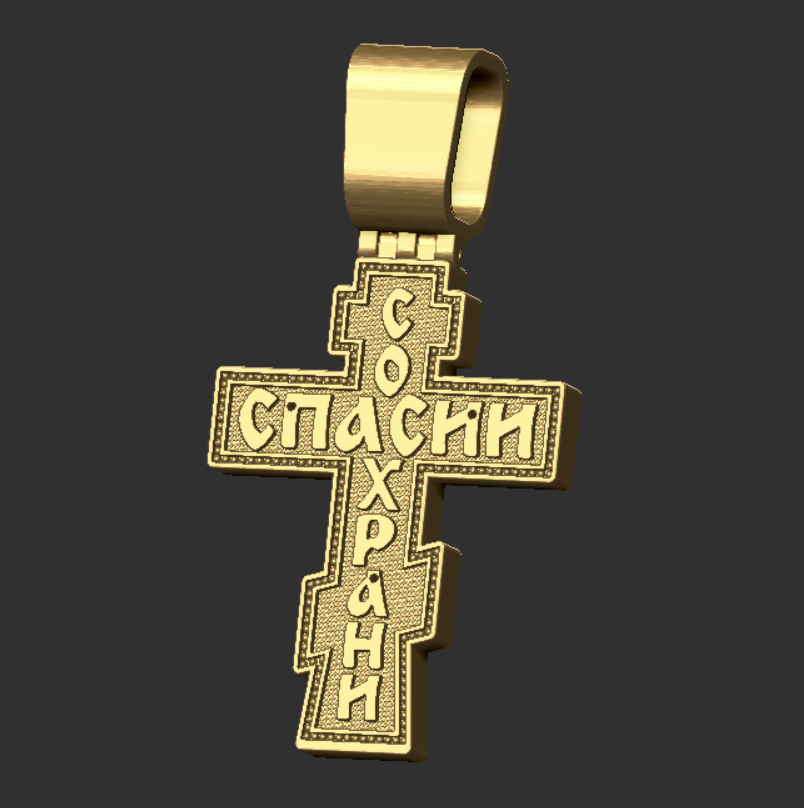

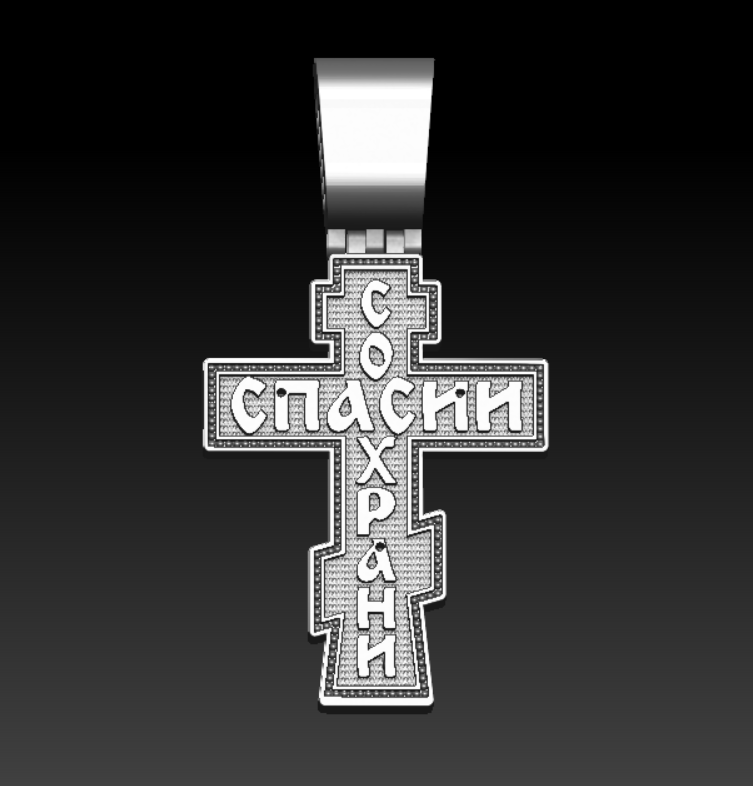

Q: Is the textured background on the back of the cross suitable for pavé setting stones? A: Yes, the stippled texture on the reverse side, where the 'Спаси и Сохрани' inscription is located, can serve as a guide for drilling and setting small pavé stones, typically 1.0mm to 1.2mm in diameter.
Q: Why is the corpus Christi figure a separate piece from the cross? A: The 29.85mm Corpus Christi is supplied as a separate component to facilitate two-tone designs (e.g., a gold figure on a silver cross) and to simplify polishing and finishing of the deep recesses on the main cross body before final assembly.
