Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: Model2019
Price: $20.00 USD

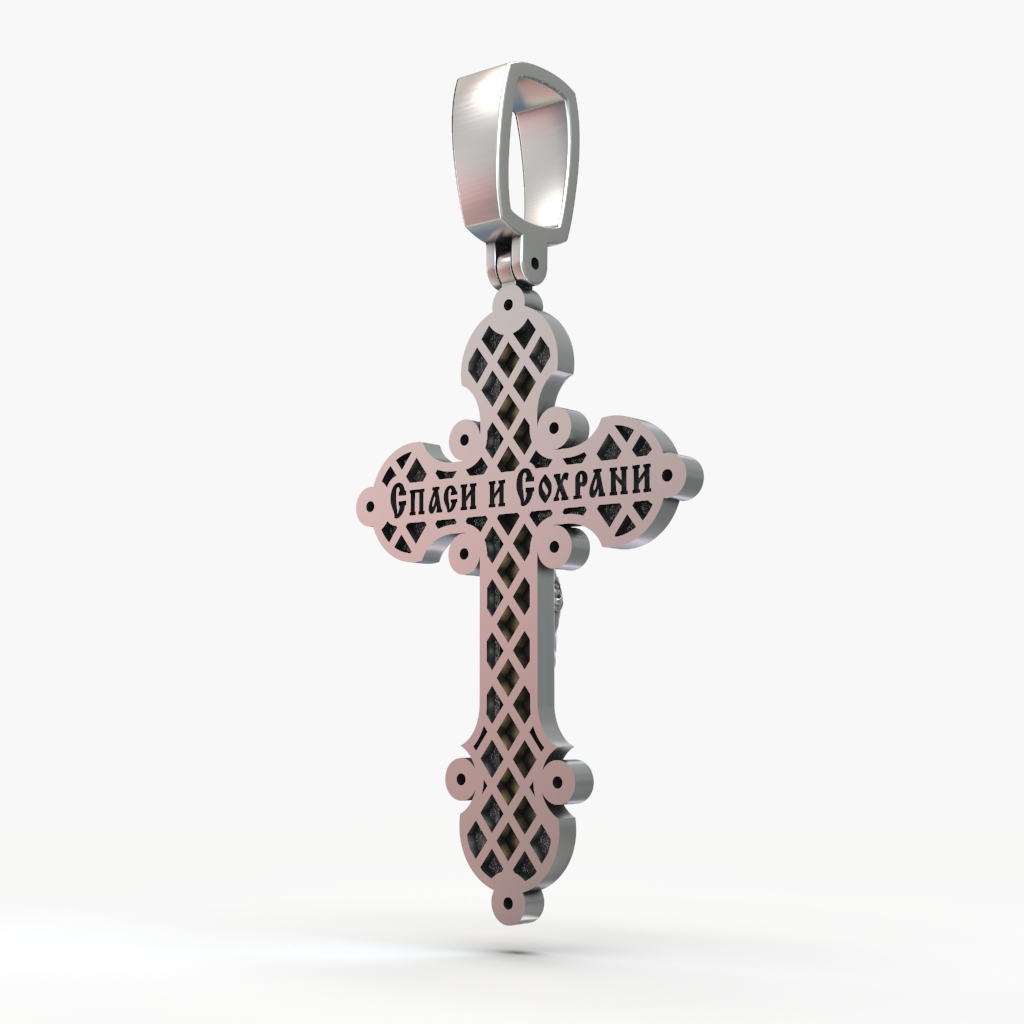

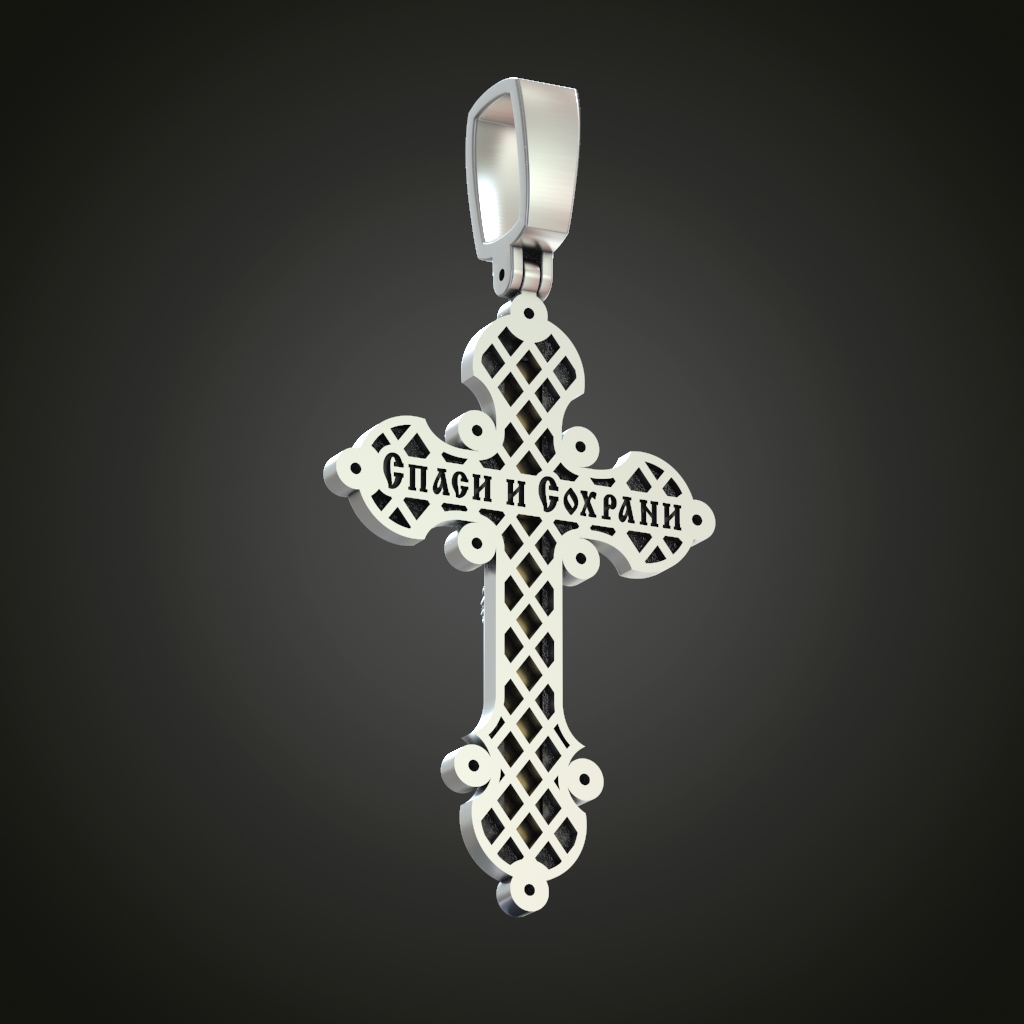

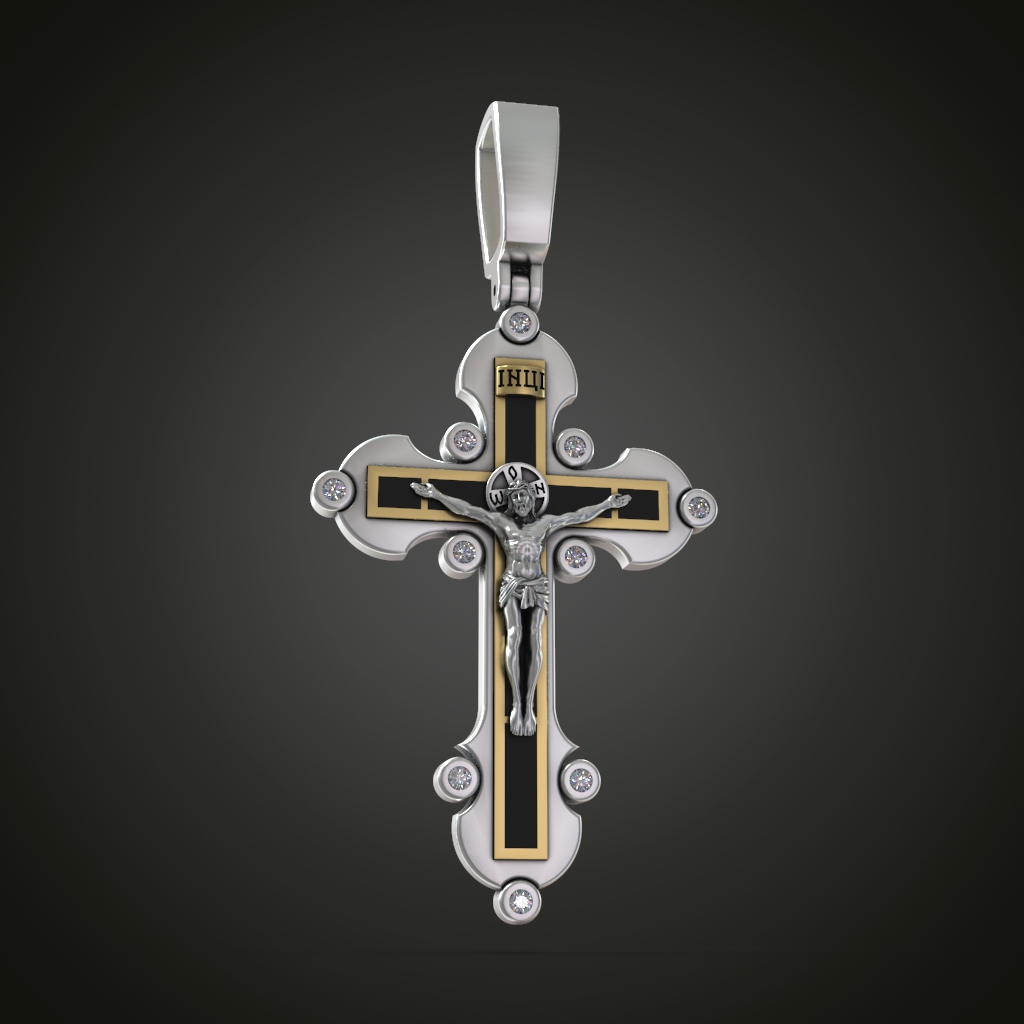

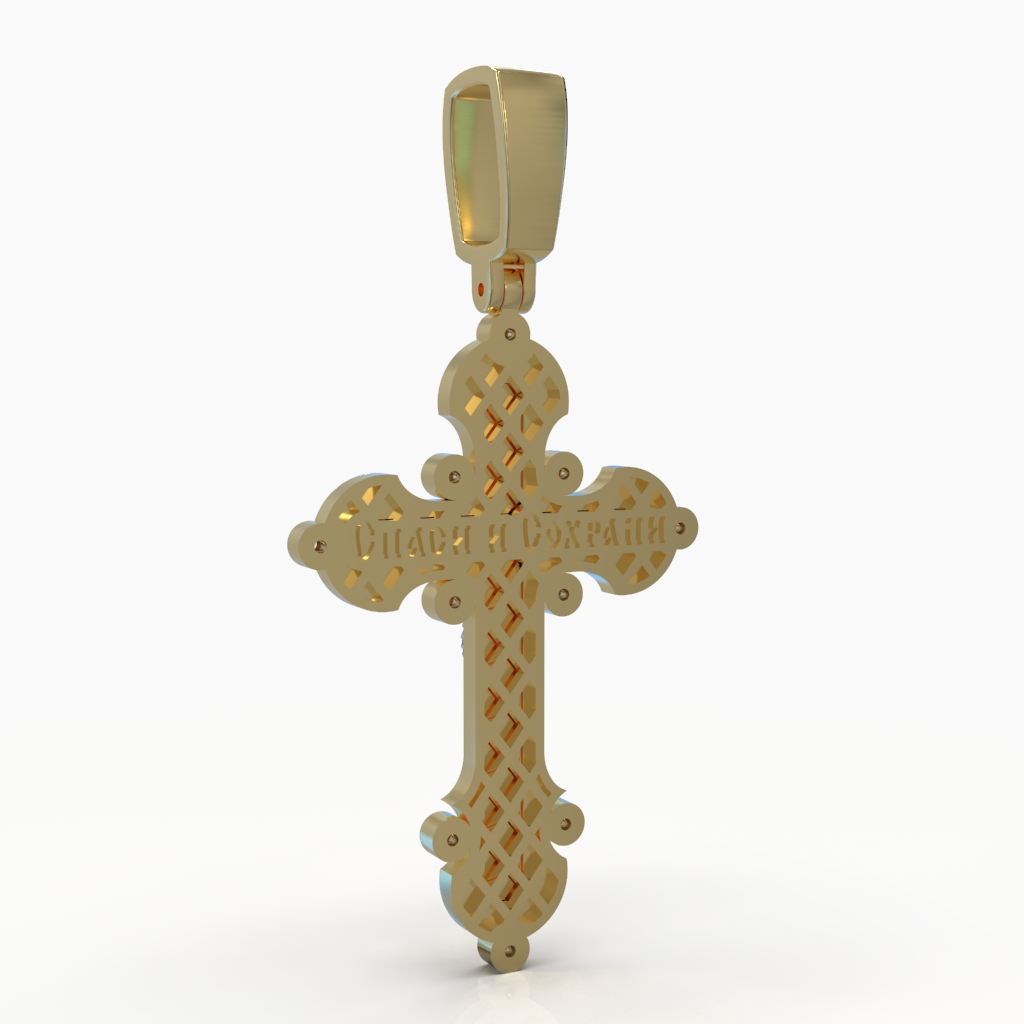

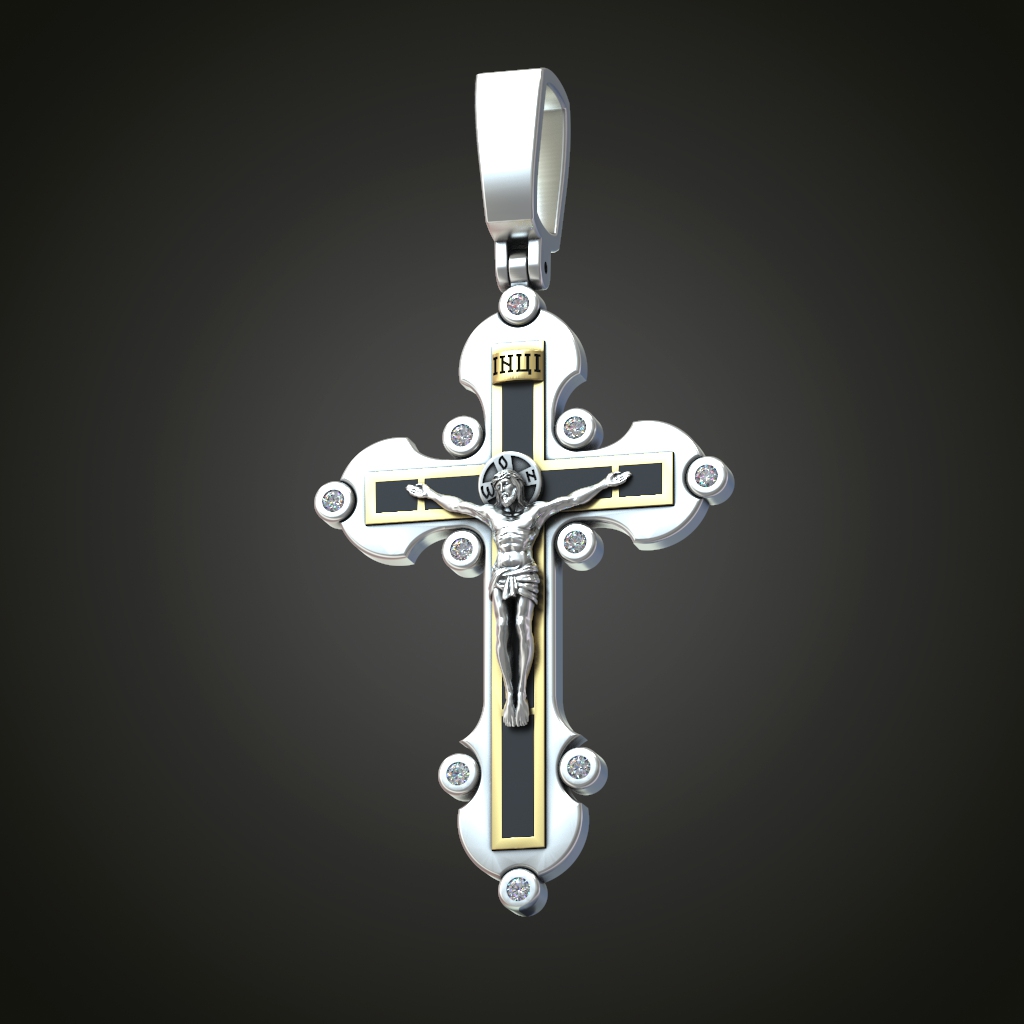

This is a model of an Eastern Orthodox crucifix pendant measuring 53.96mm in total height and 26.63mm wide. The front features a high-relief depiction of the Crucifixion, including a detailed corpus and an INRI titulus plaque. The reverse side is engraved with the traditional Cyrillic prayer 'СПАСИ И СОХРАНИ' (Save and Protect). The body of the cross is constructed with a decorative lattice openwork pattern, providing a lightweight structure, and culminates in trefoil-shaped terminals on each arm. A hinged rectangular bail with an internal height of 5.96mm allows for pairing with various chain sizes. The design is provided as a watertight mesh suitable for 3D printing and subsequent casting.
No gems specified.

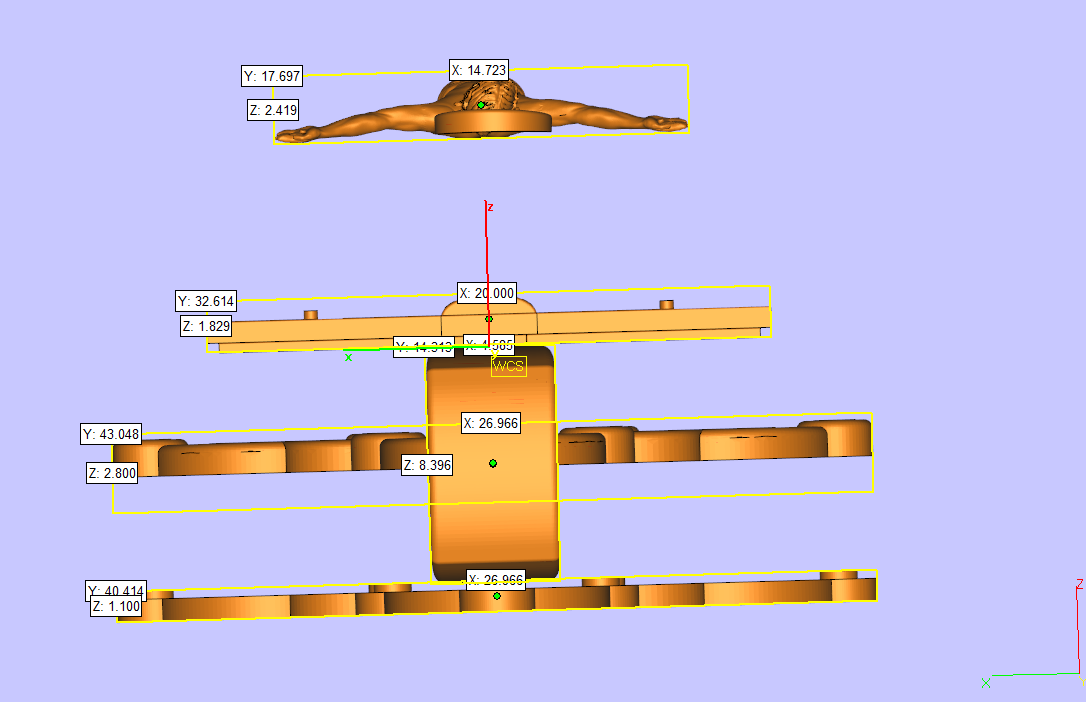

- Total Height (with bail): 53.96 mm - Cross Height: 40.19 mm - Cross Width: 26.63 mm - Cross Body Thickness: 3.88 mm - Bail Inner Height: 5.96 mm - Bail Material Thickness: 1.22 mm
Not applicable
Volume not specified - weight cannot be calculated.
Production & Compatibility
This pendant model is optimized for high-resolution 3D printing. - Printing: Best results are achieved with SLA/DLP/MSLA printers using castable resins to capture the fine details of the relief sculpture and the Cyrillic engraving. - Casting: The design is suitable for standard lost-wax investment casting. The openwork lattice requires careful burnout to ensure complete evacuation of the resin. - Assembly: The articulated bail is modeled as a separate component, which simplifies the casting and final polishing process before assembly.
Q: What is the inscription on the back of the pendant? A: The reverse side is engraved with the Cyrillic prayer "СПАСИ И СОХРАНИ", which translates to "Save and Protect". This is a common inscription on Eastern Orthodox crosses.
Q: What is the largest chain this pendant can accommodate? A: The bail's internal clearance is 5.96mm tall. This is suitable for most light to medium-weight chains, likely accommodating widths up to 4mm depending on the clasp style.
Q: Is the openwork pattern on the cross body fully pierced through? A: Yes, the renders show a lattice-style openwork pattern that fully perforates the 3.88mm thick body of the cross, creating a lightweight and visually detailed design.
