Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: Model2019
Price: $12.50 USD

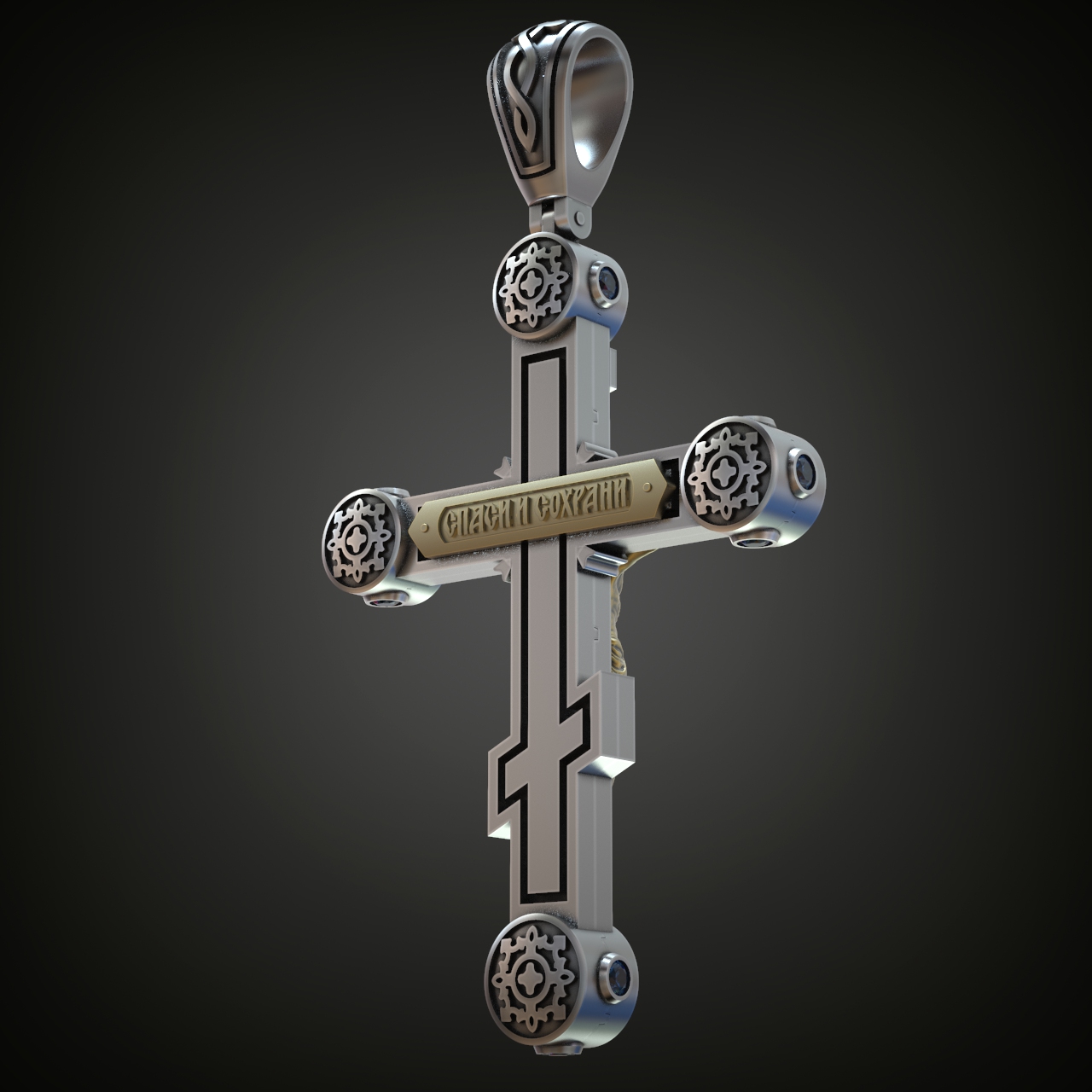

This 3D model details an Eastern Orthodox crucifix pendant featuring a traditional three-bar cross and a high-relief corpus Christi figure. The design is rich with inscriptions, including the prayer "СПАСИ И СОХРАНИ" (Save and Protect), "INRI" on the titulus, and Christogram monograms such as IC XC and NIKA within circular medallions at the cross terminals. The pendant measures 59.04 mm in height by 41.95 mm wide, with a main body thickness of 4.01 mm. The design provides for eleven 2.5 mm round stones to be bezel-set into the sides of the structure. An articulated bail, decorated with a relief knotwork pattern, offers a 6.65 mm inner clearance for a chain.

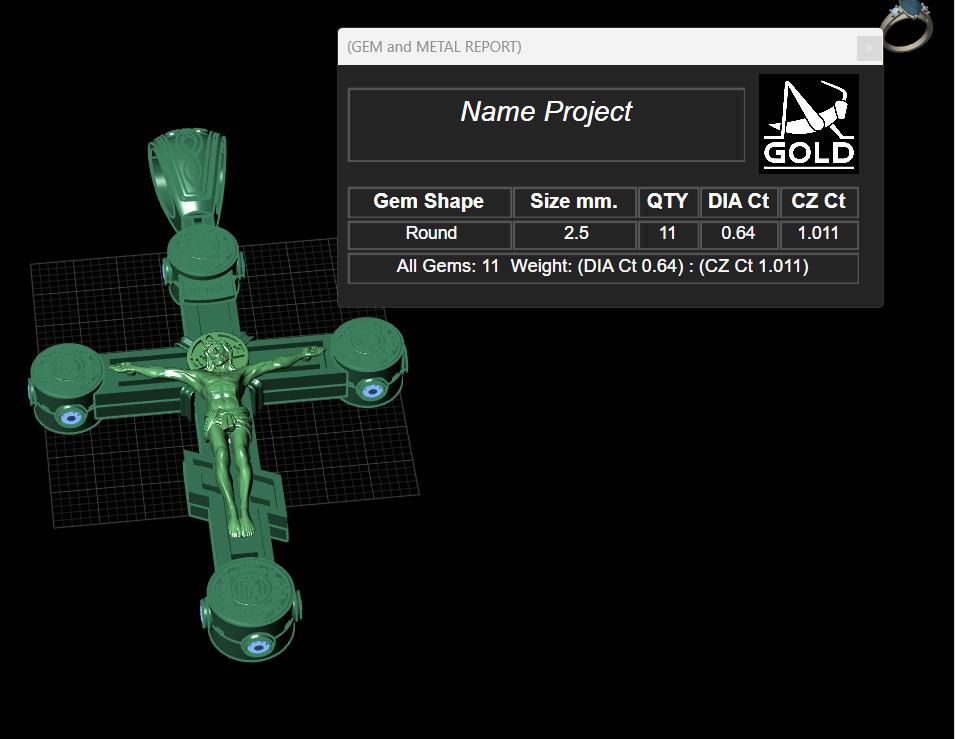

Stone Quantity: 11 (eleven) Cut: Round Size: 2.5 mm Total Carat (DIA equivalent): 0.64 ctw Setting: Bezel / Flush setting

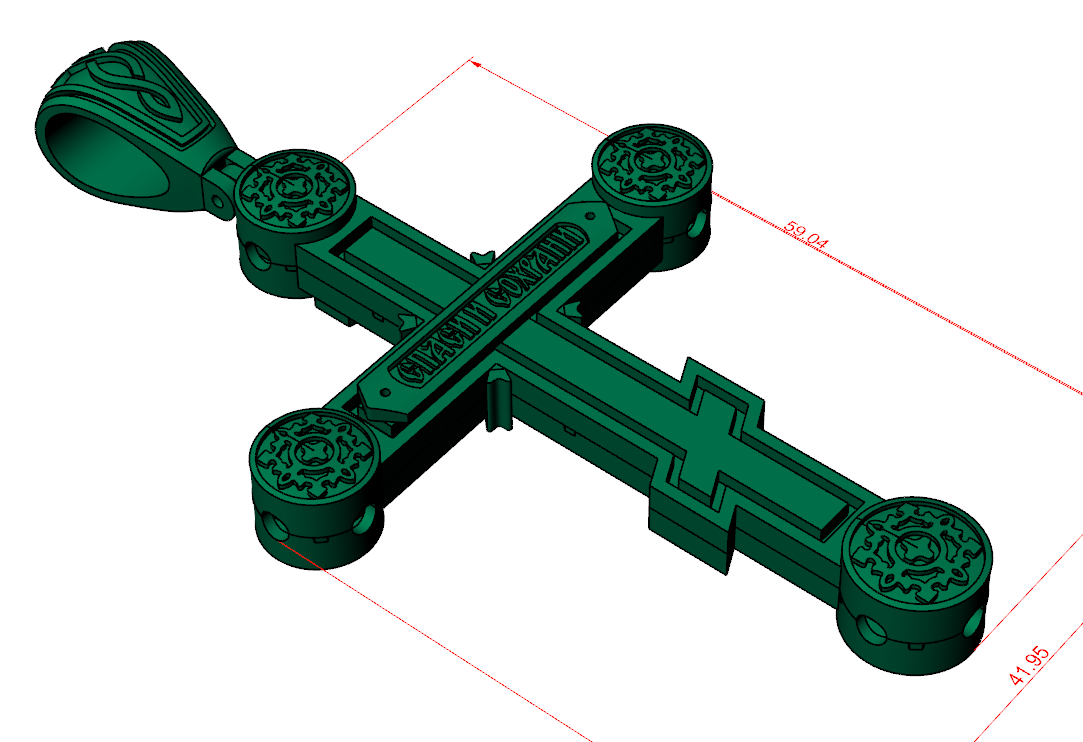

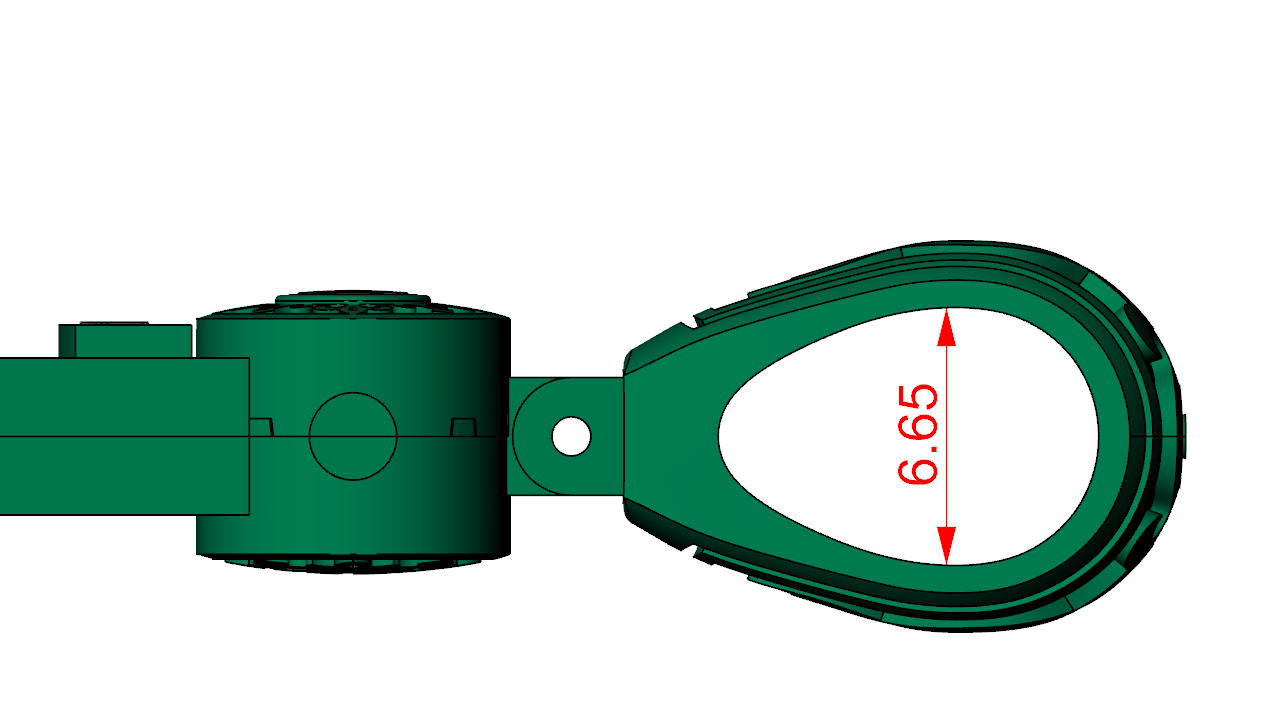

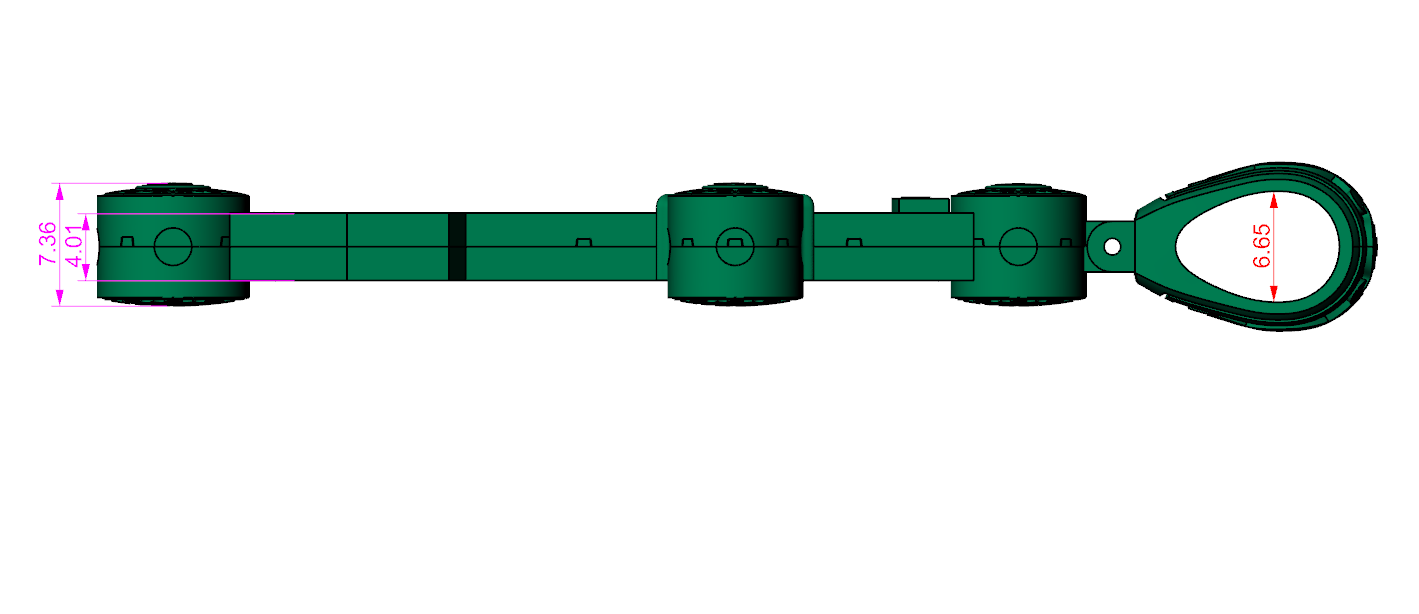

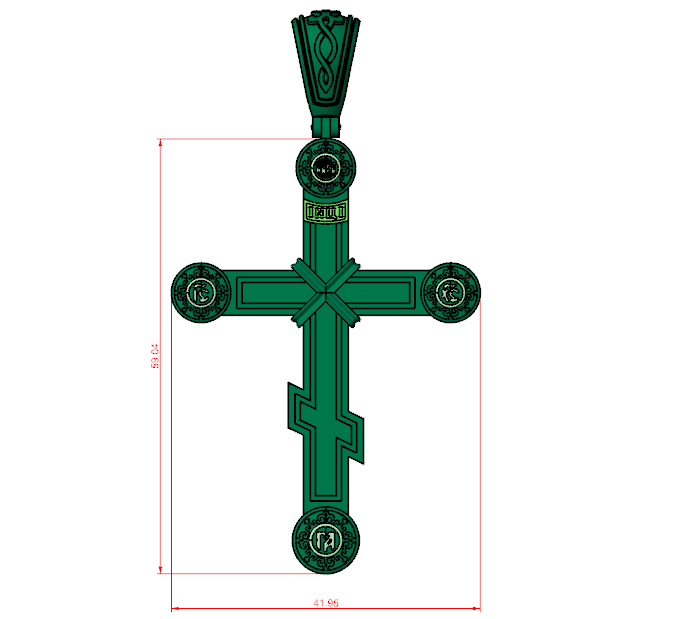

Overall Height: 59.04 mm Overall Width: 41.95 mm Body Thickness: 4.01 mm Terminal Thickness: 7.36 mm Bail Inner Clearance: 6.65 mm

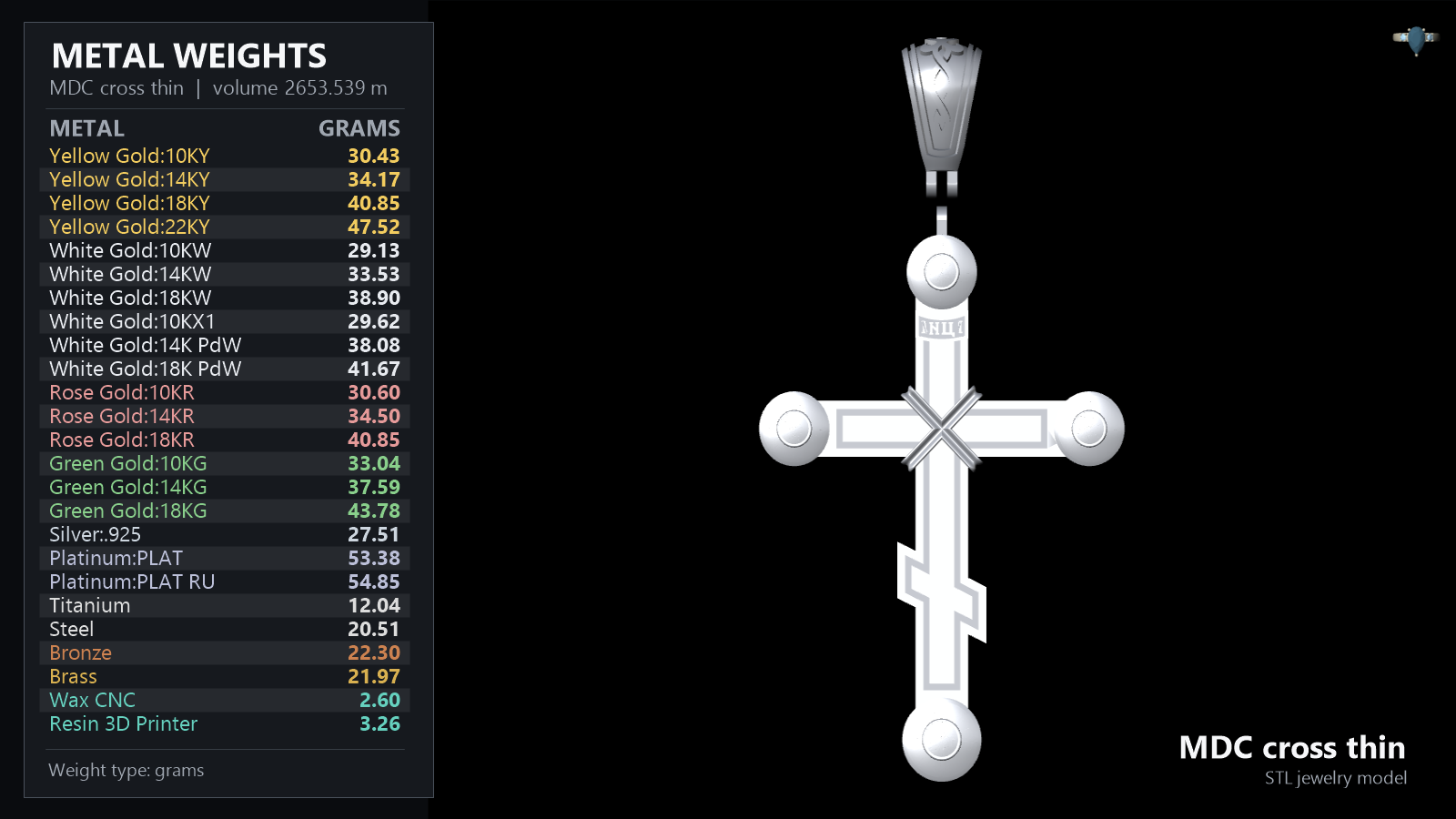

The estimated weights are based on the model volume of 2653.539 mm³: - Gold 585 (14K): 34.2 g - Gold 750 (18K): 40.9 g - Silver 925: 27.5 g - Stainless Steel: 20.5 g - Bronze: 22.3 g
Q: What are the overall dimensions of the pendant? A: The pendant measures 59.04 mm in height and 41.95 mm in width. The articulated bail provides an inner clearance of 6.65 mm for a chain.
Q: What are the specifications for the small stones on the side? A: The design accommodates 11 round stones, each measuring 2.5 mm in diameter, which are seated in bezel-style settings on the sides of the cross terminals and body.
Q: What do the inscriptions on the cross mean? A: The pendant features several traditional inscriptions, including the Russian Orthodox prayer "СПАСИ И СОХРАНИ" ("Save and Protect"), the titulus "INRI", and Christogram monograms like IC XC (Jesus Christ) on the terminals.
orthodox cross · crucifix pendant · eastern orthodox · religious jewelry · spasi i sokhrani · corpus christi · christian pendant · three bar cross · byzantine cross · engraved pendant · knotwork bail · accent stones
