Eastern Orthodox Cross with Crucifixion & Pokrov Relief

Description

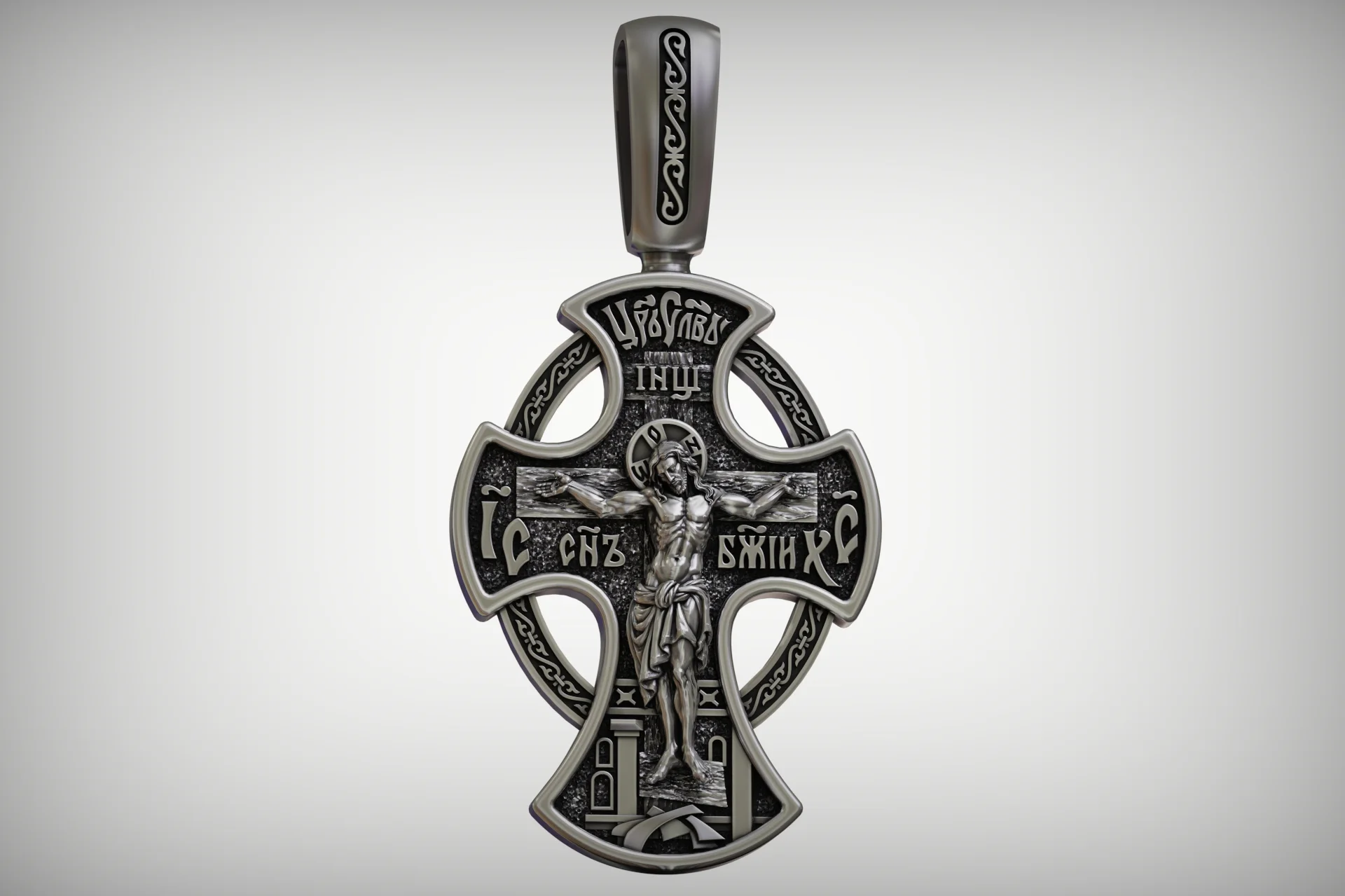

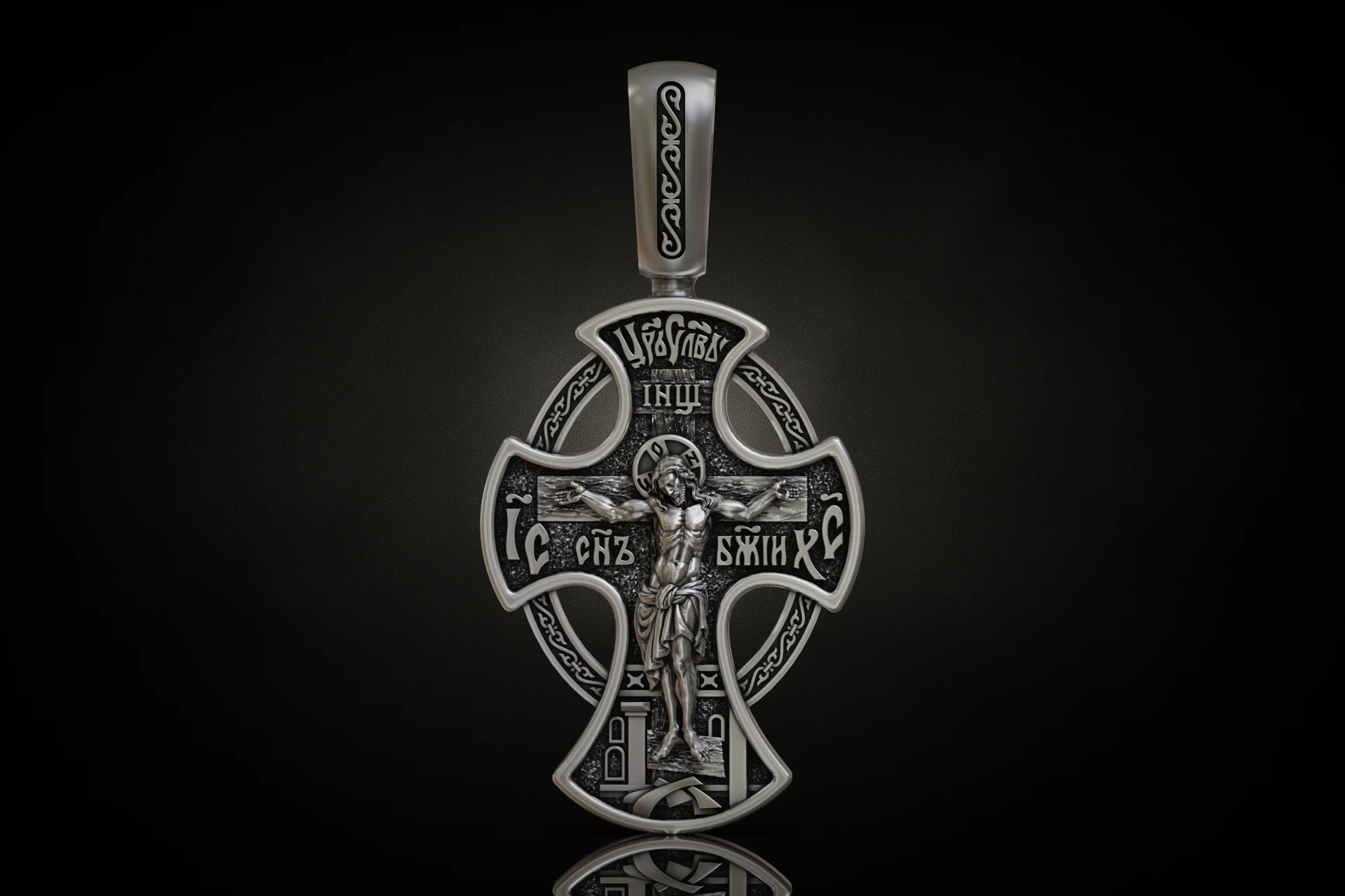

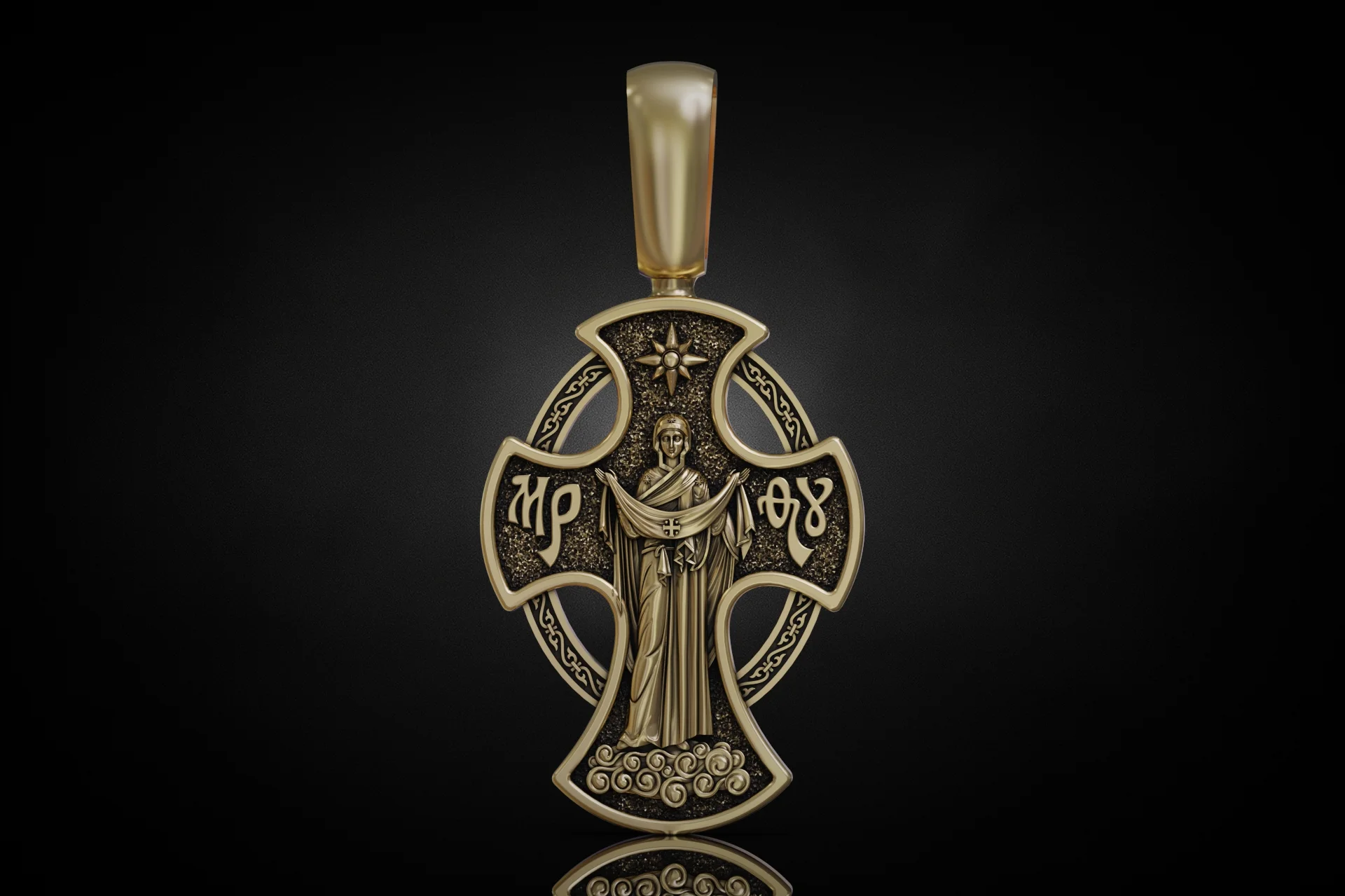

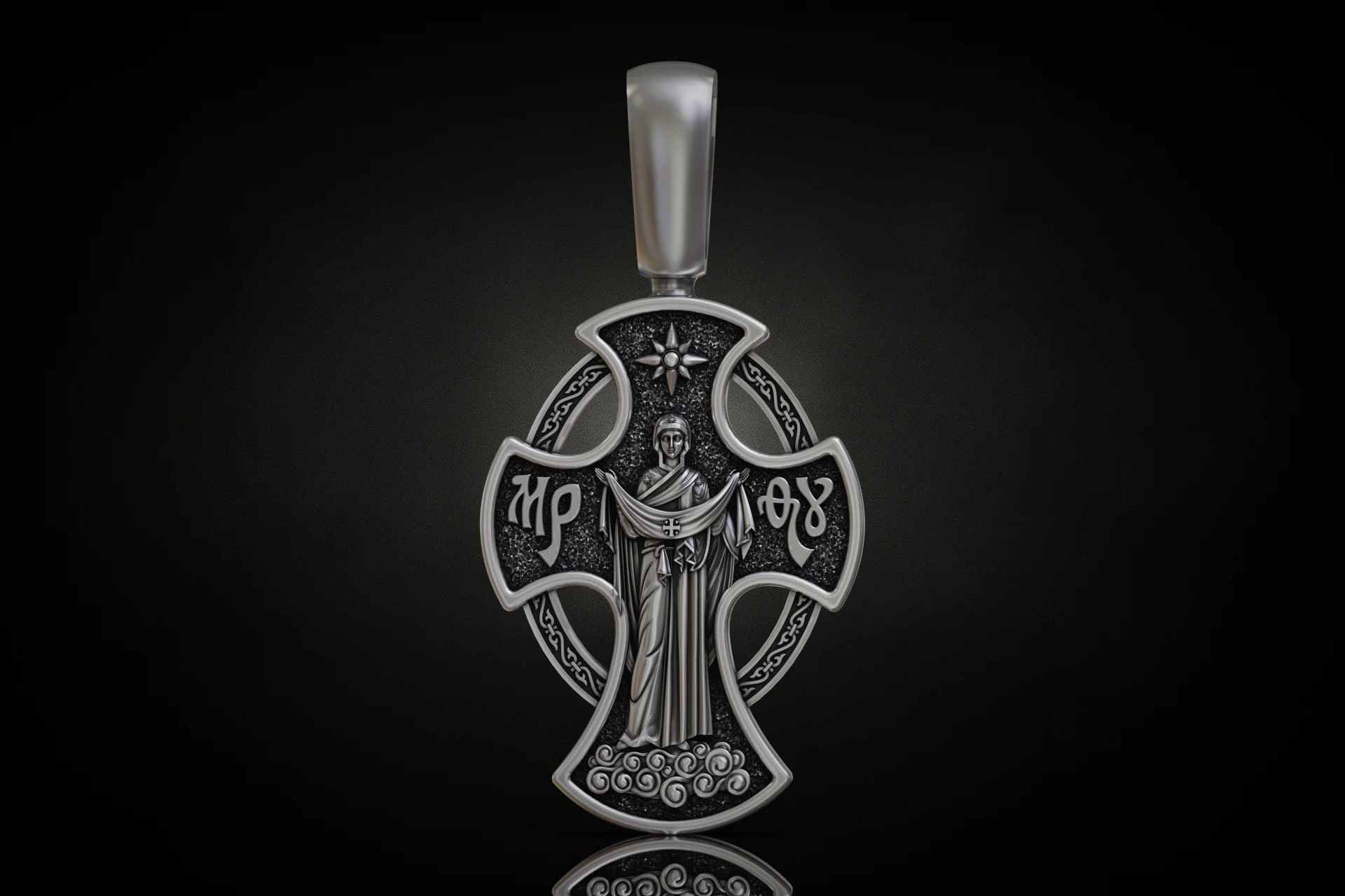

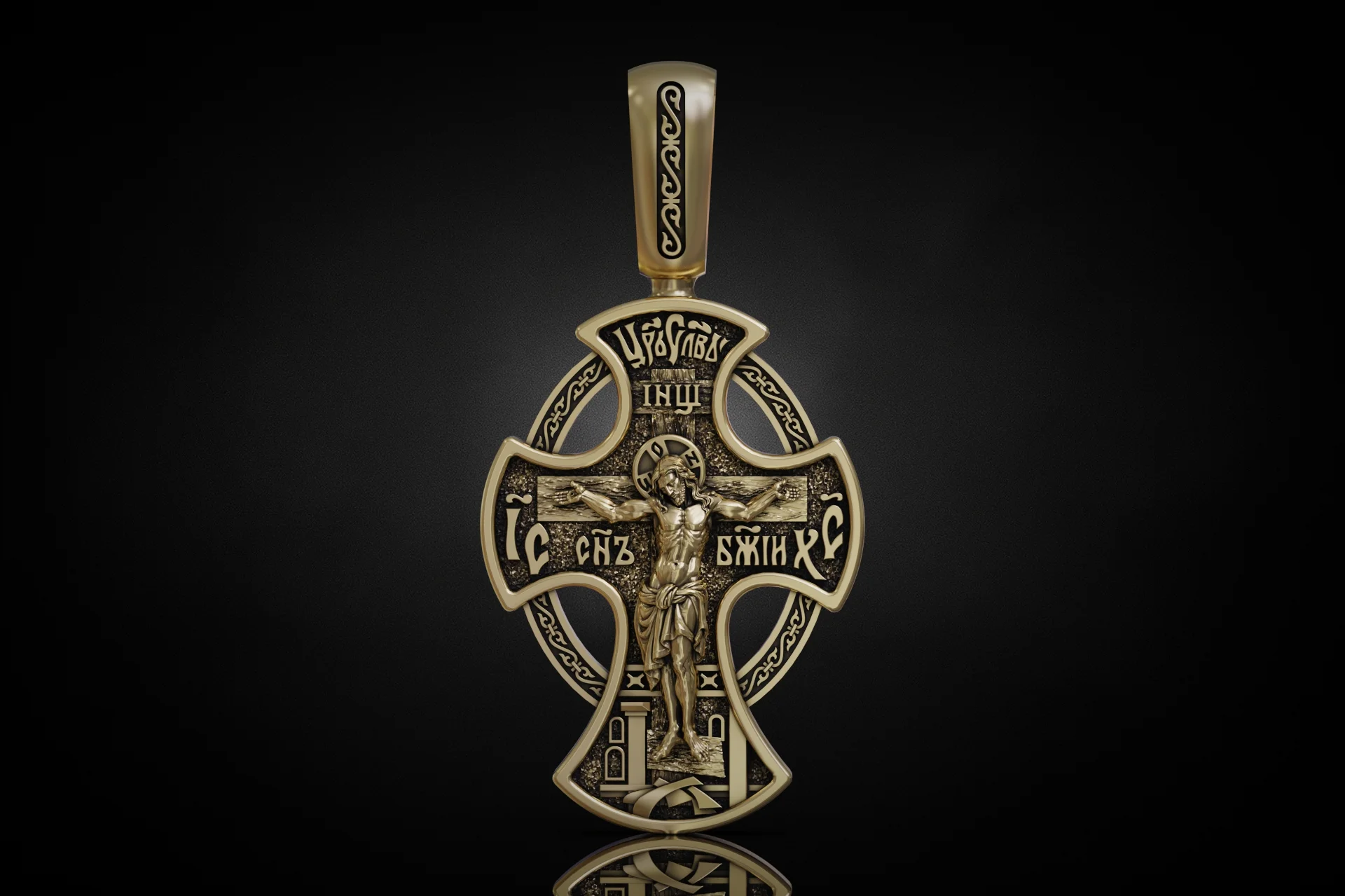

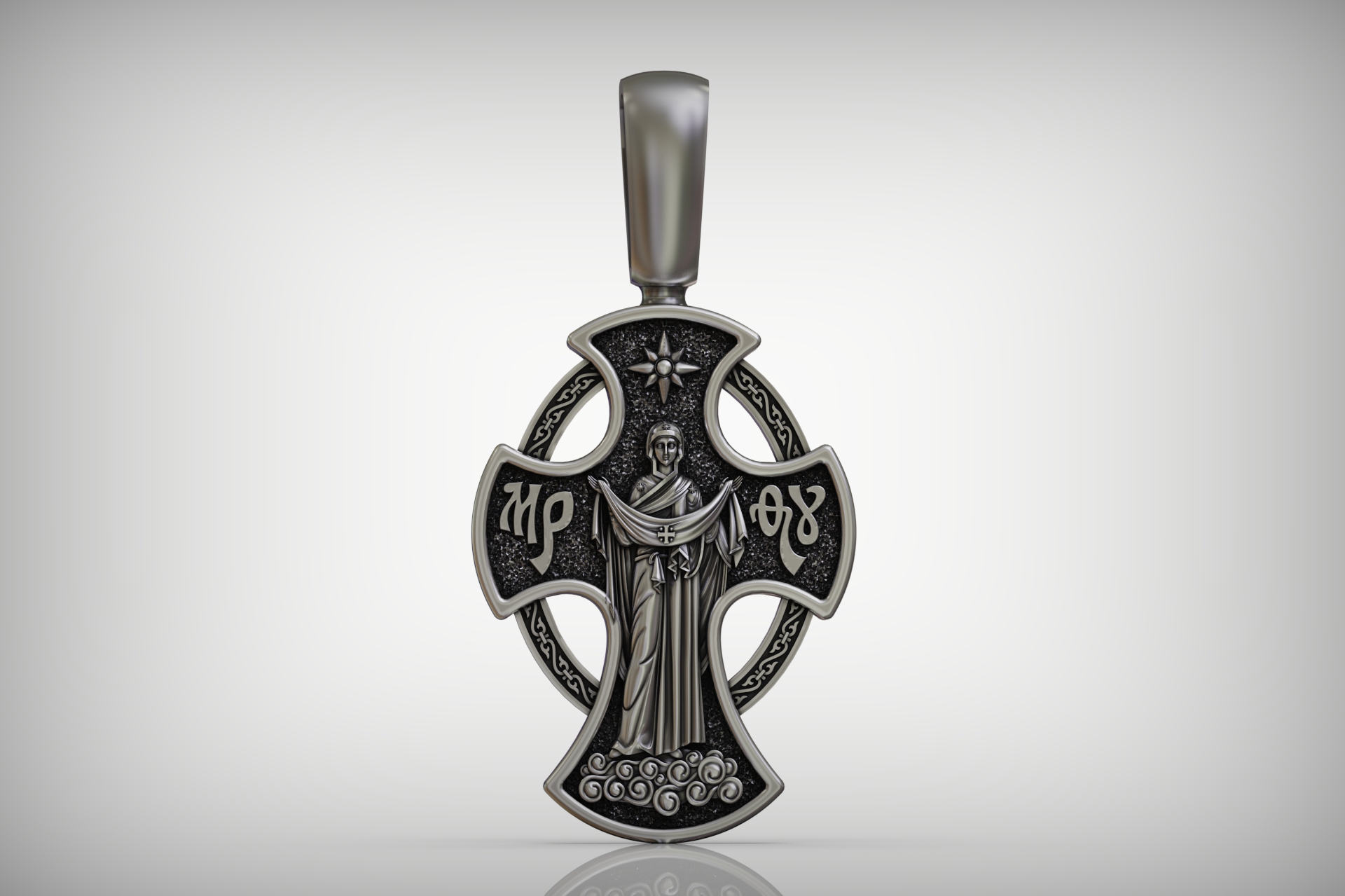

Construction of this Eastern Orthodox cross pendant involves two primary components: a flared cross base with detailed iconography and a separate high-relief model of the Corpus Christi. The obverse features the Crucifixion scene with incised Church Slavonic inscriptions, while the reverse depicts the Theotokos Pokrov (Protection of the Mother of God) below an eight-pointed star. This CAD asset, prepared with recessed fields for lettering and intricate border patterns, provides a detailed master pattern for 3D printing and a subsequent lost-wax casting workflow, accurately capturing the layered relief structure which measures 45.94 mm in total height.

- Total Height: 45.94 mm - Width: 23.07 mm - Maximum Thickness: 5.58 mm - Bail Inner Clearance: 6.02 mm

Based on the provided model data, estimated weights are: - Gold 585 (14K): 14.8 g - Gold 750 (18K): 17.7 g - Silver 925: 11.9 g - Stainless Steel: 8.8 g - Bronze: 9.6 g

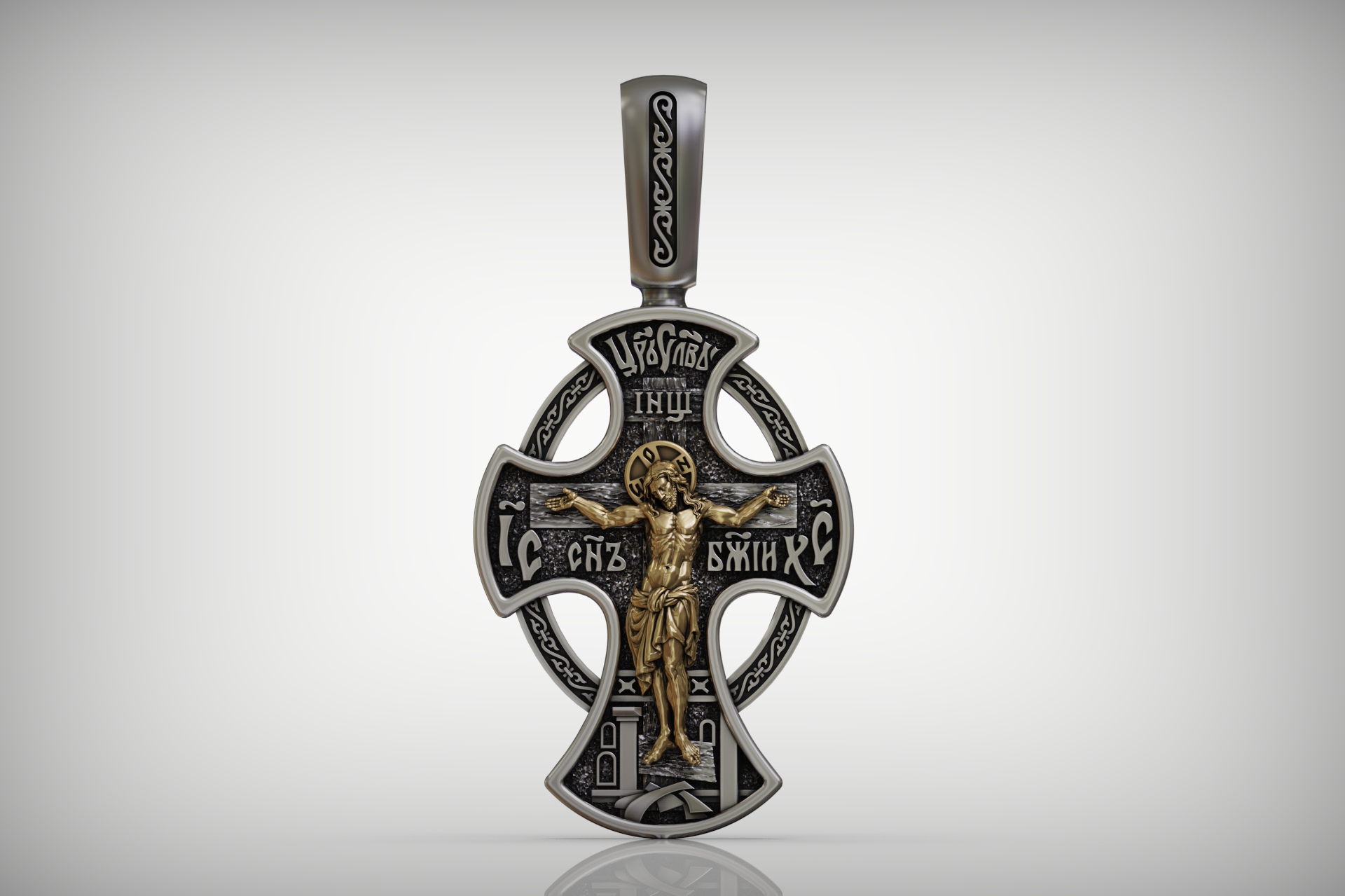

Q: Is the Crucifix figure a separate part for casting? A: Yes, this CAD asset is designed as a two-part assembly. The model for the Corpus Christi figure is separate from the main cross body, which allows for two-tone casting or separate finishing.

Q: What are the overall dimensions of this pendant? A: The pendant measures approximately 45.9 mm tall (including the bail) by 23.1 mm wide, with a maximum depth of 5.6 mm through the relief sections.

Q: How large of a chain can the bail accommodate? A: The bail is designed with an inner clearance of 6.02 mm. It can accommodate chains and clasps with a width or diameter smaller than this measurement.
