By: Model2019
Price: $10.00 USD

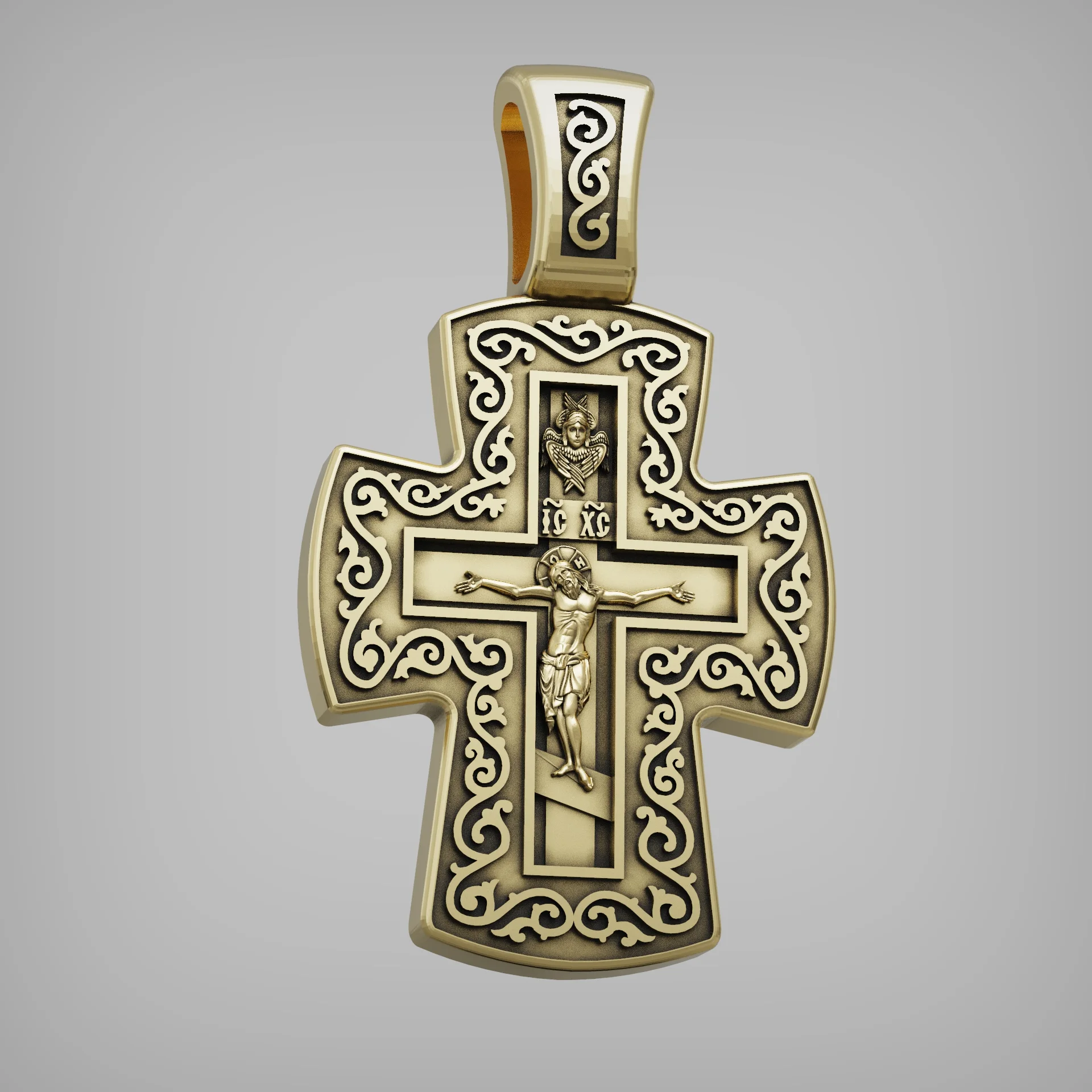

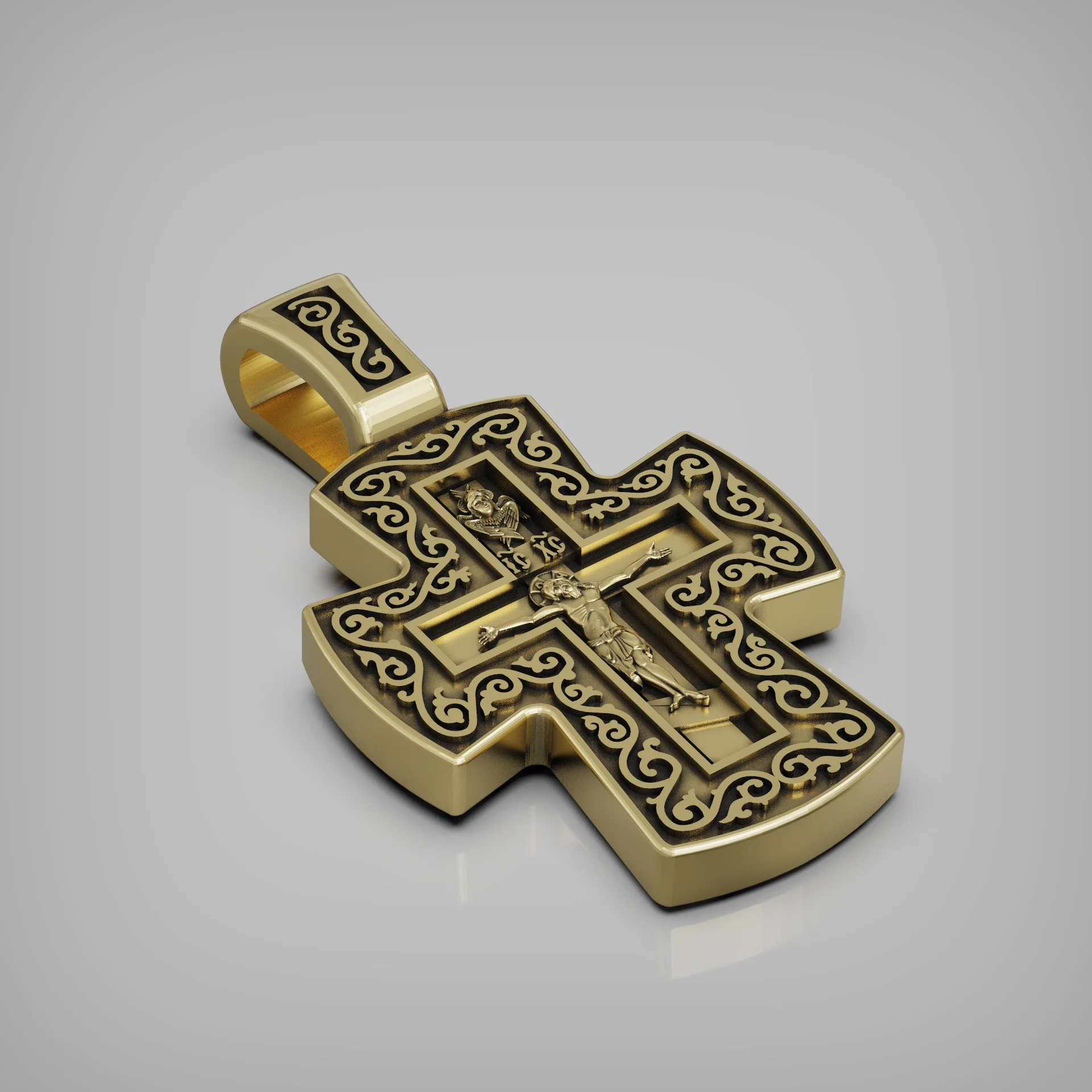

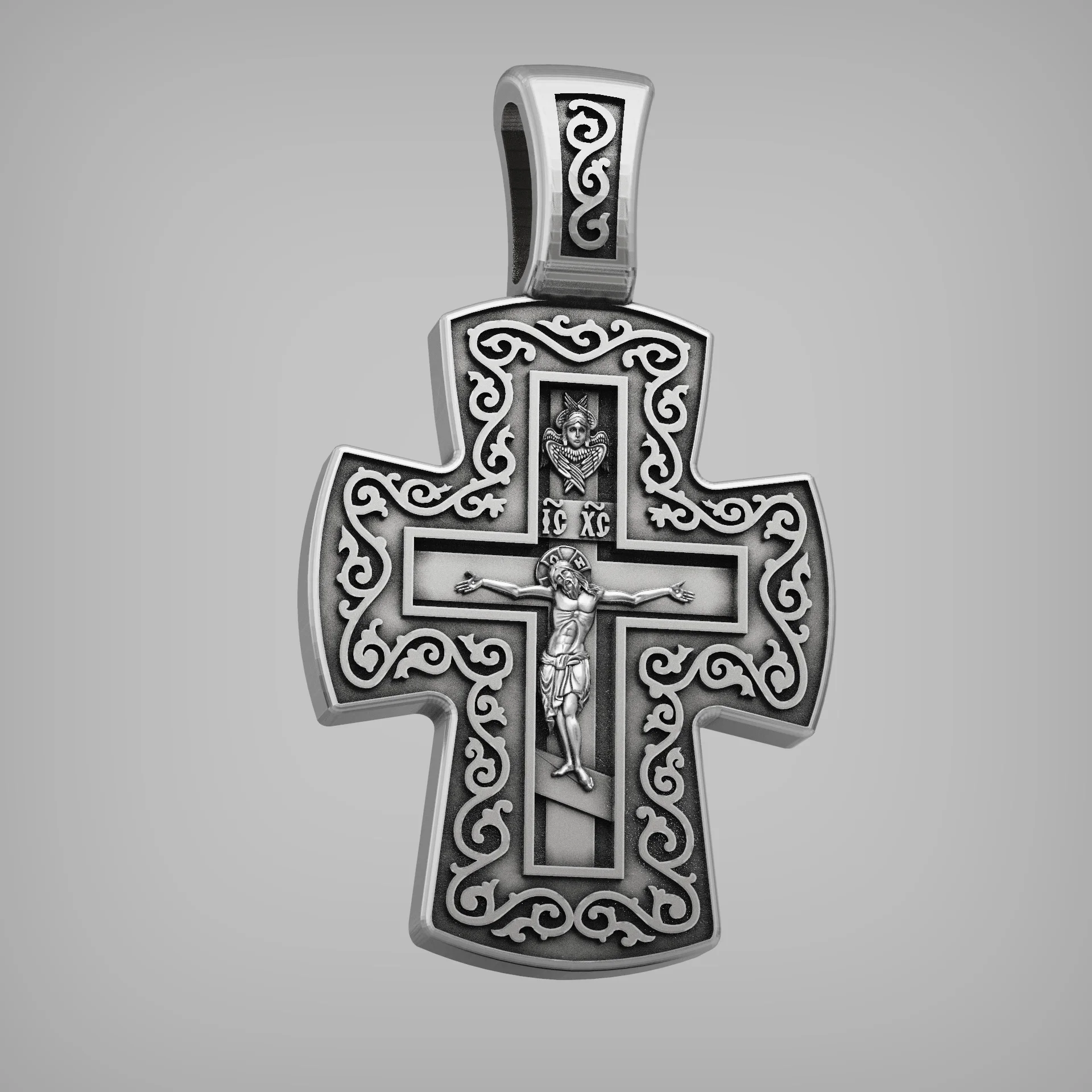

A central relief of the Crucifixion defines the face of this Orthodox cross pendant, which measures 28.04 mm in height. Above this scene, a depiction of God the Father is framed within a separate upper compartment, flanked by stylized Cyrillic inscriptions. The cross arms feature deep, recessed channels, specifically designed for contrasting enamel inlay, which set apart the high-relief scrollwork that flows around the entire perimeter. The pendant's physical presence is substantial, with a solid back and a body thickness of 3.33 mm, creating a durable and weighty feel. The reverse side continues the ornate theme, showcasing the 'Спаси и Сохрани' (Save and Protect) prayer intricately woven into the same continuous scroll pattern found on the front.

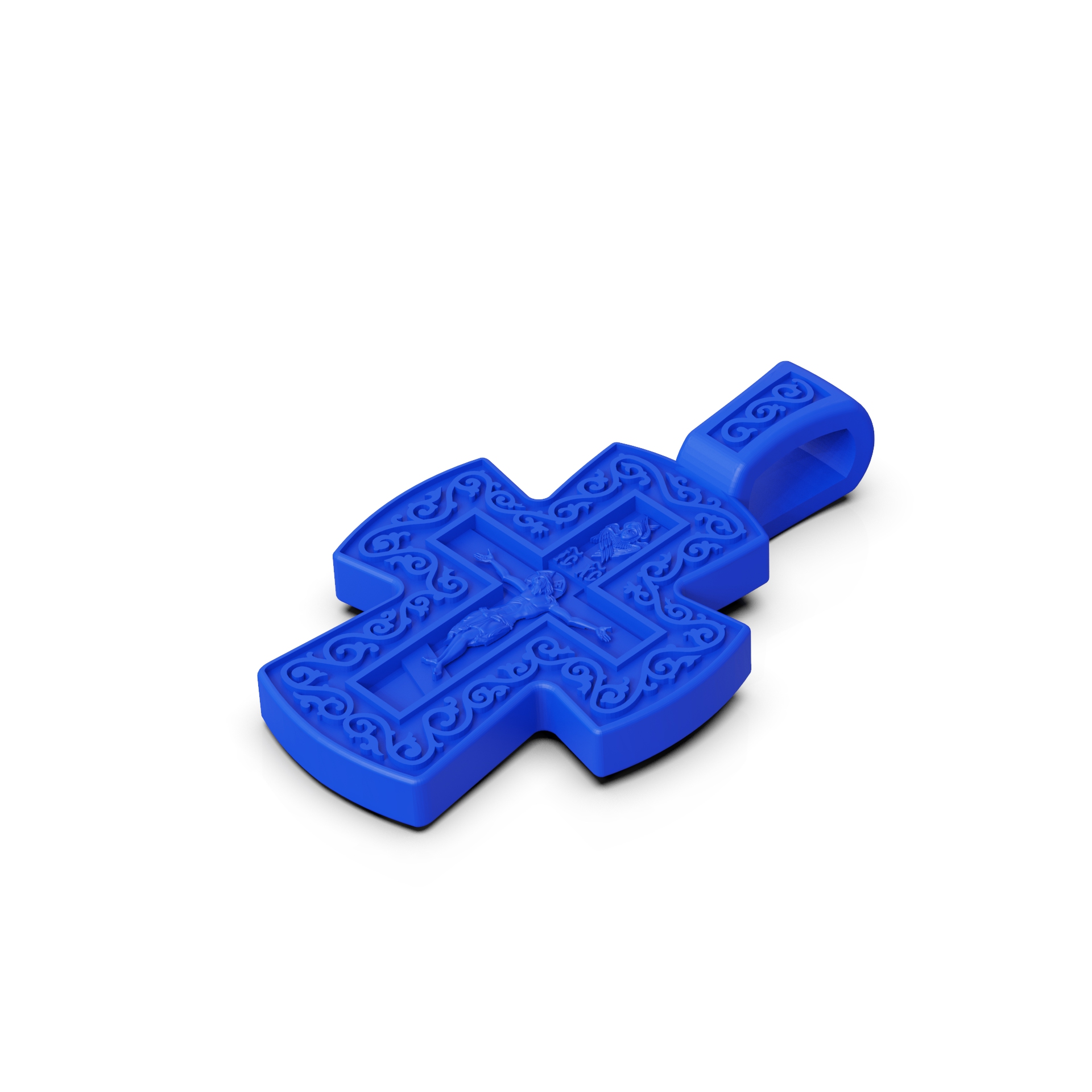

This jewelry CAD model has a total width of 21.95 mm, making it a balanced piece for daily wear. Its construction as a single, watertight manifold mesh composed of 250,066 triangles ensures a high-resolution output suitable for direct casting or wax pattern printing. The robust bail is engineered with an inner clearance of 4.05 mm, accommodating a wide range of chain styles and thicknesses. The design's carefully managed relief depth on both the front and back enables clean investment burnout without trapping materials, making it a production-ready file for jewelers and designers.
No gems specified.

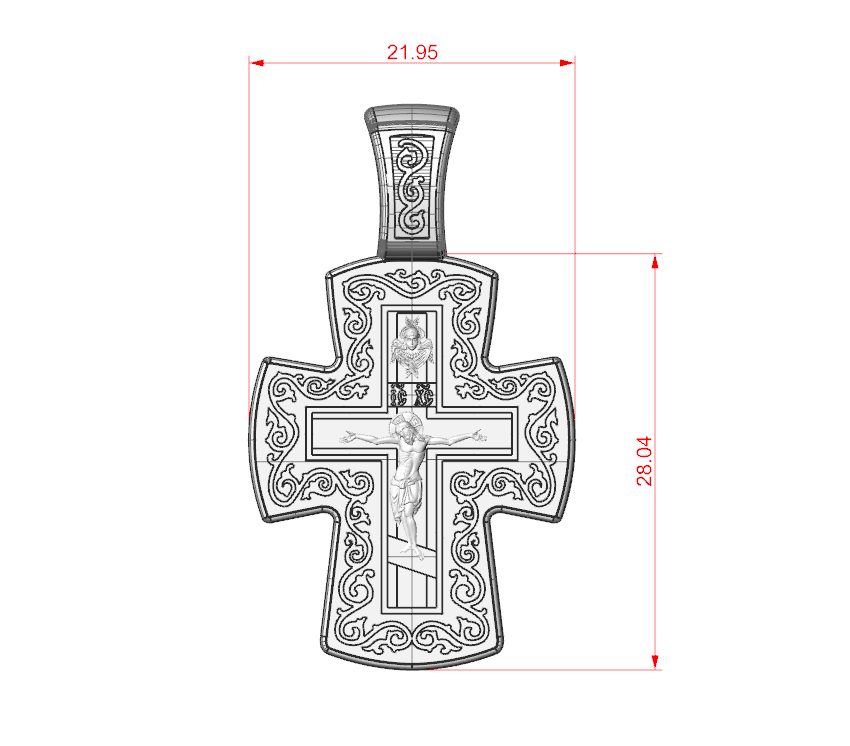

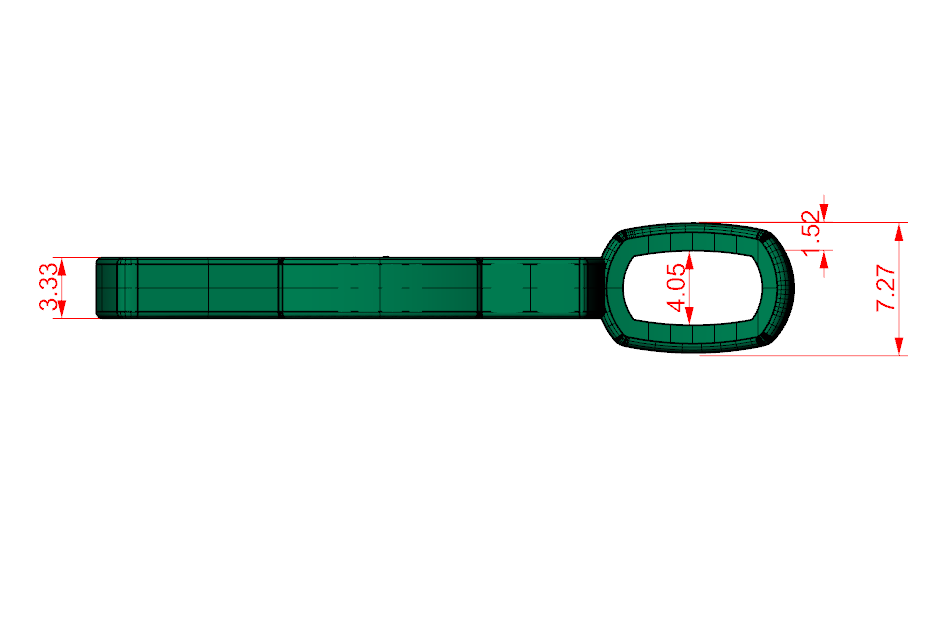

Overall Height (body only): 28.04 mm Total Width: 21.95 mm Pendant Body Thickness: 3.33 mm Bail Outer Height: 7.27 mm Bail Inner Clearance: 4.05 mm Bail Thickness: 1.52 mm
Not applicable
Based on a volume of 1318.404 mm³: - Gold 585 (13.7 g/cm³): 18.1 g - Gold 750 (15.8 g/cm³): 20.8 g - Silver 925 (10.3 g/cm³): 13.6 g - Stainless Steel (7.95 g/cm³): 10.5 g - Bronze (8.8 g/cm³): 11.6 g
Q: What is the maximum chain thickness this pendant can accommodate? A: The bail features an inner clearance of 4.05 mm, making it suitable for chains up to approximately 4 mm in diameter or width.
Q: Are the recessed sections designed for gemstones? A: No, the deep channels on the face of the cross are designed for enamel inlay to create a colorful contrast with the polished metal relief. They are not configured for stone setting.
Q: Is the back of the pendant detailed or is it flat? A: The reverse side is fully detailed with the 'Спаси и Сохрани' (Save and Protect) prayer, intricately integrated into a scroll pattern that mirrors the design on the front, making it a complete two-sided piece.
