Orthodox Byzantine Crucifixion Archangel Cross

Description

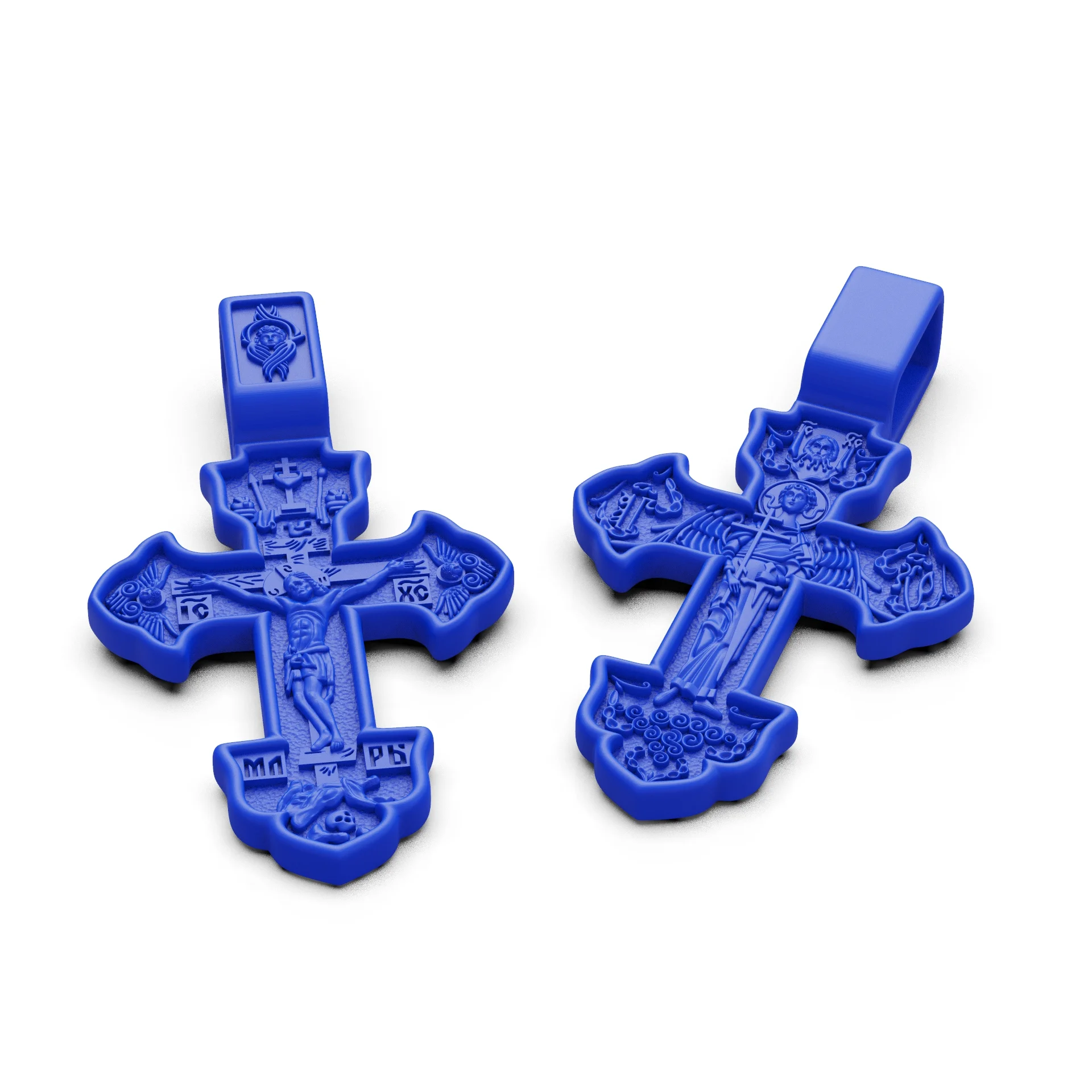

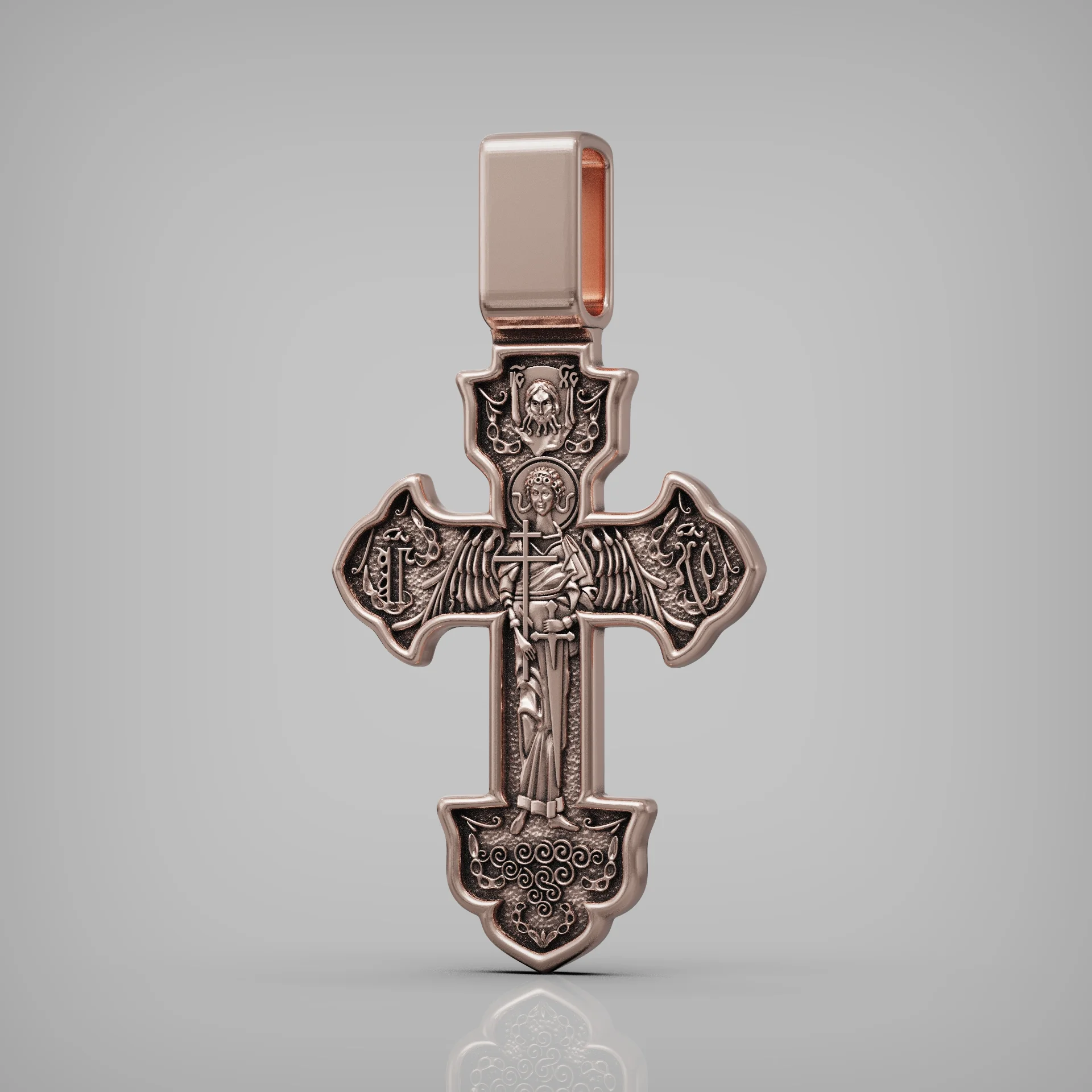

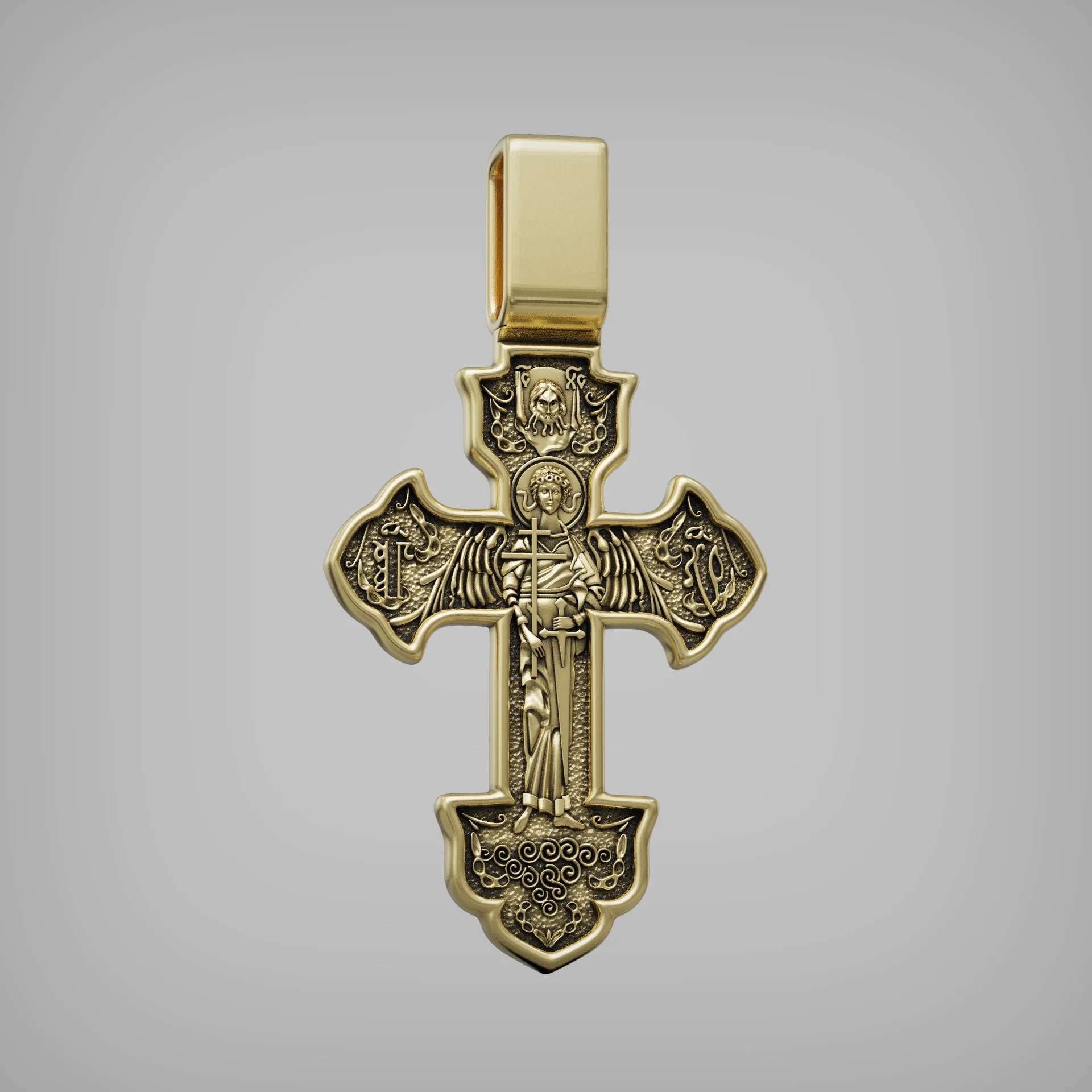

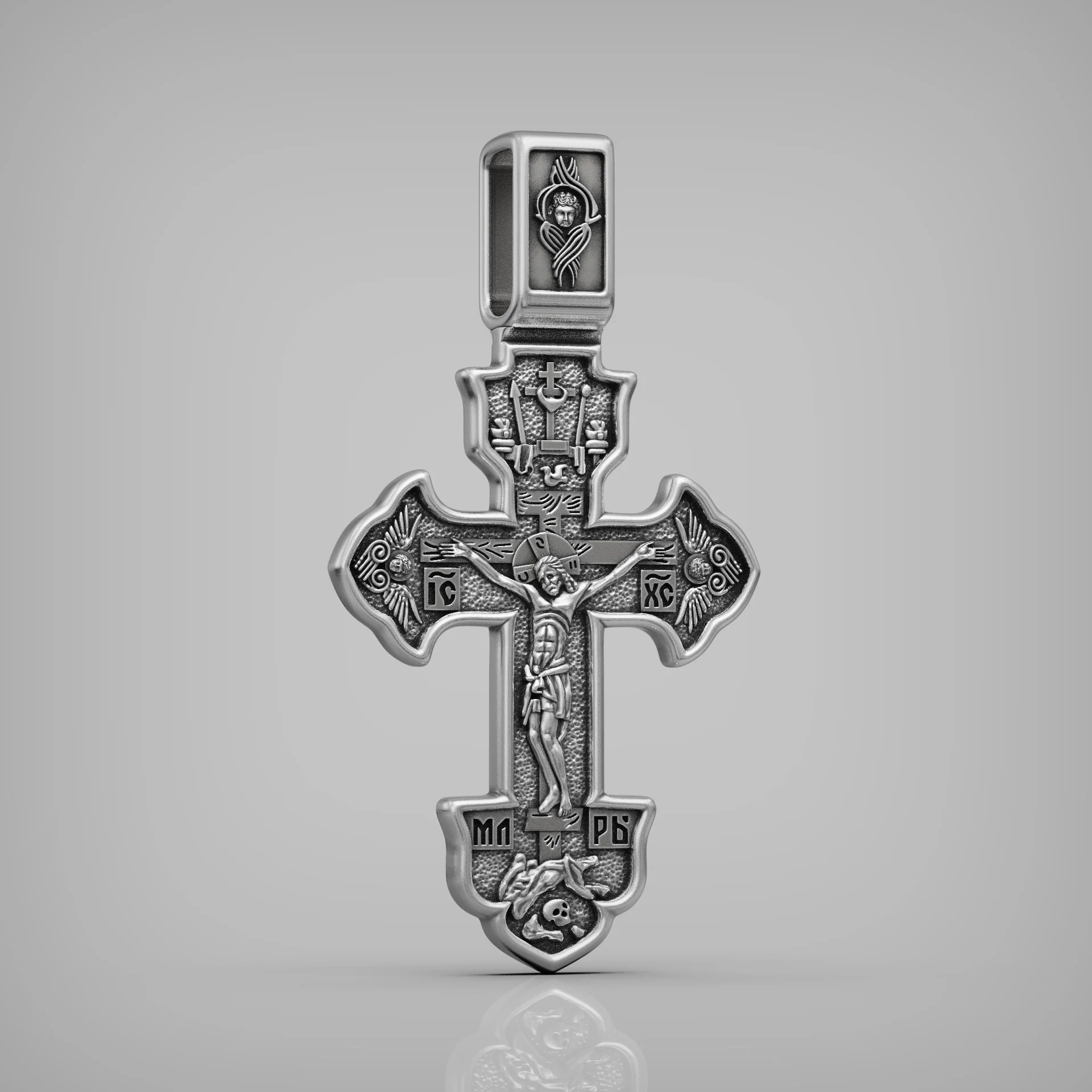

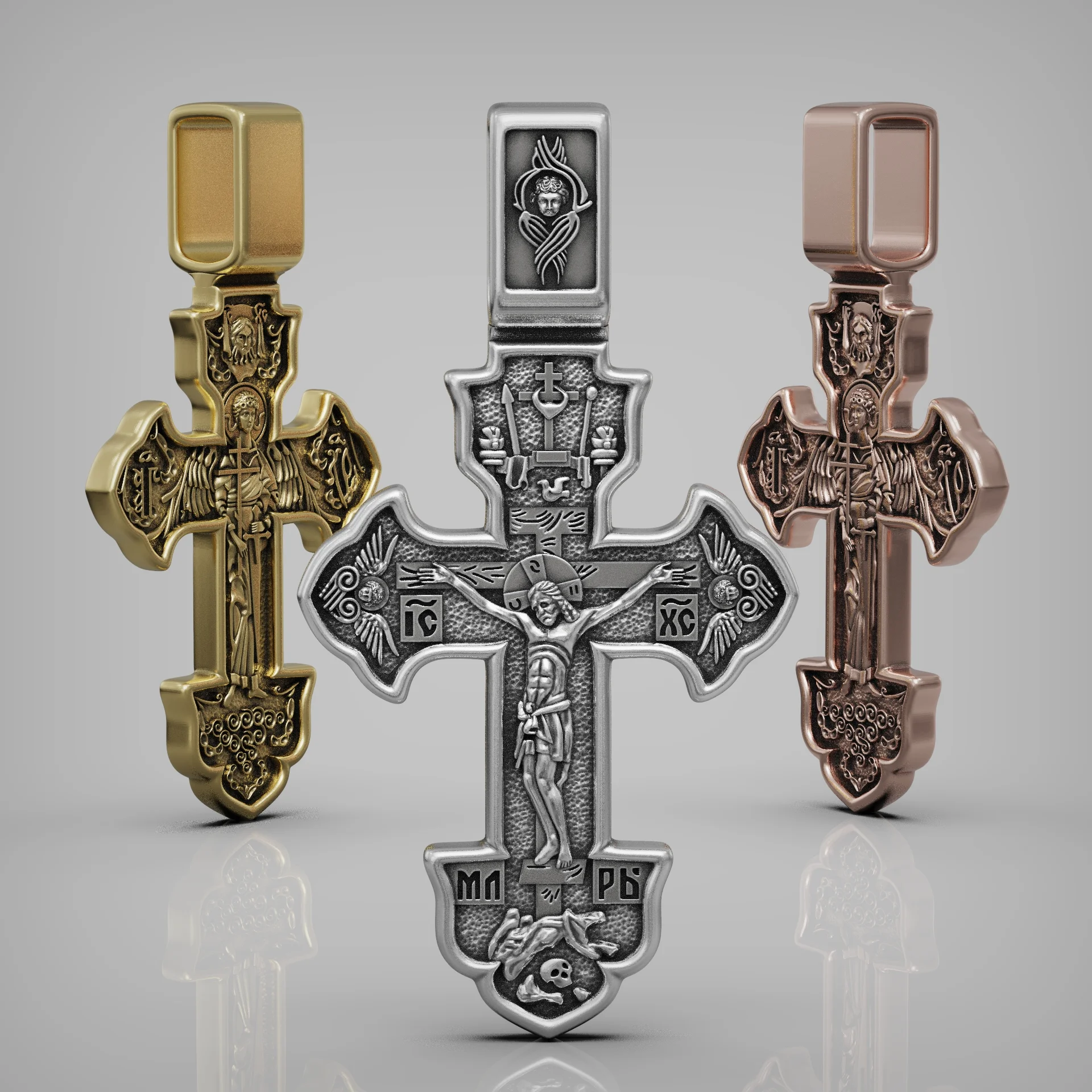

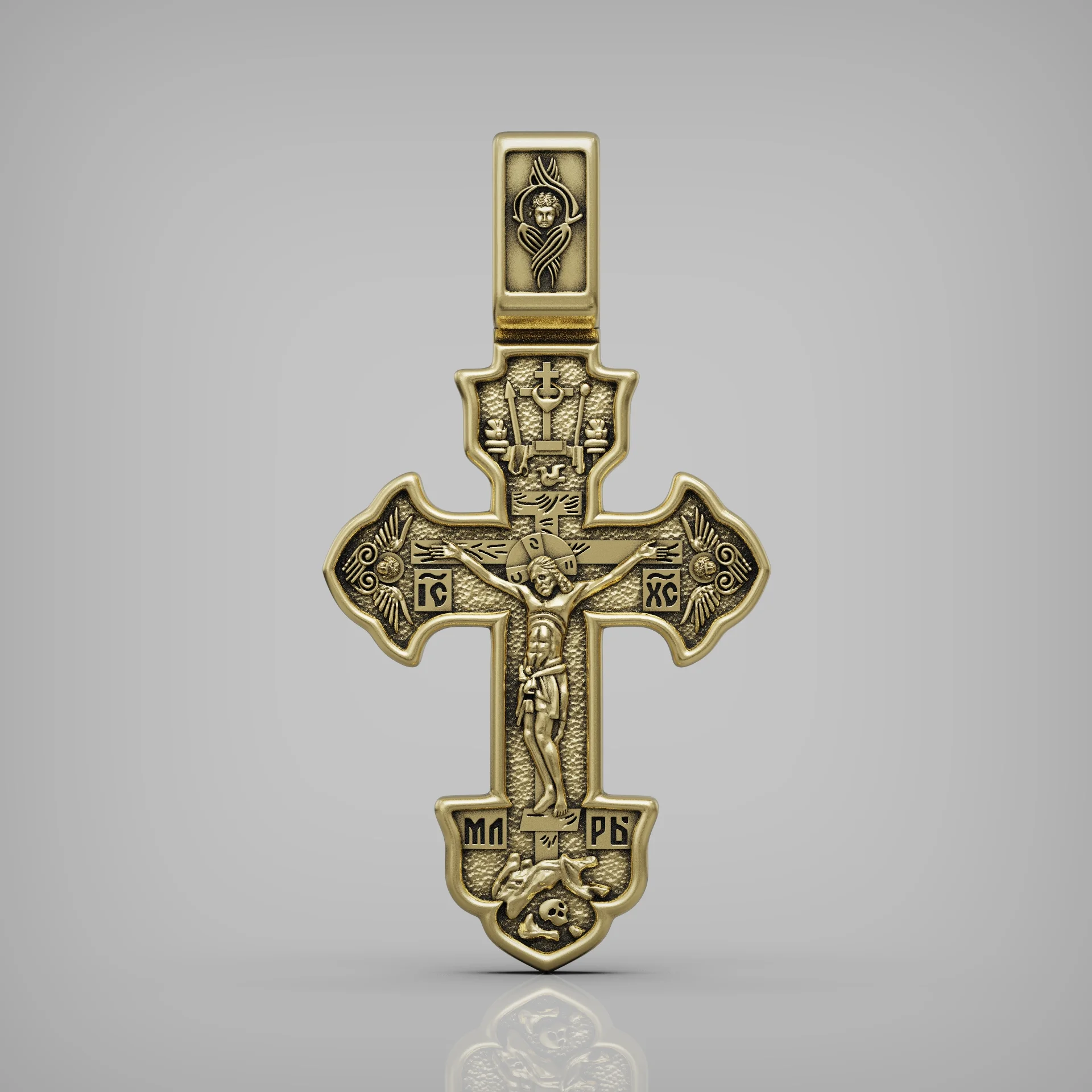

Design & Iconography This double-sided Orthodox cross model, standing 65.07mm tall and 35.22mm wide, presents a highly detailed narrative. The obverse features a high-relief Crucifixion scene, bordered by traditional IC XC monograms and intricate scrollwork on its trefoil arms. Below the Crucifixion, a depiction of Golgotha with the skull of Adam is rendered, alongside the Cyrillic "МЛРБ" inscription, identifying the "Place of the Skull". The reverse presents a standing Archangel, fully armored with a raised sword and shield, symbolizing spiritual protection. Above this figure, the Holy Face of Jesus (Mandylion) is depicted within an arched frame, a detail also subtly echoed on the front face of the integrated bail. The intricate textures, from the background cross pattern to the Archangel's armor, are captured with a mesh complexity exceeding 1 million triangles.

CAD & Print Considerations The CAD file is engineered for exceptional casting results, ensuring fine details like cloth folds and armor patterns are preserved. With a body thickness of approximately 3.98mm and such intricate high-relief elements, careful support placement during wax or resin 3D printing is crucial to prevent distortion, especially around the figure's extremities and the delicate scrollwork. For optimal fidelity in casting, invest in high-resolution resin printing, then choose a fine-grained investment material. Gating should ideally target less visible areas to minimize post-casting cleanup, given the detailed surface finishes. The substantial integrated bail, with an inner clearance of 6.97mm, is designed to accommodate various chain styles, fitting most medium to heavy weight options while preserving the aesthetic flow of the piece. This 3D model is designed in Rhino; the file imports cleanly into Matrix, ZBrush, and Blender for further customization or rendering by jewelers in 2026.

No gems specified.

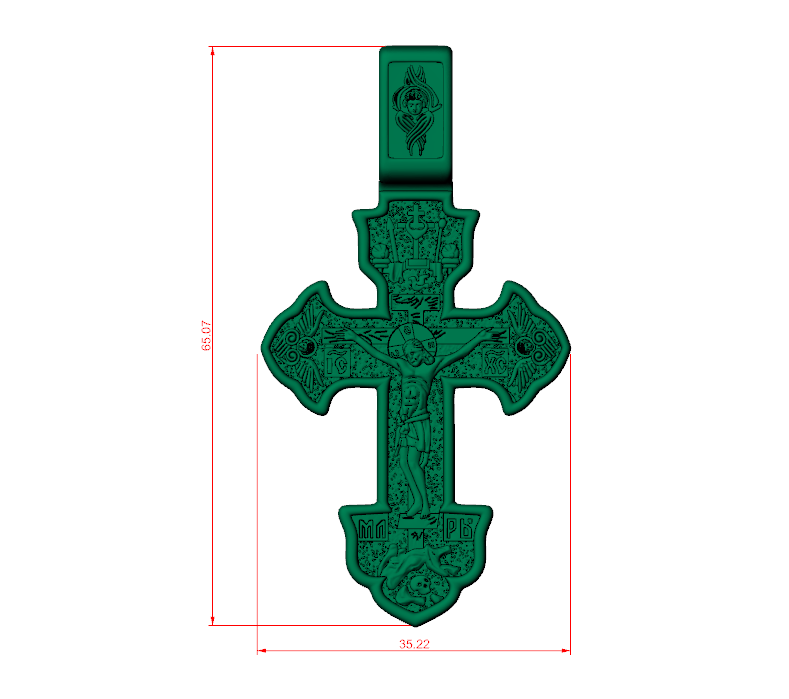

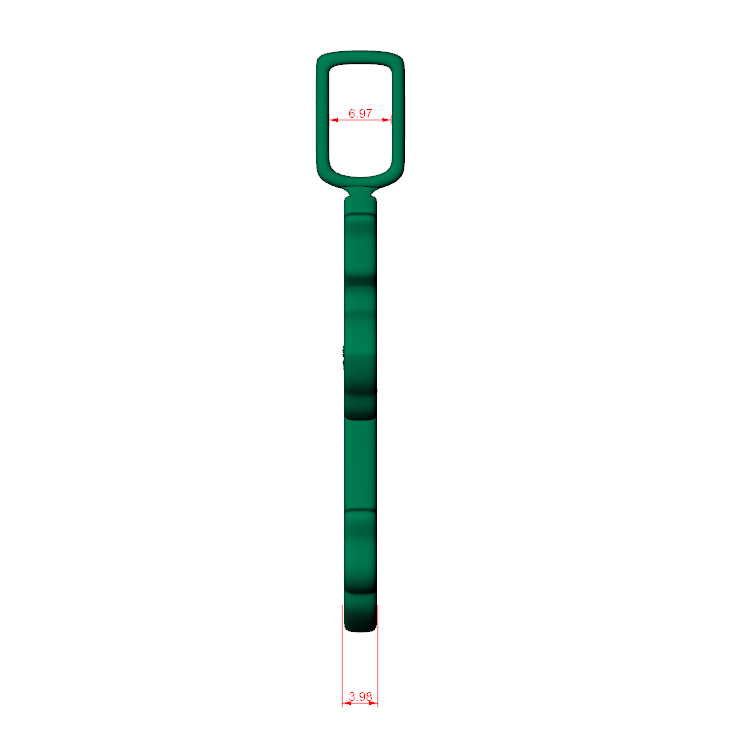

- Overall Height: 65.07 mm - Overall Width: 35.22 mm - Body Thickness: 3.98 mm - Bail Inner Clearance: 6.97 mm (height)

Calculated based on a volume of 2133.832 mm³: - Gold 585 (14K): 29.2 g - Gold 750 (18K): 33.7 g - Silver 925: 22.0 g - Stainless Steel: 17.0 g - Bronze: 18.8 g

Q: How can I ensure the fine details of the Crucifixion and Archangel reliefs are fully preserved during production? A: With a mesh exceeding 1 million triangles, this STL is rich in detail. To maximize preservation, use a high-resolution 3D printing process (e.g., SLA or DLP with fine-detail resin) and ensure proper investment casting techniques with fine-grained investment to capture all nuances.

Q: What considerations should I make when selecting a chain for this pendant? A: The bail's inner clearance is 6.97mm. This accommodates most medium to heavy chains, but verify that the end-cap of your chosen chain does not exceed this height for a secure and proportional fit.

Q: Given the model's volume of 2133.832 mm³, how does its physical presence compare to a standard pendant? A: This cross is a substantial piece. For instance, in Silver 925, it weighs approximately 22.0g, indicating a significant, heirloom-quality pendant rather than a light, daily wear item, fitting its role as a pectoral cross.
