By: JM
Price: $28.00 USD

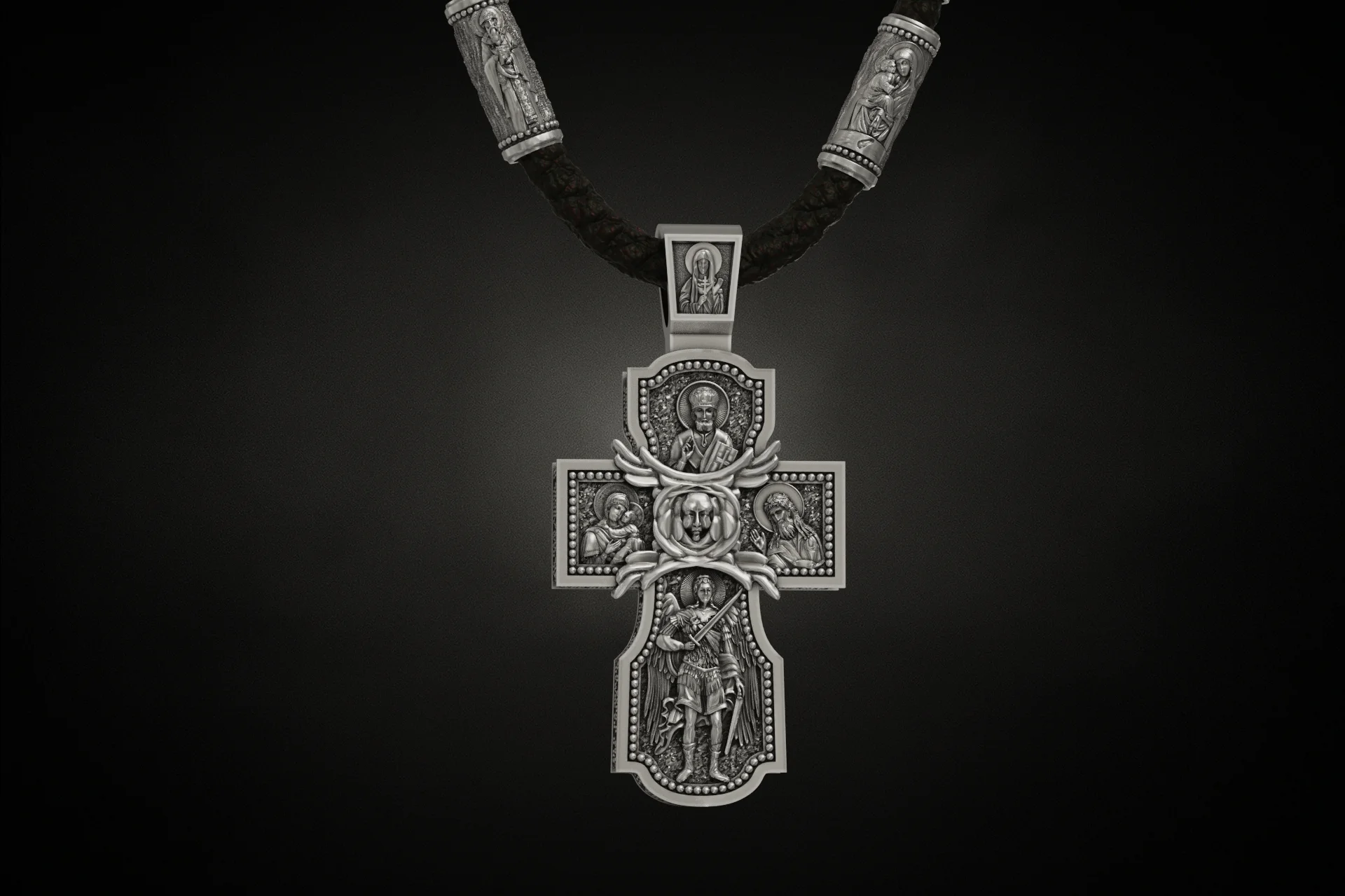

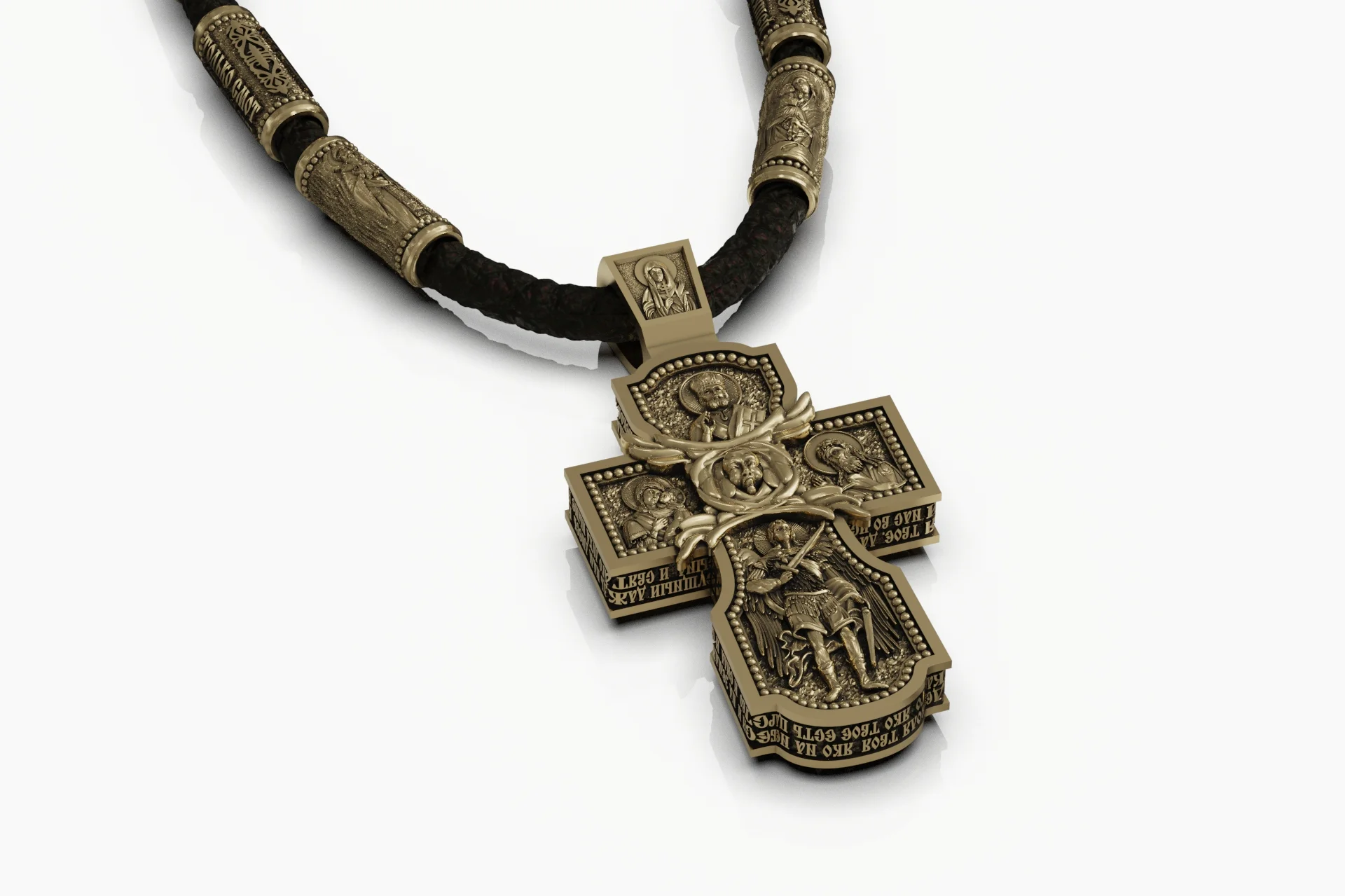

A two-part 3D model set featuring a double-sided Eastern Orthodox cross pendant and a pair of matching cylindrical barrel beads. The cross measures 59.77 mm in height and has a maximum thickness of approximately 4.97 mm. Both faces are densely decorated with high-relief iconographic scenes framed by granulation beadwork. The front face is segmented into distinct icon niches. The central roundel contains the Holy Face of Jesus, flanked on the horizontal arms by two saints. Above is a depiction of God the Father, and below is a full-figure portrayal of Archangel Michael with a sword. The integral bail is also decorated with the Theotokos (Virgin Mary). The relief work is deep, providing strong contrast when cast and finished.

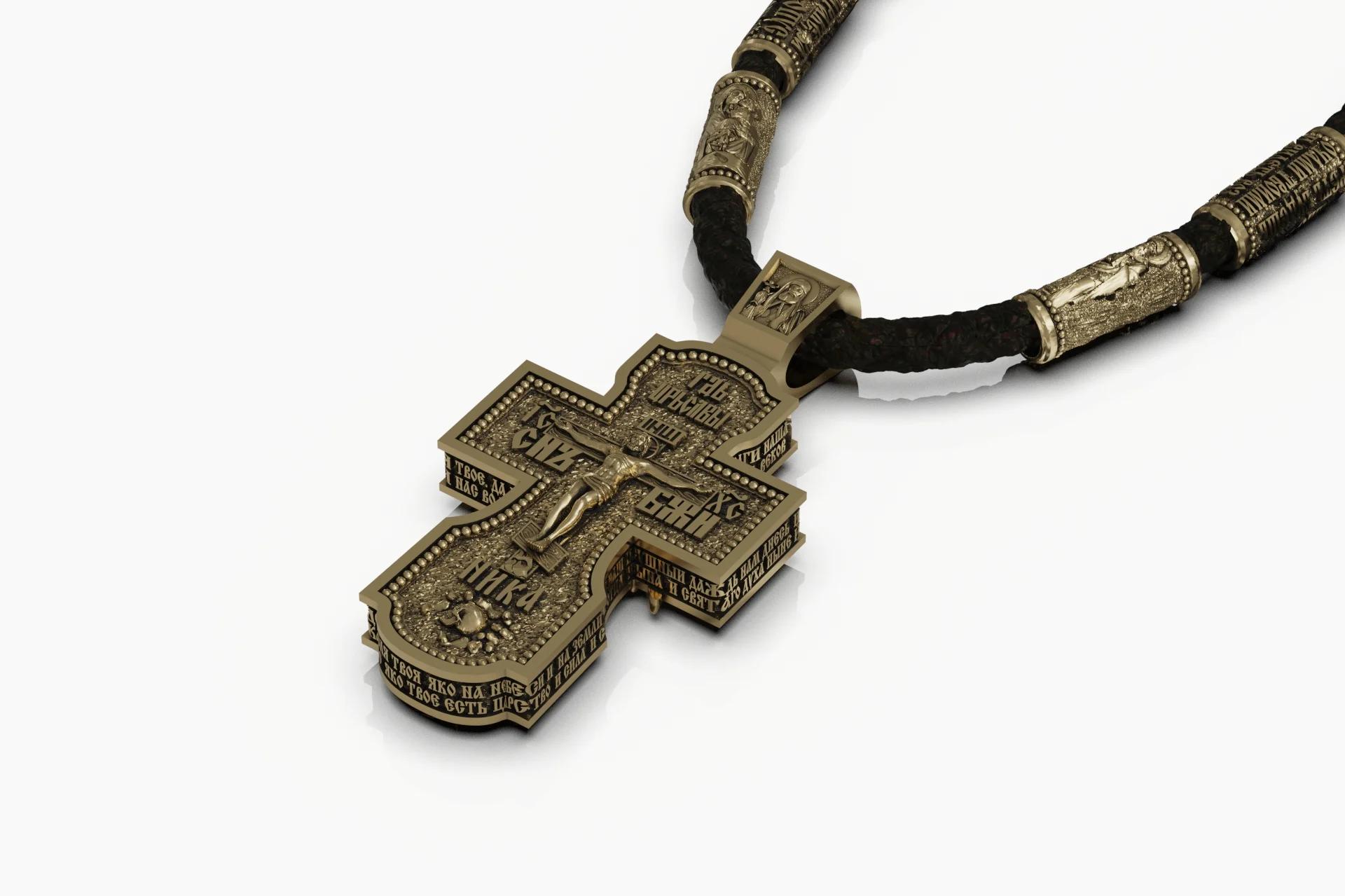

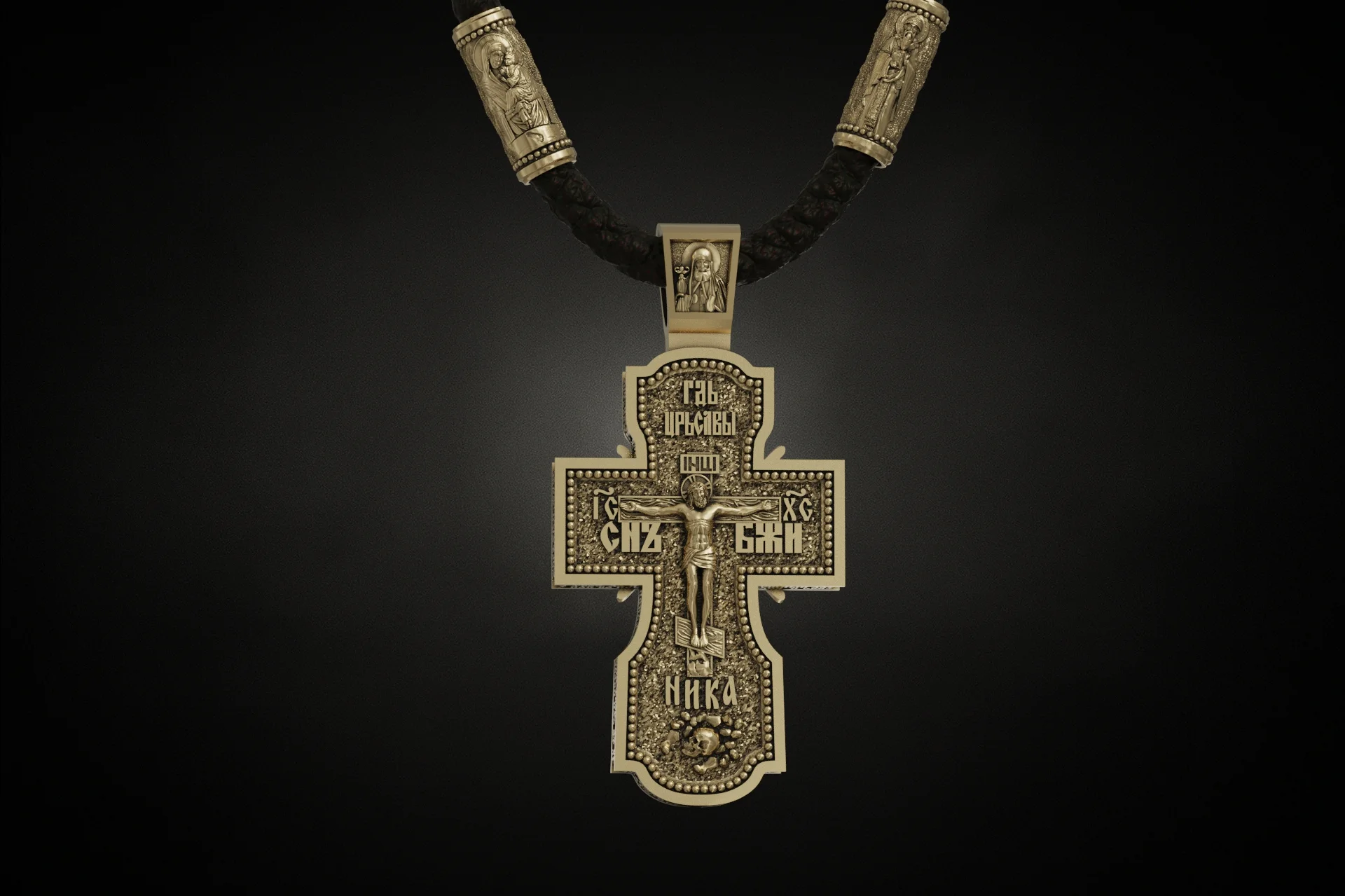

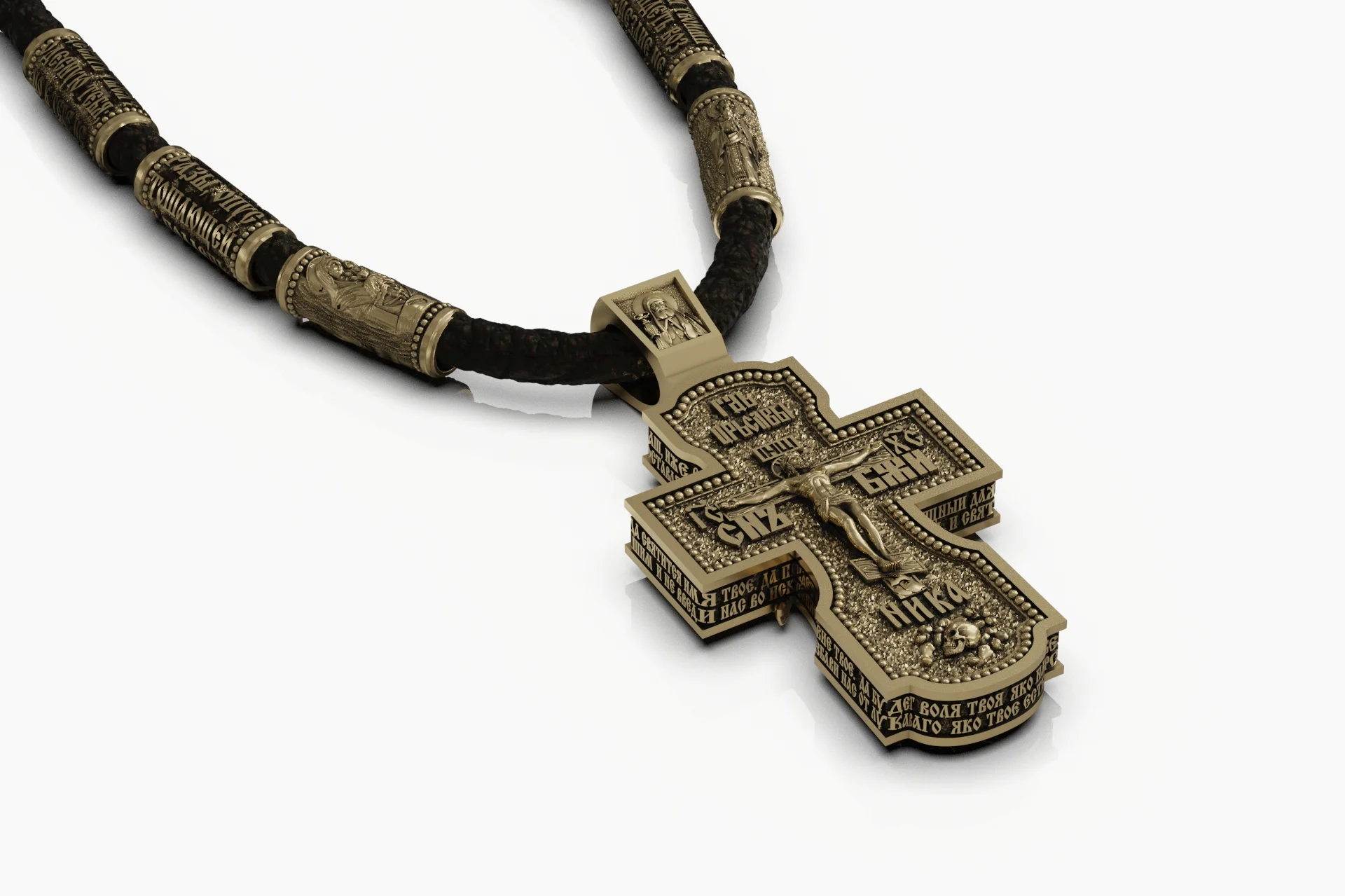

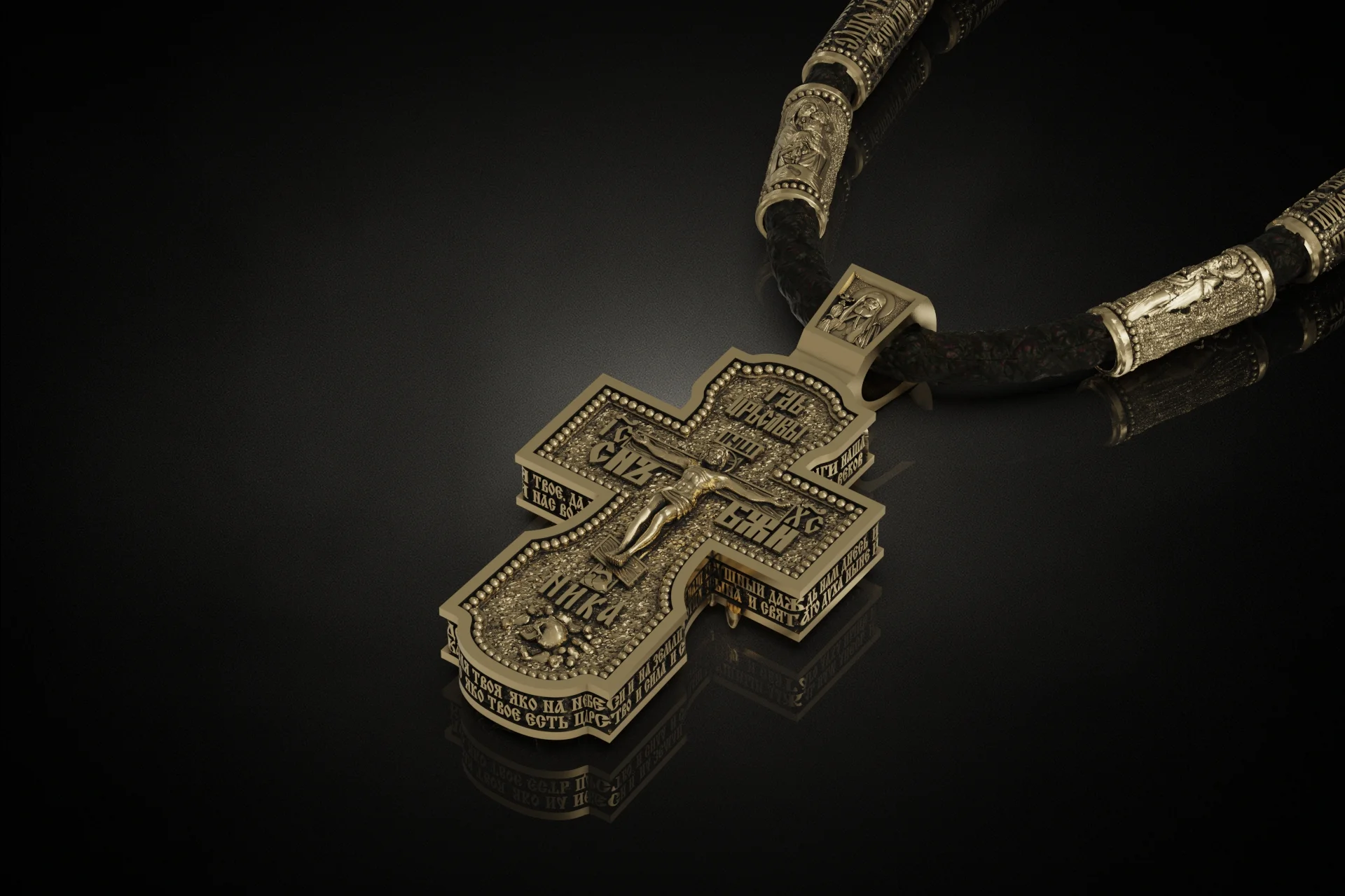

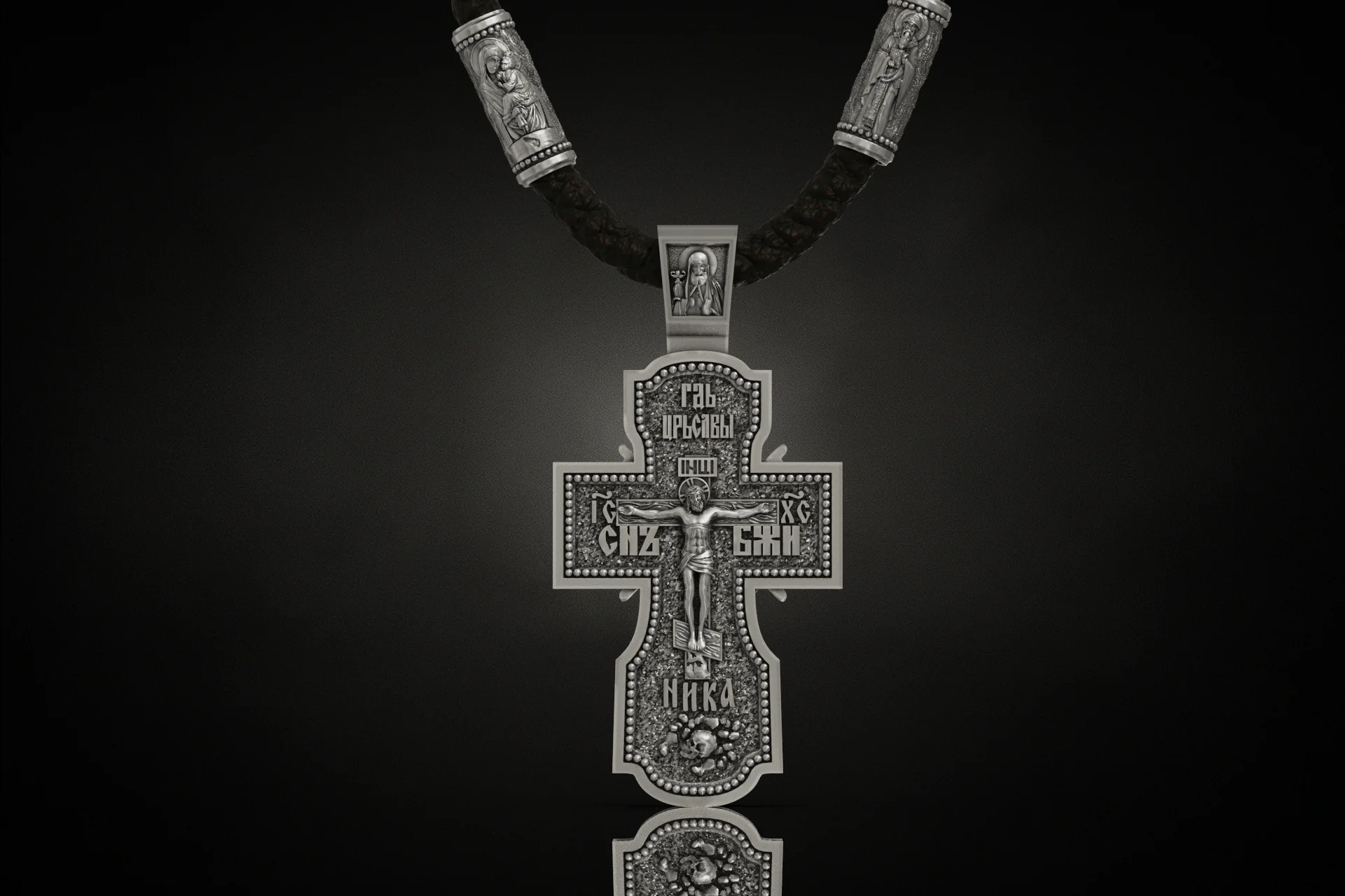

The reverse side presents a detailed Crucifixion scene. It is anchored by the figure of Christ on the cross, surmounted by the "ІНЦІ" (INRI) titulus and the inscription "Црь Слвы" (King of Glory). Flanking the cross are the Cyrillic letters "СНЪ БЖІЙ" (Son of God). Below the corpus, the design incorporates a skull motif representing Golgotha and the word "НИКА" (Conquers), completing the traditional composition. The set includes two cylindrical barrel beads, each measuring 15.10 mm in length. These beads, designed for a thick leather cord or paracord, are also decorated with high-relief figures of saints set within ornamental frames, continuing the visual theme of the main pendant. The files are provided as separate components for individual production. The mesh data indicates a total volume of 3891.474 mm³, ensuring a substantial weight when cast in precious metals. The model is a watertight manifold mesh suitable for direct printing.
No gems specified.
Pendant Height: 59.77 mm Pendant Thickness: 4.97 mm Barrel Bead Length: 15.10 mm
Not applicable
Based on a volume of 3891.5 mm³: - Gold 585: 53.3 g - Gold 750: 61.5 g - Silver 925: 40.1 g - Stainless Steel: 30.9 g - Bronze: 34.2 g
Production & Compatibility This multi-part digital model is optimized for high-fidelity manufacturing methods. For lost-wax casting, printing with high-resolution SLA/DLP systems like those from Formlabs or Asiga using castable resins is recommended to capture the deep relief and fine Cyrillic text. Due to the double-sided nature of the cross and the detailed barrel beads, a 4-axis or 5-axis CNC wax milling approach would also be highly effective, preserving all undercut details without requiring supports on critical surfaces. The models are provided as separate, watertight mesh files, ready for direct import into slicing or CAM software.
Q: What is the total height of the pendant including the bail? A: The technical drawing indicates a total height of 59.77 mm from the bottom edge to the top of the integral bail.
Q: Are the barrel beads a separate part from the cross for production? A: Yes, the CAD files for the cross pendant and the two 15.10 mm long cylindrical beads are provided as separate components, allowing for individual printing, casting, and assembly on a necklace cord.
Q: What is the text inscribed on the back of the cross? A: The reverse side features the Crucifixion scene with several traditional Cyrillic inscriptions, including "ІНЦІ" (INRI), "СНЪ БЖІЙ" (Son of God) above the arms, and "НИКА" (Victor/Conquers) at the base.
