Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: JM
Price: $15.00 USD

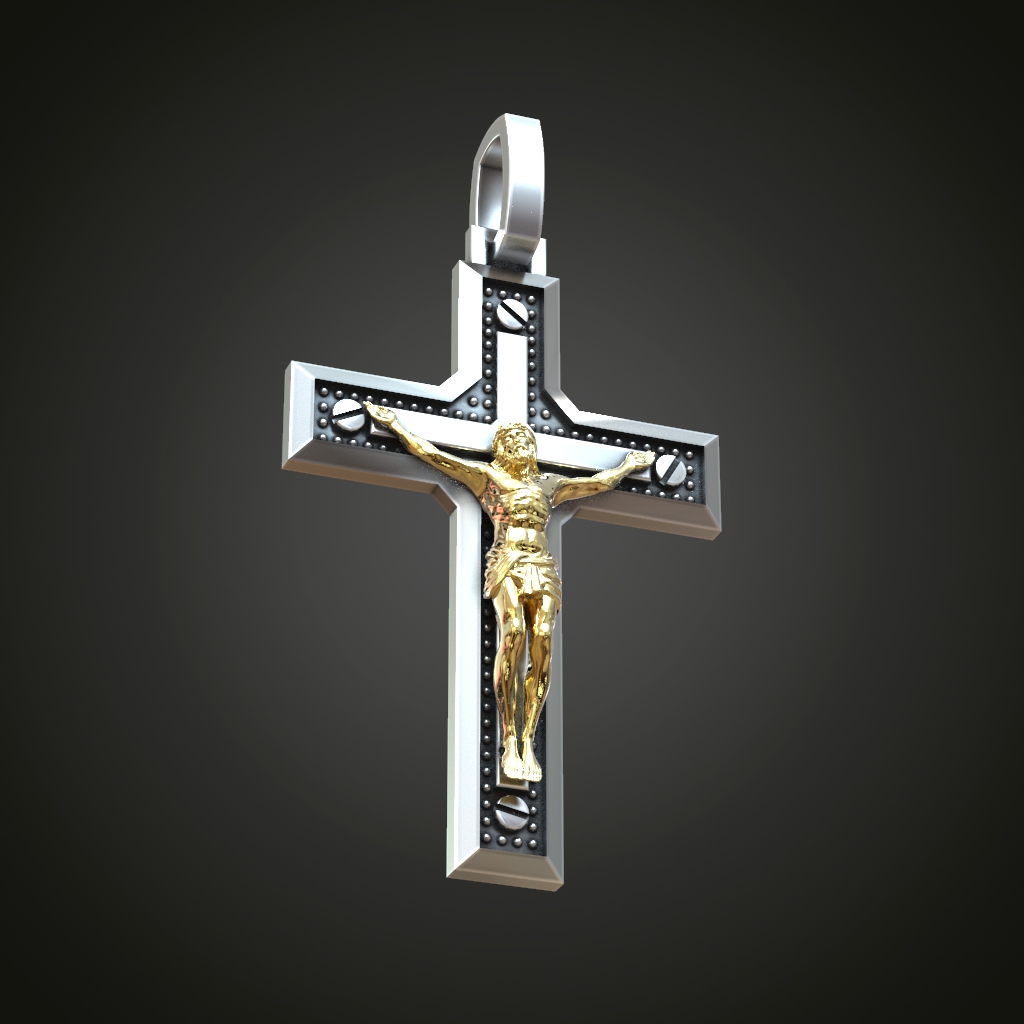

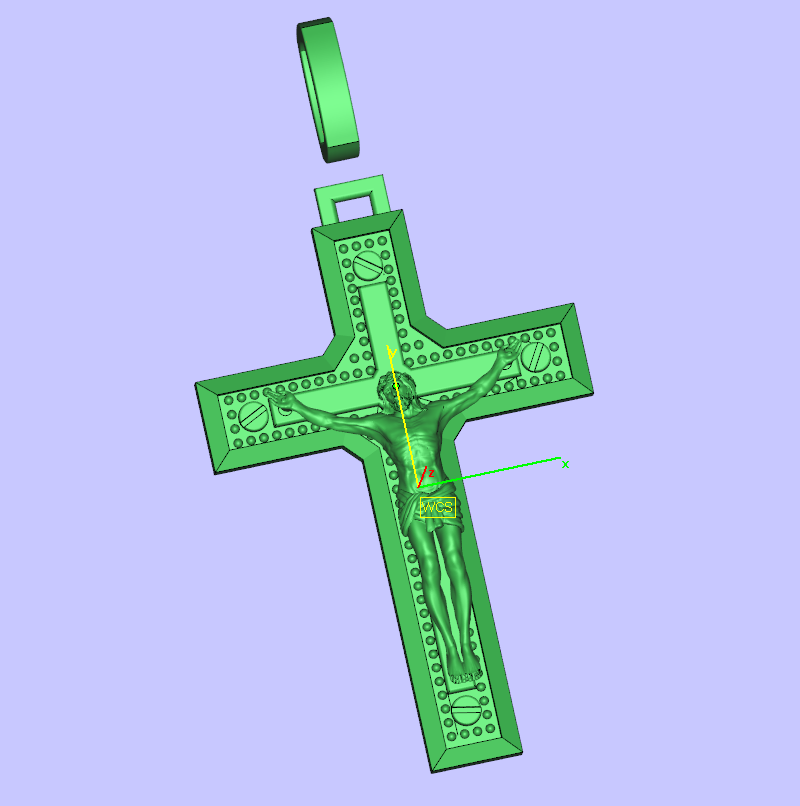

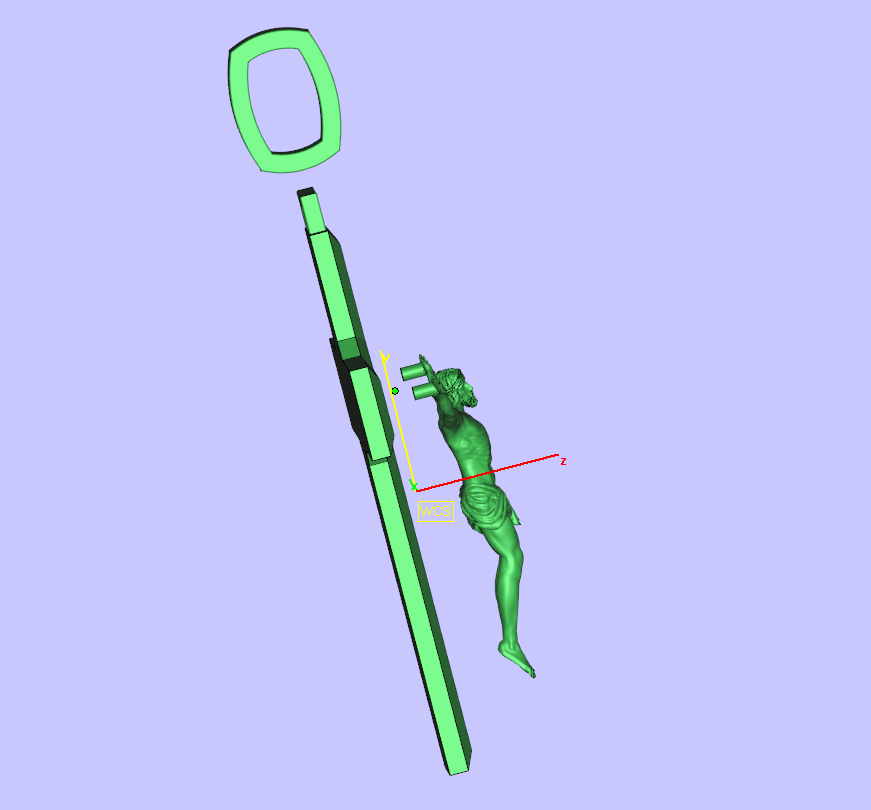

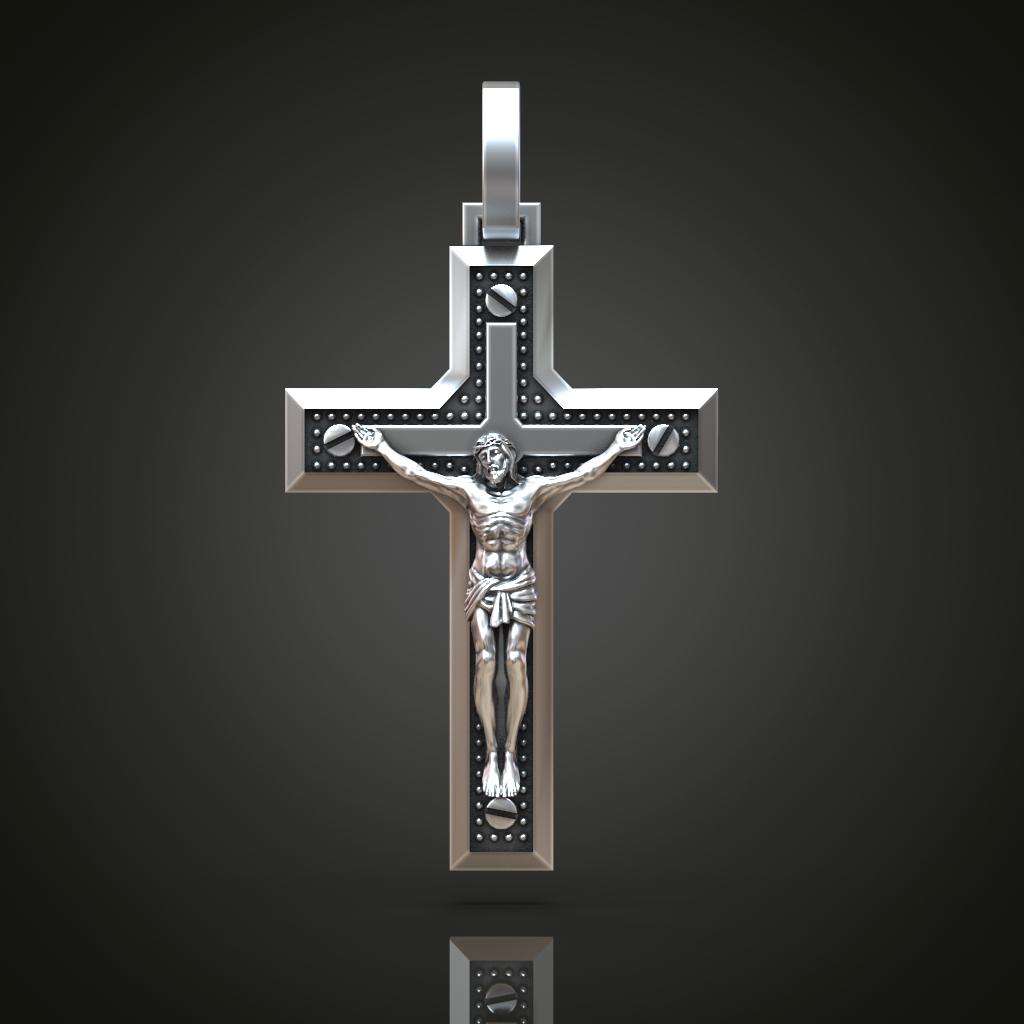

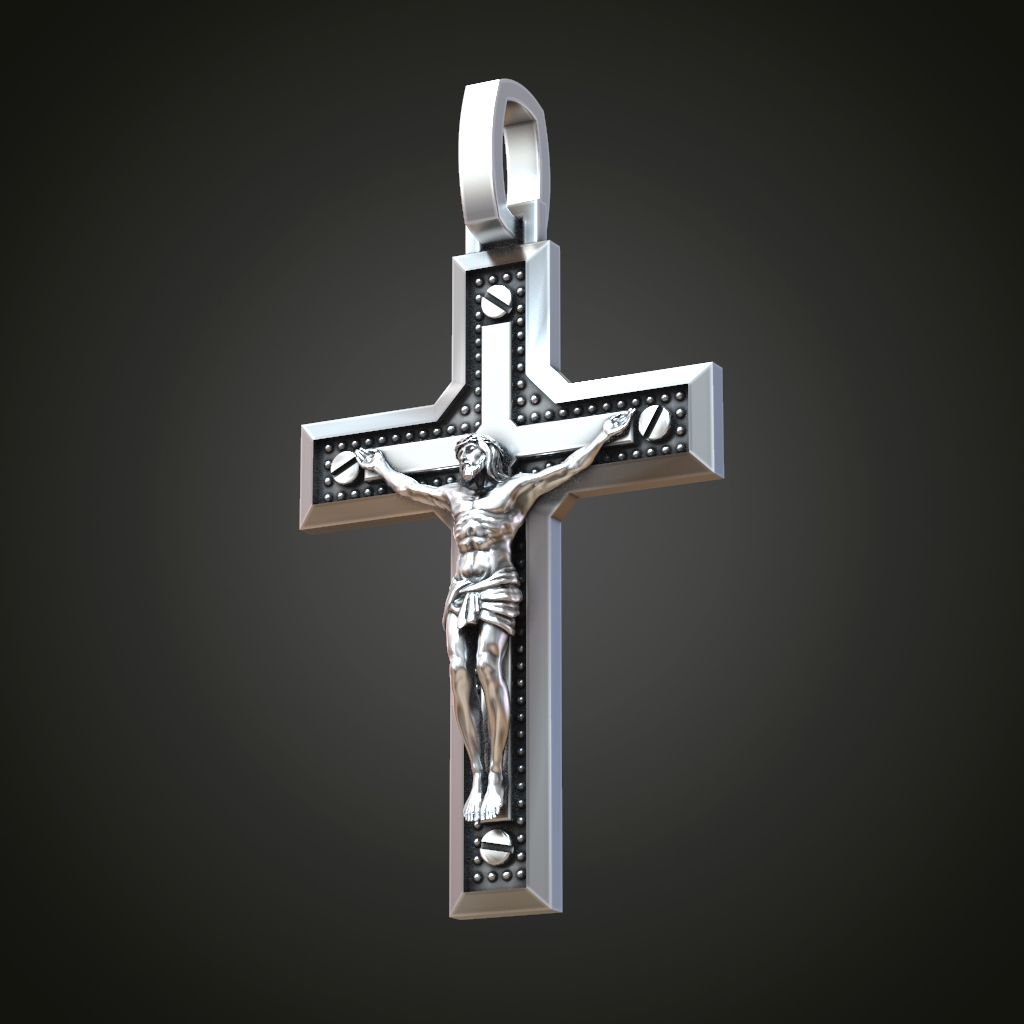

A high-relief corpus of Christ is the central feature of this Latin cross crucifix pendant, set against a cross frame detailed with a raised, rivet-style border and a central recessed track. The overall pendant measures 32.20 mm in height and 22.17 mm in width, with the corpus itself standing at a relief height of 2.52 mm for a distinct separation from the cross background. The cross has a base thickness of 1.54 mm, and the design is completed by a simple rectangular bail. This 3D model is provided with detailed dimensions for manufacturing.
- Pendant Height: 32.20 mm - Pendant Width: 22.17 mm - Cross Thickness: 1.54 mm (base) to 1.65 mm (border) - Corpus Relief Height: 2.52 mm - Corpus Dimensions: 18.23 mm (height) x 14.54 mm (width) - Bail Outer Width: 3.85 mm - Bail Wall Thickness: 1.08 mm

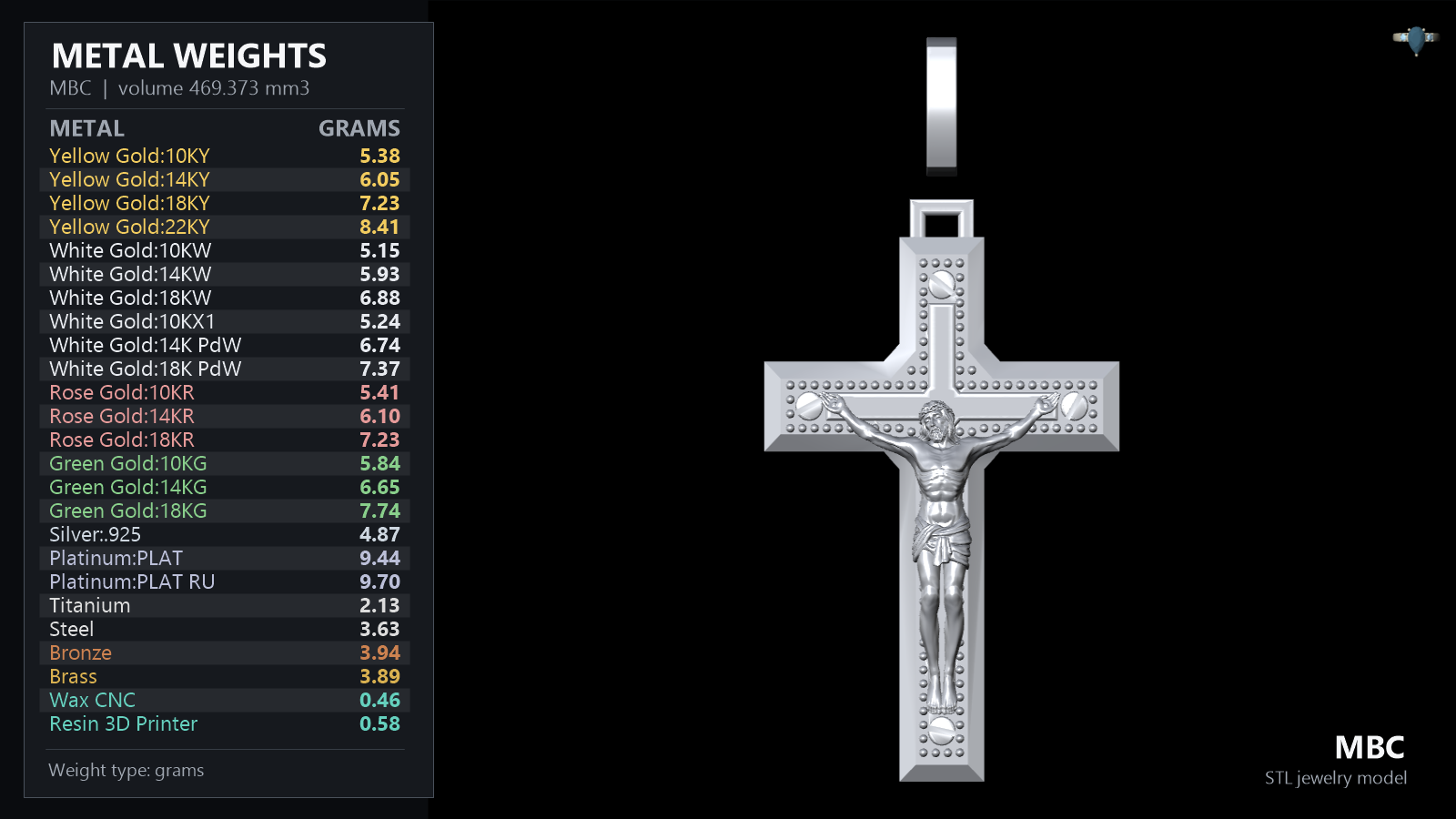

The model volume is 469.373 mm³. Estimated weights in various materials are: - Yellow Gold 10K: 5.4 g - Yellow Gold 14K: 6.1 g - Yellow Gold 18K: 7.2 g - Yellow Gold 22K: 8.4 g - White Gold 10K: 5.2 g - White Gold 14K: 5.9 g - White Gold 18K: 6.9 g - Rose Gold 10K: 5.4 g - Rose Gold 14K: 6.1 g - Rose Gold 18K: 7.2 g - Green Gold 10K: 5.8 g - Green Gold 14K: 6.7 g - Green Gold 18K: 7.7 g - Silver .925: 4.9 g - Platinum (PLAT): 9.4 g - Platinum (PLAT RU): 9.7 g - Titanium: 2.1 g - Steel: 3.6 g - Bronze: 3.9 g - Brass: 3.9 g - Wax for CNC: 0.5 g - Resin for 3D Printer: 0.6 g
Q: What are the overall dimensions of this crucifix pendant model? A: The cross itself measures 32.20 mm tall by 22.17 mm wide. The attached corpus figure stands out with a relief height of 2.52 mm.
Q: What is the estimated weight in 14K Gold and .925 Silver? A: Based on the model volume of 469.373 mm³, the estimated weight is 6.1 g for 14K Yellow Gold and 4.9 g for .925 Sterling Silver. The description includes a full list of weights for other metals.
Q: How thick is the cross structure? A: The model has a base cross thickness of 1.54 mm, with the raised rivet-style border measuring 1.65 mm thick.
