Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: Model2019
Price: Free USD
Free 3d model STL and 3dm

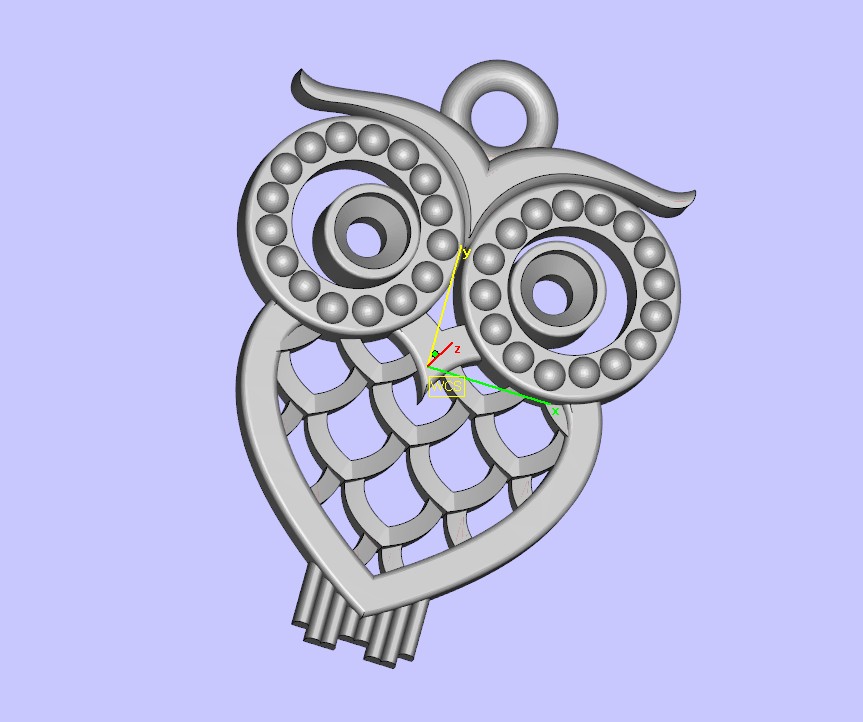

A stylized owl pendant model featuring an openwork body and detailed, gem-ready eyes. The body is formed from a heart-shaped, scalloped openwork pattern representing feathers. The oversized eyes are composed of two concentric rings; the outer ring is adorned with a fine milgrain texture framing recesses for 32 small round accent stones. The central eye sockets are designed as simple bezel settings for two larger round gems. The entire-piece measures 19.80mm in height by 14.26mm in width, with a consistent depth of 2.00mm. A simple, solid bail is integrated at the top. The model is presented as a single, manifold mesh ready for production.
This model is designed to be set with two types of stones. The exact millimeter sizes are not specified, allowing for custom setting.
Stone 1: Center Eye Stones Quantity: 2 (two) Cut: Round Setting: Bezel Setting
Stone 2: Halo Accent Stones Quantity: 32 (thirty-two) Cut: Round Setting: Bead/Pavé setting in a milgrain channel

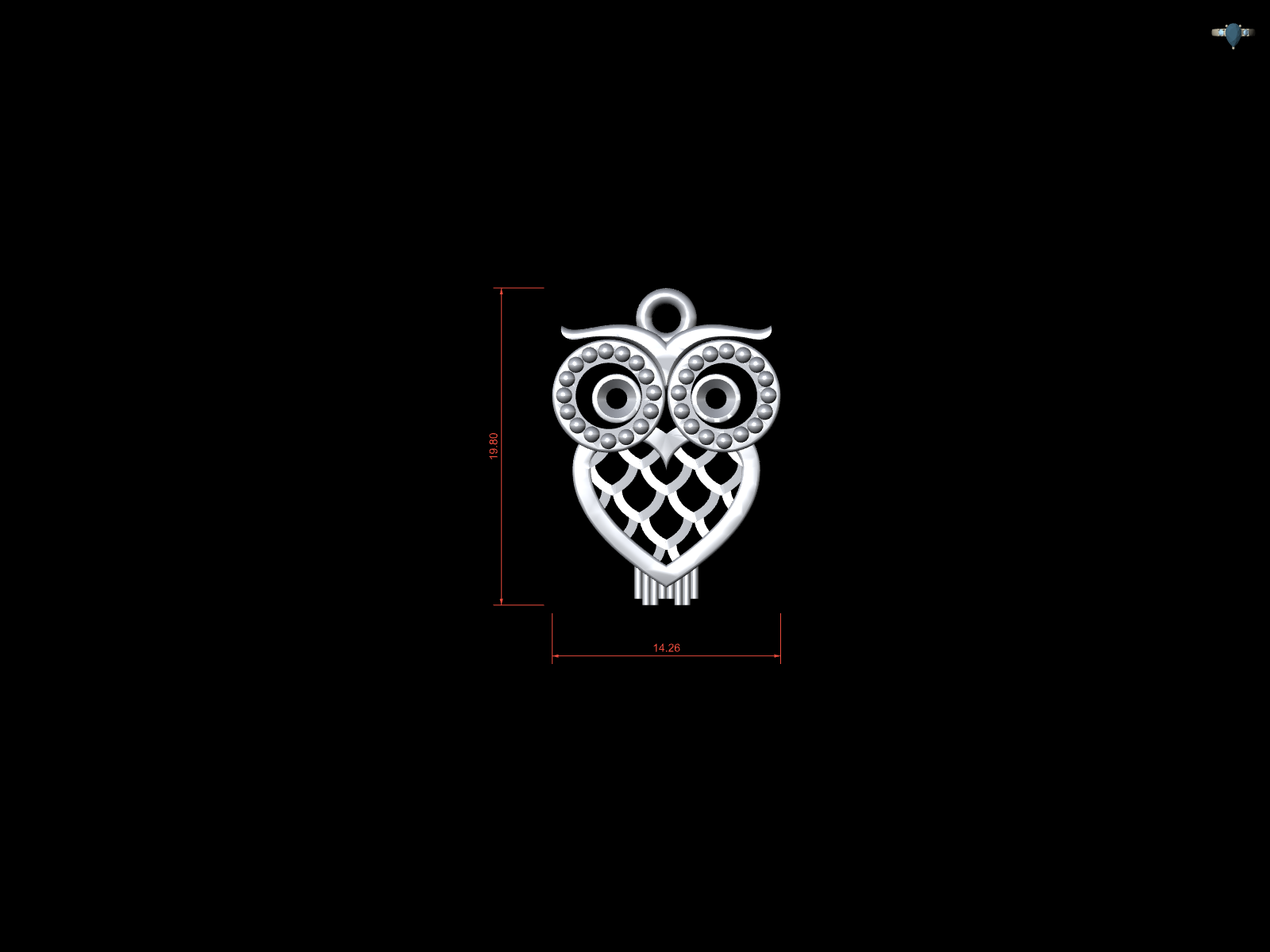

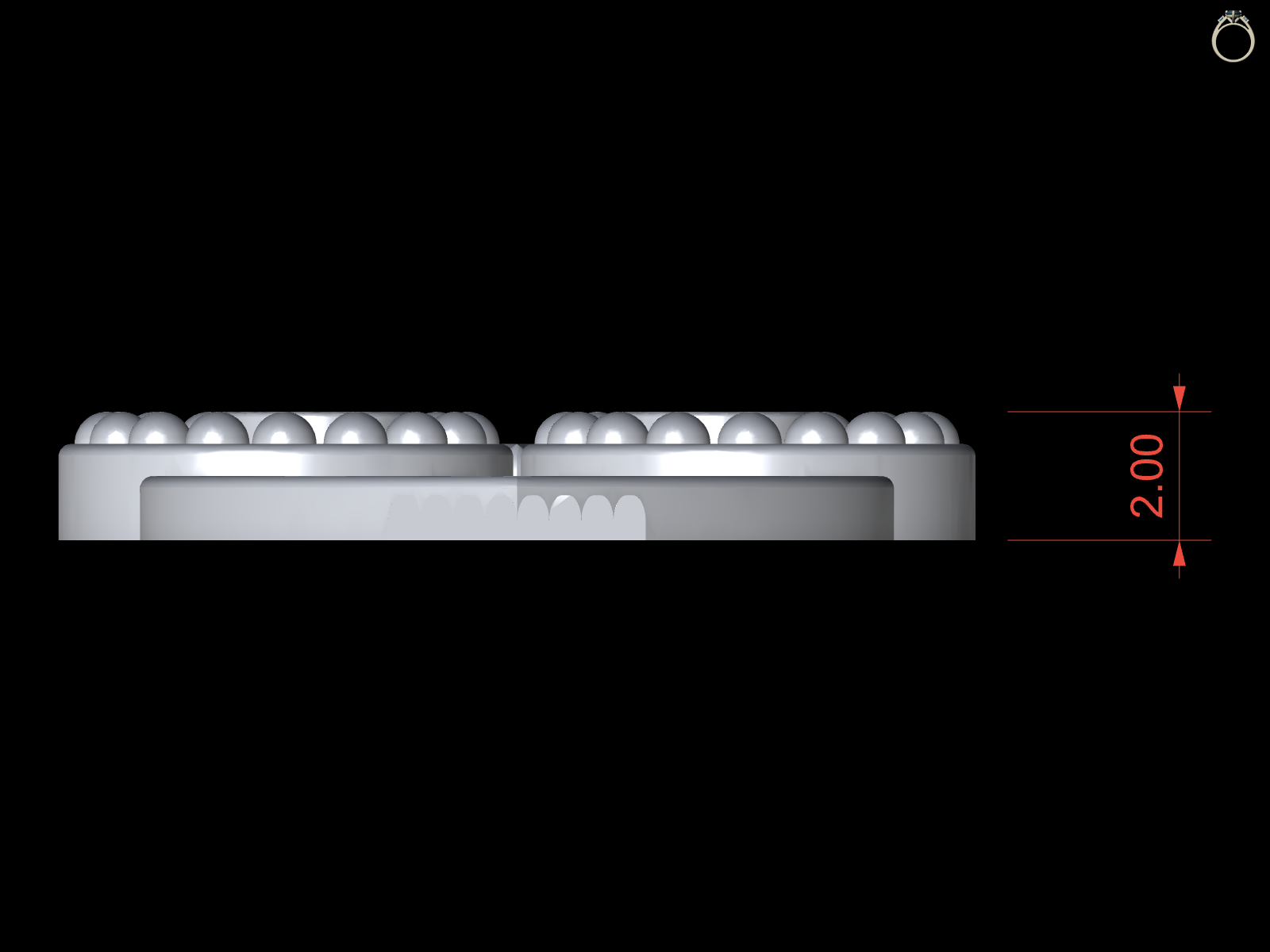

Height: 19.80 mm Width: 14.26 mm Thickness: 2.00 mm
Not applicable

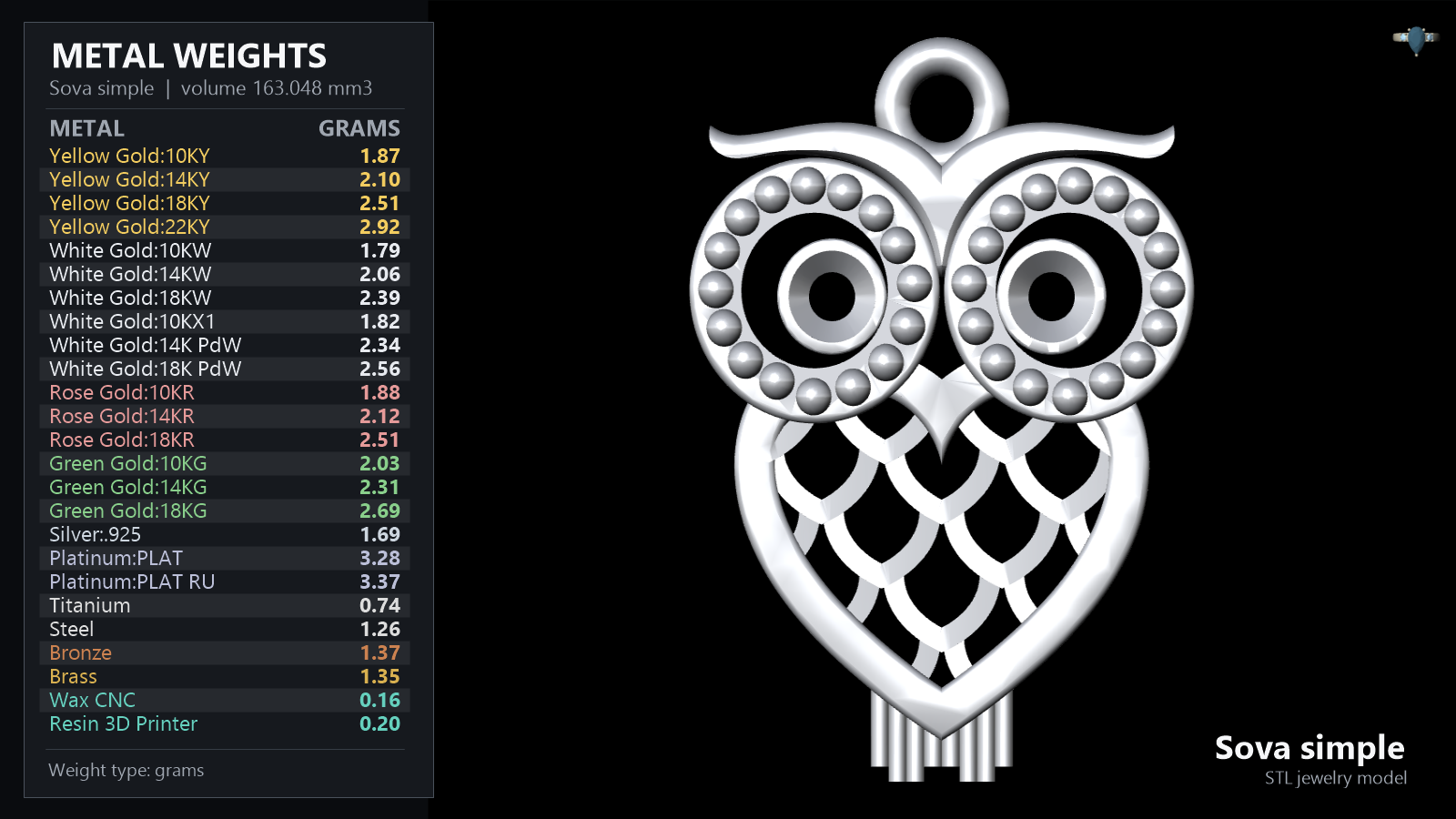

Based on the volume of 163.048 mm³: - Gold 14K (585): 2.1 g - Gold 18K (750): 2.5 g - Silver 925: 1.7 g - Platinum: 3.3 g
Production & Compatibility This pendant is well-suited for high-resolution SLA/DLP/MSLA 3D printing using castable resins. Its small size and fine milgrain details are ideal for printers such as the Anycubic Photon or Elegoo Mars series. The flat-backed design simplifies the printing process. For casting, the sprues visible in the render, attached to the bottom tail feathers, demonstrate a viable gating strategy for a successful lost-wax casting process.
Q: What are the specific sizes for the round gemstones in the eyes? A: The CAD file does not specify exact gem sizes, allowing jewelers flexibility. Based on the pendant's overall width of 14.26mm, the design is proportioned for central stones of approximately 2.5mm and accent halo stones of about 0.8mm to 1.0mm.
Q: What is the estimated weight in 18K Yellow Gold? A: Based on the provided metal weight chart, the estimated weight for this pendant in 18K Yellow Gold is 2.51 grams.
Q: Is the bail large enough for a standard chain? A: While the exact inner diameter of the bail is not specified, its proportion relative to the 19.80mm total height suggests it will accommodate standard, fine to medium-gauge chains.
