Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: Model2019
Price: $10.00 USD
A two-piece pendant model depicting a fragmentation grenade with a corresponding separate bail. The main grenade body measures approximately 18.5mm in height and 8.8mm in maximum width, featuring a classic segmented 'pineapple' texture with high relief to create visual depth. The design includes cleanly modeled details of the handle and safety pin assembly. A separate, robust bail measuring 8.3mm by 6.3mm is included, designed to accommodate a wide variety of chain sizes. The model is provided as a solid, manifold mesh prepared for 3D printing and subsequent casting. The separation of components facilitates easier polishing, especially for the bail's interior.
No gems specified.

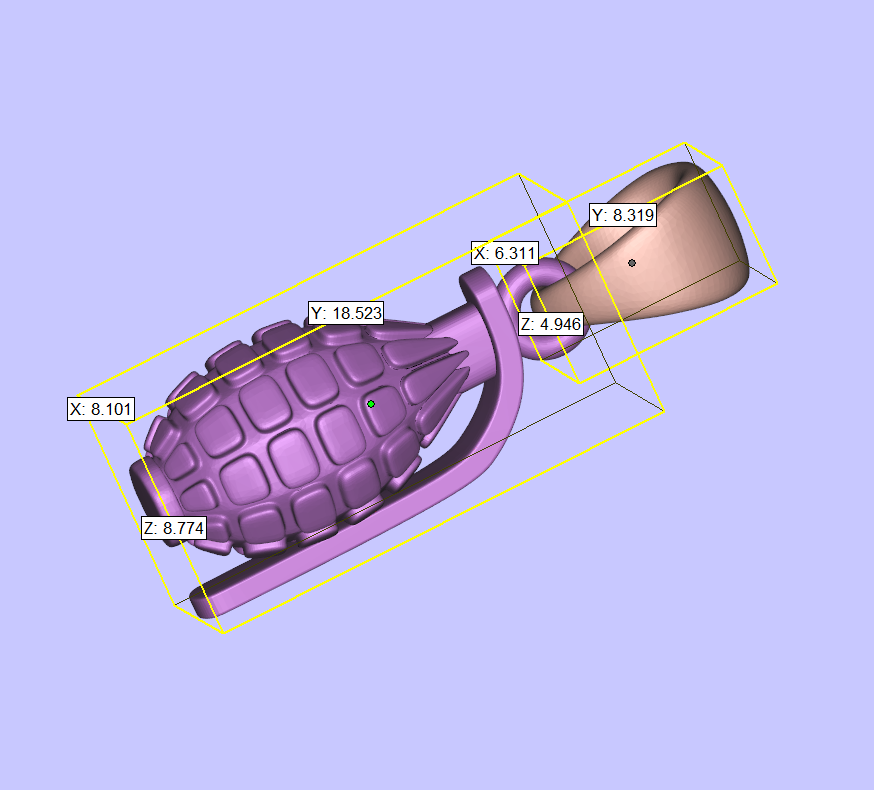

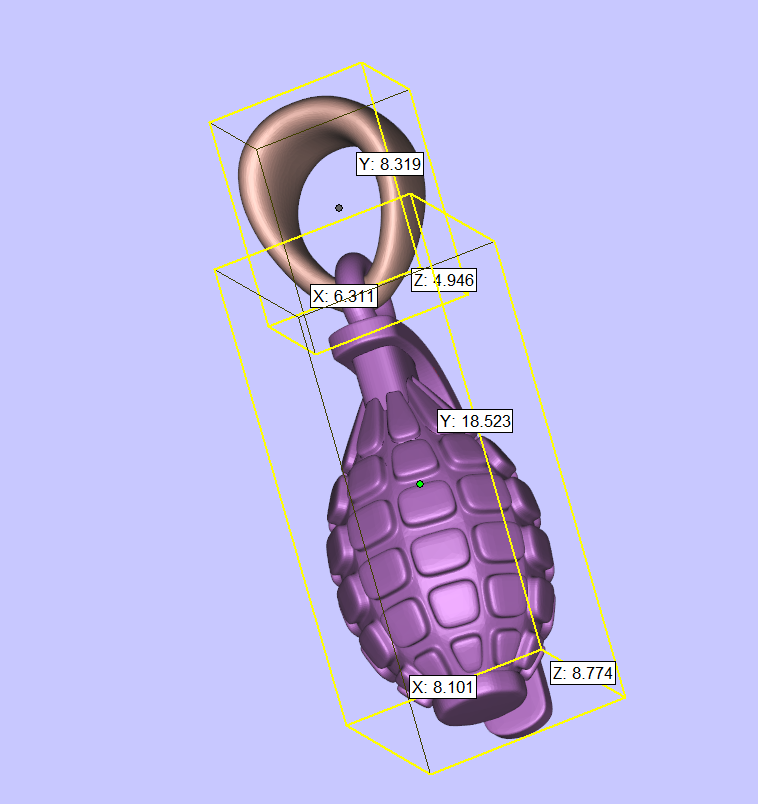

- Pendant Body: Height: 18.52 mm, Width: 8.77 mm, Depth: 8.10 mm - Bail: Height: 8.32 mm, Width: 6.31 mm, Depth: 4.95 mm
Not applicable

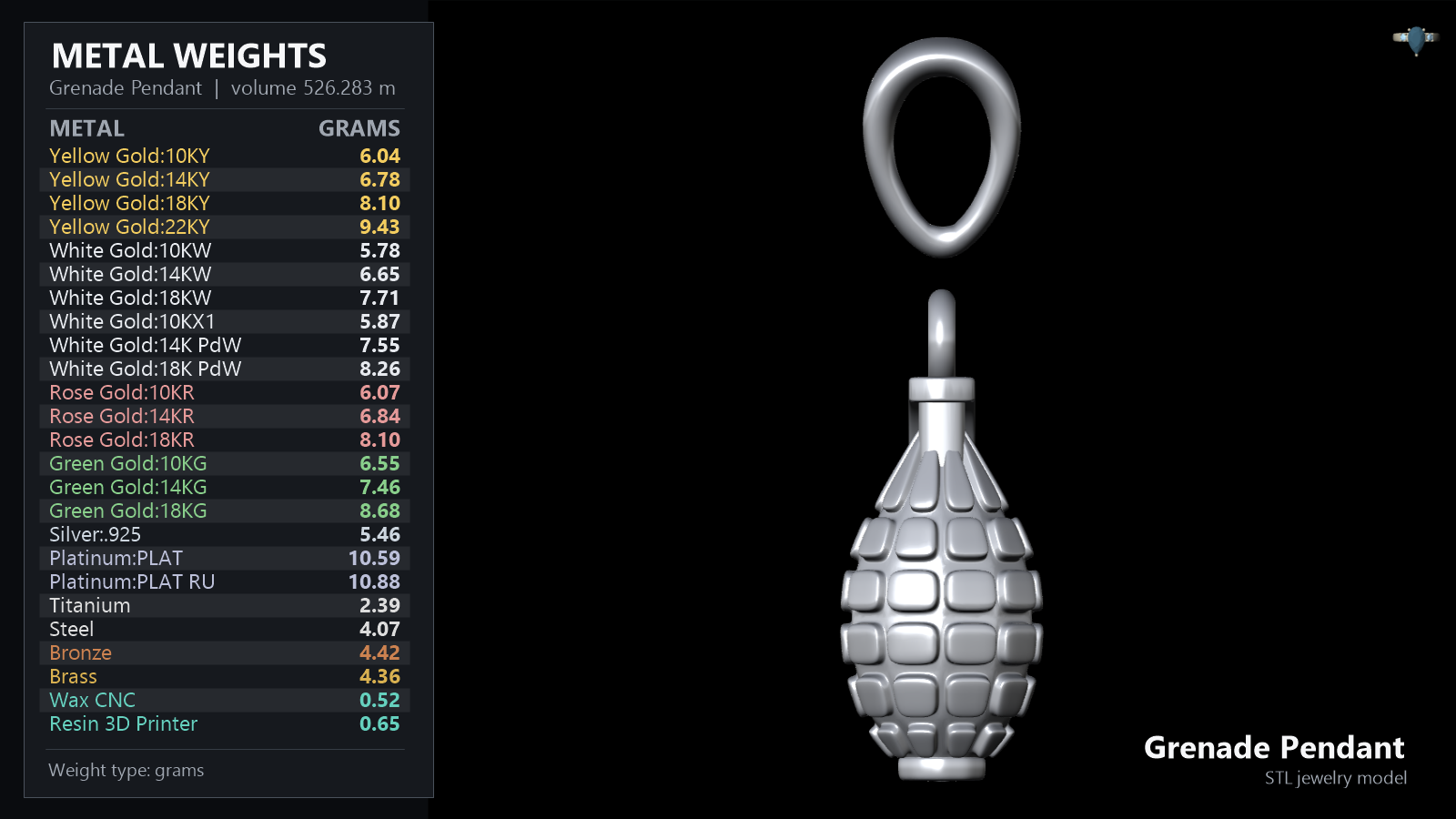

Model volume: 526.283 mm³. Weights are for the combined pendant and bail. - Silver 925: 5.46 g - Yellow Gold 14K: 6.78 g - Yellow Gold 18K: 8.10 g - White Gold 14K: 6.65 g - White Gold 18K: 7.71 g - Rose Gold 14K: 6.84 g - Platinum (950): 10.59 g - Steel: 4.07 g - Bronze: 4.42 g

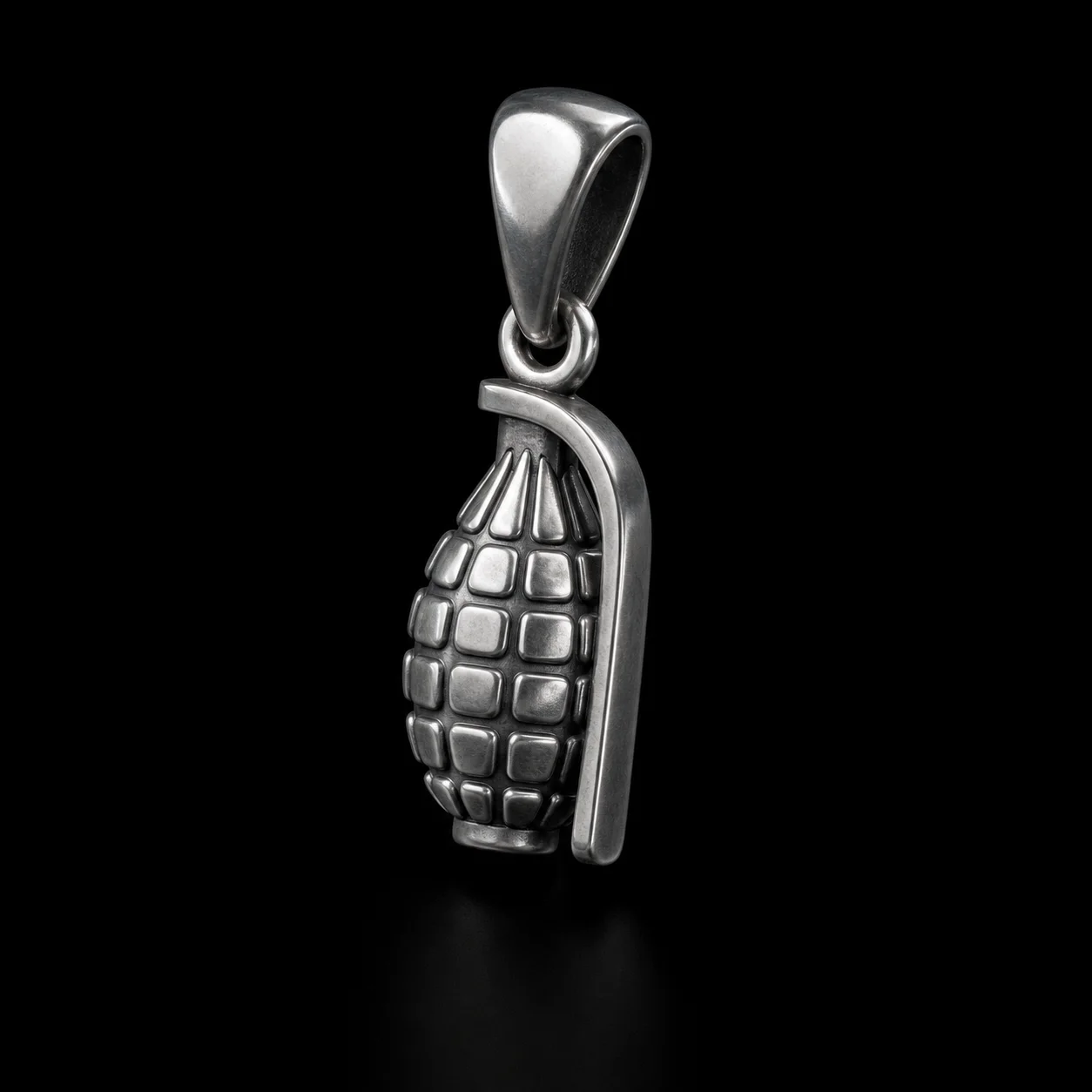

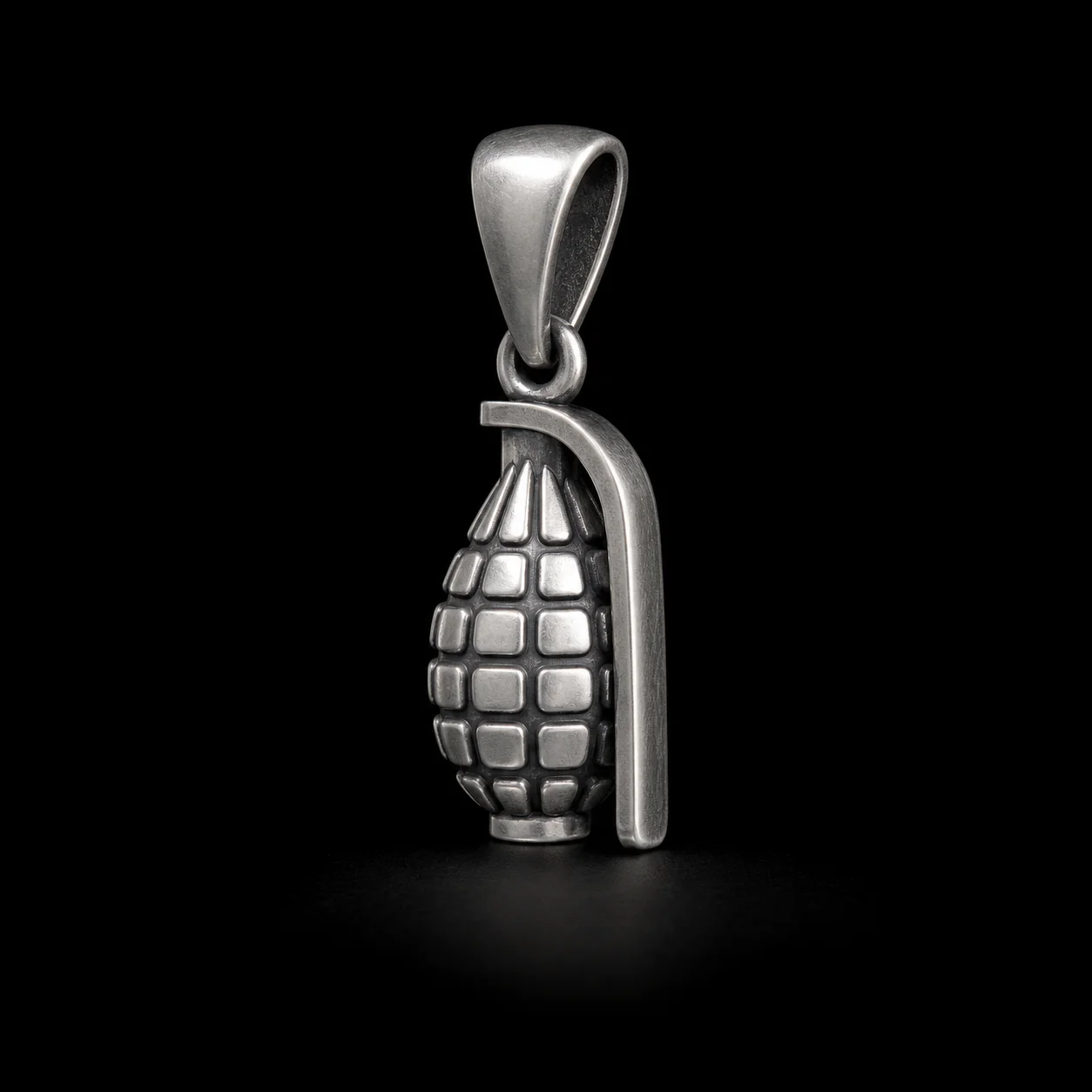

Production & Compatibility This two-part model is optimized for lost-wax casting. Printing with high-resolution castable resins on SLA or MSLA systems is recommended for capturing the grooves of the fragmentation body. The separation of the main grenade body from the bail simplifies the investment casting tree, as well as post-casting cleanup and polishing. An oxidized finish in the recesses with a high polish on raised surfaces will match the provided render.
Q: What is the total drop length of the pendant when assembled? A: The grenade body is 18.52mm tall and the separate bail is 8.32mm tall. When connected with a jump ring (not included in the model), the approximate total drop length will be around 28mm, varying slightly based on the jump ring's diameter.
Q: Are the bail and pendant a single piece in the file? A: No, they are modeled as two separate, distinct components. You will receive files for the grenade body and the bail, allowing them to be printed and cast independently for easier finishing.
Q: The parts list mentions Steel and Bronze. Is this model suitable for direct metal printing or just casting? A: While designed with casting in mind (with a total volume of 526.283 mm³), the solid geometry is also suitable for direct metal laser sintering (DMLS) processes for materials like Steel or Titanium, depending on your equipment's capabilities.
