Push-Button Box Clasp Set with Split Bails

Description

This set includes two push-button box clasps, provided in 10mm and 8mm widths. Each component features a rectangular housing with an internal tongue that secures via a top-mounted push-button release. A distinctive split bail, forming a stylized heart shape, terminates in dual eyelets for secure attachment to chain or bracelet ends. This downloadable 3D model provides the necessary geometry for creating printed jewelry patterns of these clasps, which are intended for subsequent investment-cast production as functional findings for necklaces or multi-strand bracelets.

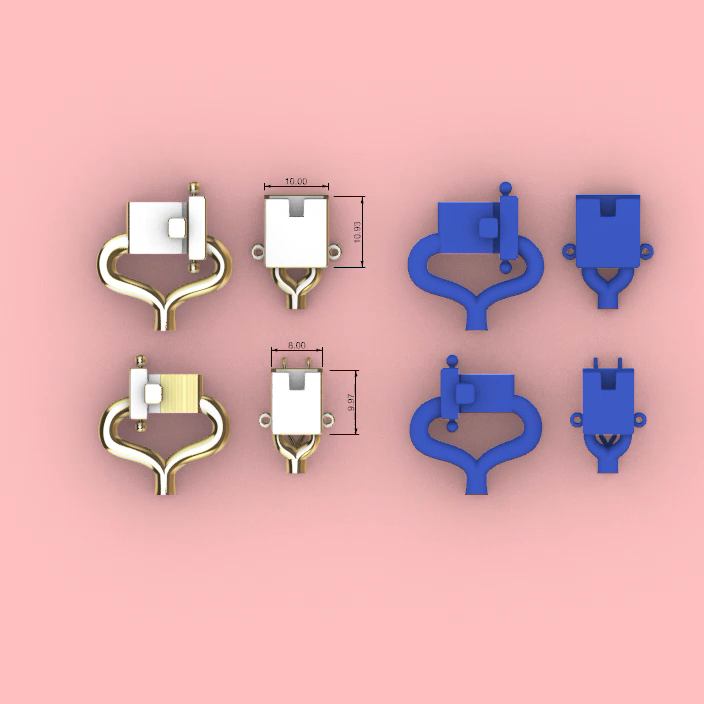

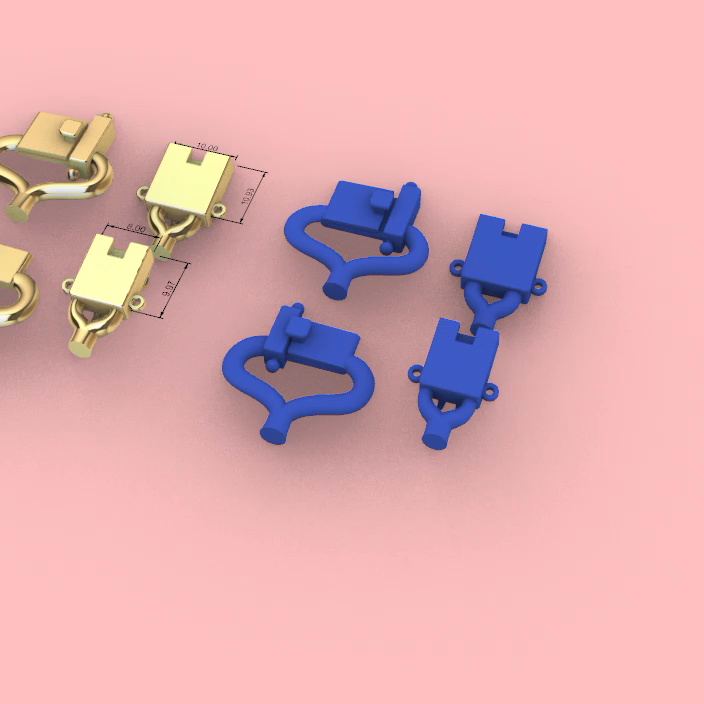

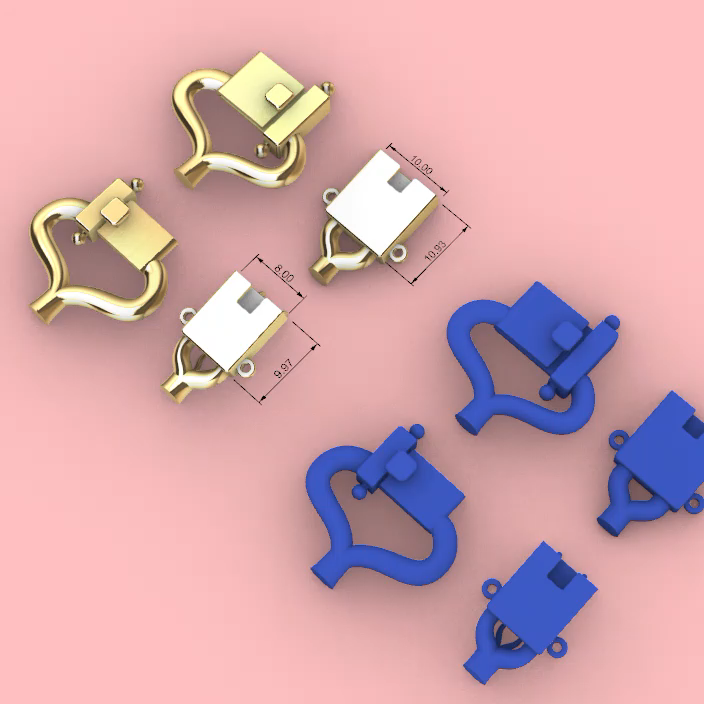

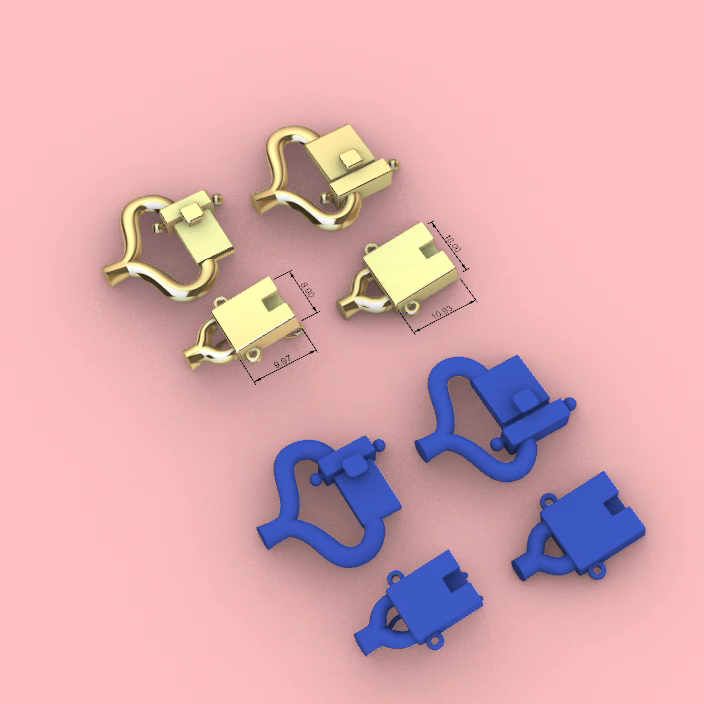

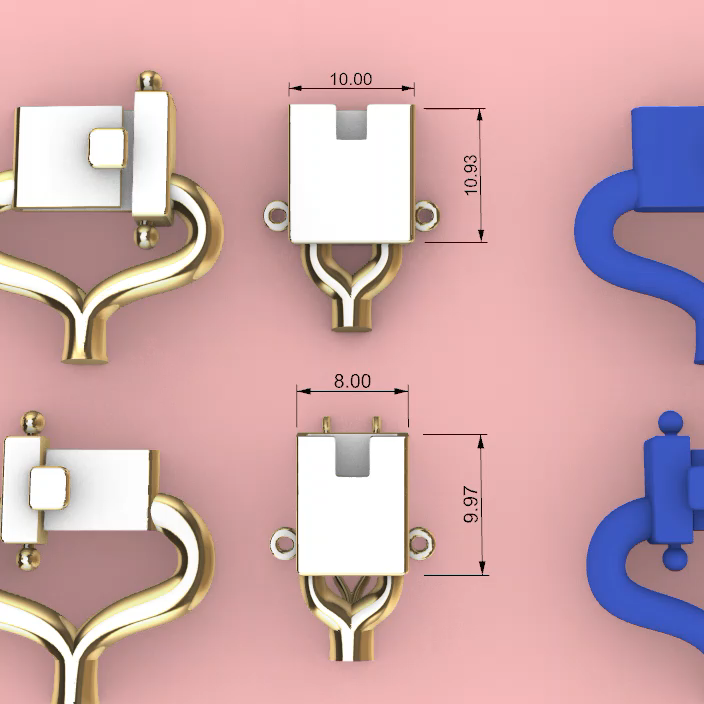

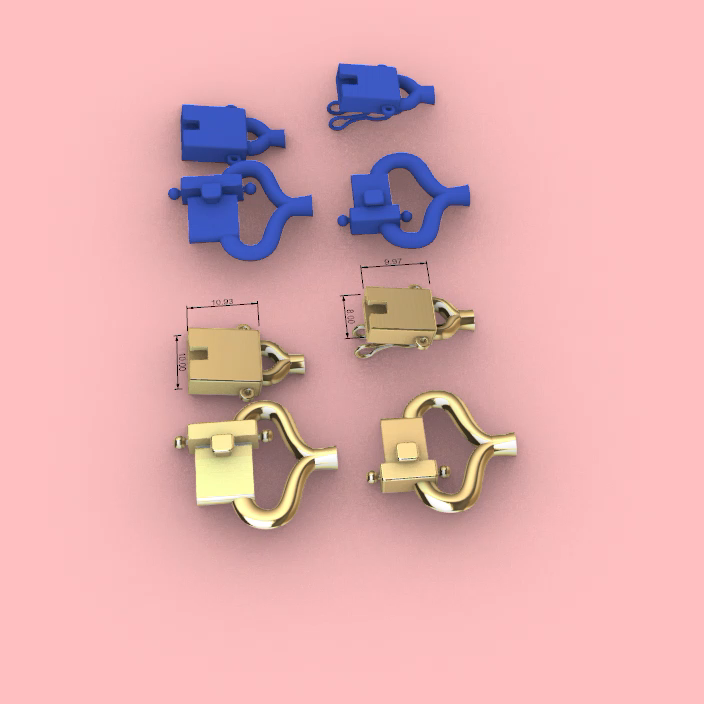

Clasp 1: - Width: 10.00 mm - Height: 10.93 mm

Clasp 2: - Width: 8.00 mm - Height: 9.97 mm

Q: Does this download include both the 10mm and 8mm clasp models? A: Yes, the file set contains two separate models. One clasp measures 10.00mm wide by 10.93mm high, and the second, smaller version is 8.00mm wide by 9.97mm high.

Q: What is the attachment method for these clasps? A: The split bail on each clasp ends in two small eyelets. These are designed for soldering or connecting jump rings to attach the ends of a necklace or bracelet.

Q: How does the locking mechanism on these clasps function? A: These are designed as classic push-button box clasps. A flexible tongue piece inserts into the box housing and locks in place; the small button on top must be depressed to release it.
