Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: RedRoseLTD
Price: $10.50 USD

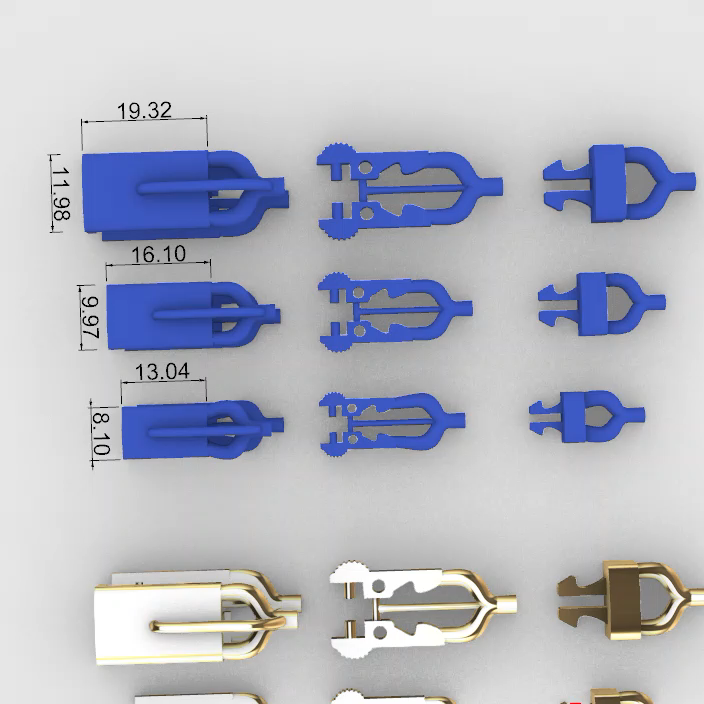

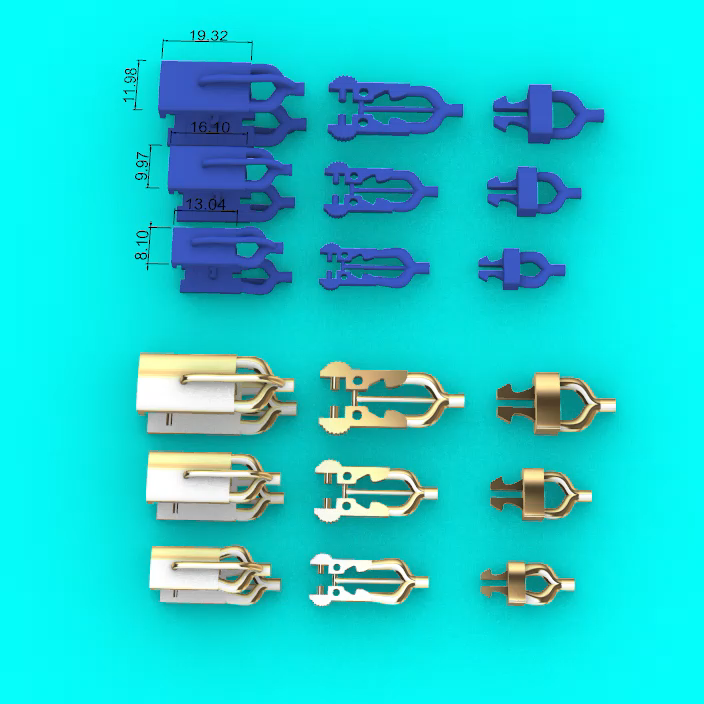

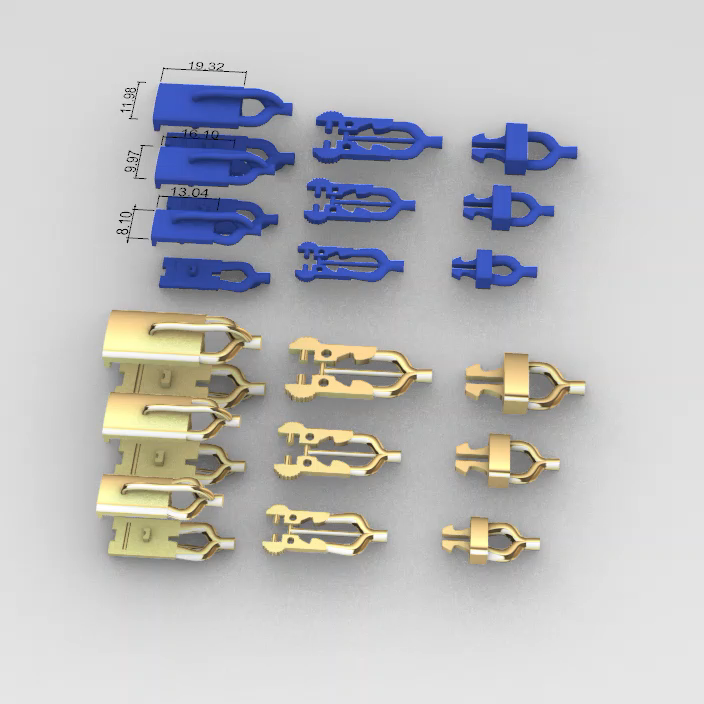

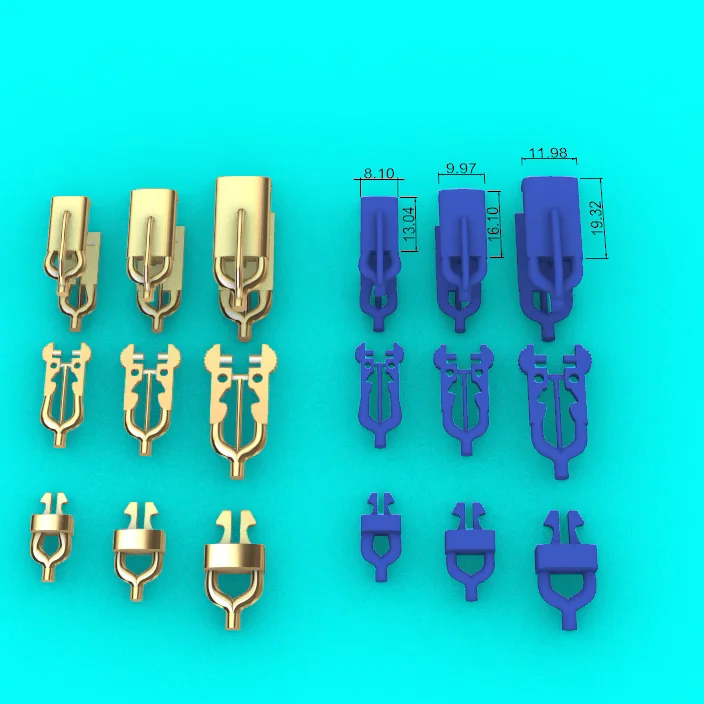

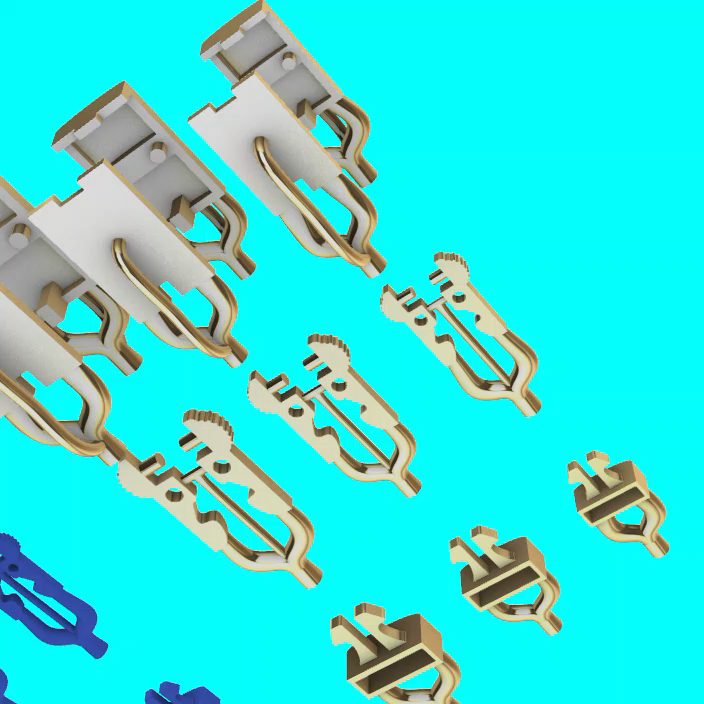

This CAD asset provides a set of four graduated sizes for a two-part tongue and groove box clasp, commonly used for bracelets and necklaces. Each clasp is composed of a rectangular outer housing and a corresponding V-shaped spring tongue insert engineered to latch securely. The models are detailed as separate components, illustrating the internal mechanism and the logic for assembly. This digital jewelry model set is designed so that each clasp size can be produced from a 3D-printed master pattern intended for a lost-wax casting workflow. Specific dimensions are provided for four primary lengths: 8.10 mm, 13.04 mm, 16.10 mm, and 19.32 mm.
- Model 1 Length: 8.10 mm - Model 2 Length: 13.04 mm - Model 3 Length: 16.10 mm - Model 3 Width: 9.97 mm - Model 4 Length: 19.32 mm - Model 4 Width: 11.98 mm
Q: How many different clasp sizes are included in this digital model set? A: The set includes models for four distinct sizes of the box clasp, with specified overall lengths of 8.10 mm, 13.04 mm, 16.10 mm, and 19.32 mm.
Q: Are the tongue and box parts provided as separate models for casting? A: Yes, for each of the four sizes, the files provide separate models for the outer box housing and the inner V-shaped spring tongue, allowing for independent production and assembly.
Q: What is the specified width of the largest clasp in the set? A: The largest clasp, which corresponds to the 19.32 mm length, has a specified width of 11.98 mm according to the technical drawings.
