Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: RedRoseLTD
Price: $15.00 USD
Buy Split Shank Pear Diamond Ring CAD Design STL 3DM Gold Jewelry
If you need to change the size or anything, message me for help. Other sizes and formats can be fabricated—just let me know what size you want. All bugs are checked and fixed. STL file is healed and ready to prototype. After-sale modifications are free within 2 business days.

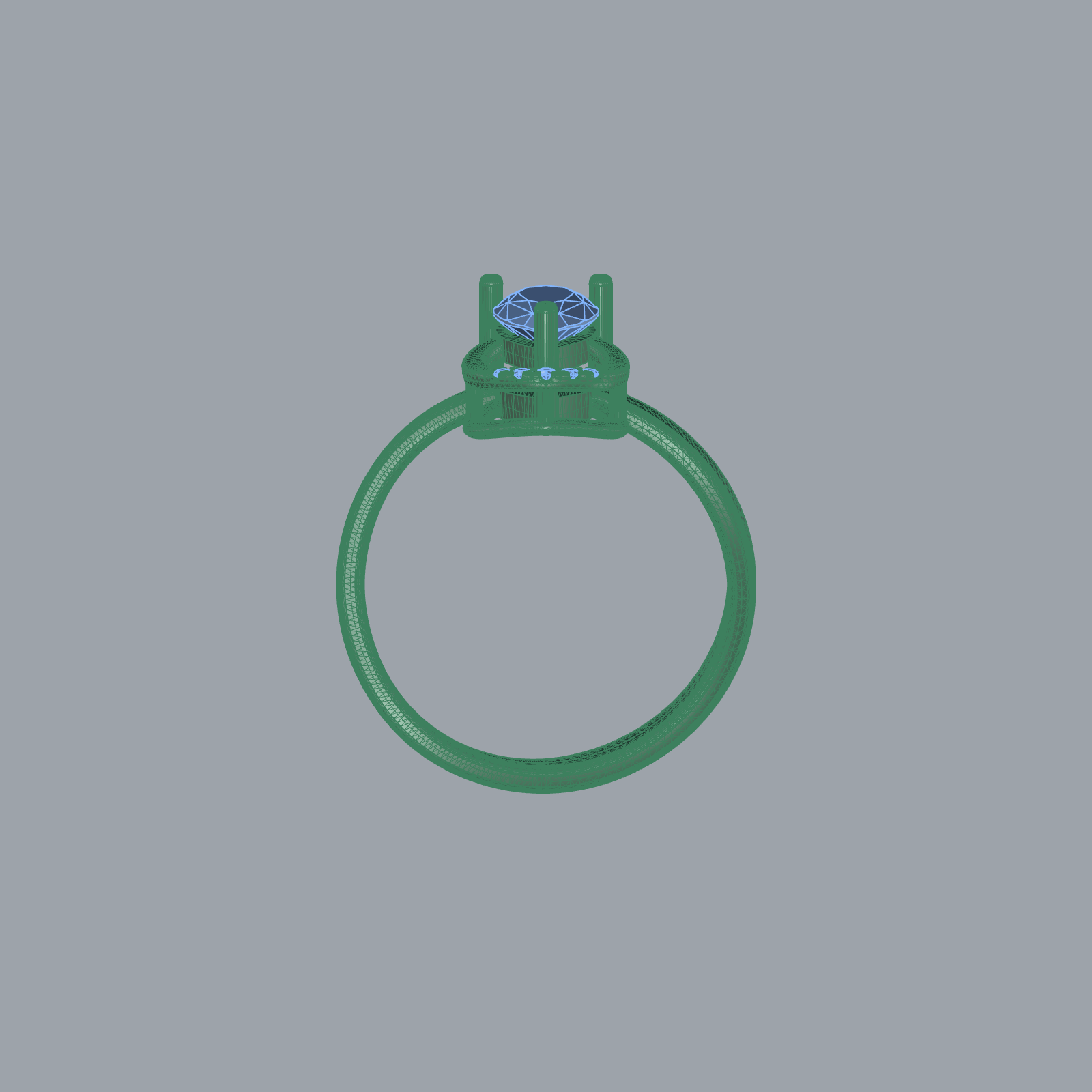

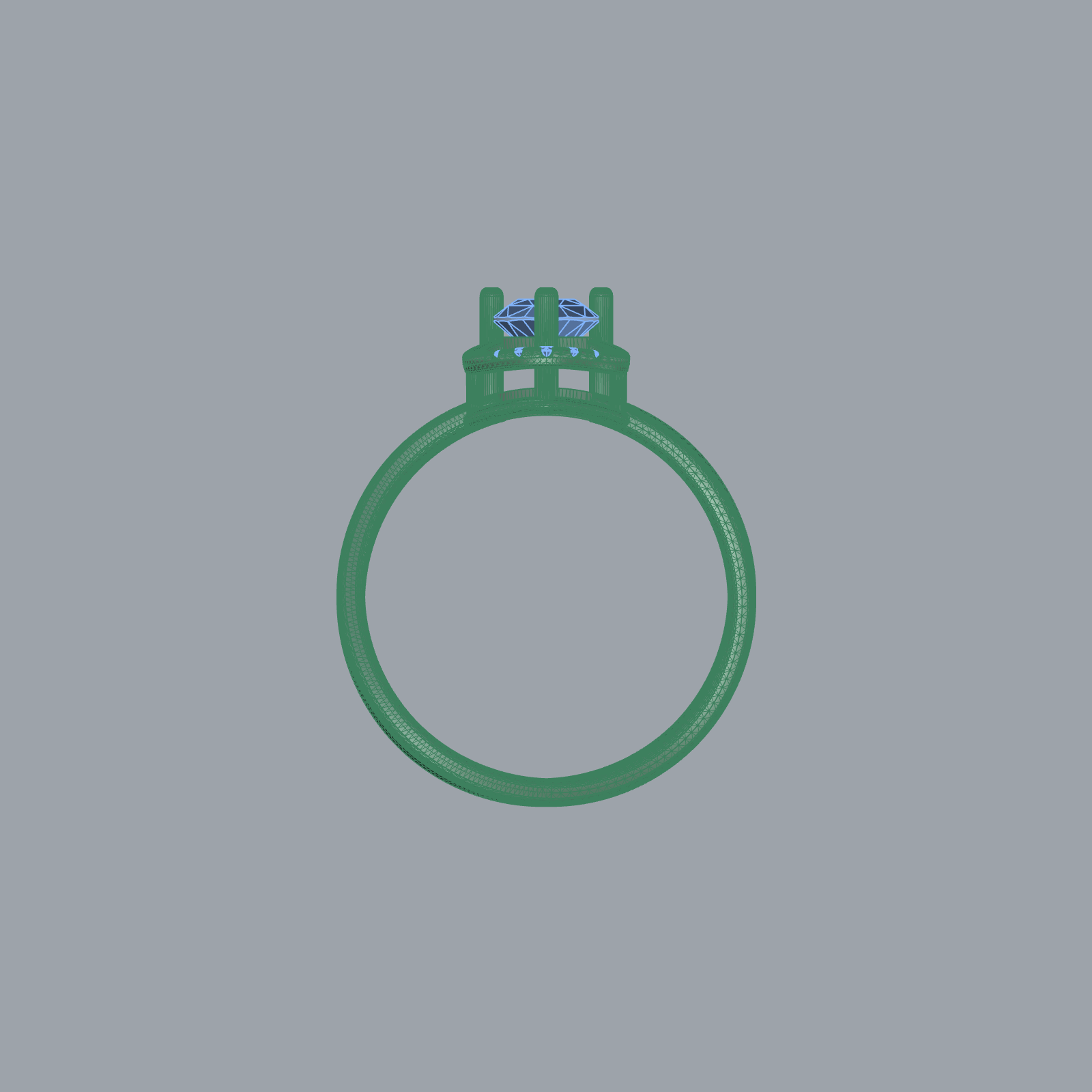

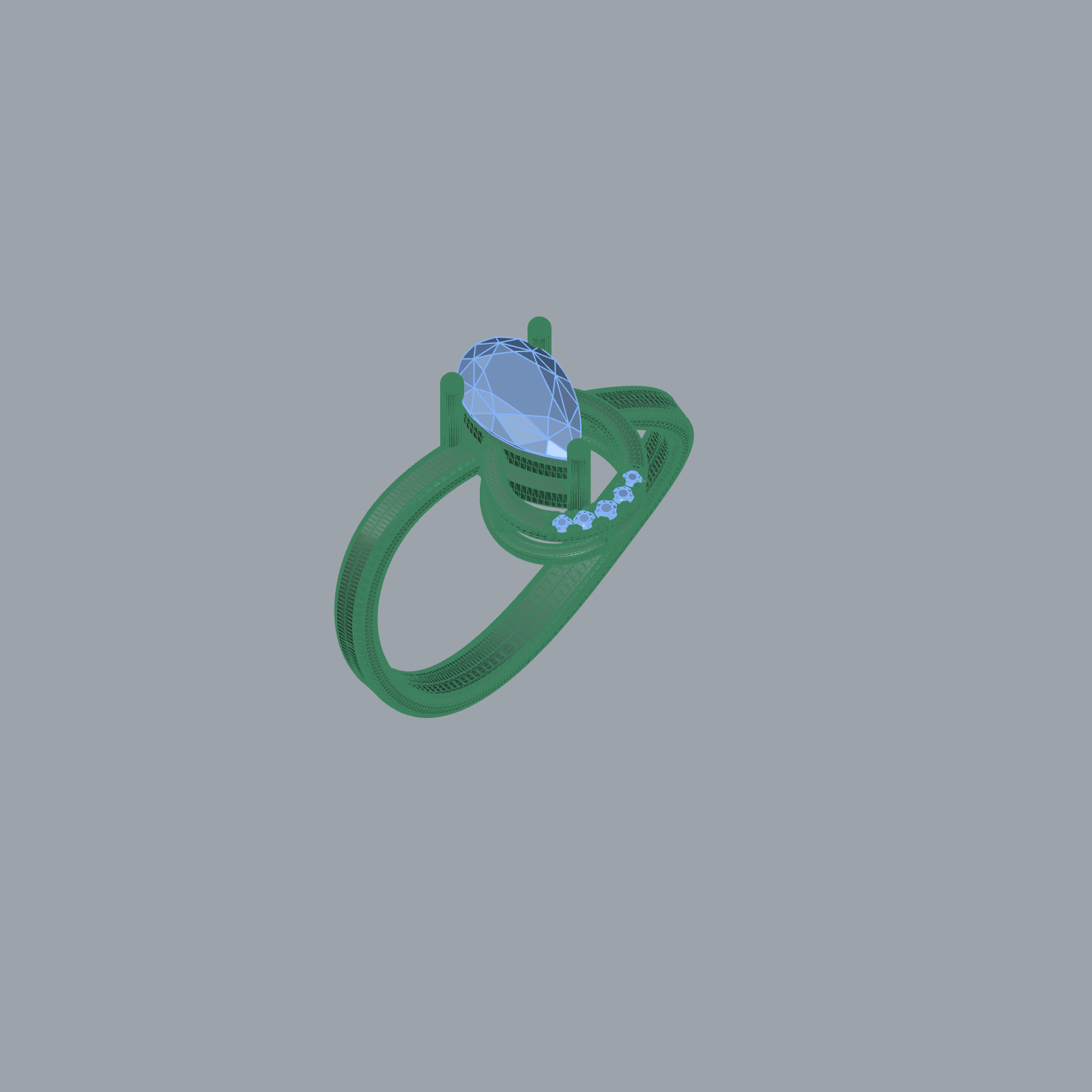

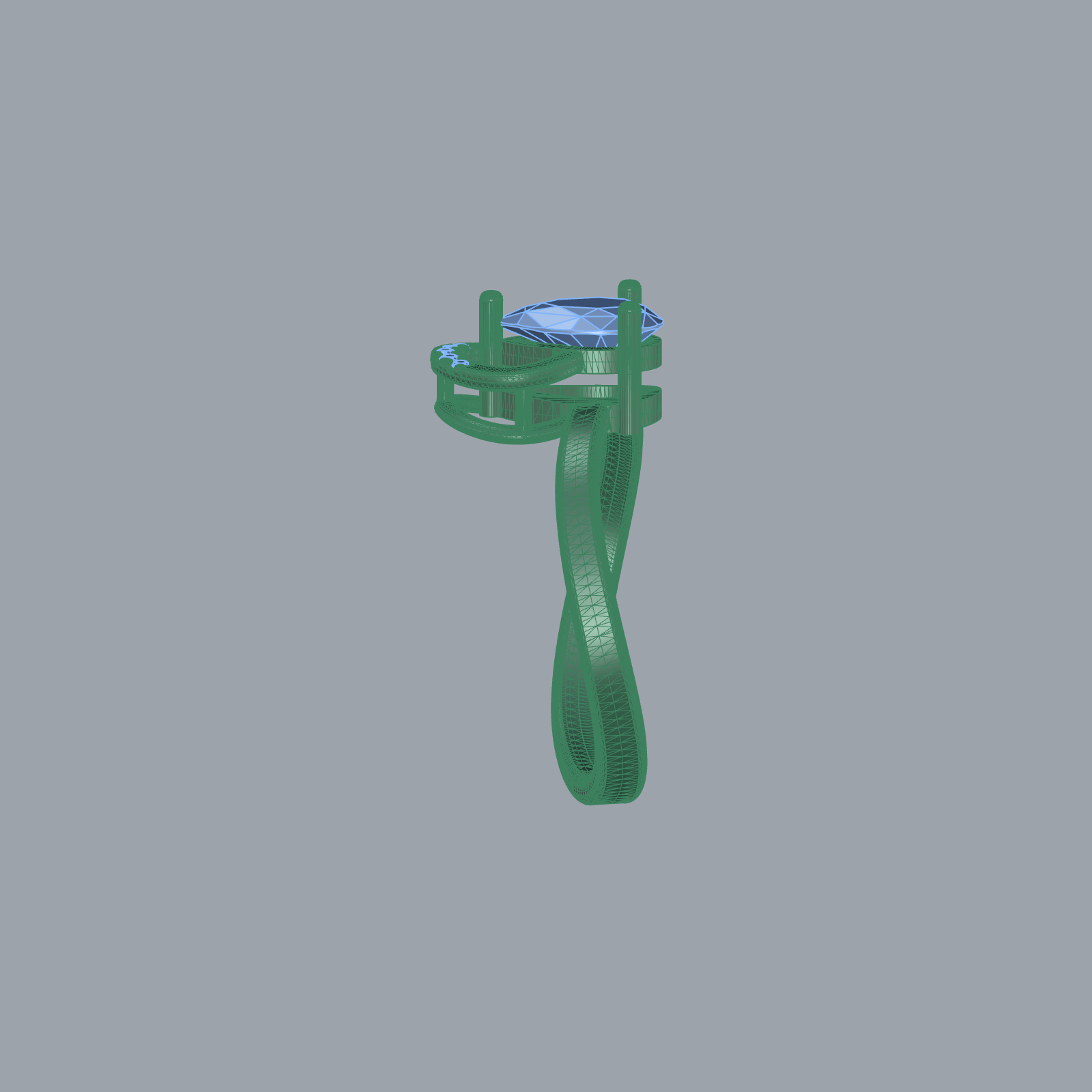

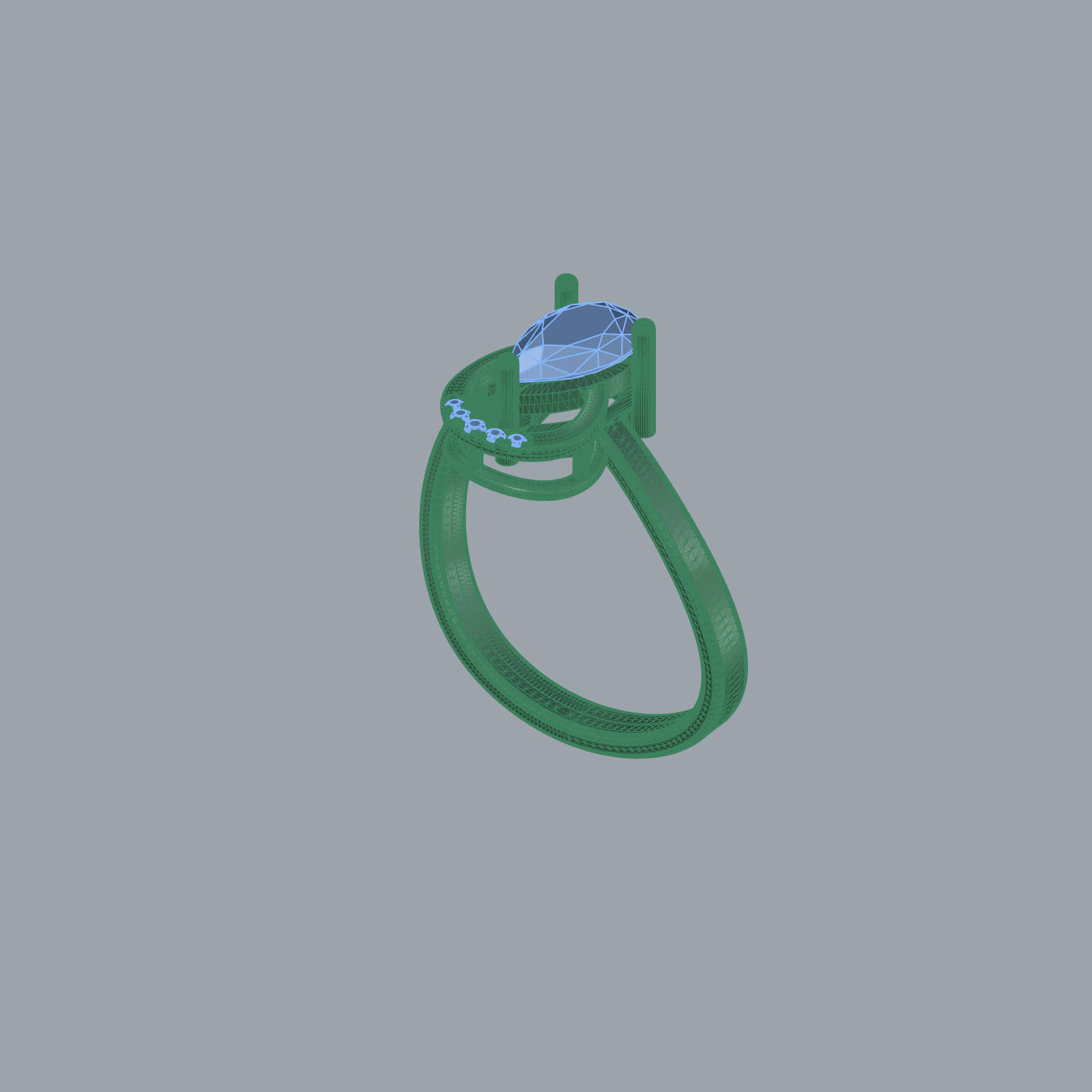

A refined pear-cut diamond ring featuring a graceful split shank and delicate beaded edge detailing. The open shoulder structure adds definition around the center stone while keeping the profile elegant and suitable for fine jewelry production.
Production Details
Pear-shaped center stone setting Split shank construction Beaded edge detailing Clean, manufacturing-ready geometry Suitable for 3D printing, casting and prototyping Editable 3DM CAD file Production-ready STL mesh
Includes: 3DM + STL files

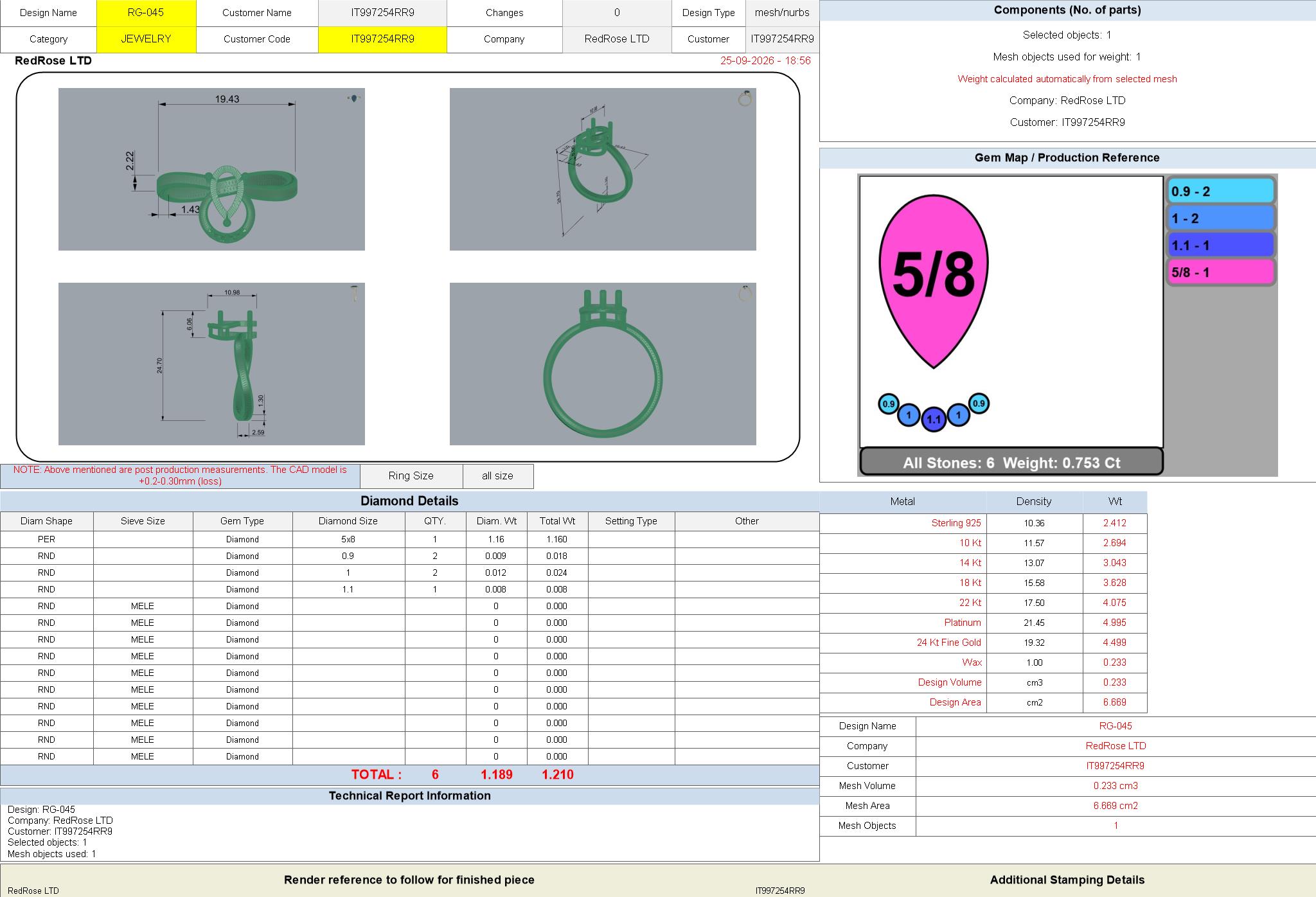

- Diamond, Pear cut, 1 pcs, 5x8 mm, 1.183 total, Prong setting - Diamond, Round cut, 2 pcs, 0.9 mm, 0.009 total, Shared prong setting - Diamond, Round cut, 2 pcs, 1 mm, 0.012 total, Shared prong setting - Diamond, Round cut, 1 pcs, 1.1 mm, 0.008 total, Shared prong setting

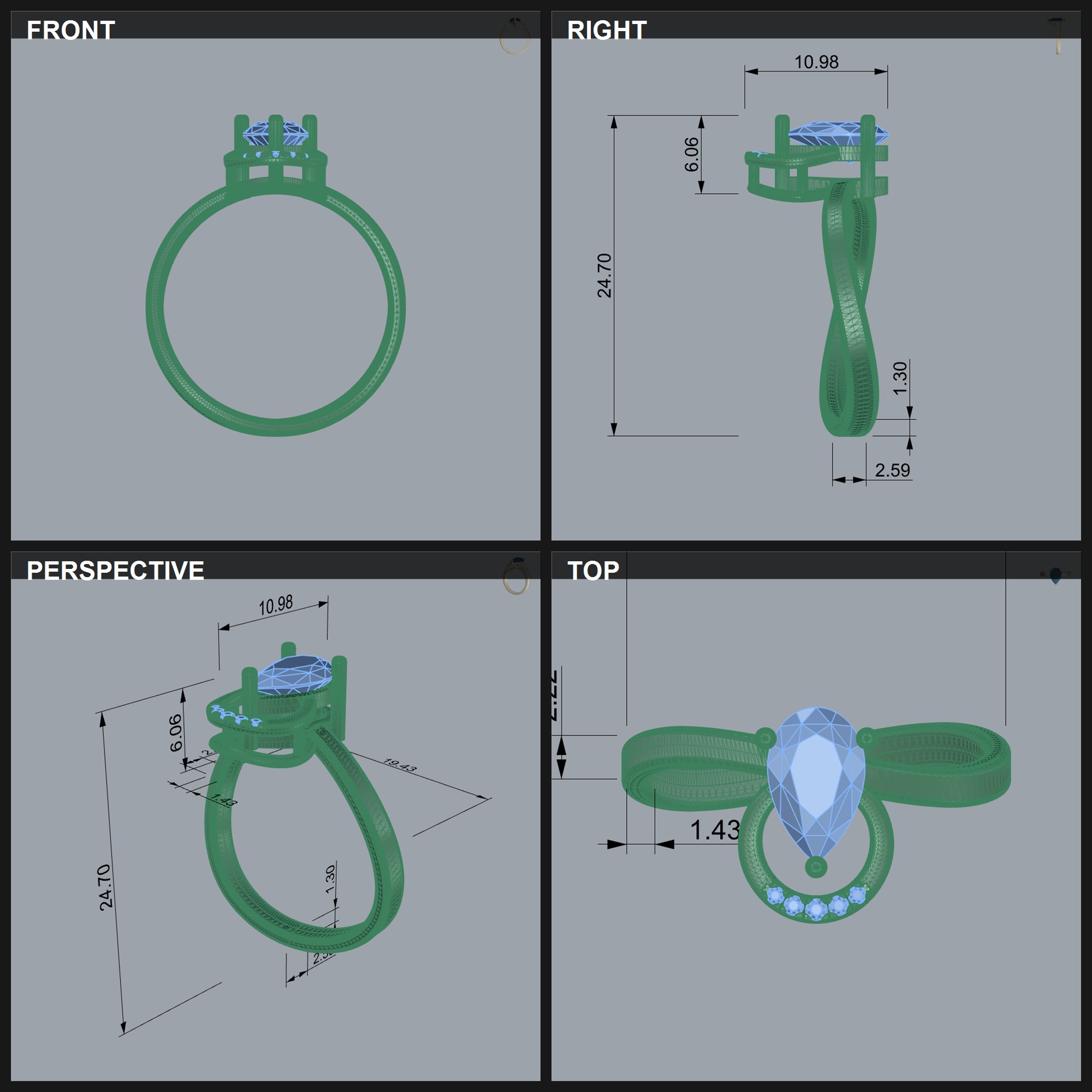

Overall height: 24.70 mm; Head width: 10.98 mm; Head height: 6.06 mm; Shank width: 2.59 mm; Shank thickness: 1.30 mm; Shank width near top: 2.22 mm; Shank thickness near top: 1.43 mm
- Sterling 925: 2.413 g - 10 Kt: 2.894 g - 14 Kt: 3.343 g - 18 Kt: 3.828 g - 22 Kt: 4.675 g - Platinum: 4.895 g - 24 Kt Fine Gold: 4.499 g - Wax: 0.233 g
