By: Model2019
Price: $30.00 USD

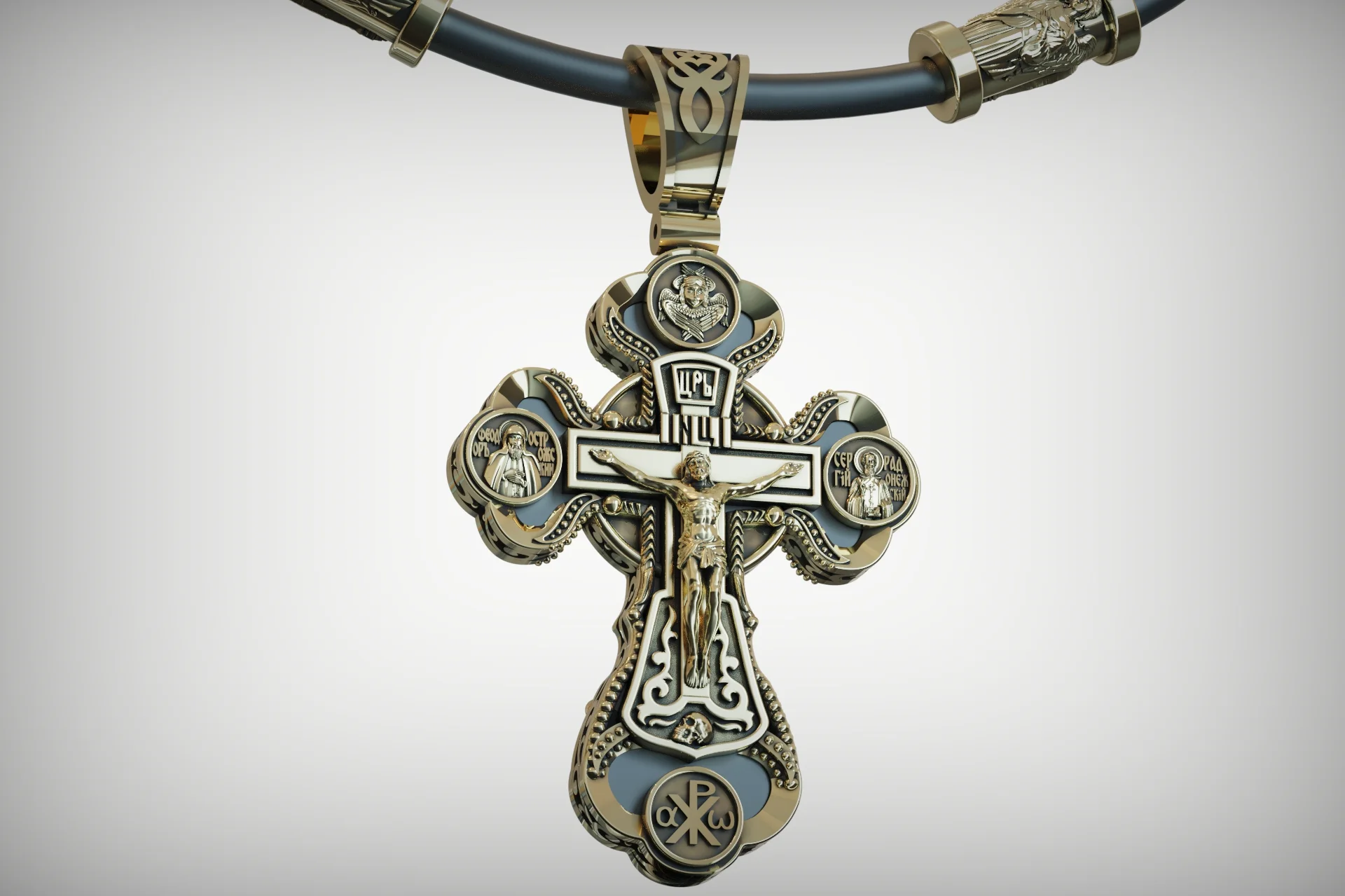

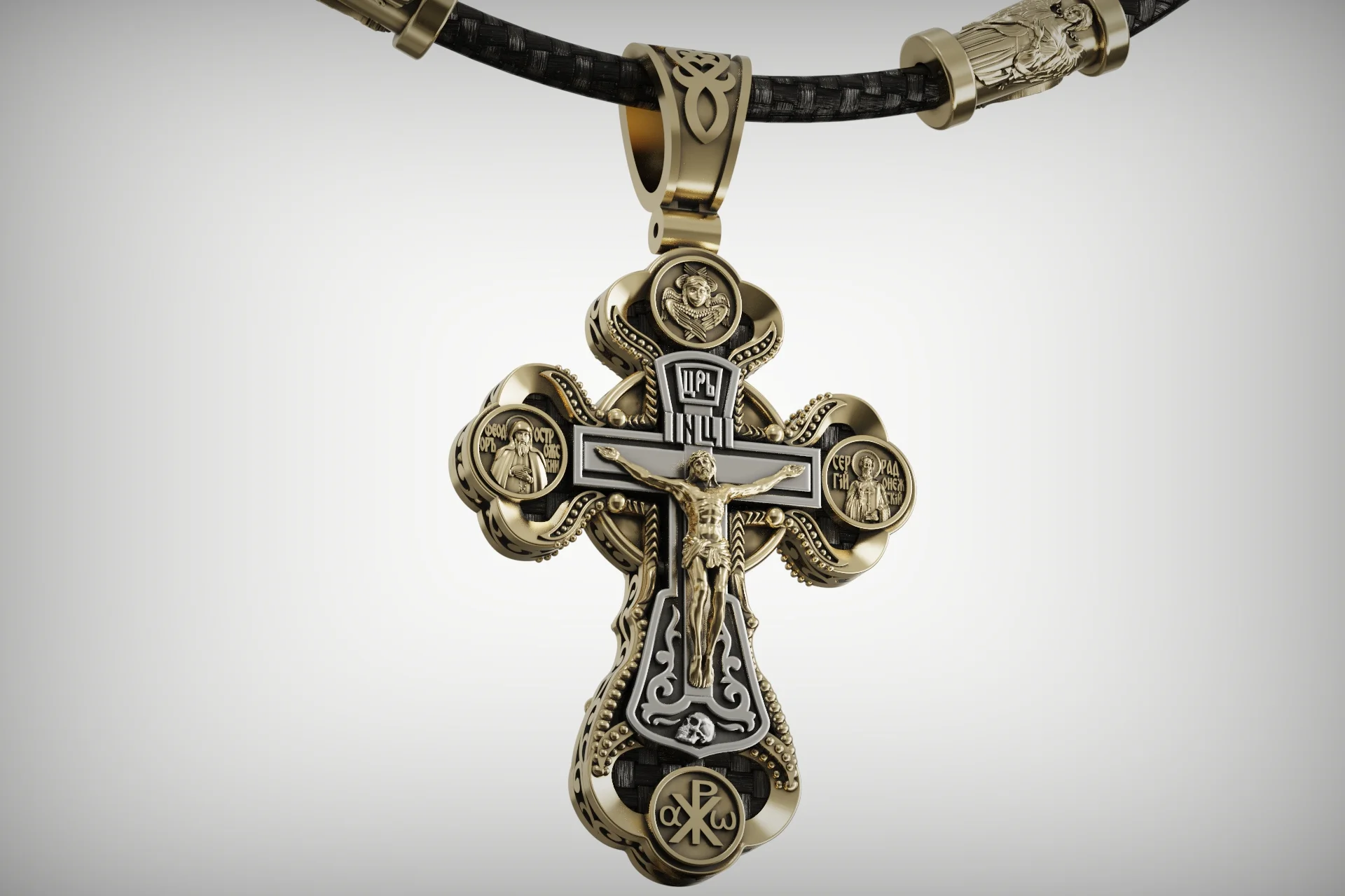

This is a 3D model of a two-sided, multi-part Eastern Orthodox pendant set. The main component is a cinquefoil (five-lobed) cross, featuring high-relief iconography on both its obverse and reverse faces. The obverse is dominated by a central corpus Christi, depicting the Crucifixion. This scene is detailed with the "IHЦI" (INRI) titulus and the Church Slavonic abbreviation "ЦРЬ СЛВЫ" (King of Glory) above the crossbeam. The lower arm of the cross displays the Skull of Adam at Golgotha, flanked by the Alpha and Omega symbols and the "МЛРБ" inscription. The reverse side features a central standing figure of the Theotokos (Virgin and Child), surrounded by four medallions containing additional saint icons. The entire cross is edged with fine milgrain detailing.
The set includes three additional components: a decorative bail with Celtic-style knotwork, a separate jump ring, and a cylindrical barrel bead designed for a paracord or leather cord. This bead is also decorated with religious relief figures, matching the style of the main cross. The model provides specific dimensions for each part, including a cross body height of 40.10 mm and a thickness of 7.99 mm, ensuring accurate production. The file is structured for manufacturing two-tone pieces, as shown in the renders, allowing for selective plating of the corpus and other elements.
No gems specified.

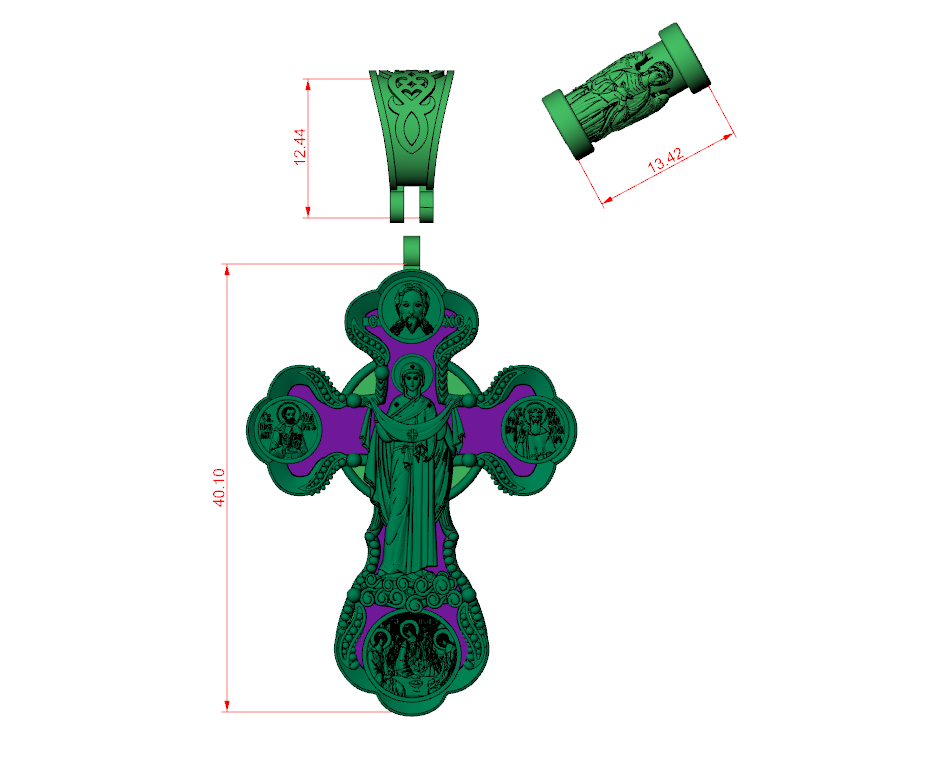

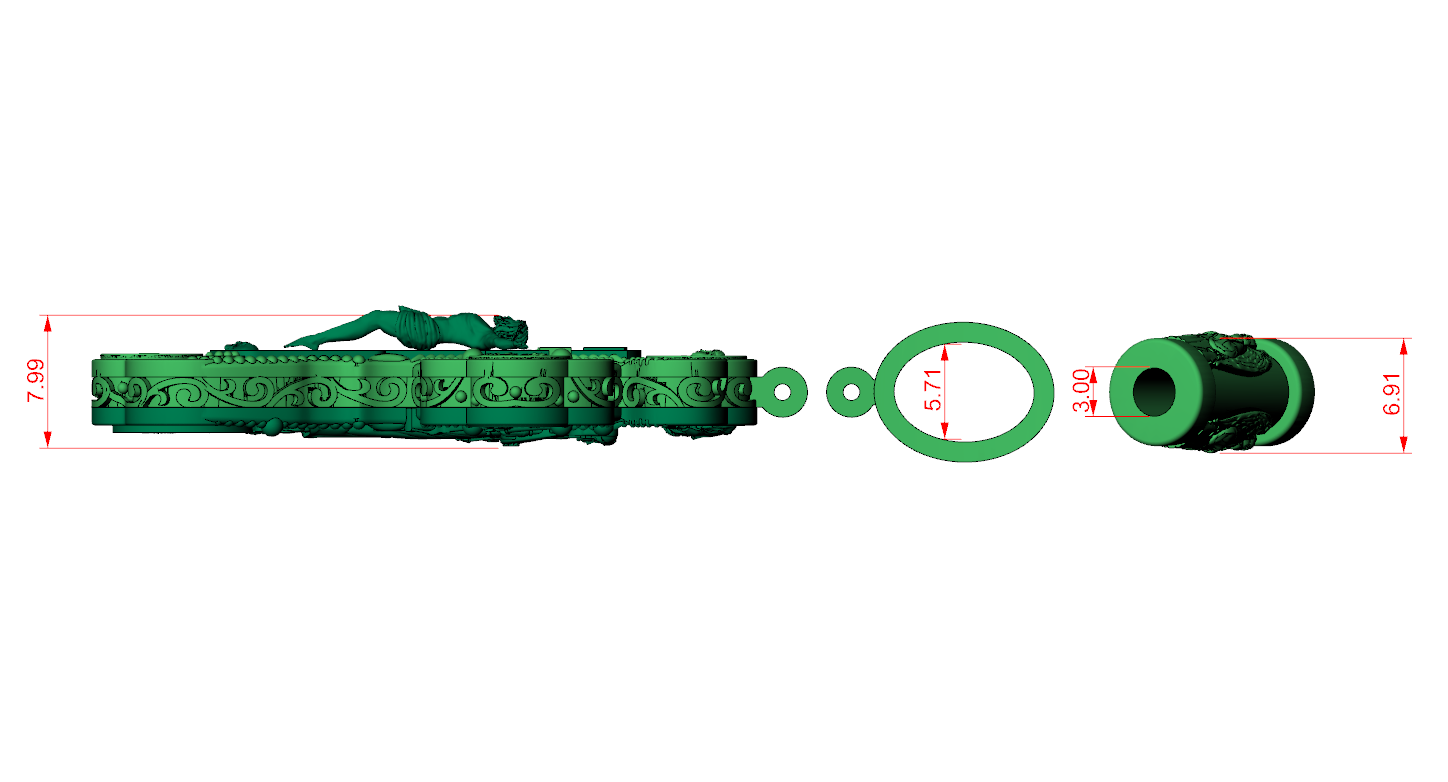

- Cross Height: 40.10 mm - Cross Thickness: 7.99 mm - Bail Height: 12.44 mm - Cylindrical Charm Length: 13.42 mm - Cylindrical Charm Diameter: 6.91 mm - Jump Ring Outer Diameter: 5.71 mm - Jump Ring Inner Diameter: 3.00 mm
Not applicable.

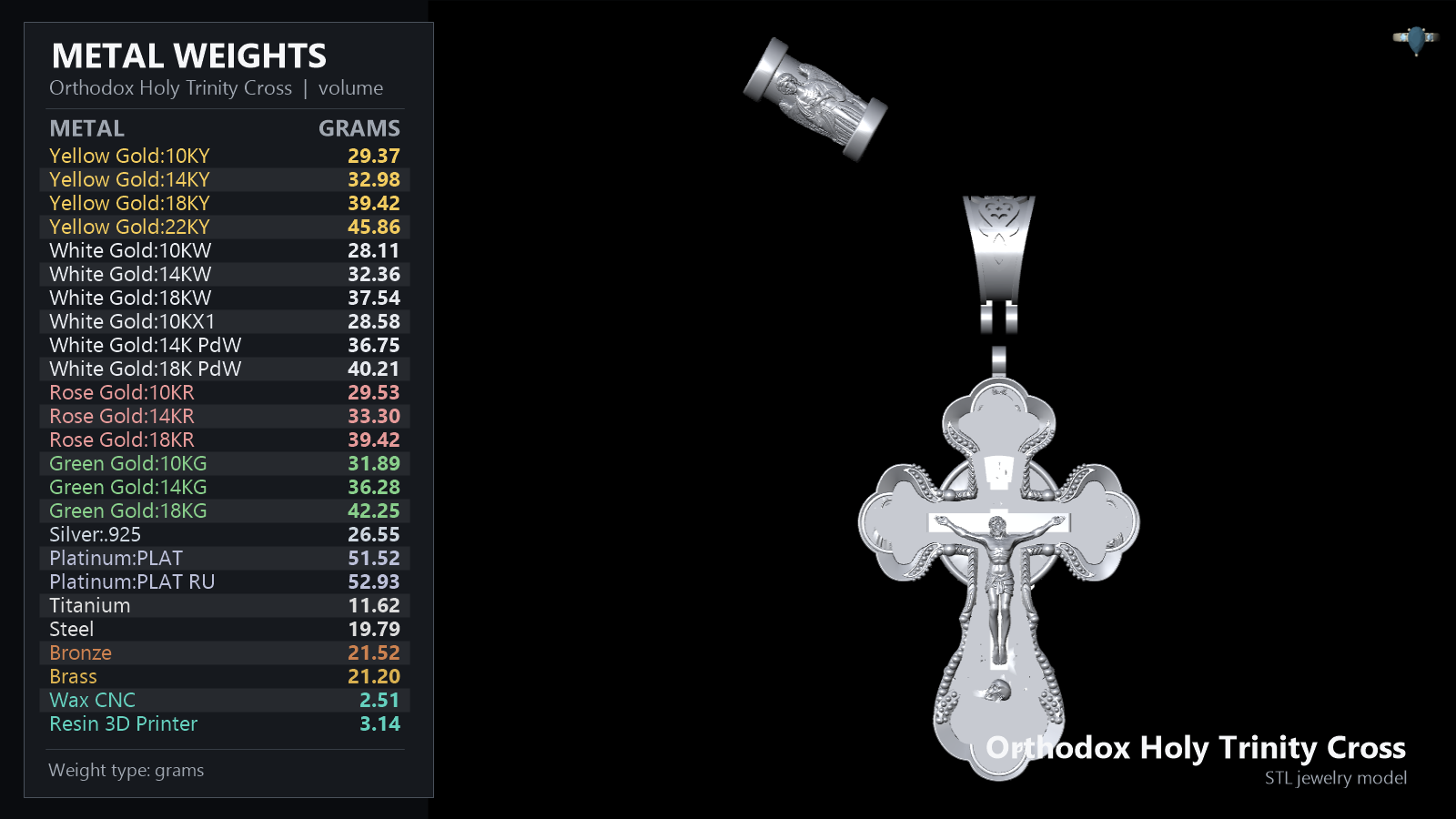

Based on the provided metal weight table: - Silver 925: 26.55 g - Yellow Gold 14K: 32.98 g - Yellow Gold 18K: 39.42 g - Platinum (.PLAT): 51.52 g - Bronze: 21.52 g - Wax CNC: 2.51 g - Resin 3D Printer: 3.14 g
Production & Compatibility

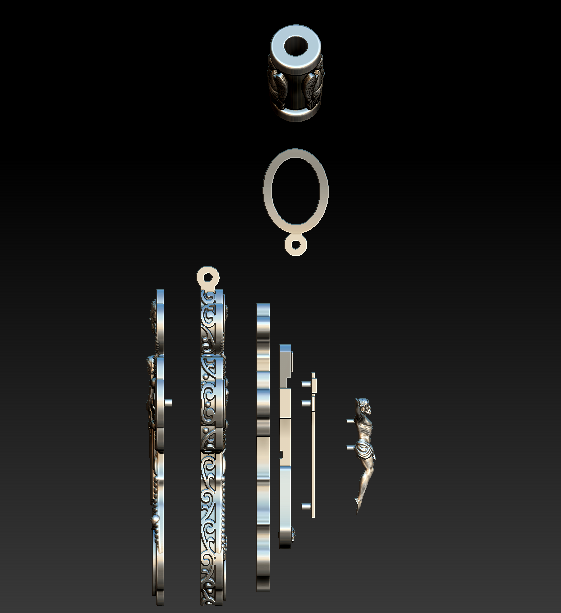

The multi-part design (cross, bail, charm, jump ring) is optimized for high-resolution 3D printing on SLA, DLP, or MSLA systems using castable resins. The deep and detailed reliefs on both faces are well-suited for lost-wax casting to capture the fine iconographic features and inscriptions. Due to the complex undercuts in the religious figures, a 4-axis or 5-axis CNC milling approach on a wax block would also yield excellent results. The model is provided as a watertight mesh, ready for slicing and direct use in production workflows without further mesh repair.
Q: What is the total height of the pendant when fully assembled with its bail? A: The cross body measures 40.10 mm in height, and the bail adds another 12.44 mm. The total assembled height from the top of the bail to the bottom of the cross is approximately 52.54 mm.
Q: Is the cylindrical bead a separate piece, and is it intended for the same necklace? A: Yes, the 13.42 mm long cylindrical piece is a separate model, designed as a paracord charm or lanyard bead. It can be threaded onto the main necklace cord alongside the cross or used independently on another cord, offering flexibility in how the set is worn.
Q: Are the inscriptions on the front of the cross legible and accurate? A: Yes, the model includes several clear, high-relief inscriptions from Eastern Orthodox iconography. These include "IC XC" (Jesus Christ), "IHЦI" (INRI), "ЦРЬ СЛВЫ" (King of Glory), and "МЛРБ" at the base, all rendered for sharp definition in casting or milling.
