Gallery
By: RedRoseLTD
Price: $34.00 USD

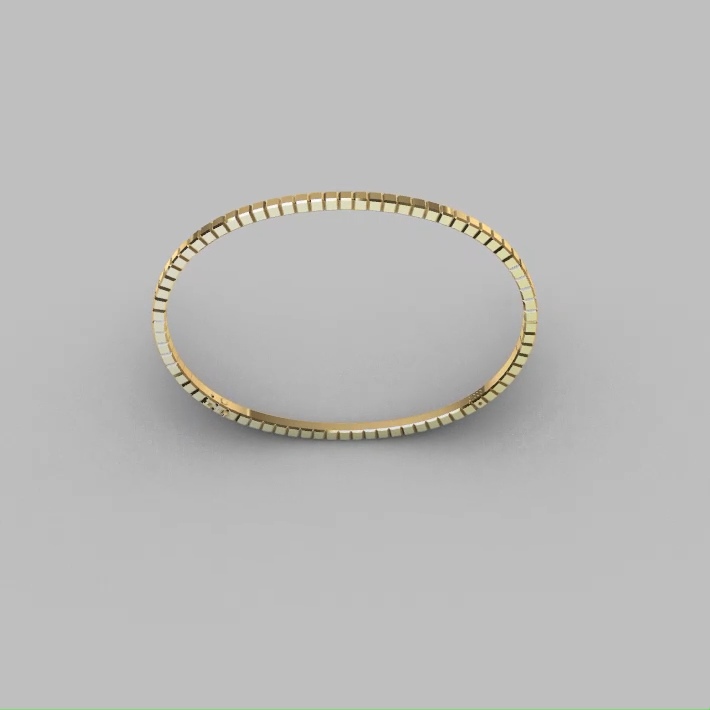

An oval bracelet defined by a continuous series of geometric segments. The design features an inner clearance of 60.40mm by 46.20mm, with a uniform profile thickness of 2.25mm. The exterior is composed of individual, block-like links that create a textured, modern aesthetic. With an outer circumference of approximately 170.03mm, the model is suitable for direct manufacturing as a rigid bangle or for production as a flexible link bracelet. The digital file provides a clean, watertight mesh optimized for high-resolution SLA/DLP printing processes, ensuring sharp edges and precise geometry for casting.
No gems specified.

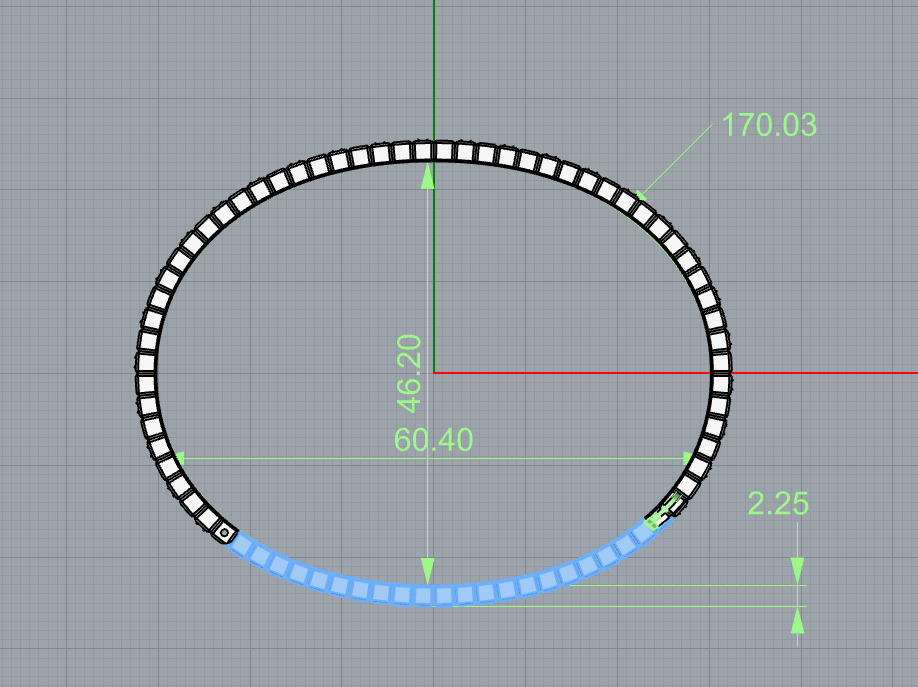

- Inner Width (Major Axis): 60.40 mm - Inner Height (Minor Axis): 46.20 mm - Profile Height / Thickness: 2.25 mm - Outer Circumference: approx. 170.03 mm
Not applicable
Volume not specified - weight cannot be calculated.
Production & Compatibility
The segmented geometry of this model is well-suited for high-resolution SLA, MSLA, or DLP 3D printers to capture the crisp edges between each block. It can be printed with castable resins for a direct lost-wax casting workflow. Manufacturers can produce this piece as a single, rigid oval bangle or, by separating the links in CAD, as a flexible bracelet requiring assembly. The design's clean topology ensures straightforward import and handling in standard jewelry production software.
Q: What are the internal dimensions of the bracelet to check for fit? A: The internal oval shape measures 60.40mm across its widest point (major axis) and 46.20mm across its narrowest point (minor axis).
Q: Is this model for a rigid bangle or a flexible link bracelet? A: The 3D model is constructed from individual segments, providing the data to manufacture it as either a solid, rigid bangle or as a flexible link bracelet by casting the segments separately for assembly.
Q: How thick is the bracelet wall? A: The profile height, which corresponds to the thickness of the segmented wall, is a uniform 2.25mm as specified in the technical drawing.
