Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: RedRoseLTD
Price: $10.00 USD

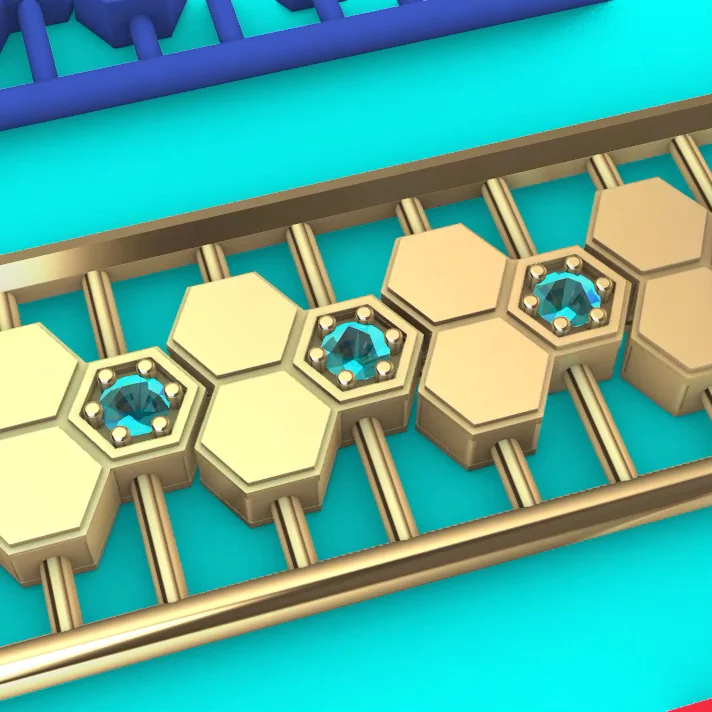

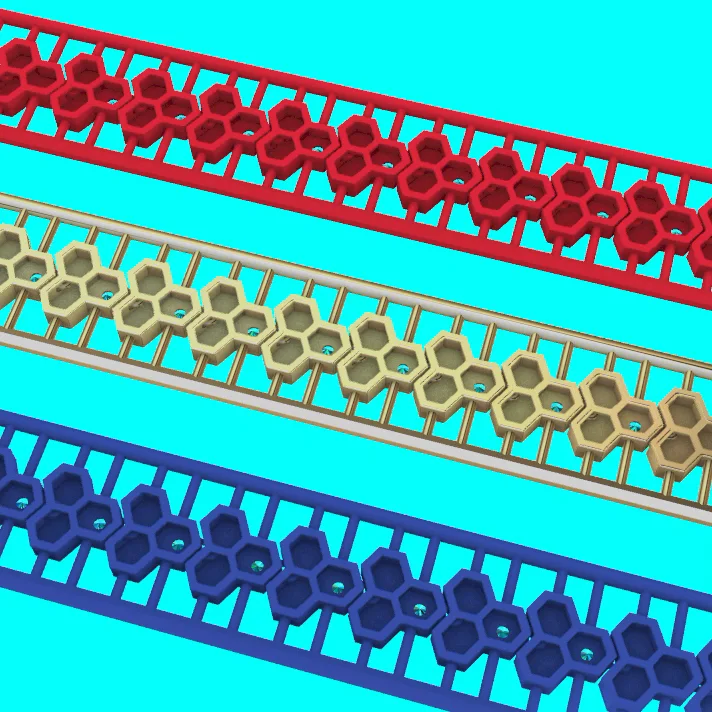

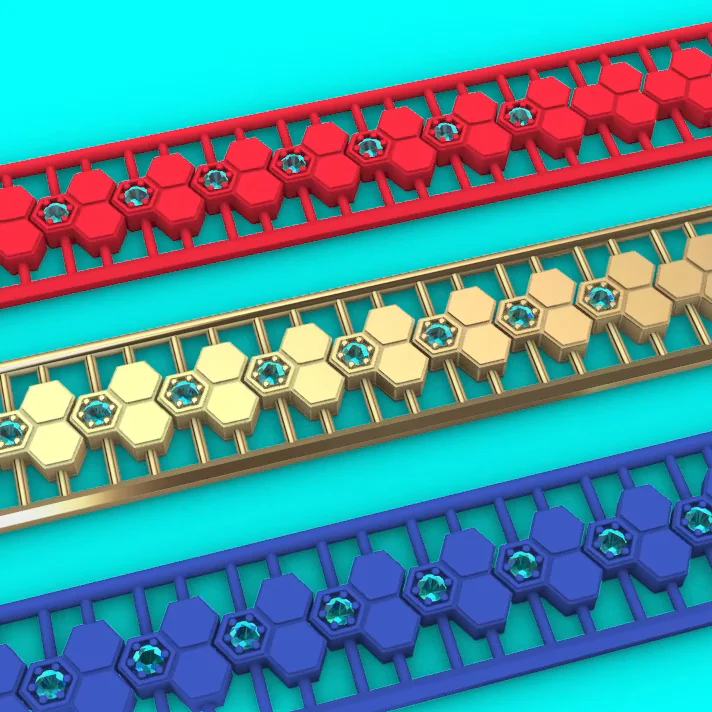

A repeating series of nine hexagonal links creates the structure of this geometric band. Each honeycomb-shaped element features a flat top surface and securely holds a single round stone in a protective bezel setting. These links are mounted onto a parallel double-rail understructure, forming an articulated assembly suitable for a bracelet. This CAD asset provides the detailed geometry for an additively manufactured master pattern, intended for a subsequent lost-wax casting process to create the final piece 8X180MM BOX DIMENTION
This model is detailed for two stone options:

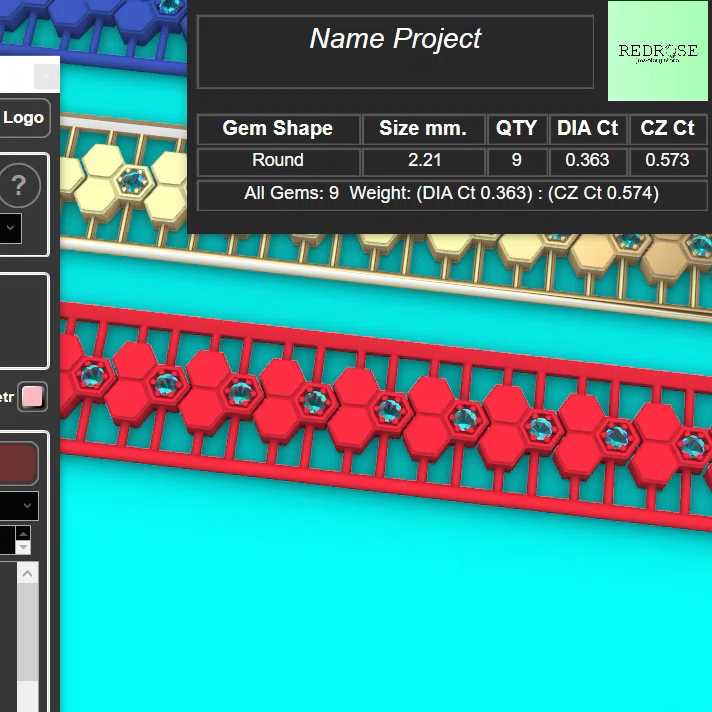

Stone Option 1: Diamond Quantity: 9 (nine) Cut: Round Carat Weight: approx. 0.040ct each (0.363ct total) Size: 2.21mm Setting: Bezel
Stone Option 2: Cubic Zirconia (CZ) Quantity: 9 (nine) Cut: Round Carat Weight: approx. 0.064ct each (0.573ct total) Size: 2.21mm Setting: Bezel
Q: How many stones are specified for this bracelet link model? A: The model details a segment containing nine hexagonal links, with each link holding one 2.21mm round stone for a total of nine stones.
Q: What are the total carat weights provided for the different stone options? A: The specifications include two alternatives for the nine-stone segment: a total diamond weight of 0.363 carats or a total cubic zirconia weight of 0.573 carats.
Q: What kind of setting holds the 2.21mm stones in place? A: Each of the nine round stones is designed to be set in a full bezel, which is integrated into the top of each hexagonal link.
