Segmented Quatrefoil Station Bangle Bracelet HOTSALE

Description

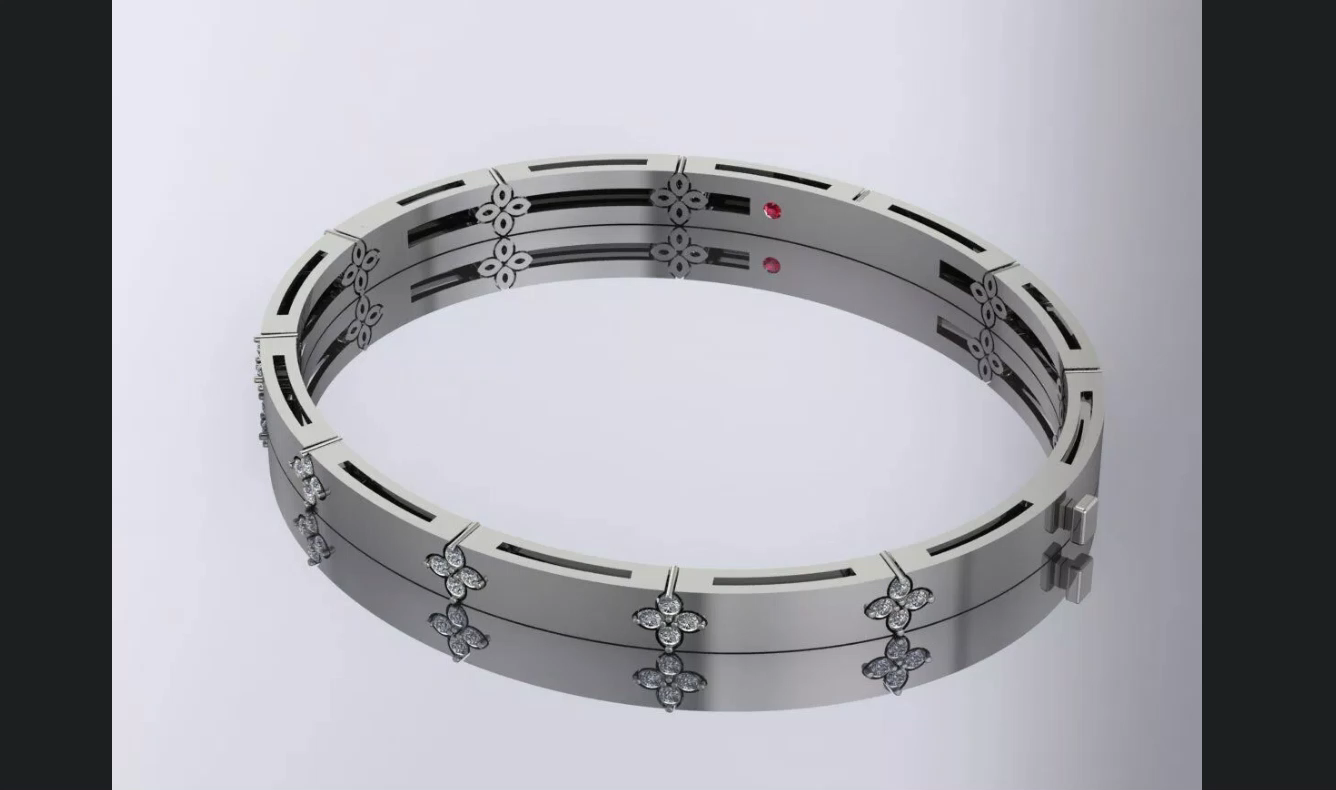

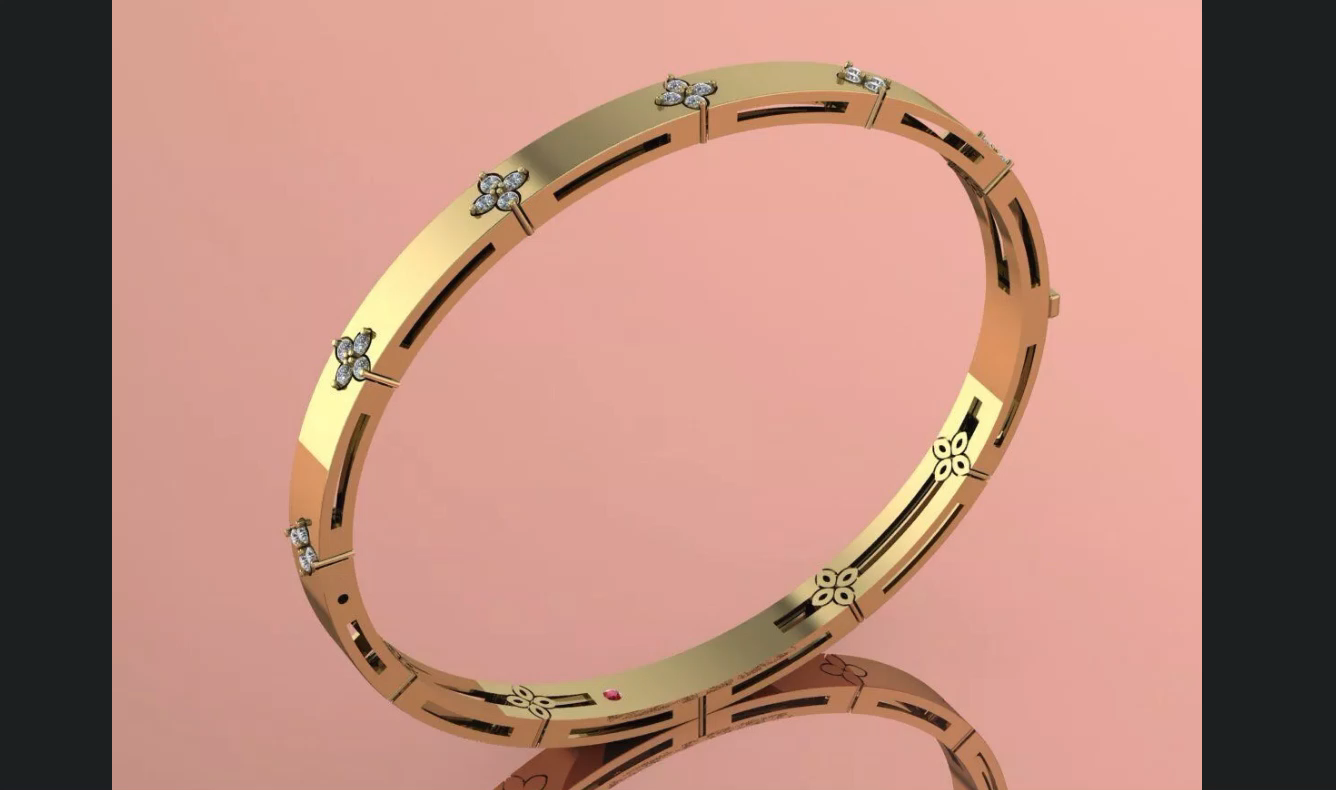

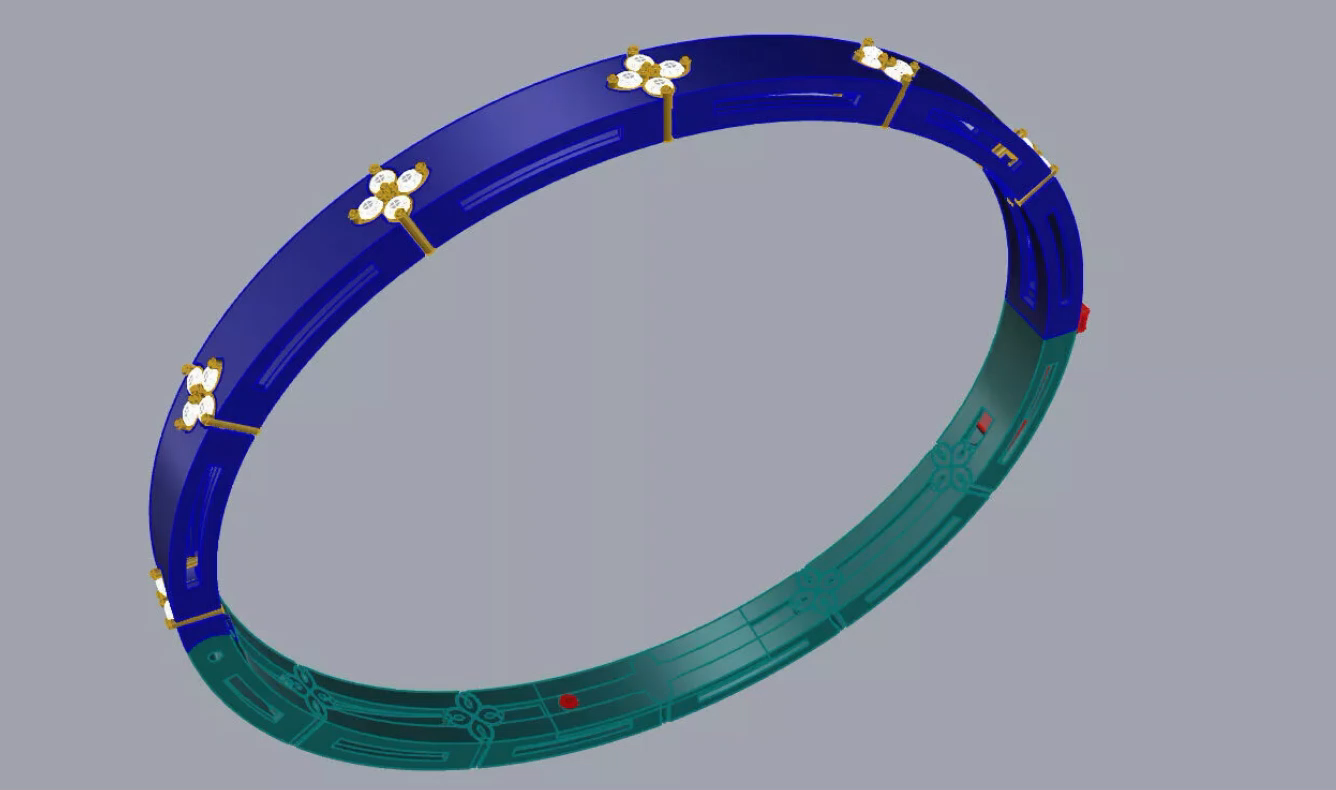

This design details a segmented bangle bracelet constructed from a series of linked stations. Stylized quatrefoil motifs, each bead-set with a small round stone, serve as the primary decorative elements and connectors along the flat-profile band. The articulated structure forms an oval bangle with precise inner dimensions of 61.60mm by 53.00mm. This digital jewelry model is engineered for creating a 3D-printed production pattern, with the segmented design intended for assembly after investment casting. The individual links have a measured thickness of 2.80mm.

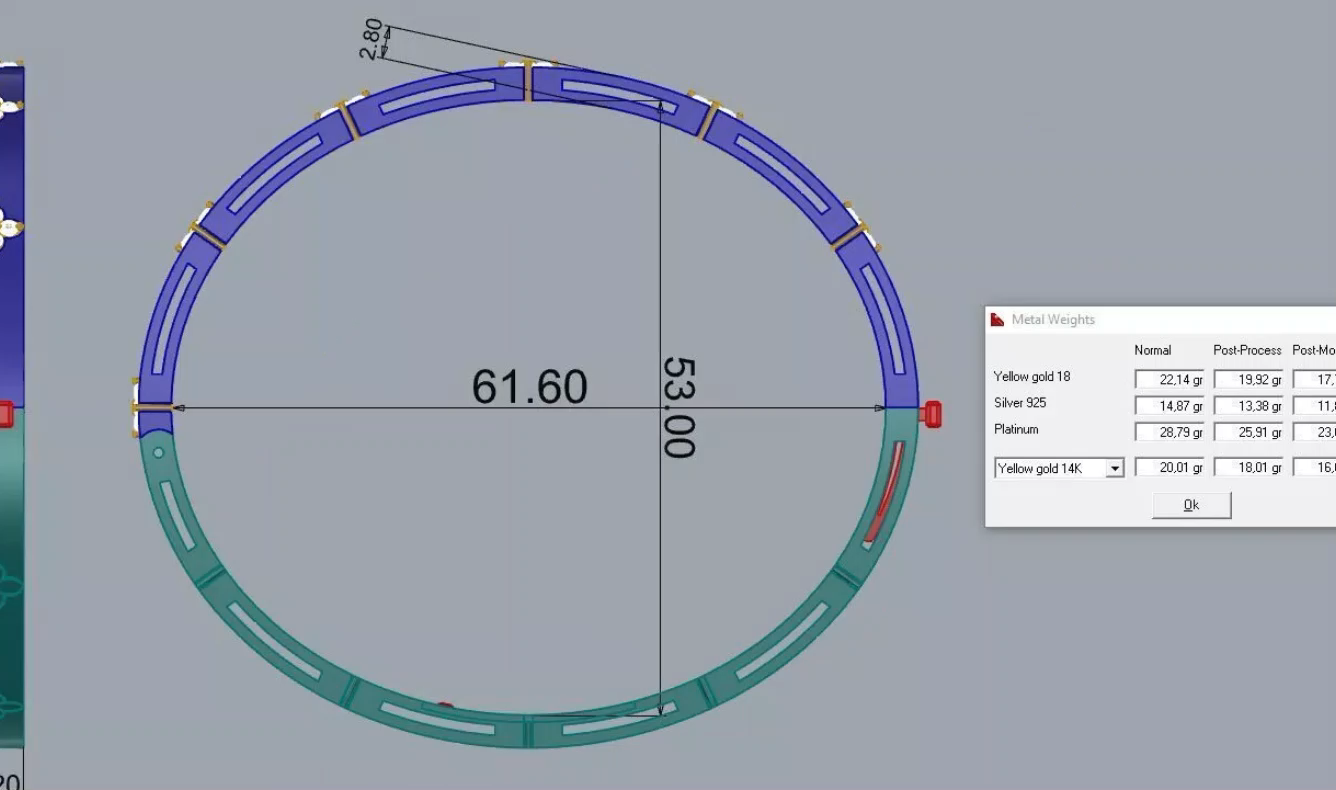

- Inner Width: 61.60 mm - Inner Height: 53.00 mm - Link Thickness: 2.80 mm

Estimated model weights based on provided data: - Yellow Gold 18K: 22.14 g - Yellow Gold 14K: 20.01 g - Platinum: 28.79 g - Silver 925: 14.87 g

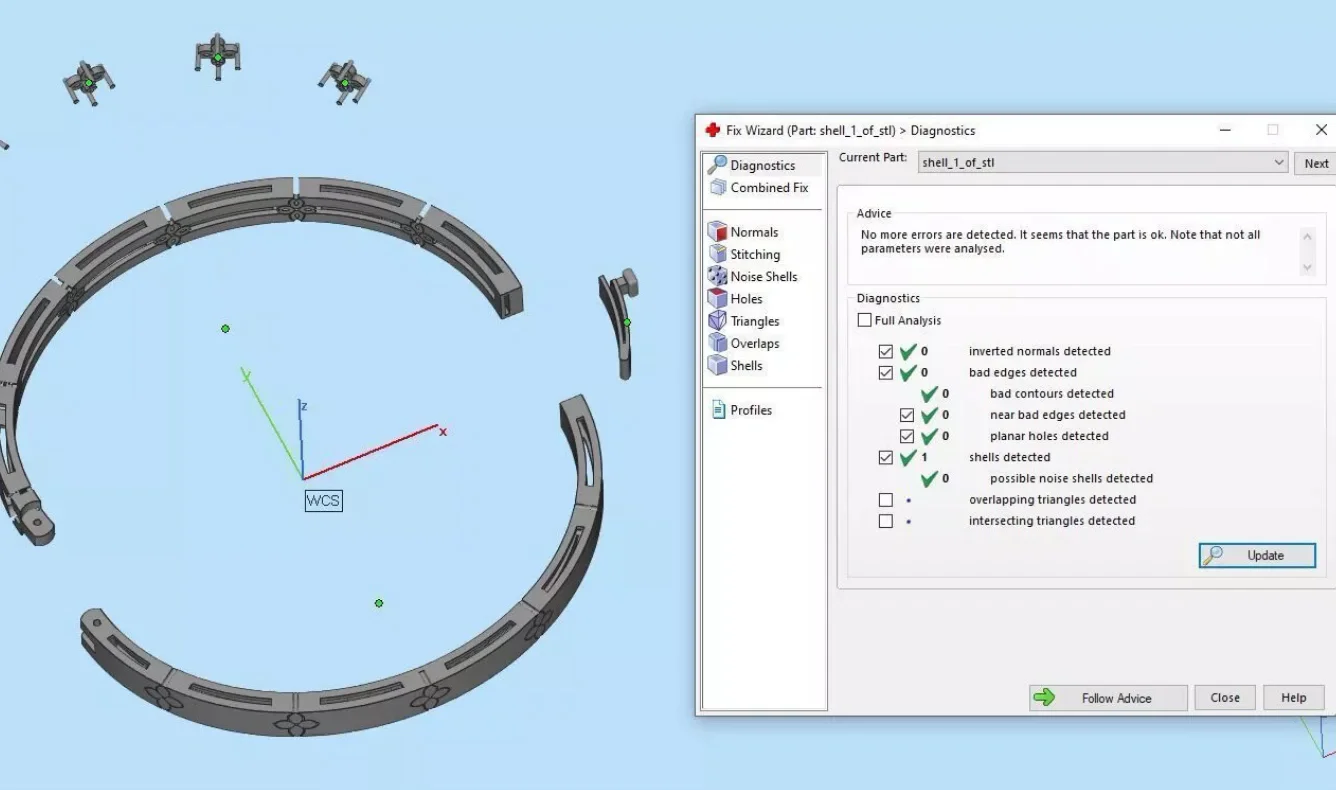

Production & Compatibility Diagnostic analysis of an STL part from this model indicates a manifold mesh with one shell detected and no errors such as inverted normals, bad edges, or planar holes.

Q: What are the internal dimensions of this bangle model? A: The model is designed as an oval bangle with specific internal dimensions measuring 61.60 mm at its widest point and 53.00 mm in height.

Q: Is this bracelet designed as a single solid piece or as multiple components? A: This is a digital jewelry model for an articulated bracelet. It is composed of multiple segments designed to be linked together after casting, as shown in the exploded CAD view.

Q: What is the estimated weight of the finished piece in 14K yellow gold? A: According to the weight table included in the design files, the estimated weight for this model in 14K yellow gold is 20.01 grams before any post-processing or finishing.

Tags

bangle bracelet · link bracelet · quatrefoil jewelry · clover motif · station bracelet · segmented bangle · articulated bracelet · modern bangle · hinged clasp · oval bangle · pierced metalwork
