Graduated Diamond Serpent Coil Bracelet

Description

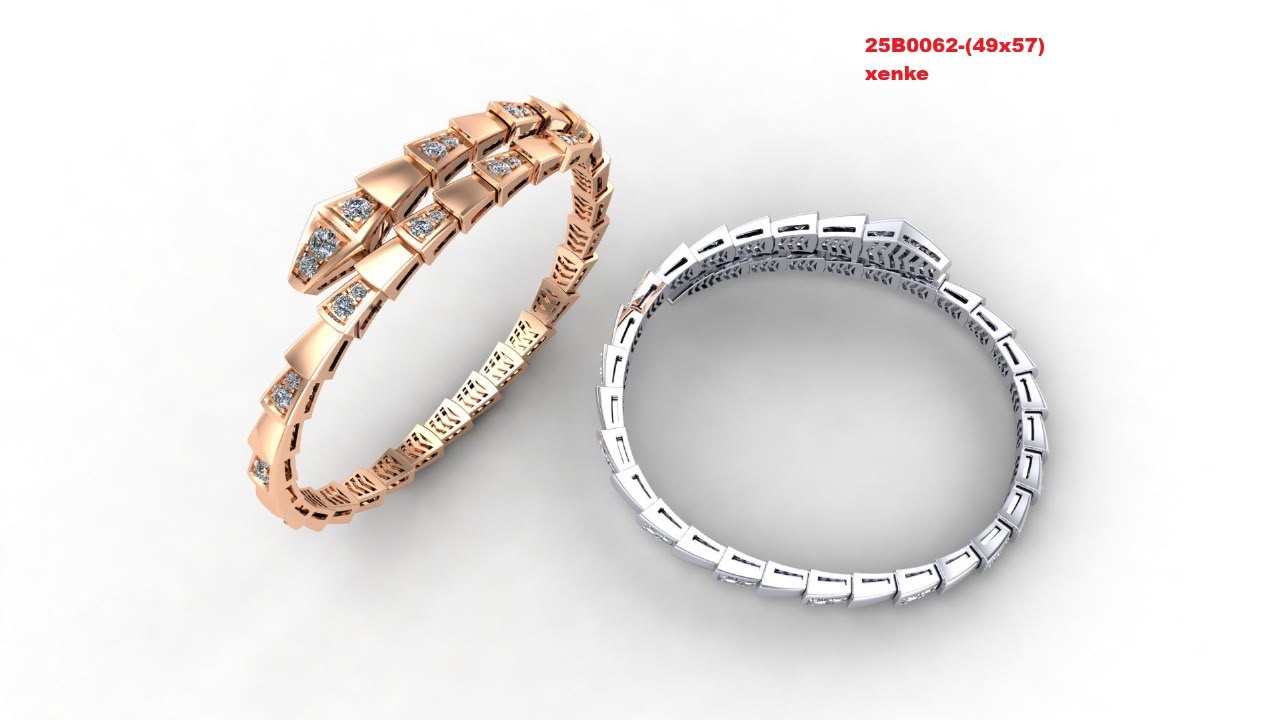

Graduated custom-cut diamonds are channel-set along the articulated spine of this serpent-form coil bracelet. The design features a series of interlocking scales that create a flexible structure, culminating in a stylized serpent head set with larger diamonds for the eyes. Smaller round diamonds accent the sides of the body segments, adding detail to the under-gallery of each scale. This detailed digital jewelry model is engineered for producing a multi-part master pattern via 3D printing, intended for assembly and investment casting.

Total Quantity: 57 (fifty-seven) Diamonds

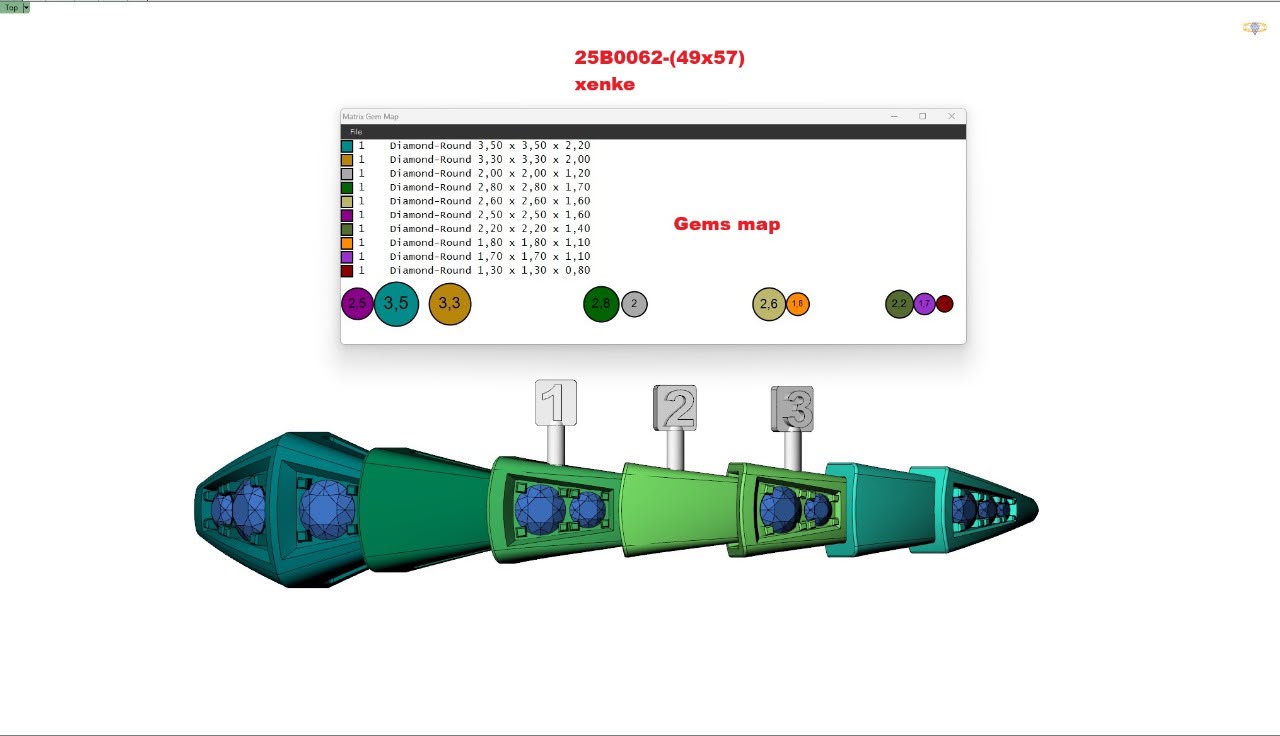

Stone Group 1: Custom-Cut Diamond Quantity: 33 (thirty-three) Cut: Custom Kite/Shield Setting: Channel Sizes & Weights: - 2 stones: 4.10 x 2.90 mm (0.170ct total) - 1 stone: 3.50 x 2.50 mm (0.058ct total) - 13 stones: 3.20 x 2.40 mm (0.442ct total) - 13 stones: 2.90 x 2.20 mm (0.338ct total) - 2 stones: 2.60 x 1.90 mm (0.054ct total) - 2 stones: 2.30 x 1.70 mm (0.042ct total)

Stone Group 2: Round Diamond Quantity: 24 (twenty-four) Cut: Round Brilliant Setting: Bead/Pavé Sizes & Weights: - 22 stones: 1.50 mm diameter - 1 stone: 1.50 mm diameter (0.015ct total) - 1 stone: 1.30 mm diameter

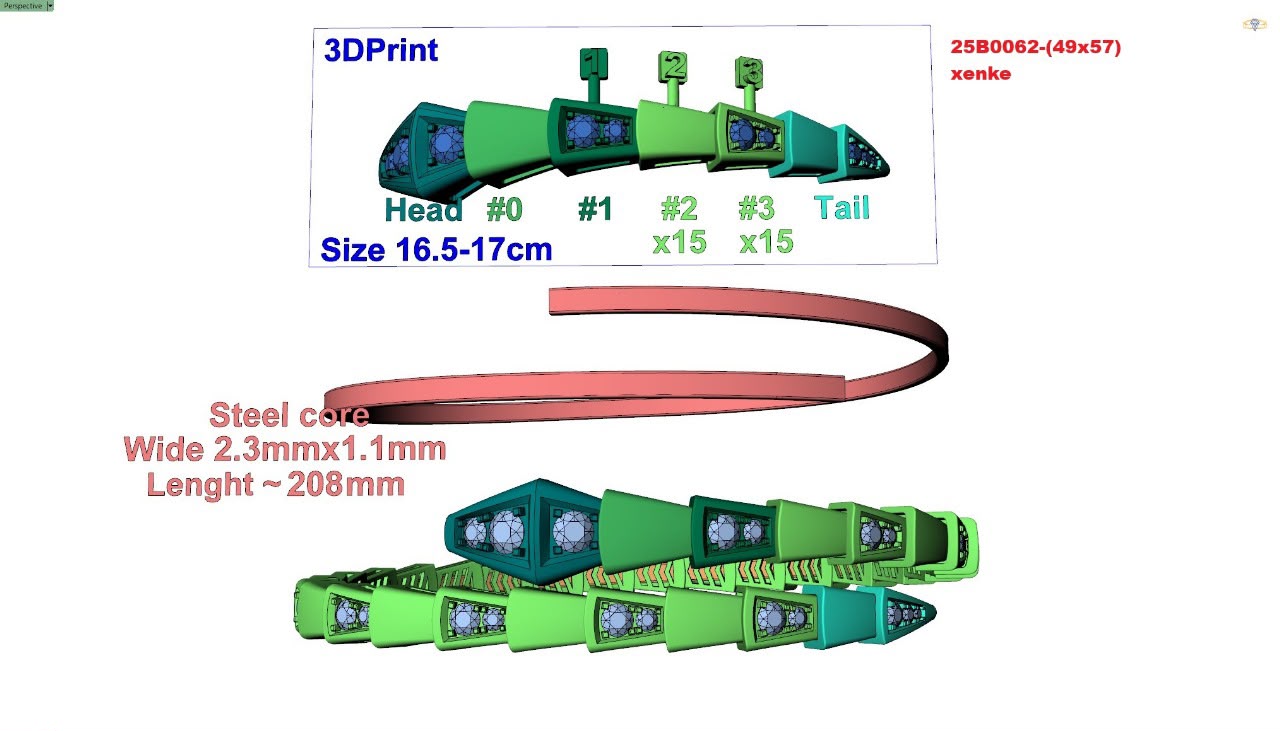

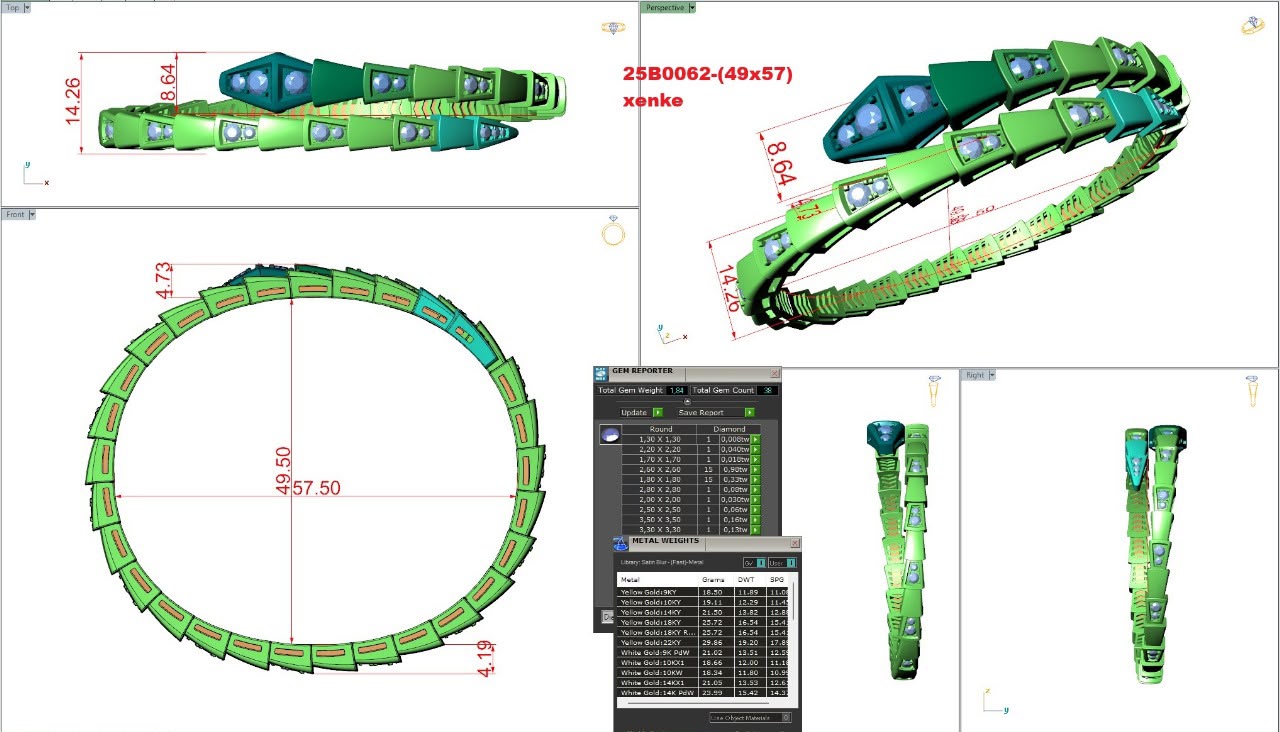

- Inner Dimensions: 49.50 mm x 57.50 mm - Recommended Hand/Wrist Size: 165 mm to 170 mm - Approximate Length: 208 mm - Maximum Height: 14.26 mm - Serpent Head Width: 8.64 mm - Minimum Band Width: 4.73 mm - Internal Steel Core: 2.3 mm x 1.1 mm

The following are approximate weights for the main bracelet structure, excluding the internal steel core: - Silver 925: 14.2 g - Yellow Gold 9K (375): 18.5 g - Yellow Gold 10K (417): 19.3 g - White Gold 10K (417): 19.5 g - White Gold 14K (585): 21.0 g - Yellow Gold 14K (585): 22.5 g - White Gold 18K (750): 24.0 g - Yellow Gold 18K (750): 27.6 g - Platinum 950: 33.4 g

Q: What are the specifications of the largest diamonds on the bracelet? A: The largest stones are two custom-cut diamonds measuring 4.10 x 2.90 mm, set as the serpent's eyes. In total, the design uses 57 diamonds of various custom and round cuts.

Q: What wrist size is this bracelet designed for? A: This coil bracelet is designed for a hand or wrist circumference of 165mm to 170mm. Its inner dimensions are approximately 49.50mm by 57.50mm.

Q: Is the bracelet flexible? What is the purpose of the 'steel core'? A: Yes, the bracelet is composed of articulated segments for flexibility. The design specifies an internal steel core measuring 2.3mm x 1.1mm, which provides the necessary structure and spring tension for the coil to hold its shape on the wrist.

Tags

serpent bracelet · snake jewelry · coil bracelet · articulated bracelet · diamond bracelet · tubogas style bracelet · channel set diamonds · serpent head motif · graduated gemstones · multi stone bracelet
