By: RedRoseLTD
Price: $50.00 USD

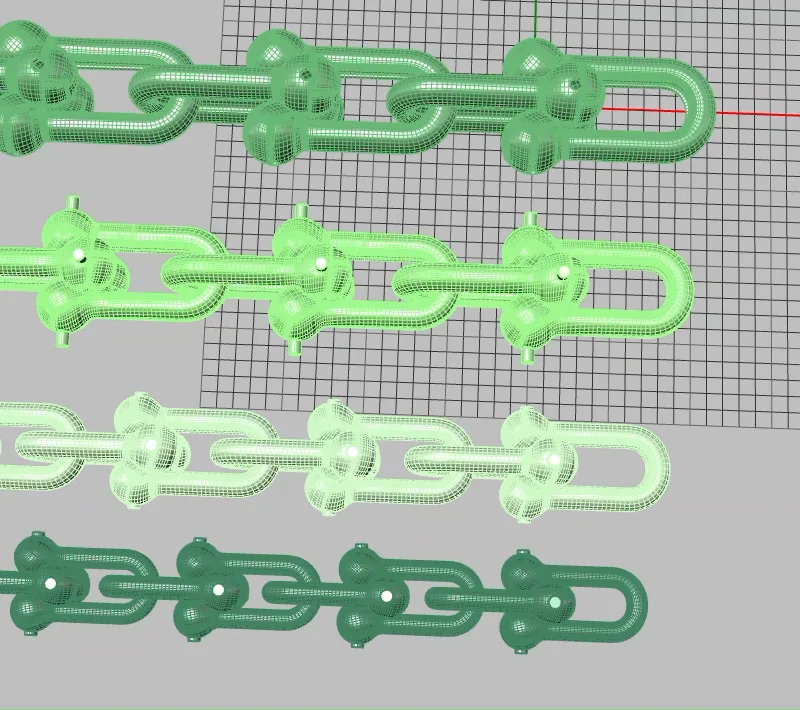

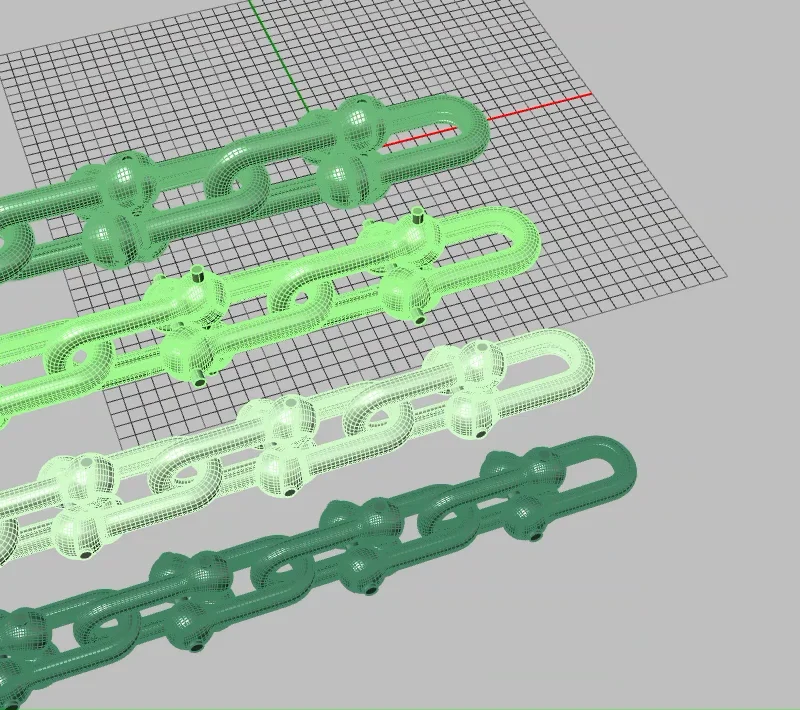

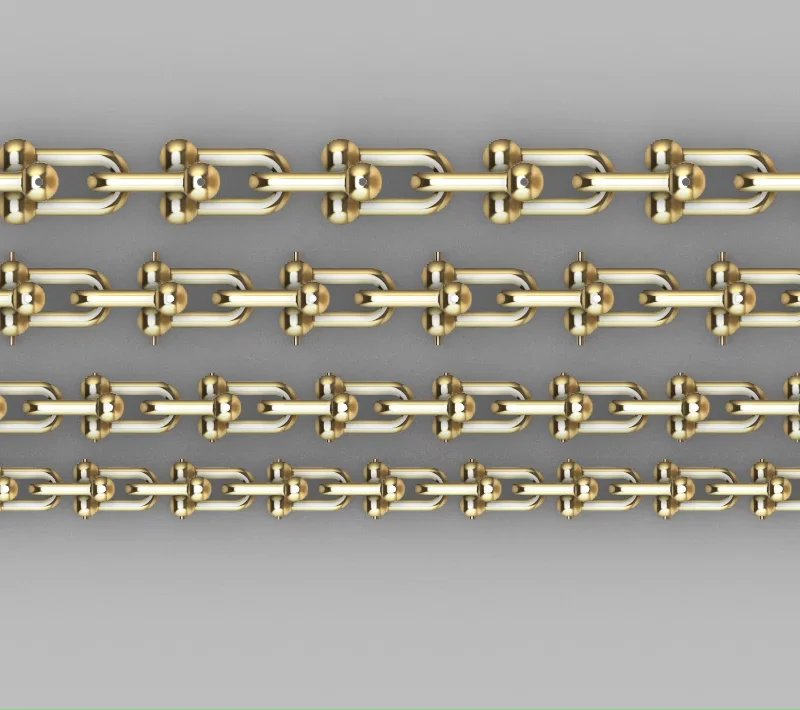

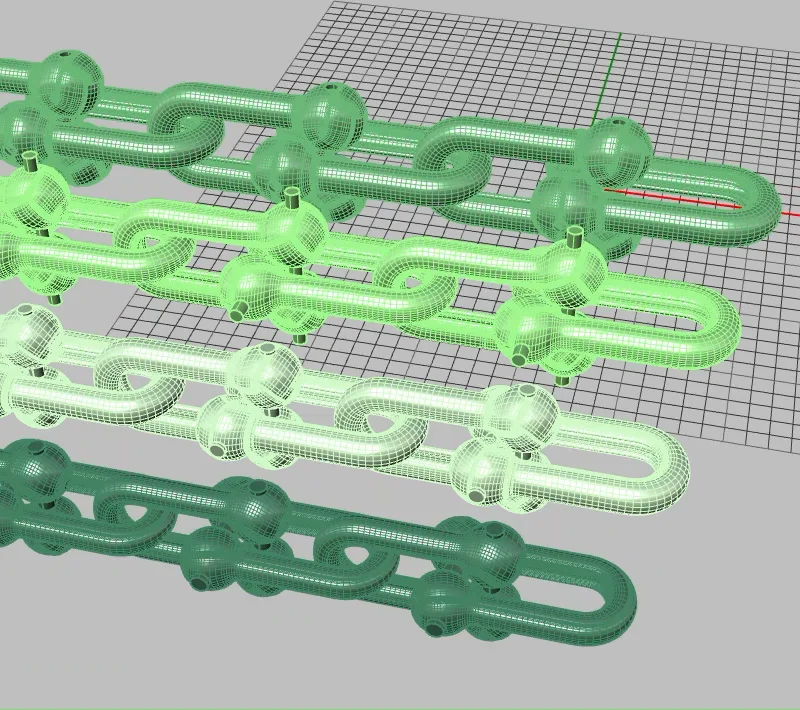

A set of four graduated hardware-style chain components, each featuring a U-shaped link body connected by a transverse bar with spherical ends. This design provides four distinct, dimensionally accurate link sizes for constructing custom chains and bracelets. The included sizes are 13.52mm, 11.94mm, 10.3mm, and 8.79mm in width, allowing for tapered designs or uniform chains of a specific scale. The CAD models are provided as individual components, facilitating flexible assembly and layout for 3D printing. These watertight meshes are intended for professional jewelry production via casting.
AFTER SALE SERVICE After-sale modifications are free within 2 business days.

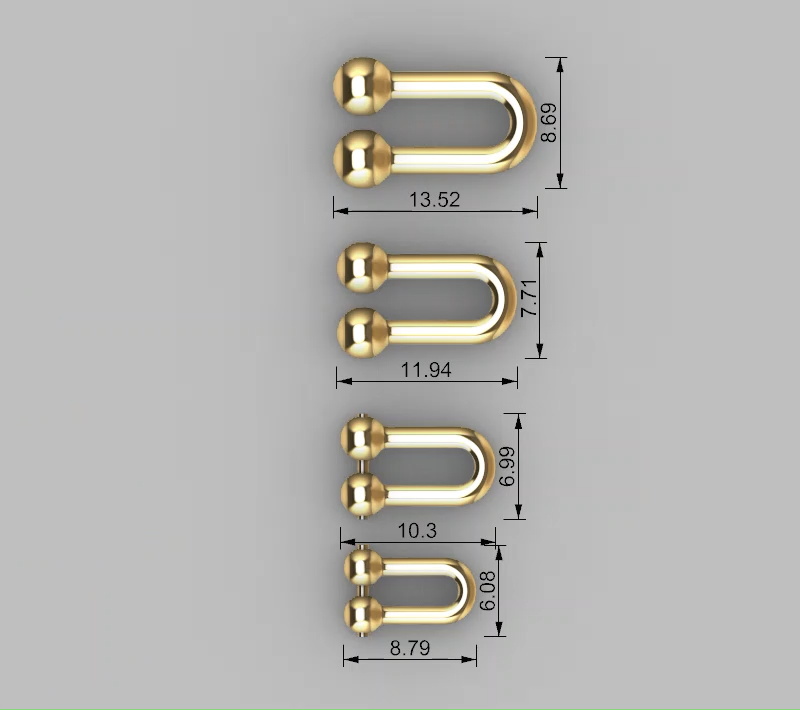

The set includes four individual link sizes with the following dimensions: - Link 1: 13.52mm width, 8.69mm height - Link 2: 11.94mm width, 7.71mm height - Link 3: 10.3mm width, 6.99mm height - Link 4: 8.79mm width, 6.08mm height
Not applicable
Volume not specified - weight cannot be calculated.
Production & Compatibility These hardware-style link models are optimized for high-resolution SLA/DLP printing using castable resins. The set of four distinct sizes allows for creating custom-length chains. Each link is a separate manifold mesh, enabling easy arrangement on a build plate for efficient batch production via lost-wax casting. The clean geometry is also suitable for wax milling on a 3-axis CNC router.
Q: Does this purchase include CAD files for all four link sizes shown? A: Yes, the product includes separate, individual CAD models for all four graduated link sizes: 13.52mm, 11.94mm, 10.3mm, and 8.79mm wide.
Q: Are the links provided as a pre-assembled chain or as individual components? A: The files contain the four individual link designs as separate components. This allows you to print as many of each size as needed to assemble a custom chain or bracelet to your desired length.
Q: What is the height of the smallest link (8.79mm wide)? A: The smallest link, which has a width of 8.79mm, has a corresponding height of 6.08mm as specified in the technical drawing.
