Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: JM
Price: $25.00 USD

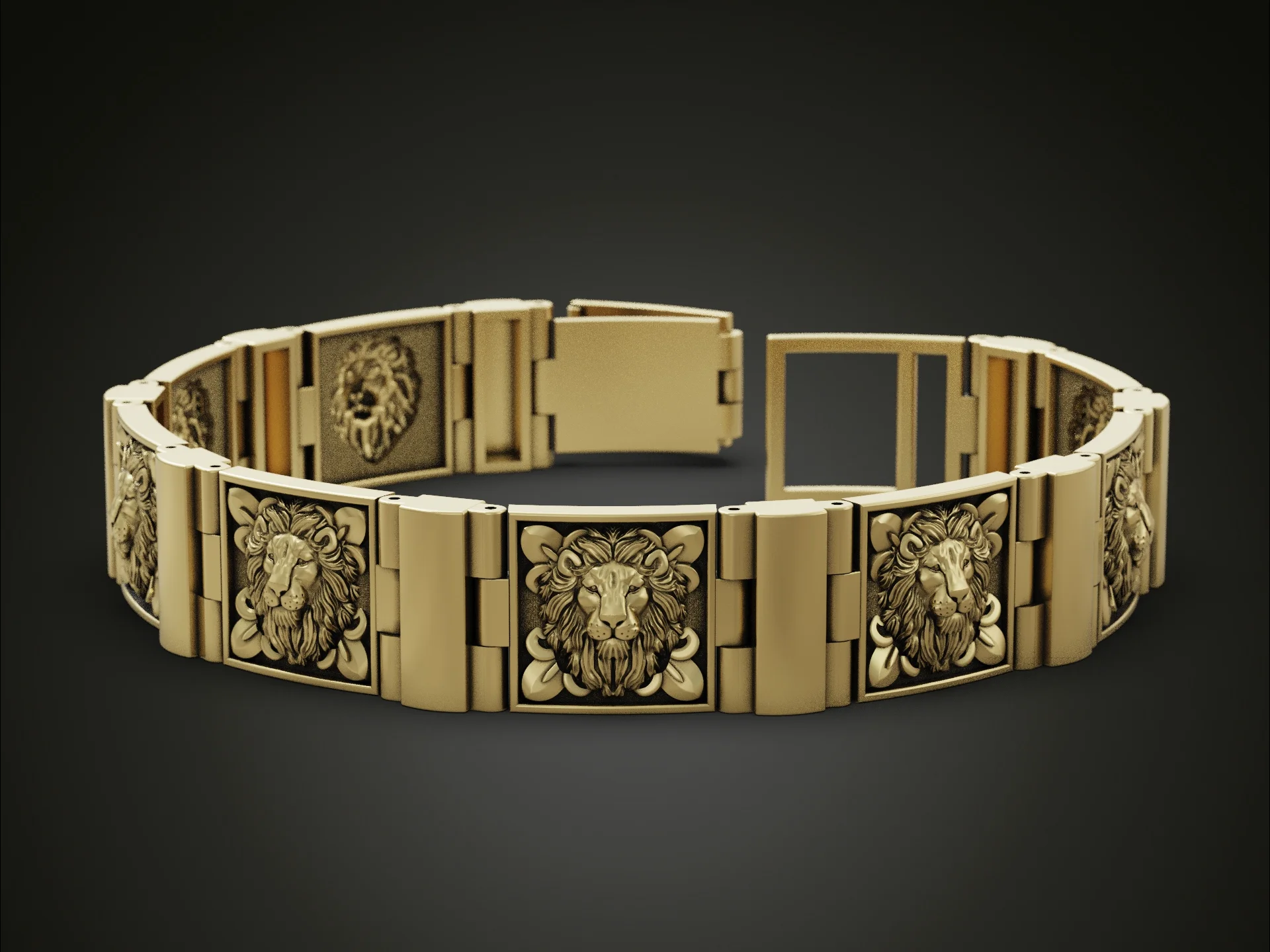

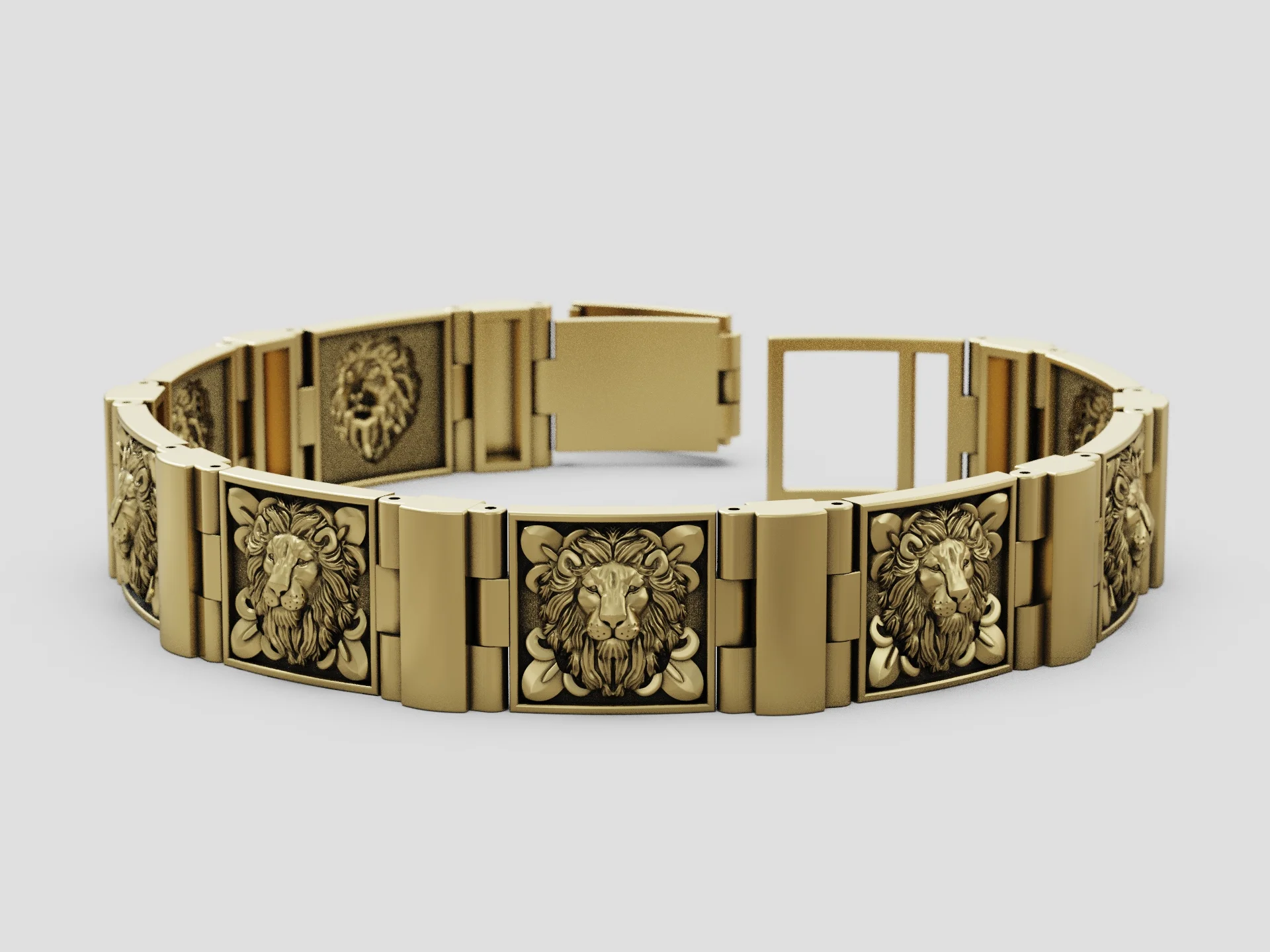

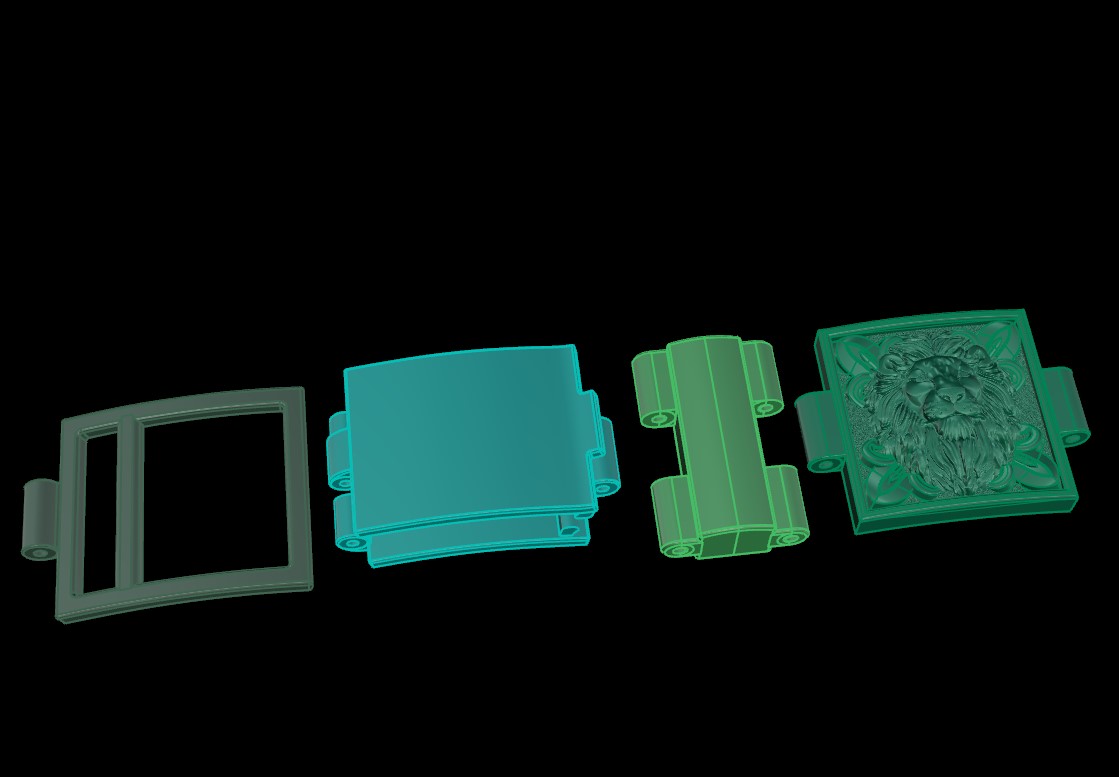

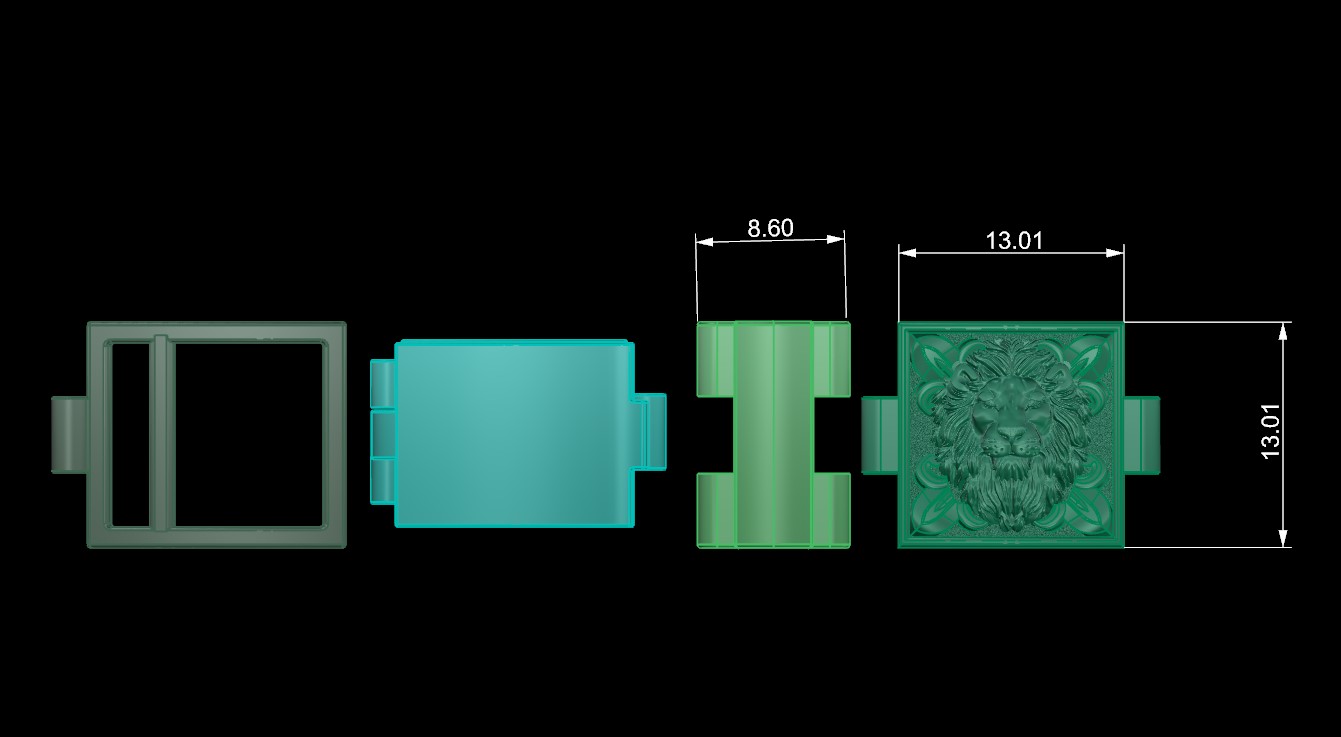

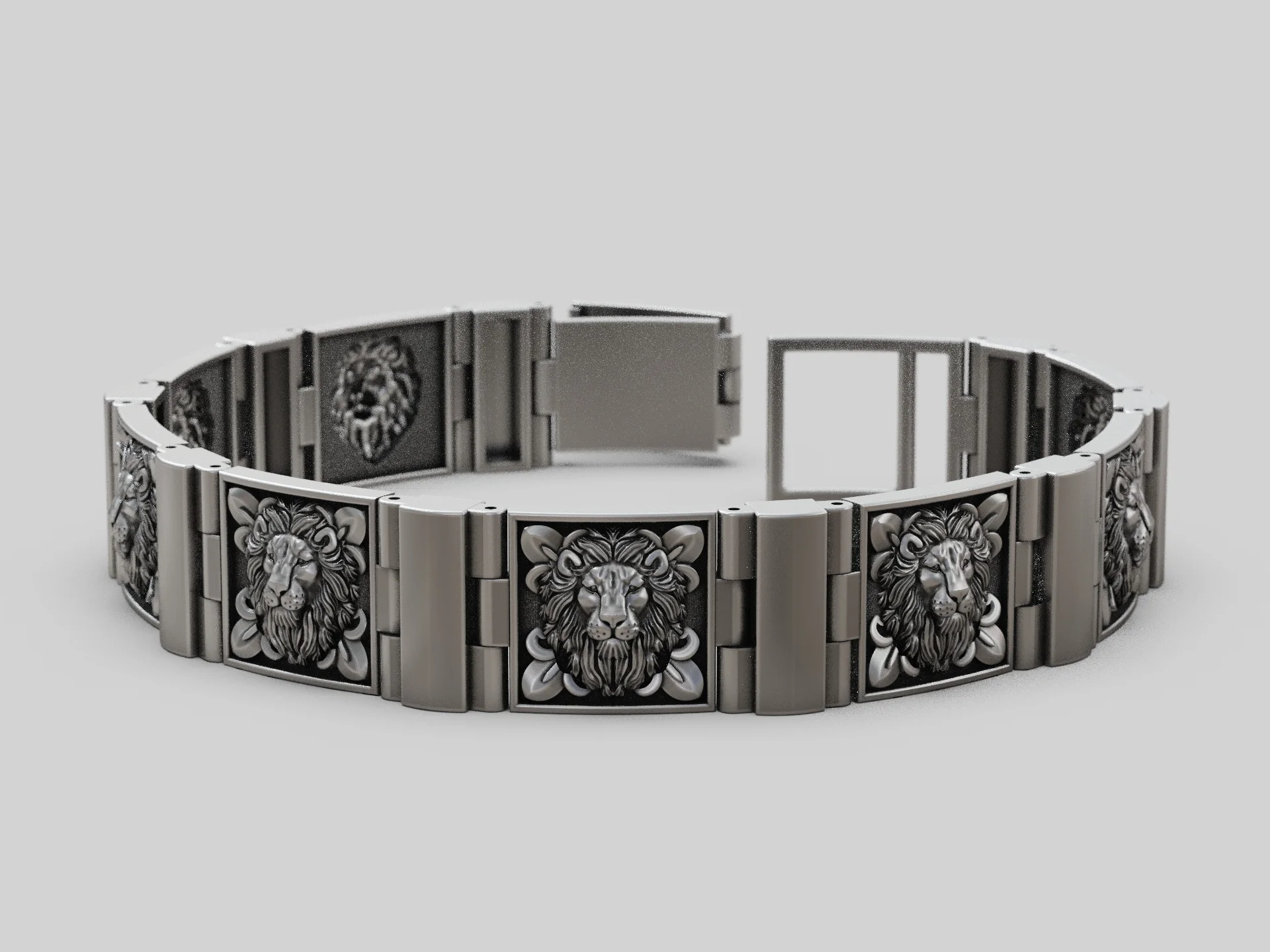

This 3D model details a multi-component panel bracelet built from repeating decorative and connecting links. The primary decorative element is a square panel featuring a high-relief lion head, framed by stylized corner flourishes. The design consists of eight such lion panels articulated with seven plain rectangular links, culminating in an integrated box clasp for a continuous profile. A technical drawing indicates a total assembled length of 210mm. The files are structured for manufacturing via lost-wax casting, with each component ready for 3D printing or CNC wax milling. Metal weights correspond to a single decorative link with a volume of 789.177 mm³, allowing for precise material calculation based on the desired final bracelet length.
No gems specified.

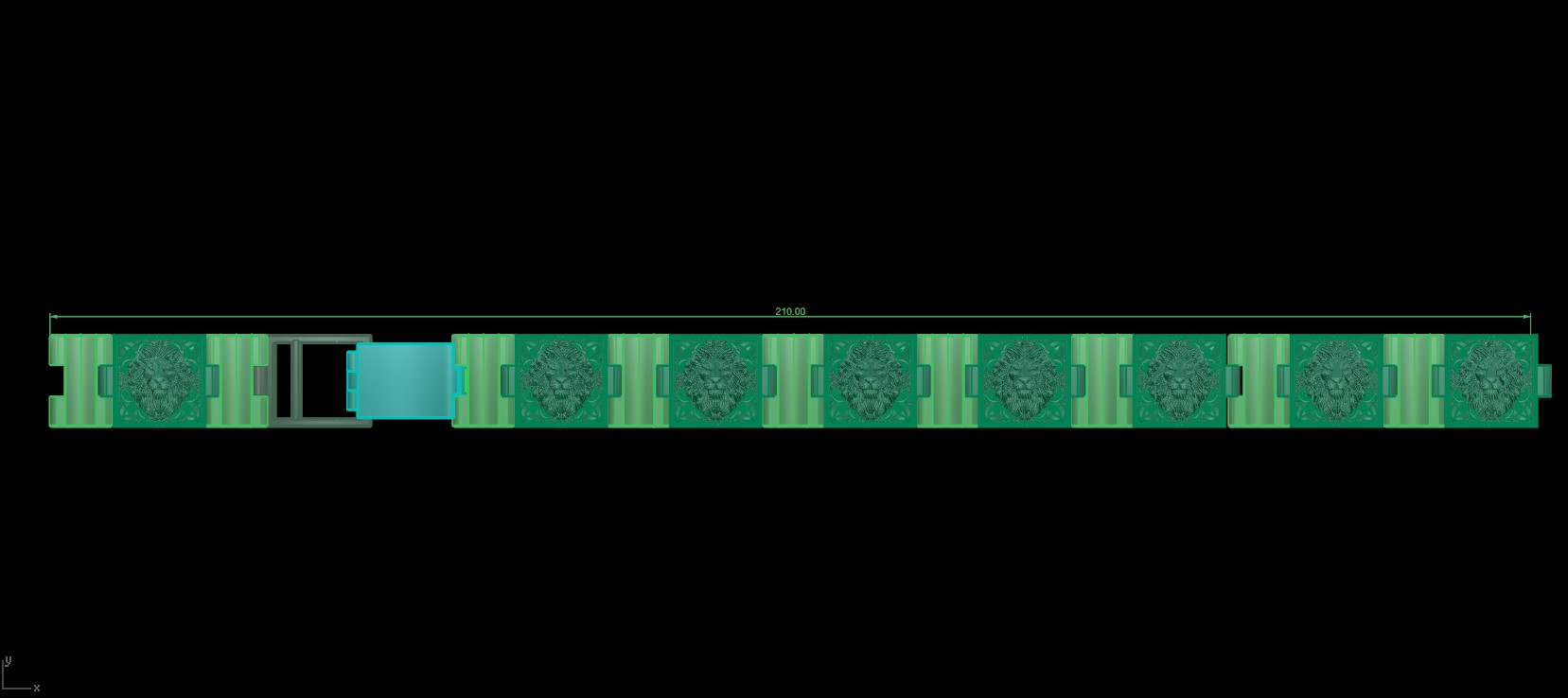

Total Bracelet Length (assembled): 210mm
Not applicable
Note: The following weights are calculated for a single decorative lion-head link with a volume of 789.177 mm³. The total weight of the finished bracelet will depend on the final number of links used.
- Yellow Gold 14K: 10.16 g - Yellow Gold 18K: 12.15 g - Rose Gold 14K: 10.26 g - White Gold 14K: 9.97 g - Silver 925: 8.18 g - Platinum (PLAT): 15.88 g - Bronze: 6.63 g
Production & Compatibility The articulated link design is optimized for high-resolution 3D printing on SLA or DLP systems (such as Anycubic Photon or Phrozen series) using castable resins. Each component can be printed separately for lost-wax casting to create the final piece. The geometry is also suitable for CNC wax milling. Assembling the bracelet post-casting will require fitting and pinning the links together before final polishing. The integrated box clasp mechanics require precise printing and casting to ensure a secure fit.
Q: What is the total length of the assembled bracelet shown in the render? A: The technical drawing specifies a total length of 210mm from end to end, which includes the eight decorative links, seven connecting links, and the integrated box clasp.
Q: Are the weights listed for the full bracelet or a single component? A: The provided weight table is for a single decorative lion-head link, which has a calculated volume of 789.177 mm³. The total weight will be significantly higher and depends on the final number of links used to achieve the desired fit.
Q: What type of clasp does this bracelet design use? A: The design incorporates an integrated box clasp that is flush with the links, providing a secure and visually seamless closure that maintains the bracelet's continuous pattern.
lion bracelet · mens bracelet · animal jewelry · link bracelet · relief sculpture · lion head jewelry · silver bracelet model · gold bracelet cad · panel bracelet · king of jungle · zodiac leo jewelry · heavy bracelet · masculine jewelry · statement bracelet · box clasp design · cnc jewelry · castable model · big cat jewelry · bracelet link model · heraldic lion
