Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: JM
Price: $40.00 USD

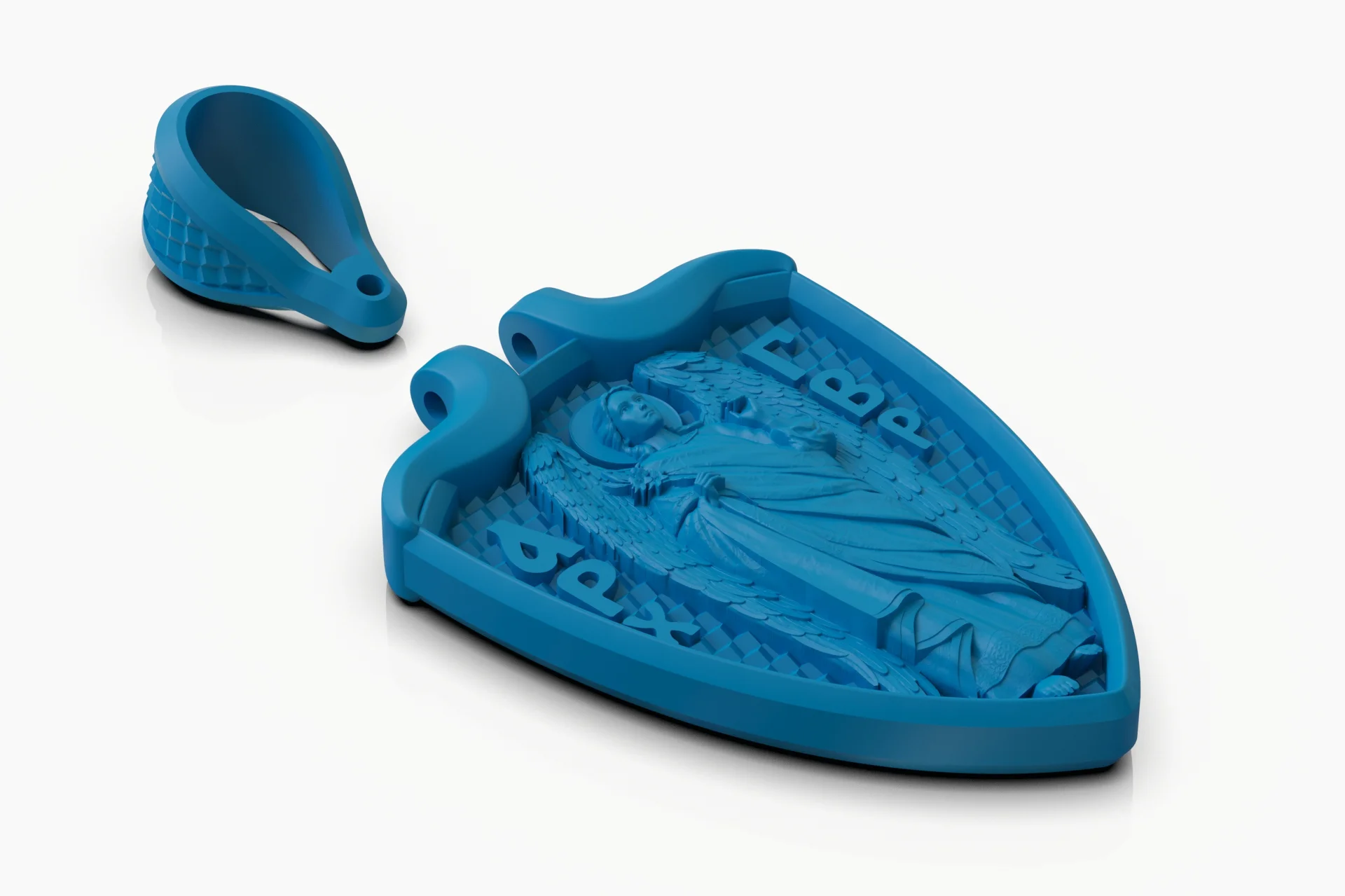

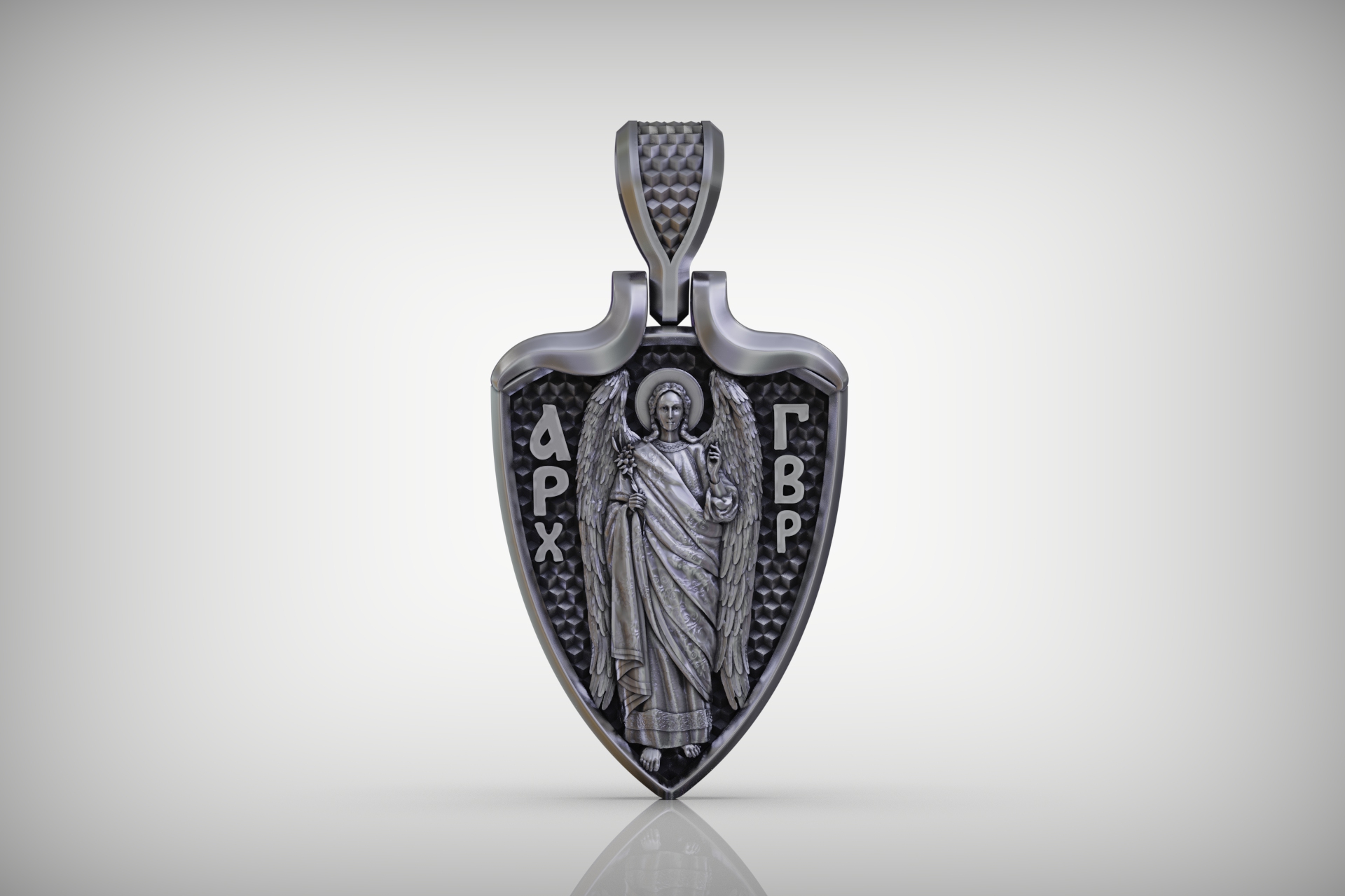

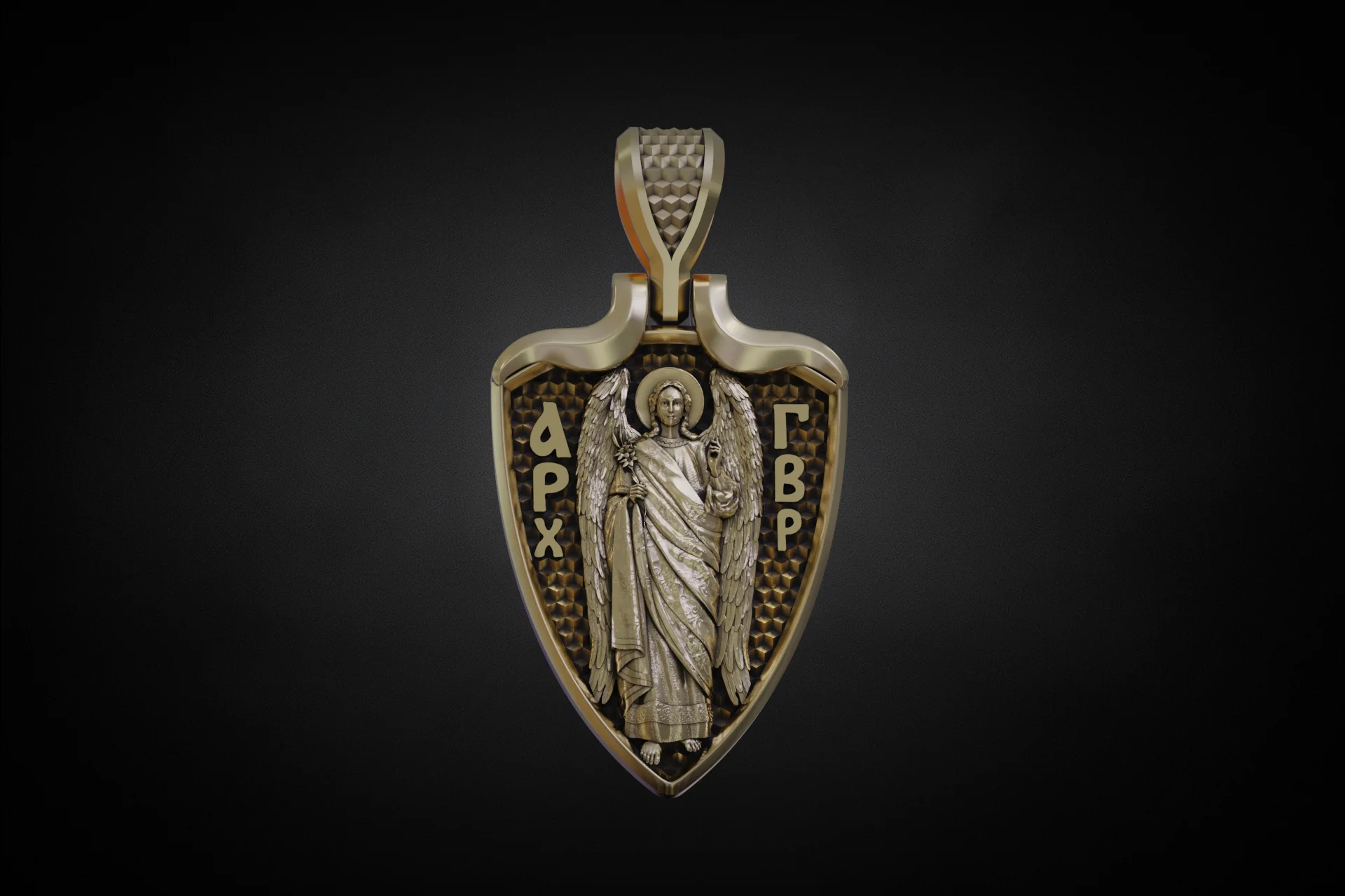

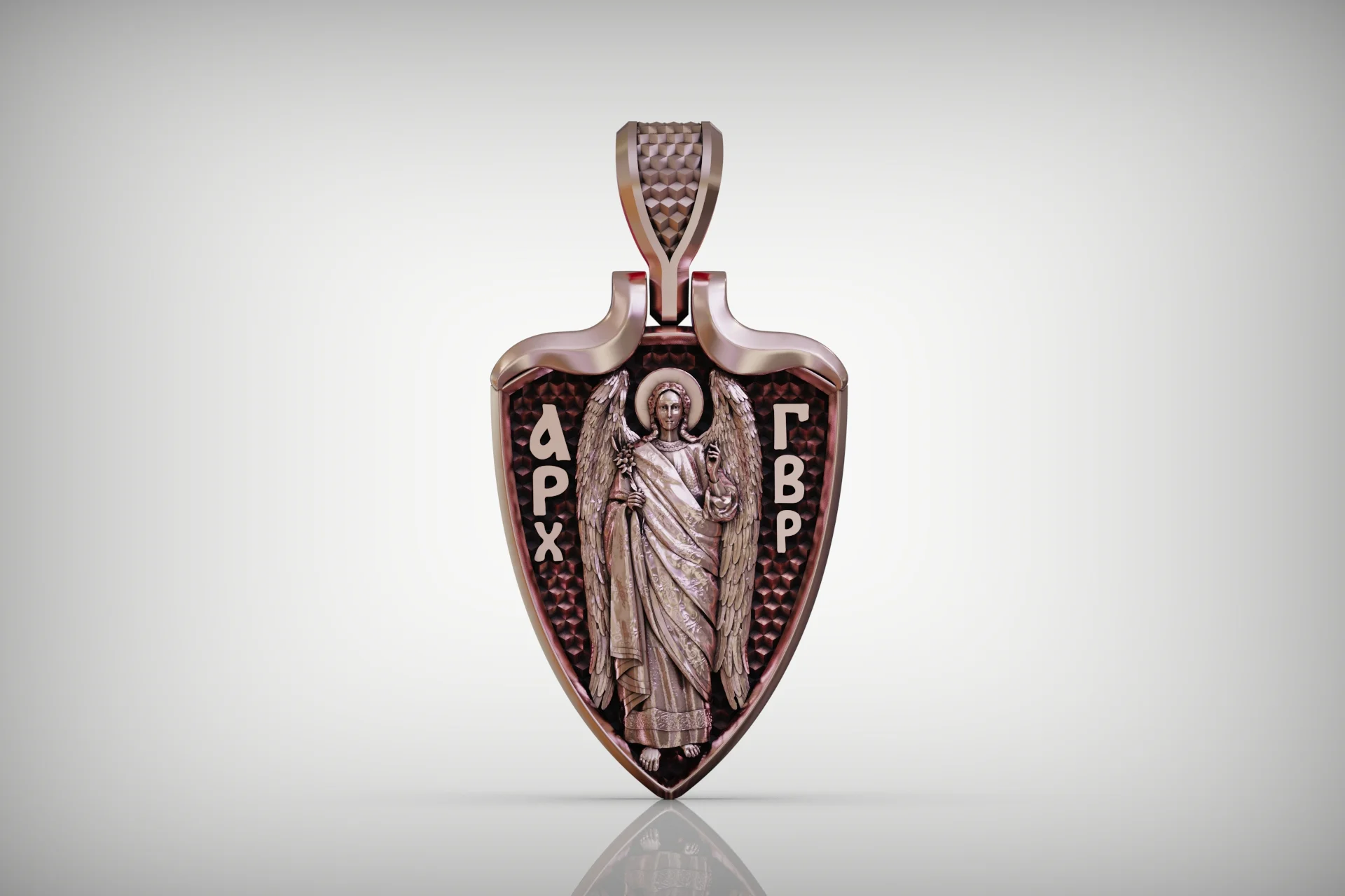

A high-relief depiction of the Archangel Gabriel defines this shield-shaped pendant. The central figure, rendered with detailed wings and drapery, is framed by the Greek abbreviation for Archangel Gabriel ("APX IBP") against a background of faceted, repeating geometric shapes. The reverse side features a stippled field with an incised Cyrillic prayer to the Archangel for protection. An articulated bail, decorated with a matching geometric pattern, connects to the top of the shield, which measures 43.87mm in height. This CAD asset provides the detailed geometry for creating a 3D-printed master pattern suitable for a lost-wax casting process.
Height: 43.87 mm Width: 29.71 mm Thickness: 6.34 mm Bail Inner Height: 6.80 mm
Estimated weights based on the model's volume: - Gold 585 (14K): 46.6 g - Gold 750 (18K): 55.7 g - Silver 925: 37.5 g - Bronze: 30.4 g - Steel: 28.0 g
Q: What are the full dimensions of the pendant? A: The pendant body measures 43.87 mm tall and 29.71 mm wide, with a thickness of 6.34 mm. The articulated bail provides an inner clearance of 6.80 mm for a chain.
Q: What do the inscriptions on the pendant say? A: The front features the Greek abbreviation 'APX IBP' for Archangel Gabriel. The reverse side is inscribed with a detailed prayer to Archangel Gabriel in Cyrillic script, asking for protection and help.
Q: How much would this pendant weigh if cast in Silver 925 versus 18K gold? A: Based on the provided calculations, the estimated weight for a casting in Silver .925 is approximately 37.5 grams. The weight in 18K gold would be significantly higher, at about 55.7 grams.
