Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: JM
Price: $25.00 USD

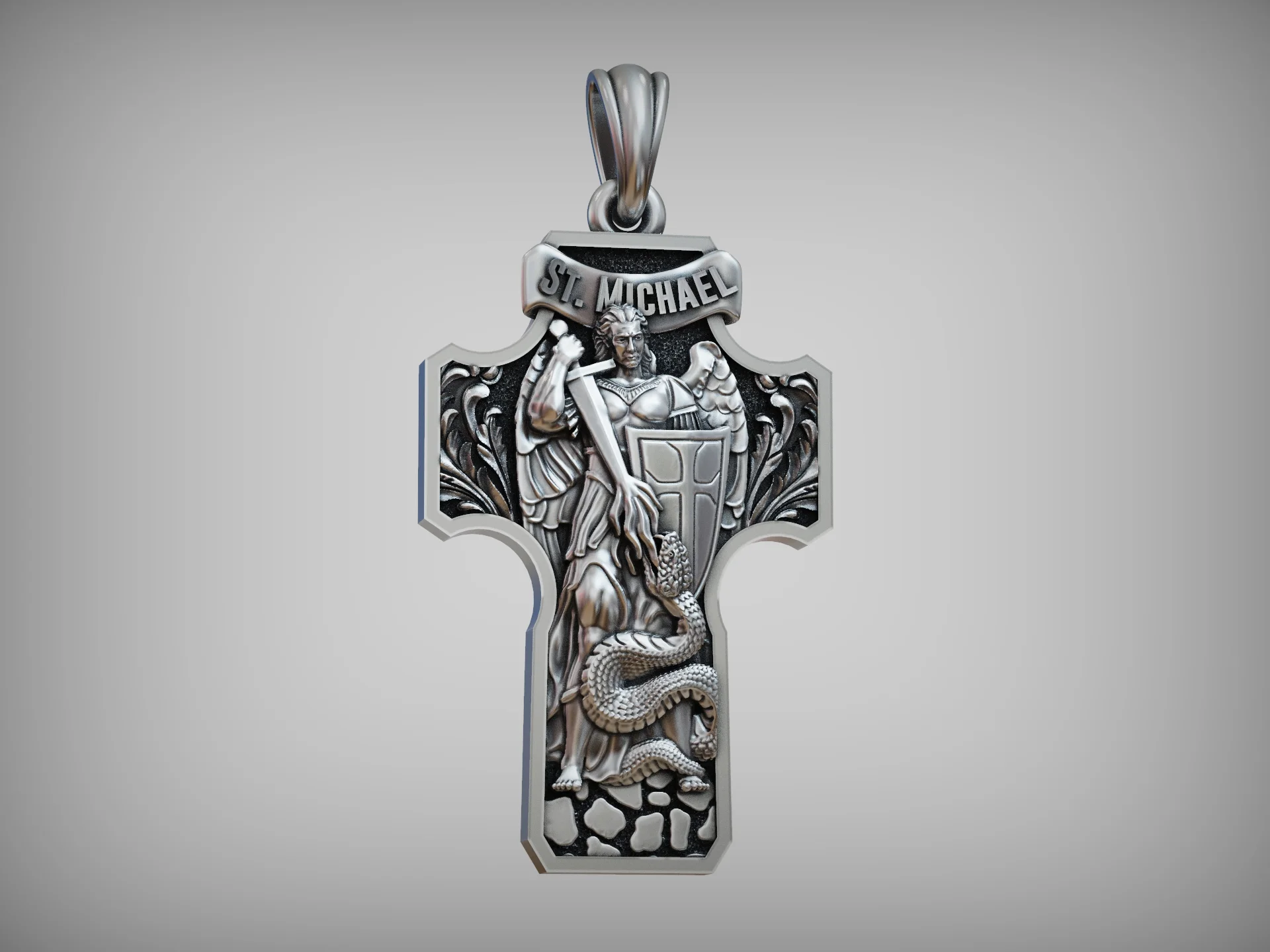

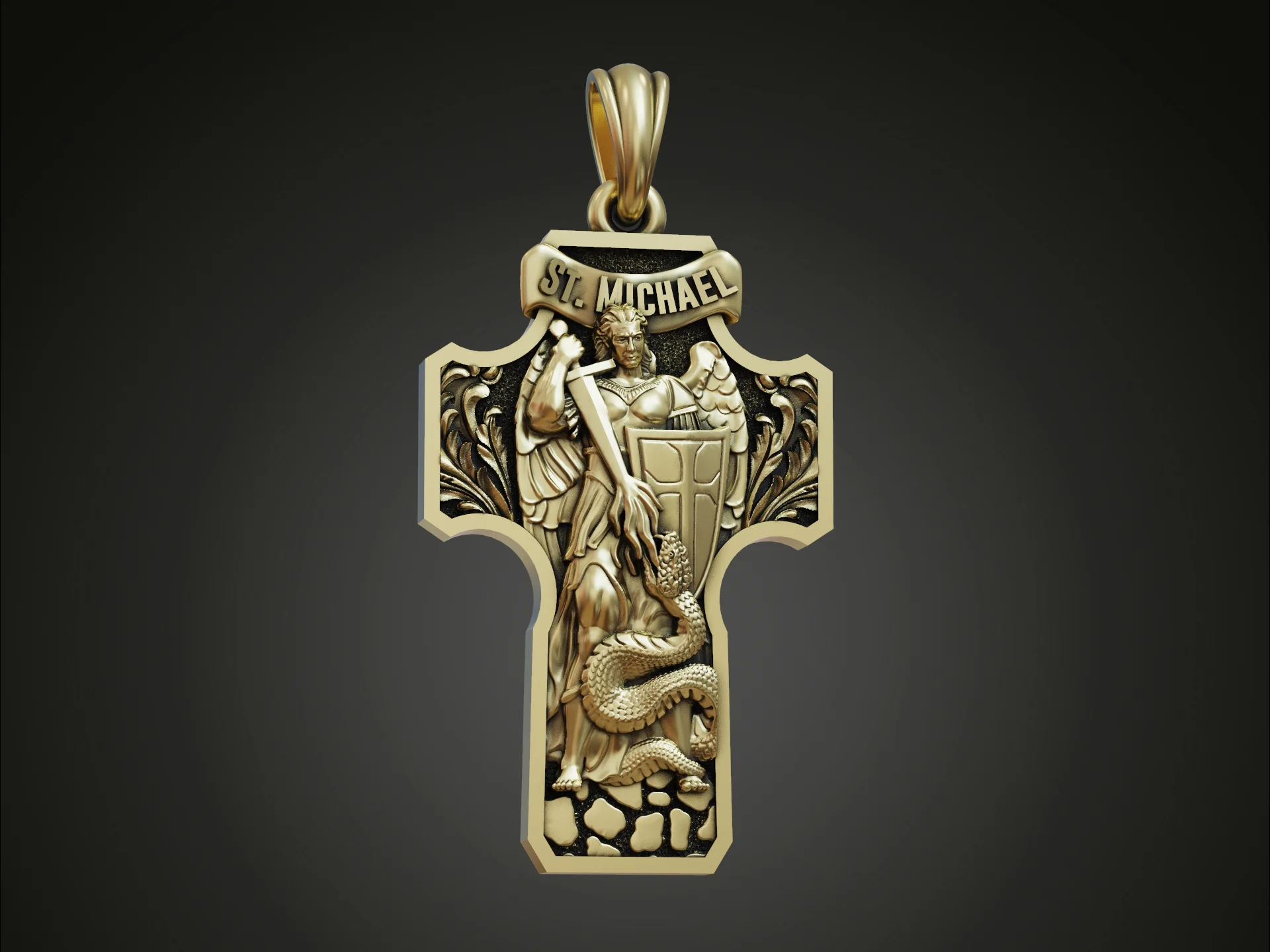

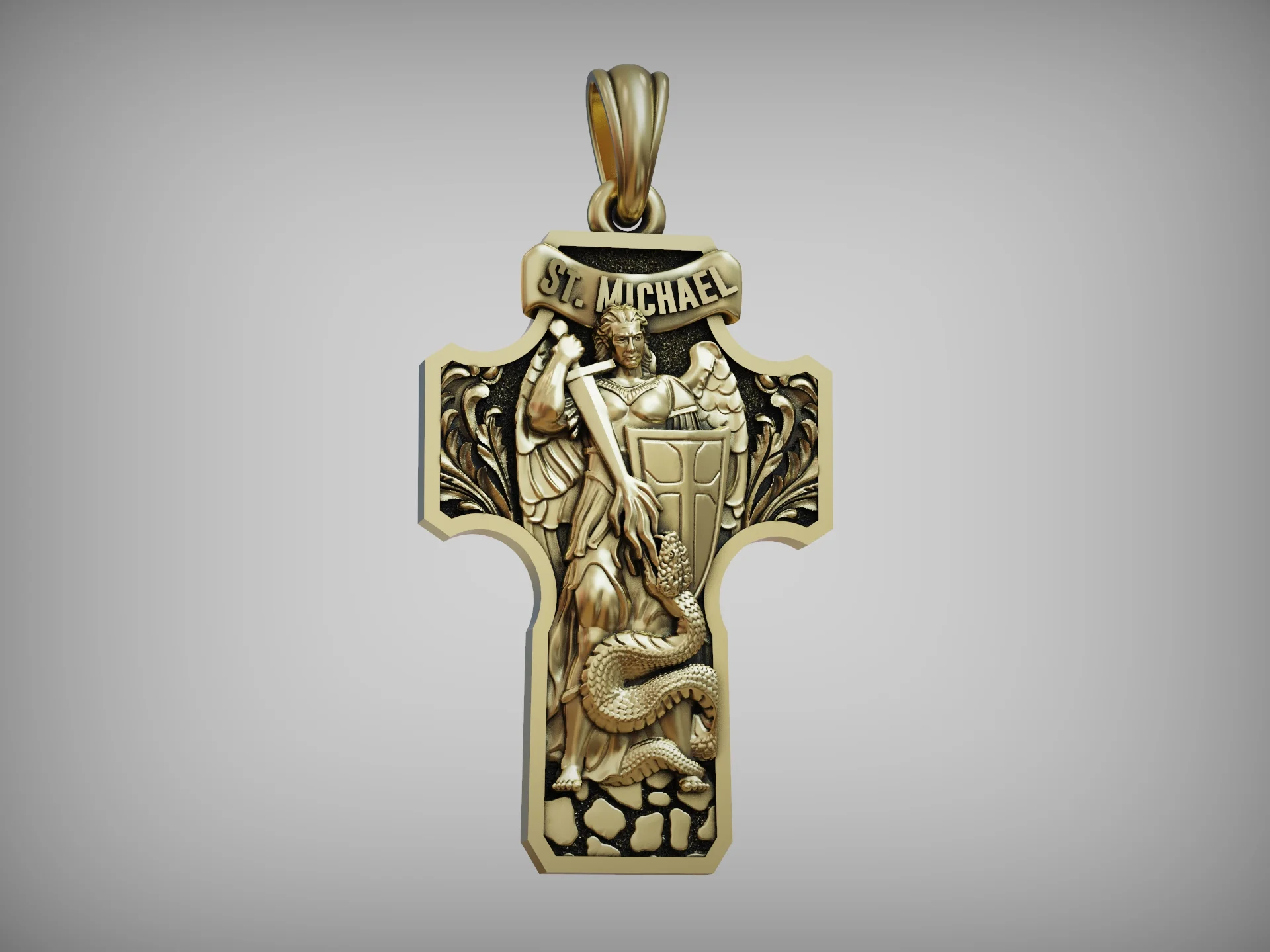

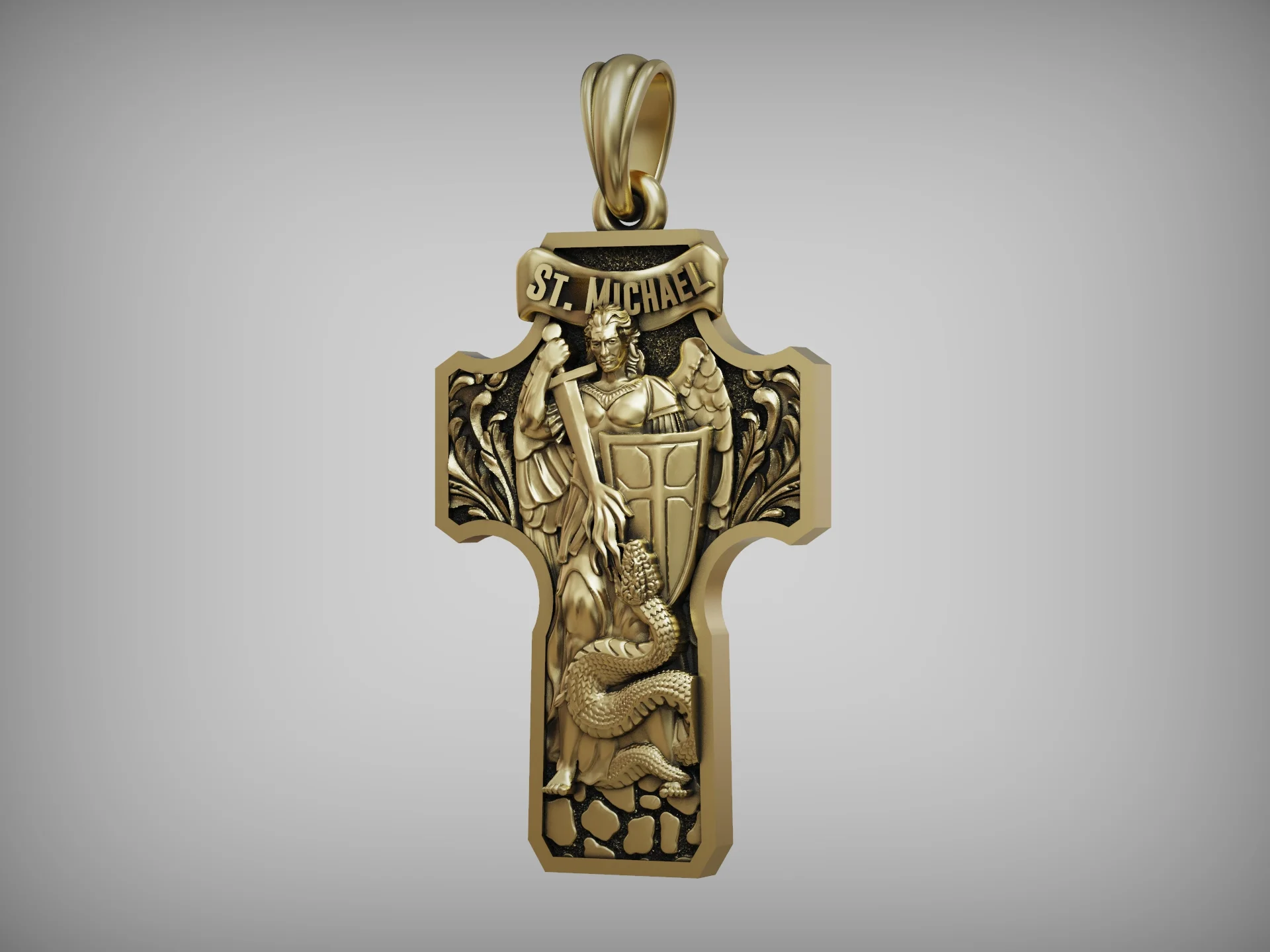

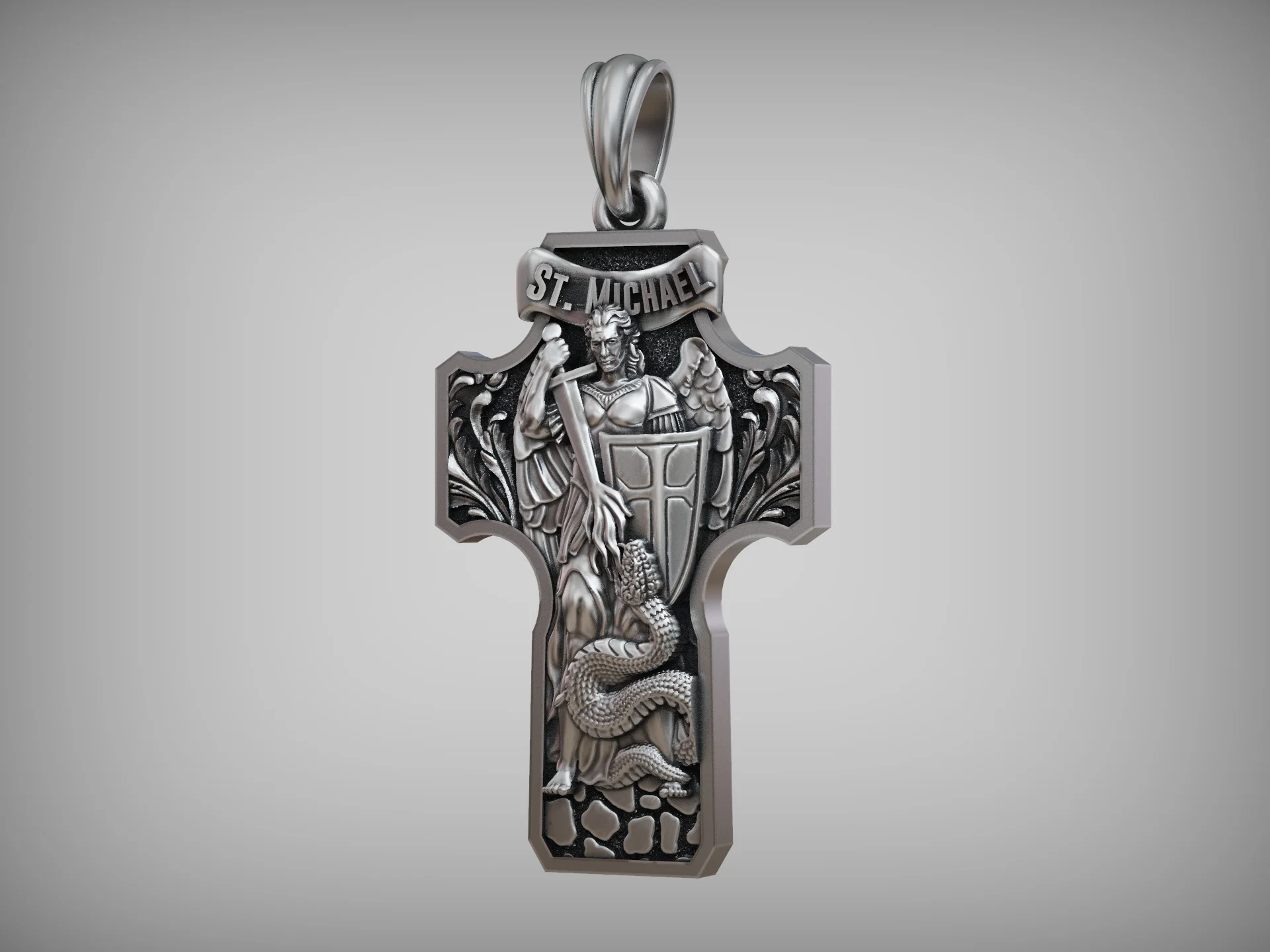

A high-relief pendant designed in a cruciform shape, featuring a detailed sculpture of Saint Michael the Archangel. The central figure is depicted with a sword and shield, standing over a coiled serpent. An integrated banner at the top is inscribed with 'ST. MICHAEL'. The pendant body measures an overall 35.00mm in height by 23.00mm in width, with a maximum thickness of 4.14mm. The geometry is structured with a solid backplate, providing a sound foundation for the intricate relief work. A stylized, fluted bail with an approximate inner clearance of 4.37mm is included for use with various chains. This digital model is optimized for lost-wax casting, with sufficient clearance between elements for clean mold creation, suitable for production in precious metals using SLA/DLP 3D printing with castable resins.
No gems specified.

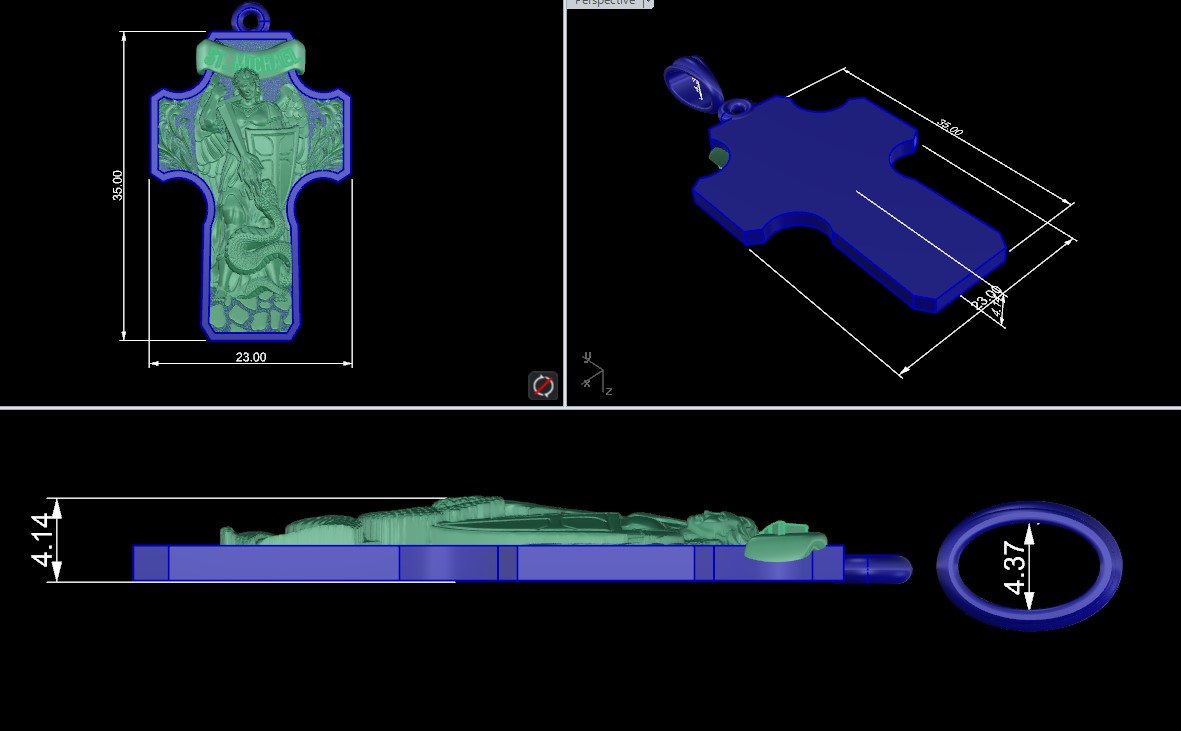

Overall Height (excl. bail): 35.00 mm Overall Width: 23.00 mm Max Thickness: 4.14 mm Bail Inner Clearance: approx. 4.37 mm
Not applicable

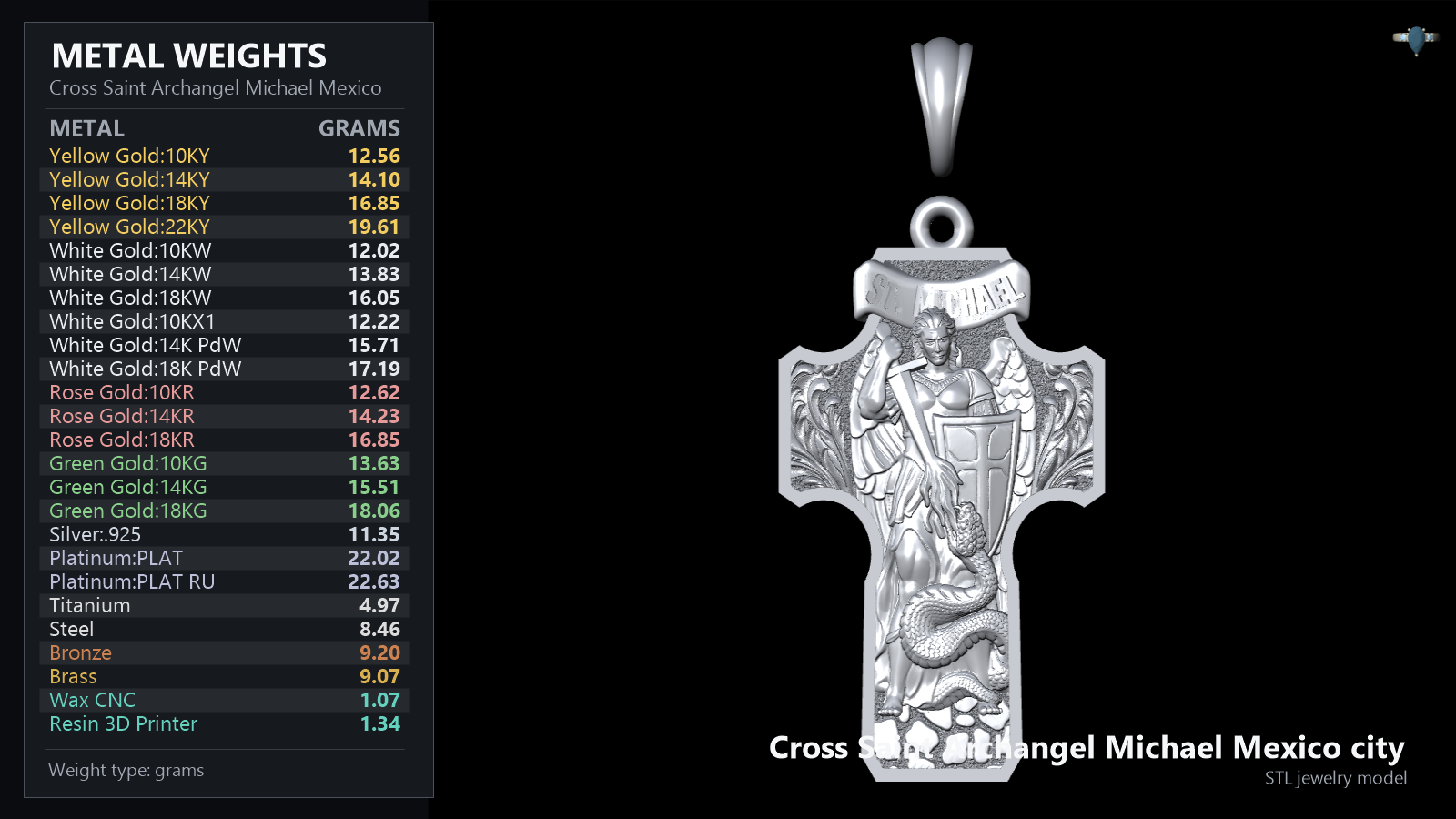

Estimated weights based on the provided model volume: - Silver 925: 11.35 g - Yellow Gold 14K: 14.10 g - Yellow Gold 18K: 16.85 g - White Gold 14K: 13.83 g - Platinum (PLAT): 22.02 g - Bronze: 9.20 g
Production & Compatibility Optimized for high-resolution SLA/DLP/MSLA 3D printing using standard castable resins. The deep relief and fine details of the Archangel's armor and wings will reproduce accurately with a layer height of 50 microns or less. The flat-back construction simplifies investment casting, requiring minimal spruing, typically from the base or top of the bail. The design is suitable for standard lost-wax processes. The high relief is also suitable for 4-axis CNC milling from machinable wax blocks.
Q: What is the maximum chain thickness that can fit through the bail? A: The bail features an inner clearance of approximately 4.37mm, making it suitable for most light to medium-weight chains.
Q: How deep is the relief sculpture of St. Michael? A: The pendant's total thickness is 4.14mm. The high-relief figure of St. Michael is sculpted within this depth, providing significant three-dimensional presence against the backplate.
Q: What would this pendant weigh if cast in 14K Yellow Gold? A: Based on the model's volume, the estimated weight for a finished piece cast in 14K Yellow Gold is approximately 14.10 grams.
