Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: JM
Price: $20.00 USD

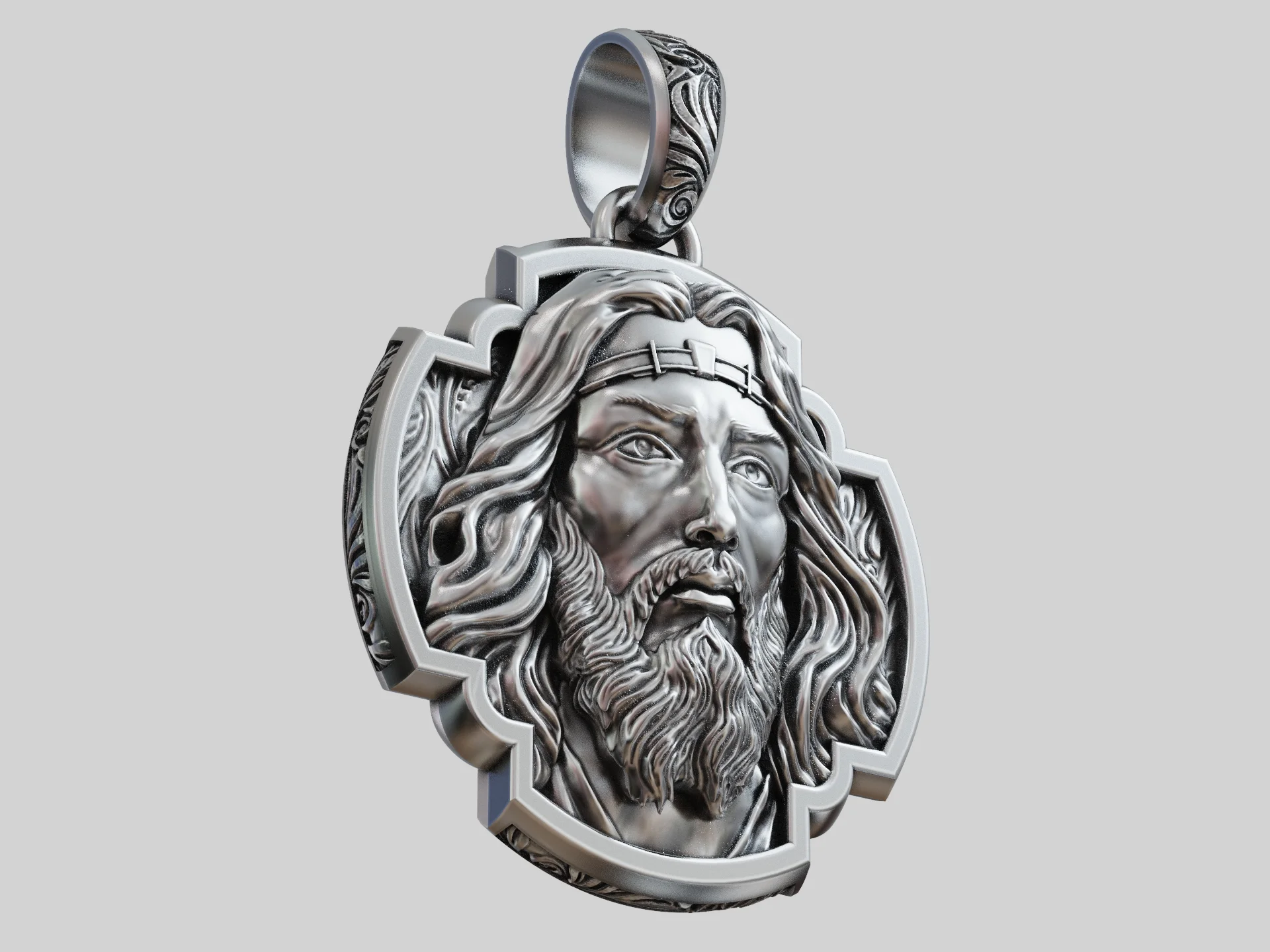

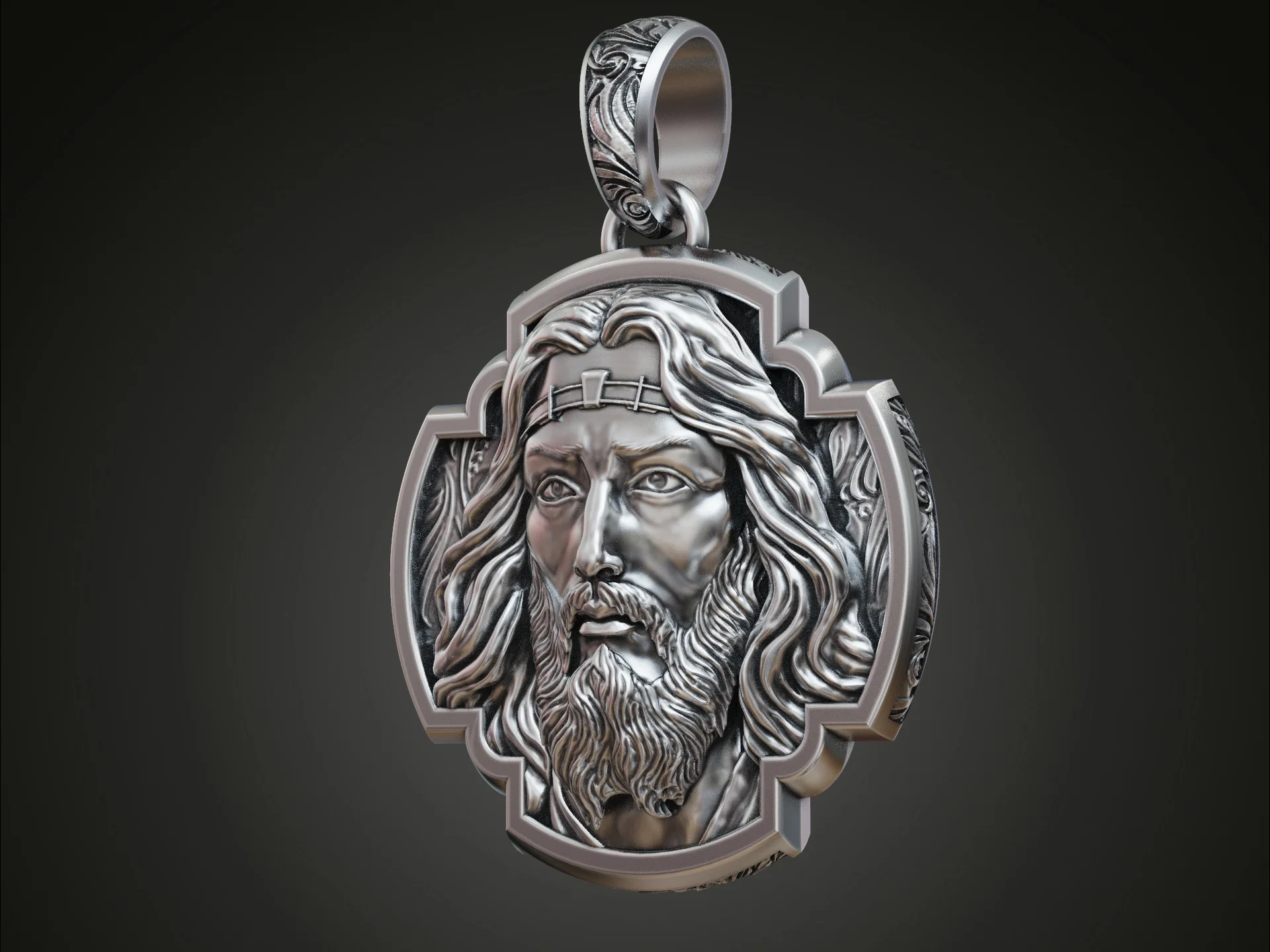

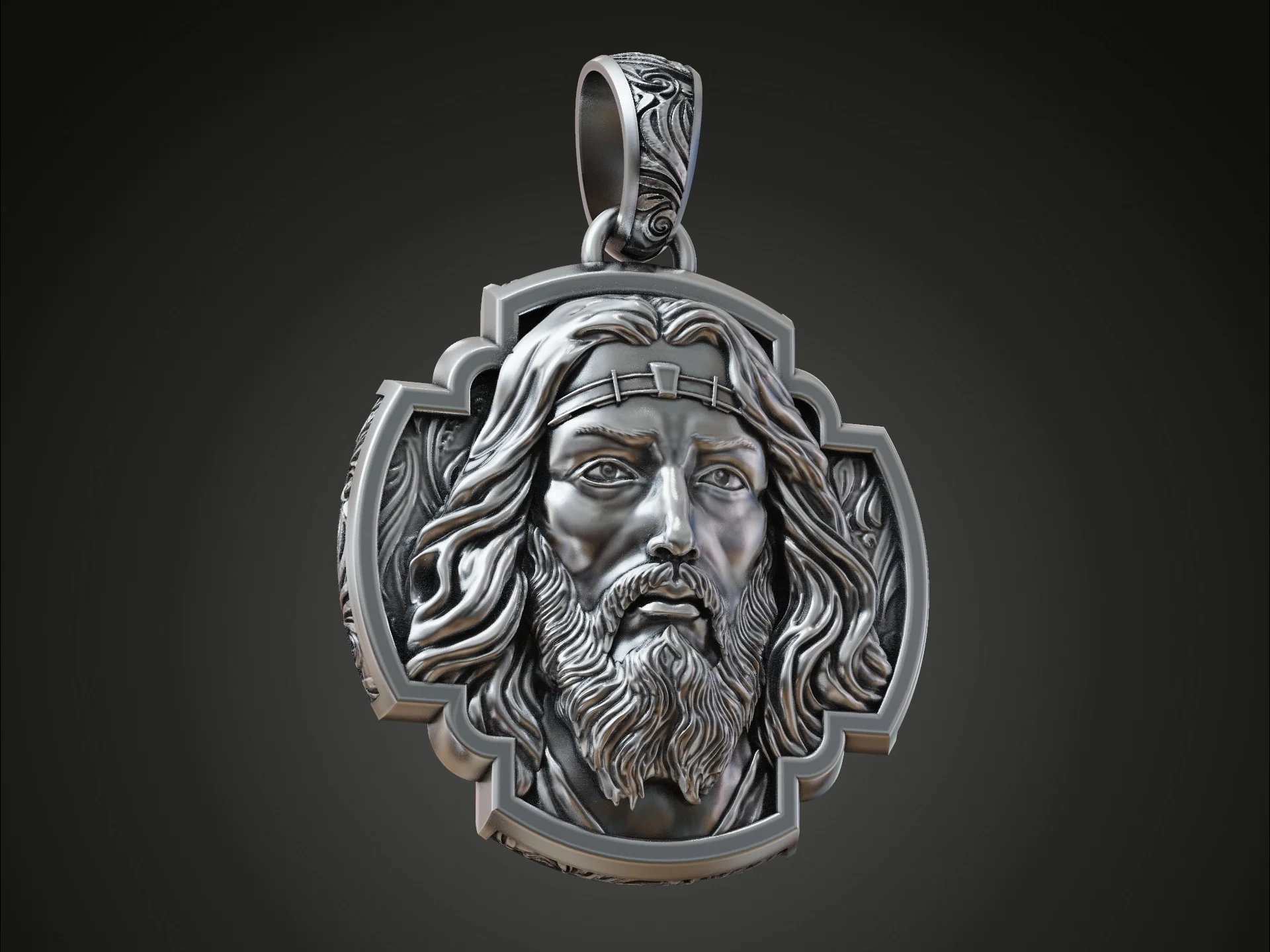

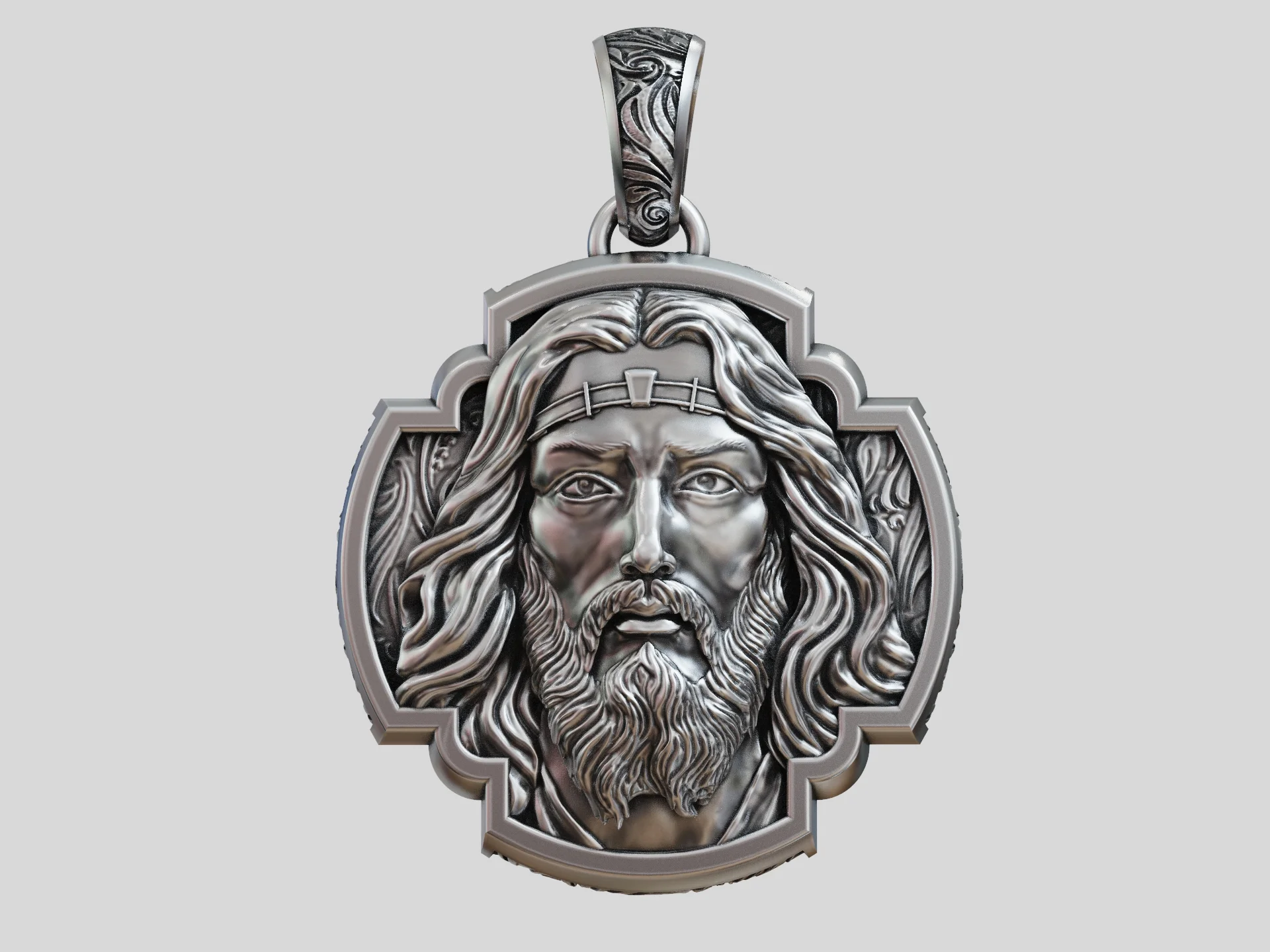

A high-relief portrait of Jesus forms the centerpiece of this pendant, set against a stepped, cross-shaped backplate. The portrait features detailed rendering of hair and beard, contained within the framing element that measures 29.26 mm in height. This 3D model is provided as a two-part assembly, consisting of the main medallion and a separate, articulated bail. The bail, decorated with acanthus-style scrollwork, provides an inner clearance of 5.98 mm for a chain, while the total pendant thickness of 7.14 mm indicates substantial relief depth.

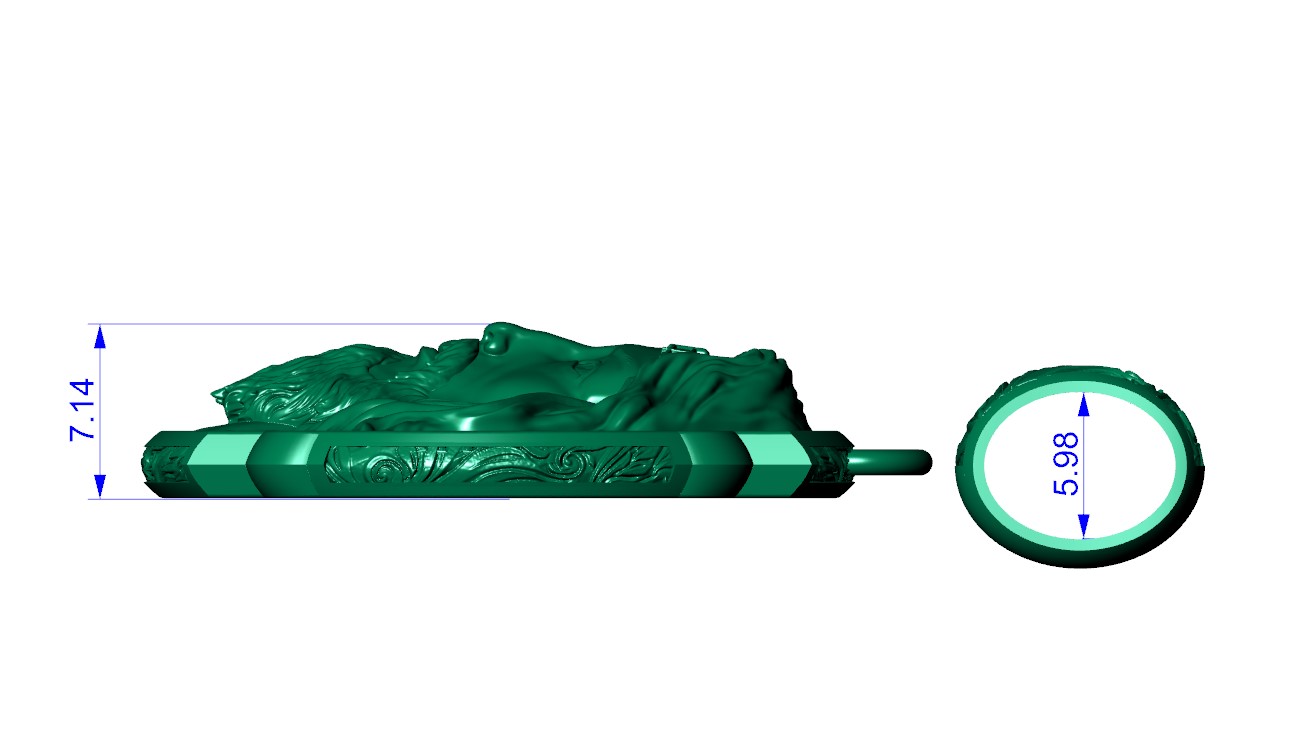

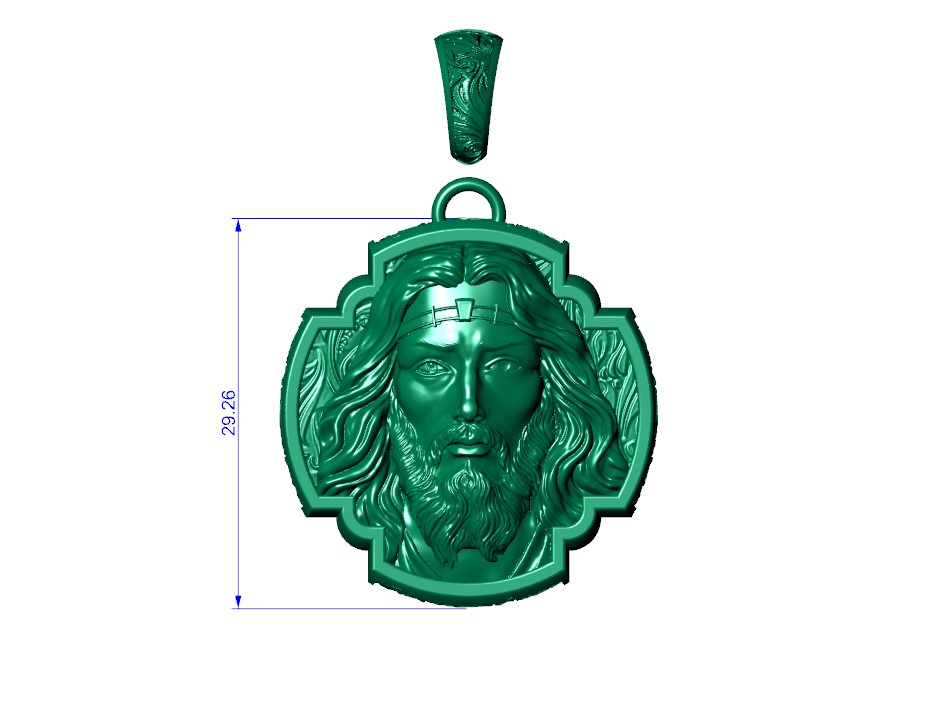

- Height (Pendant Body): 29.26 mm - Thickness: 7.14 mm - Bail Inner Clearance: 5.98 mm

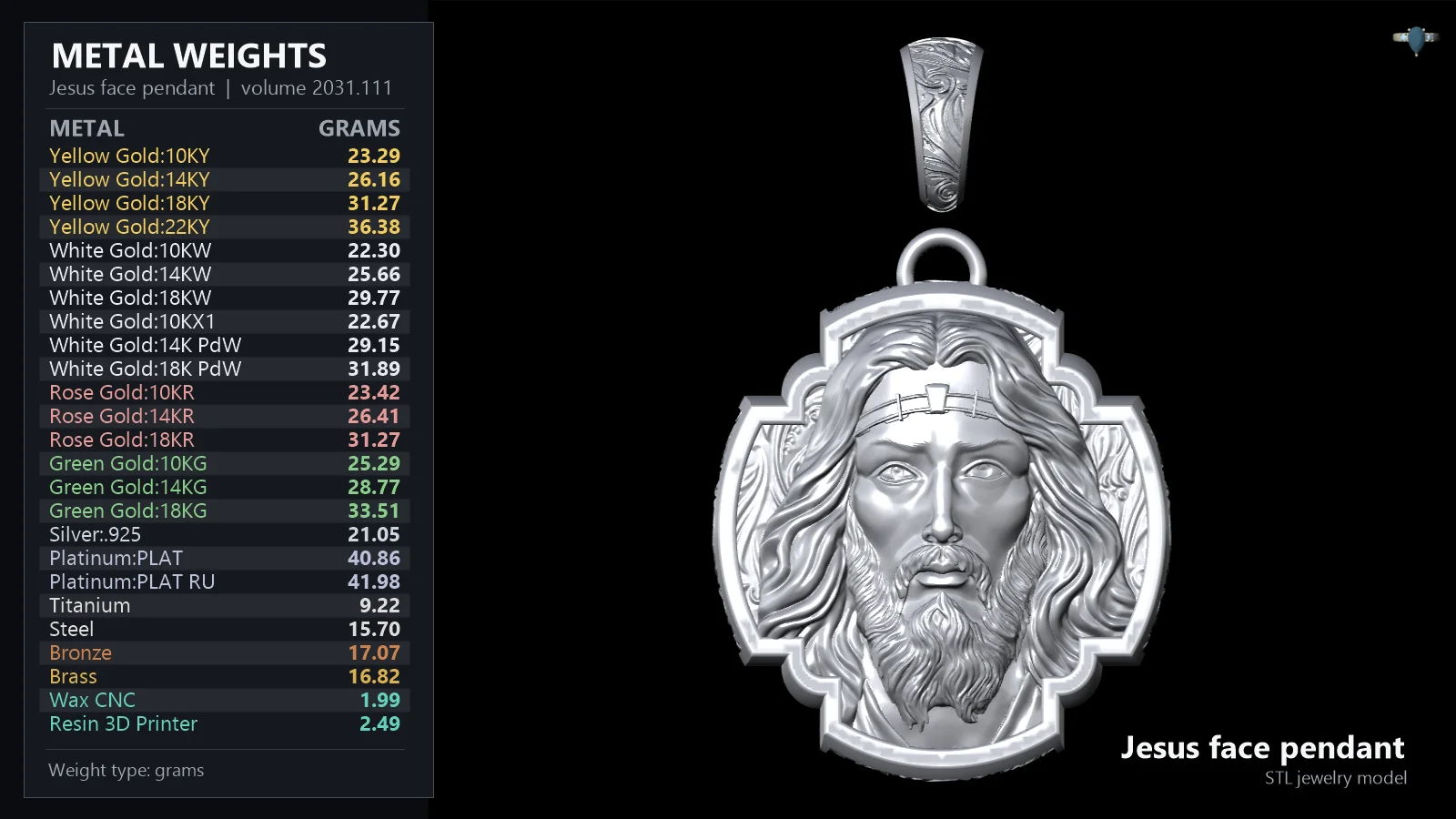

Based on the provided volume of 2031.111 mm³: - Yellow Gold 14K: 26.16 g - Yellow Gold 18K: 31.27 g - Rose Gold 14K: 26.41 g - White Gold 14K: 25.66 g - Silver 925: 21.05 g - Platinum: 40.86 g - Bronze: 17.07 g - Steel: 15.70 g
Q: What is the maximum chain diameter that will fit through the bail? A: The bail has an inner clearance of 5.98 mm, allowing chains up to that size to pass through.
Q: What is the overall height of the main pendant piece? A: The main body of the pendant, excluding the connecting jump ring and articulated bail, has a vertical dimension of 29.26 mm.
Q: How deep is the relief on this pendant model? A: The pendant has a total thickness of 7.14 mm from the backplate to the highest point of the facial relief, providing significant depth.
