Venus Bust Relief Greek Key Signet Ring

Digital 3D Jewelry Model — No Physical Item

Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.

By: JM

Price: $40.00 USD

Description

A high-relief bust of Venus defines the face of this signet-style ring. The classical portrait is set within a circular bezel against a recessed field with a stippled texture, a central element measuring 12.33mm across and rising 3.42mm from the ring's surface. The ring's tapered shoulders are decorated with a recessed Greek-key meander pattern. This CAD model is structured as a two-part assembly, which allows a printed pattern of the shank and Venus relief face to be cast separately for multi-metal compositions or simplified finishing. The shank has a substantial base, measuring 3.98mm in width and 3.0mm in thickness for durability.

Face Diameter: 12.33 mm Relief Height: 3.42 mm Shank Base Width: 3.98 mm Shank Base Thickness: 3.0 mm

US: 5, 6, 7, 8, 9, 10 UK: K, M, O, Q, S, U German: 49.3, 51.8, 54.7, 57.2, 59.7, 62.5 Inner Diameter: 15.7mm, 16.5mm, 17.4mm, 18.2mm, 19mm, 19.9mm

Note: Weights are calculated for a US size 10 ring. - Gold 14K (585): 15.3 g - Gold 18K (750): 18.2 g - Silver 925: 12.3 g - Bronze: 10.0 g - Steel: 9.2 g

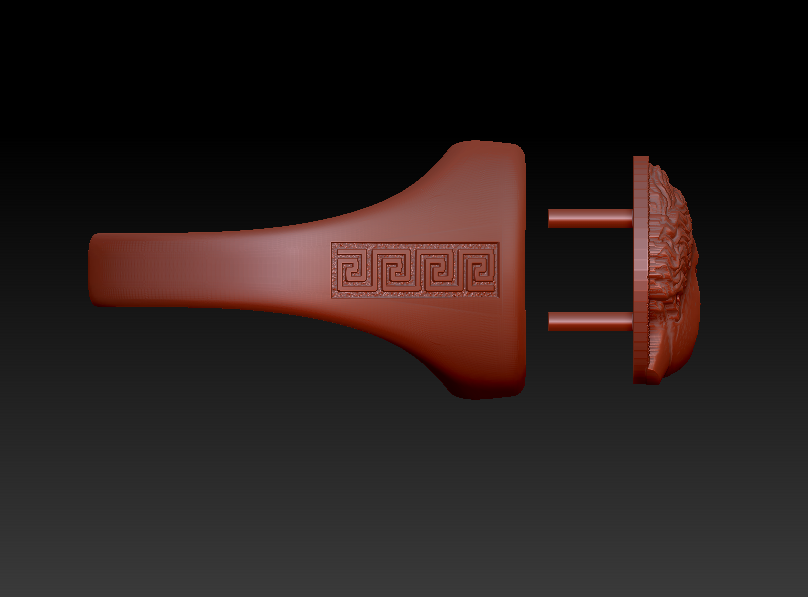

Q: Is this ring a single piece or multiple parts? A: The design is provided as a two-part assembly, with the main shank and the top relief plate (12.33mm diameter) as separate components. This facilitates two-tone casting or separate finishing.

Q: What is the width of the band at its narrowest point? A: The shank base has a width of 3.98mm and a thickness of 3.0mm, providing a substantial foundation for the ring.

Q: Does the model come in multiple sizes? A: Yes, the digital model is provided for US sizes 5 through 10, with corresponding inner diameters ranging from 15.7mm to 19.9mm.

Tags

venus ring · signet ring · greco roman jewelry · goddess jewelry · greek key ring · meander pattern · classical bust · relief sculpture · mens fashion ring · two part casting · historical replication · mythology jewelry

Gallery

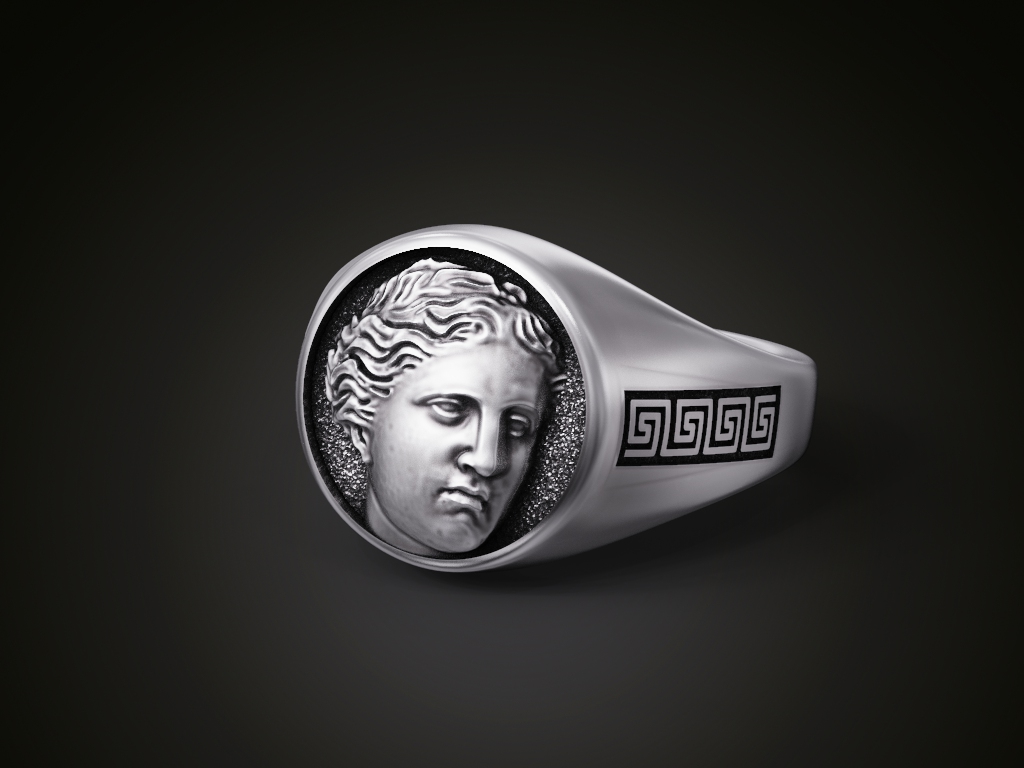

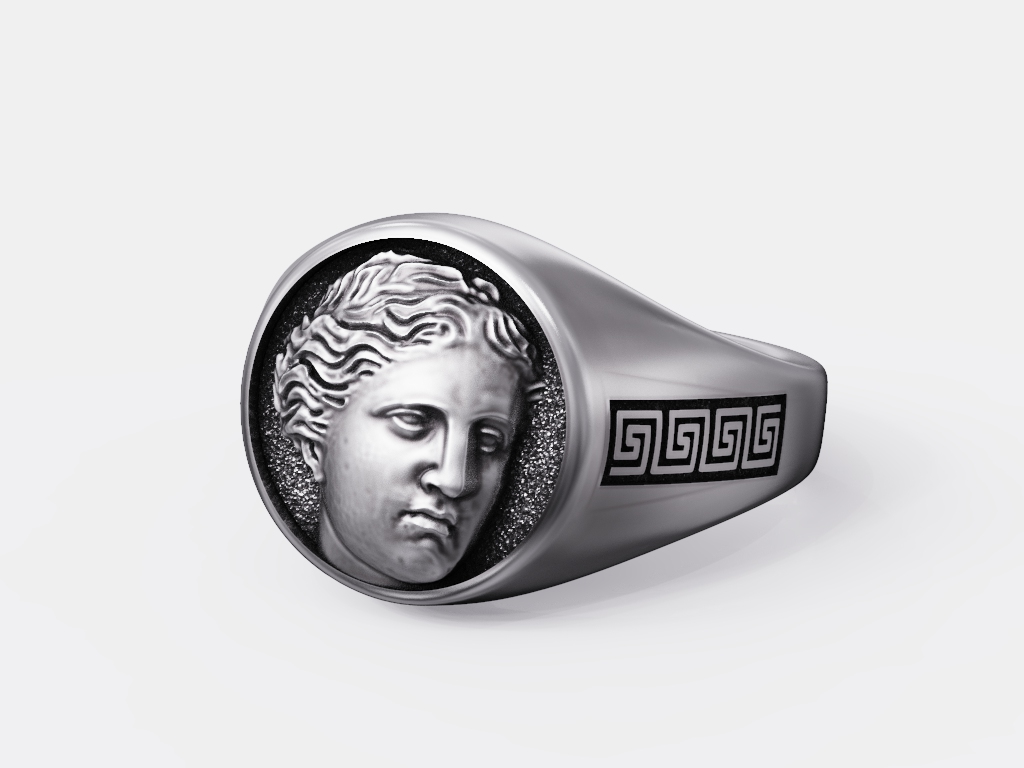

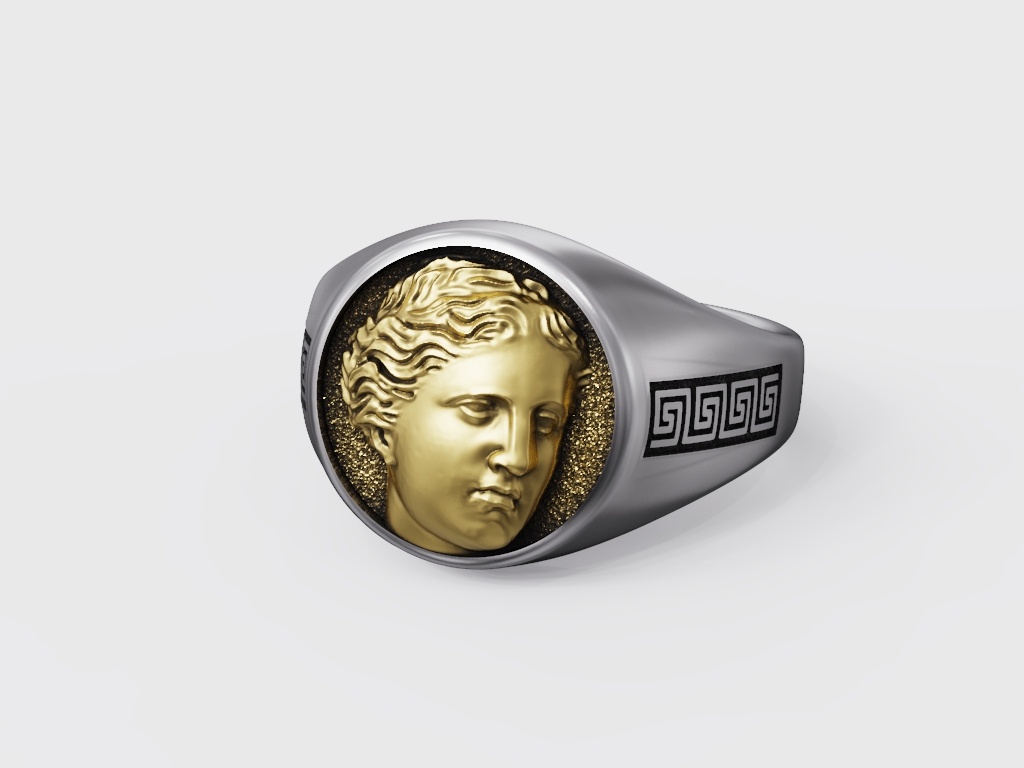

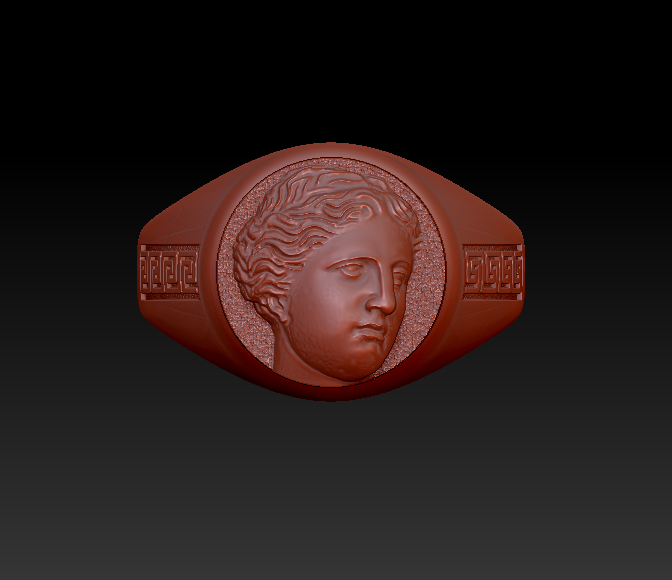

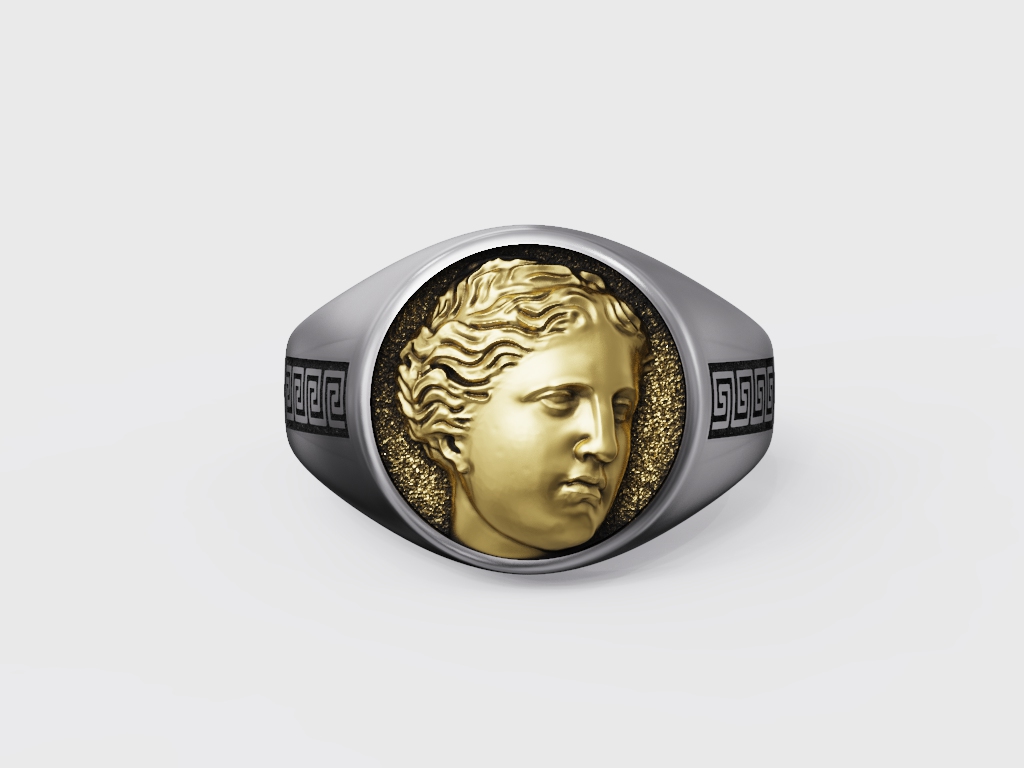

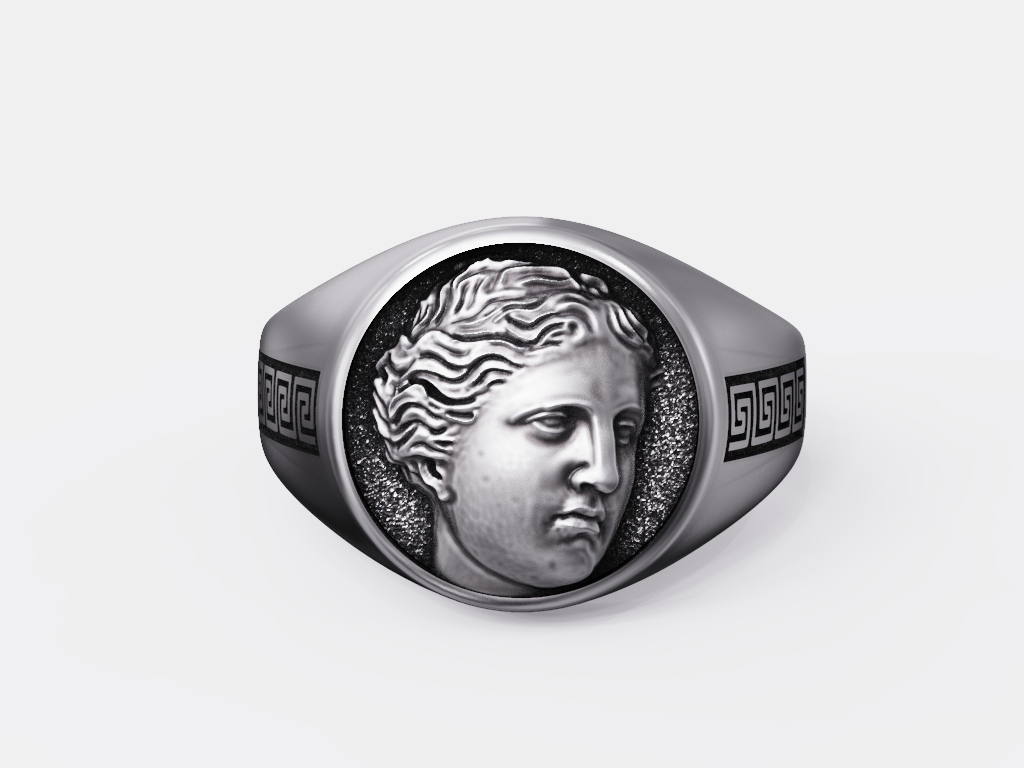

Venus Bust Relief Greek Key Signet Ring — view 1 Venus Bust Relief Greek Key Signet Ring — view 2 Venus Bust Relief Greek Key Signet Ring — view 3 Venus Bust Relief Greek Key Signet Ring — view 4 Venus Bust Relief Greek Key Signet Ring — view 5 Venus Bust Relief Greek Key Signet Ring — view 6 Venus Bust Relief Greek Key Signet Ring — view 7 Venus Bust Relief Greek Key Signet Ring — view 8
