Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: JM
Price: $40.00 USD

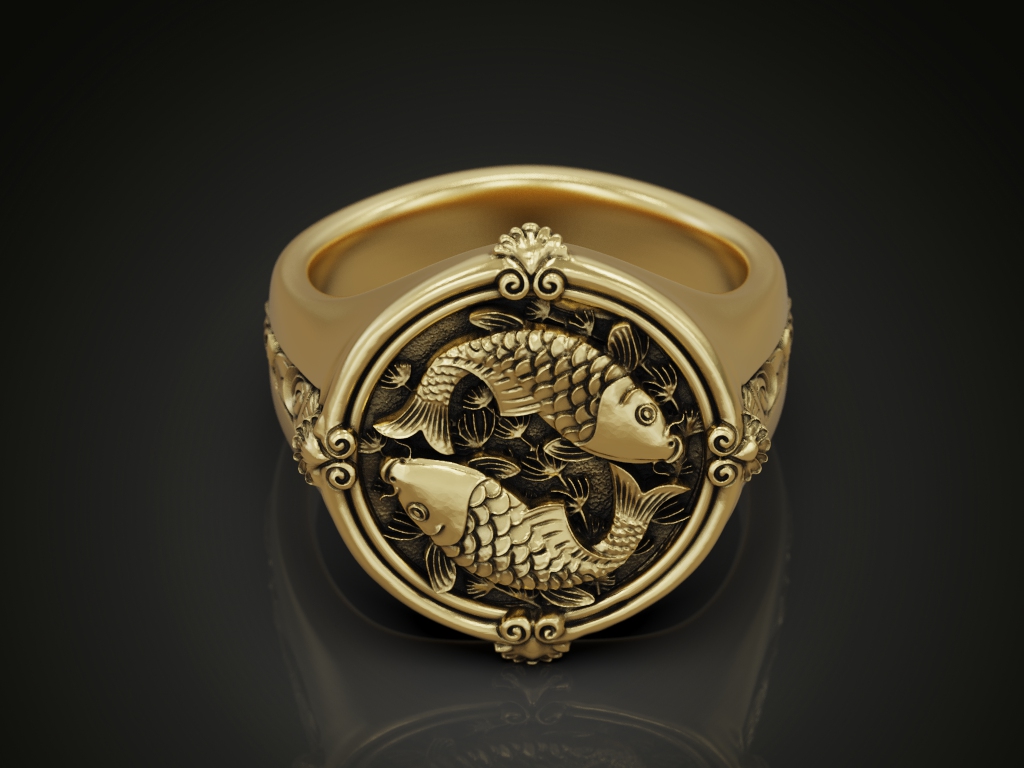

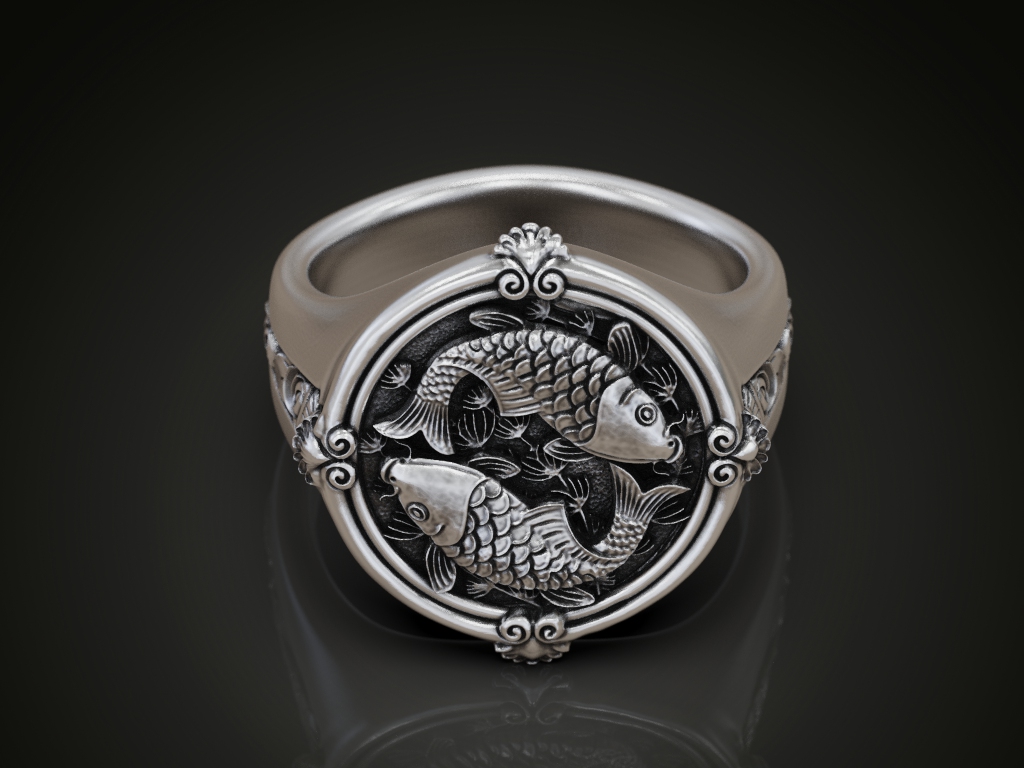

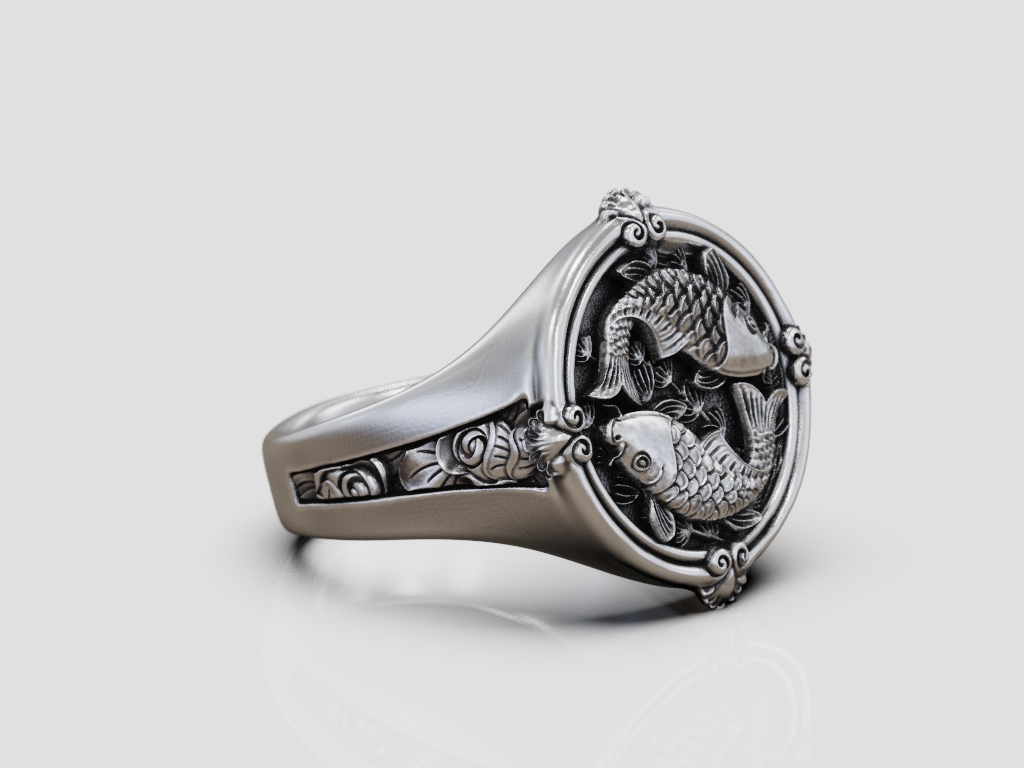

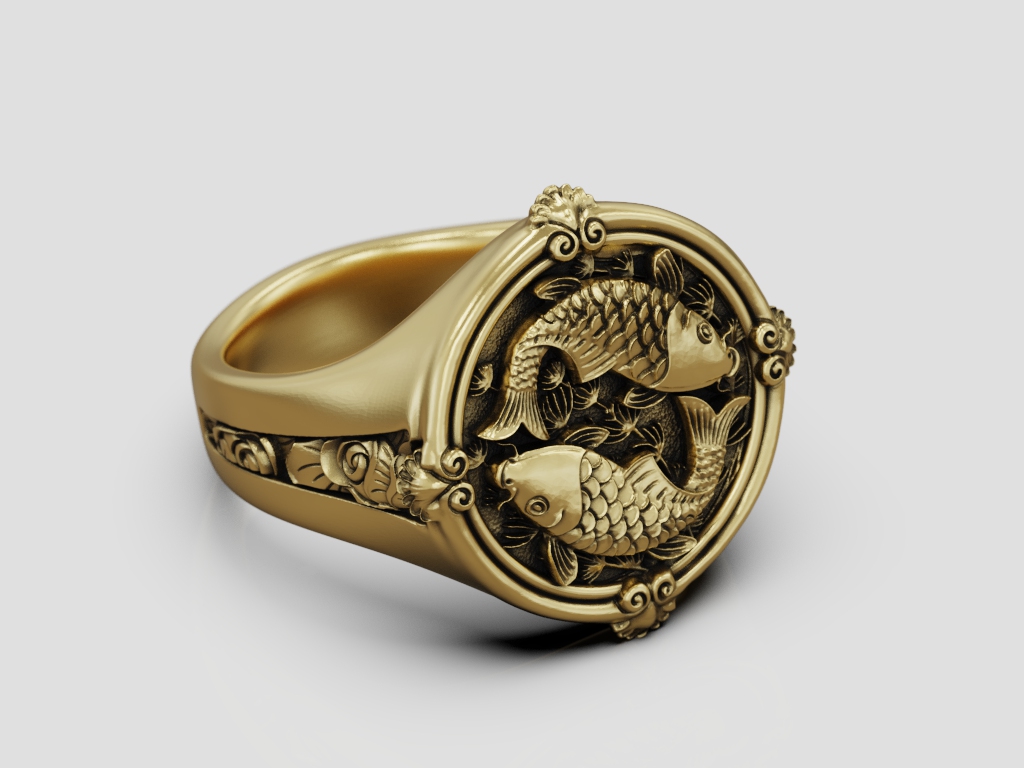

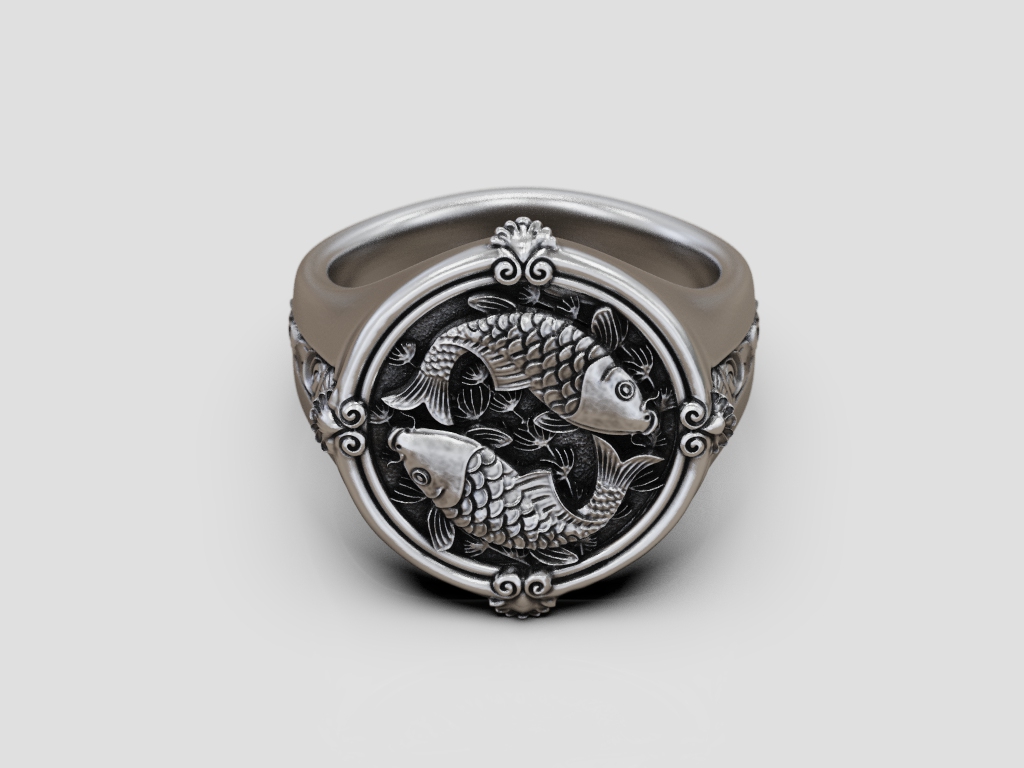

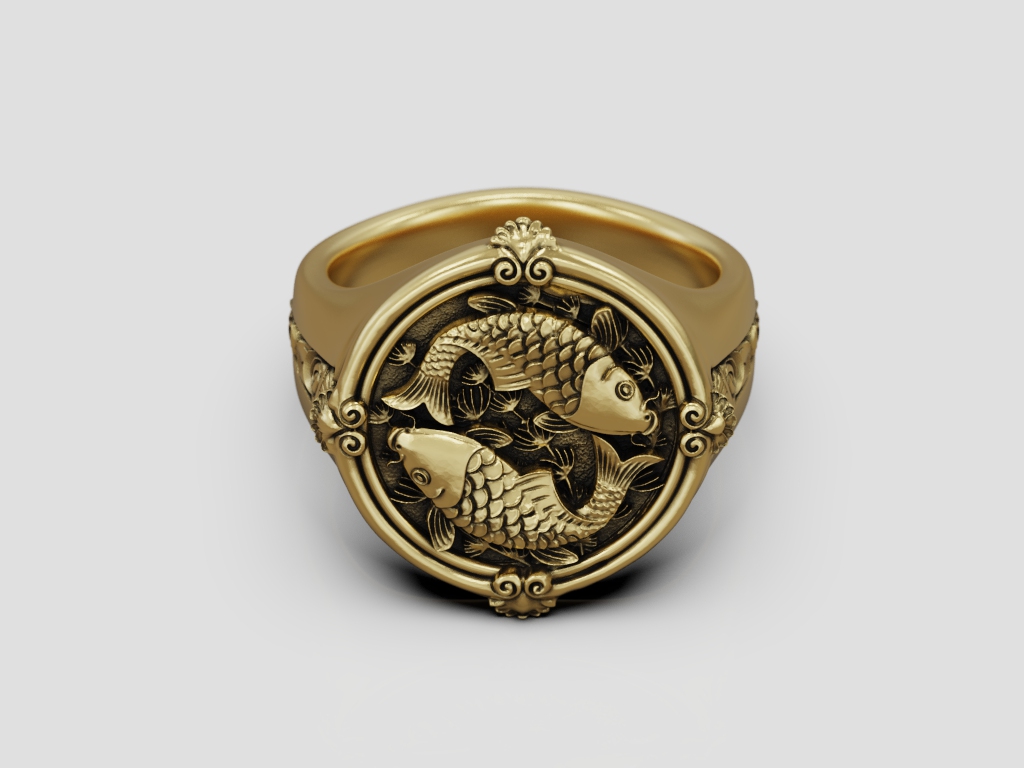

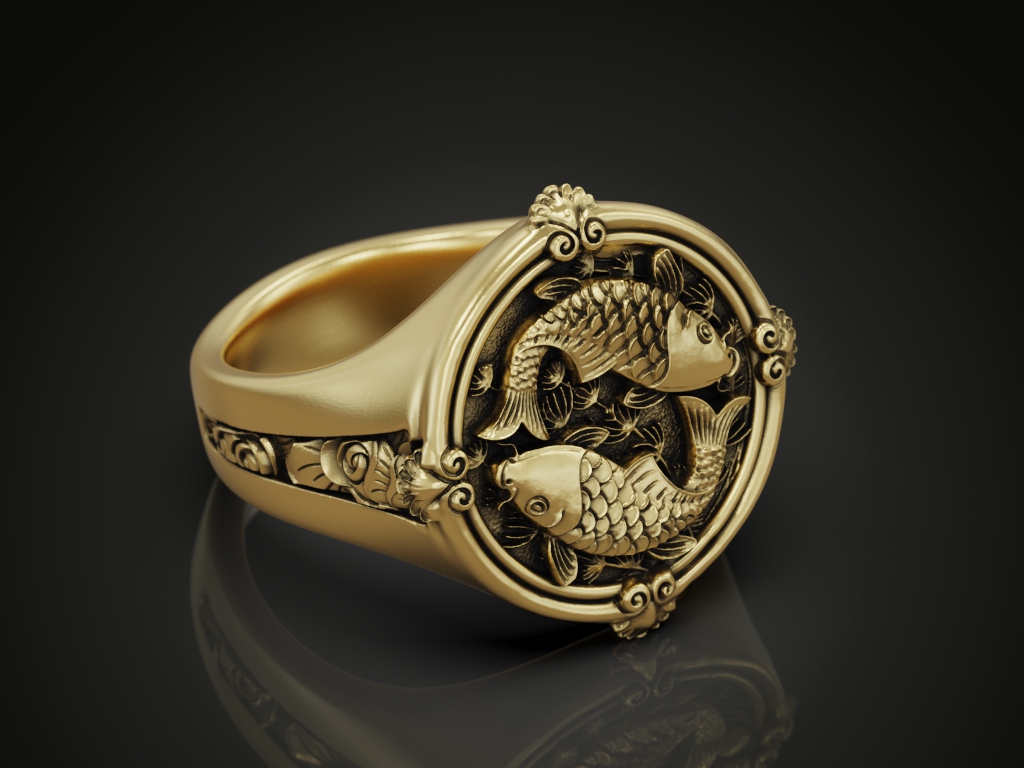

The construction of this signet ring centers on a prominent circular face measuring 20.25mm across. It displays a detailed bas-relief of two swimming koi carp within a recessed field, framed by a raised border with four decorative volutes. Flowing from the head, the tapered shoulders feature recessed panels with acanthus-style scrollwork. The half-round shank narrows to 5.25mm at its base. This digital jewelry model provides the basis for an additively manufactured master, ensuring the high-relief koi and intricate shoulder details are captured precisely in a subsequent investment casting workflow.
Face Diameter: 20.25 mm Head Height: 4.69 mm Shank Base Width: 5.25 mm Shank Base Thickness: 1.79 mm Shank Side Thickness: 1.98 mm
US: 6, 7, 8, 9, 10, 11, 12, 13 UK: M, O, Q, S, U, W, Y, Z1 German: 51.8, 54.7, 57.2, 59.7, 62.5, 65, 67.5, 70.1 Inner Diameter: 16.5mm, 17.4mm, 18.2mm, 19mm, 19.9mm, 20.7mm, 21.5mm, 22.3mm
Note: The following weights are calculated for US Size 10 (Volume: 1728.75 mm³) - Yellow Gold 10K: 19.83 g - Yellow Gold 14K: 22.26 g - Yellow Gold 18K: 26.61 g - Yellow Gold 22K: 30.96 g - White Gold 10K: 18.98 g - White Gold 14K: 21.84 g - White Gold 18K: 25.34 g - White Gold (10KX1): 19.30 g - White Gold (14K PdW): 24.81 g - White Gold (18K PdW): 27.14 g - Rose Gold 10K: 19.93 g - Rose Gold 14K: 22.48 g - Rose Gold 18K: 26.61 g - Green Gold 10K: 21.52 g - Green Gold 14K: 24.49 g - Green Gold 18K: 28.52 g - Silver .925: 17.92 g - Platinum (PLAT): 34.78 g - Platinum (PLAT RU): 35.73 g - Titanium: 7.85 g - Steel: 13.36 g - Bronze: 14.53 g - Brass: 14.31 g - Wax CNC: 1.70 g - Resin 3D Printer: 2.12 g
Q: Are all sizes included in the purchase? A: Yes, the CAD assets for this model include US sizes 6 through 13. The metal weight chart provided is an estimate based specifically on the US size 10 model, which has a volume of 1728.75 mm³.
Q: What are the key dimensions of the ring's face? A: The ring's circular face has a diameter of 20.25 mm. The central feature is the bas-relief of two koi fish, framed by a raised border.
Q: How wide is the band at its narrowest point? A: The shank is designed with a taper for comfort, narrowing to a width of 5.25 mm and a thickness of 1.79 mm at the bottom of the band.
