Heraldic Eagle on Flared Cross Pendant

Description

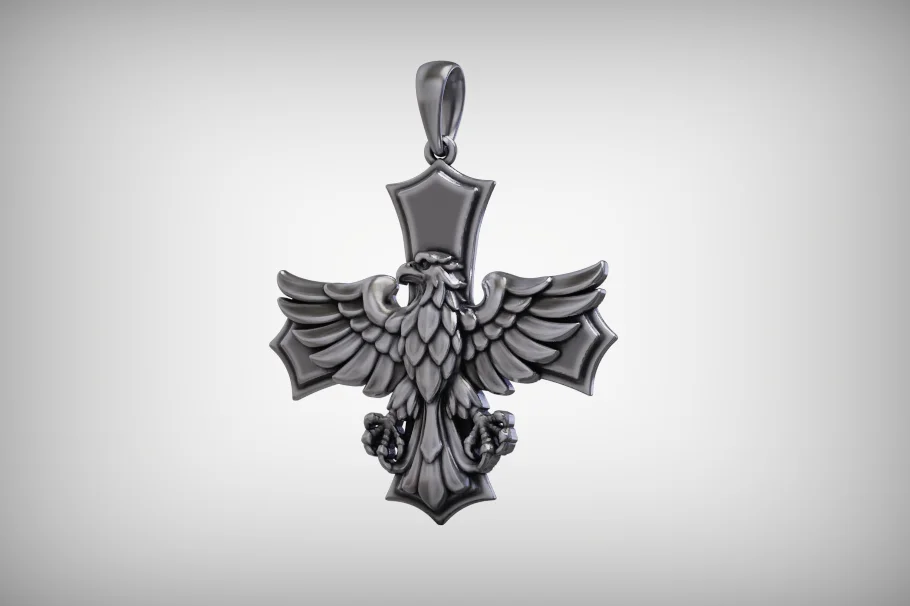

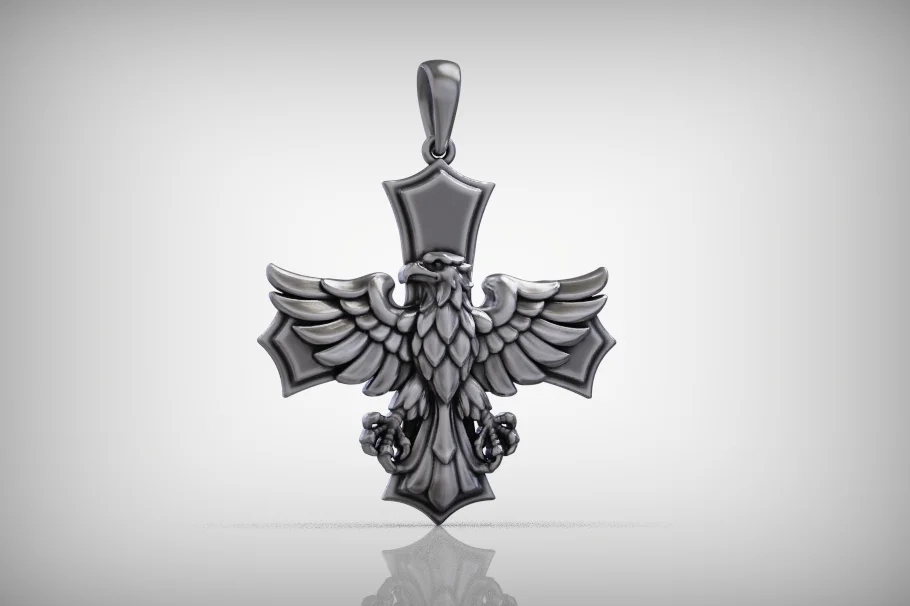

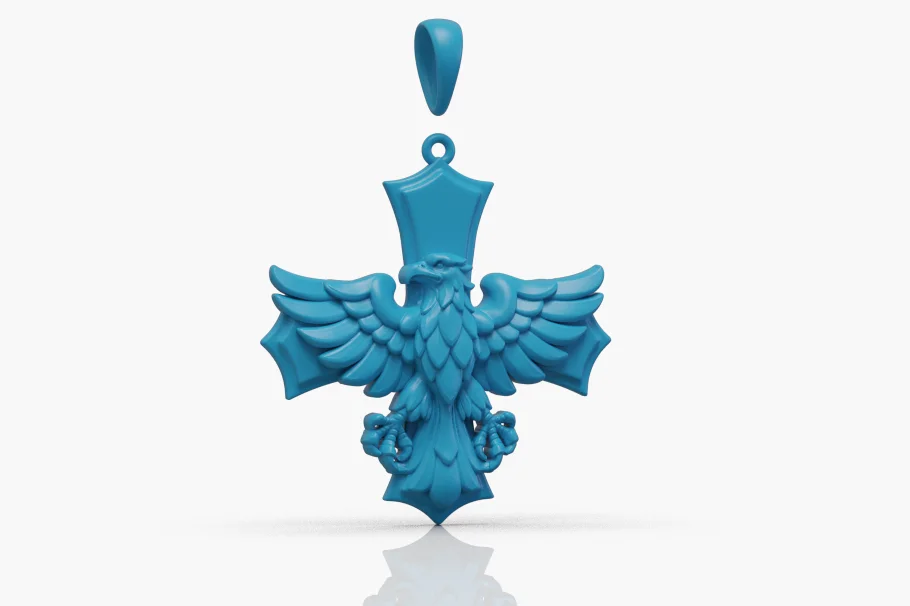

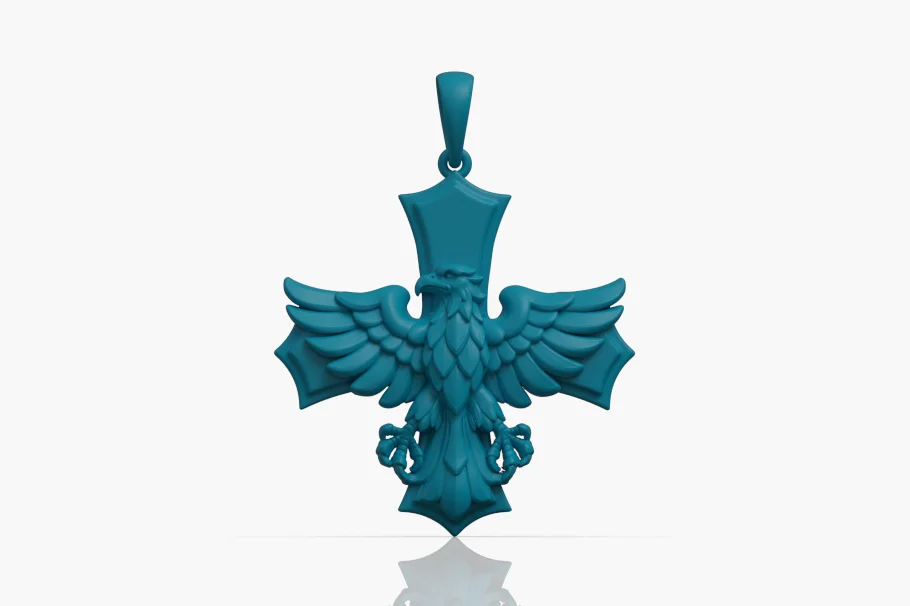

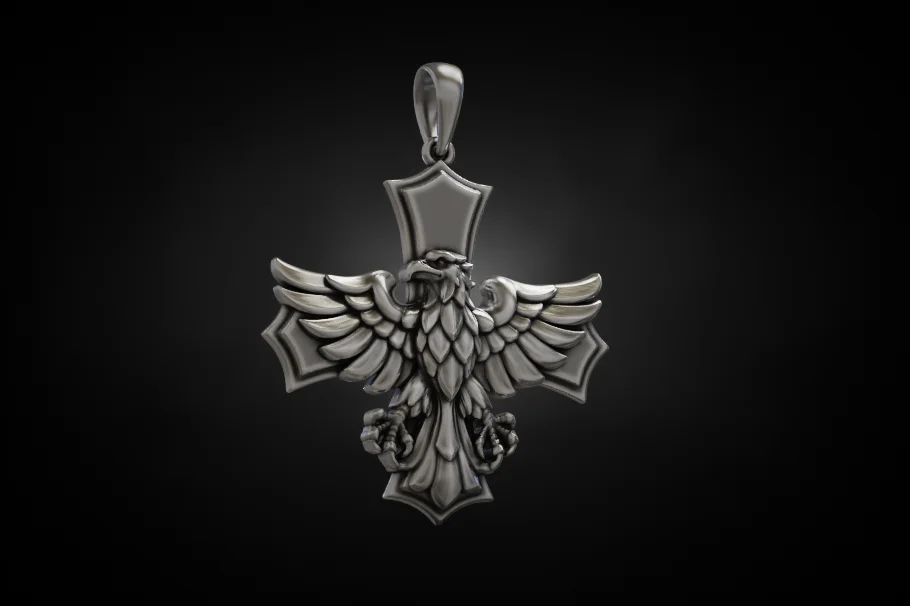

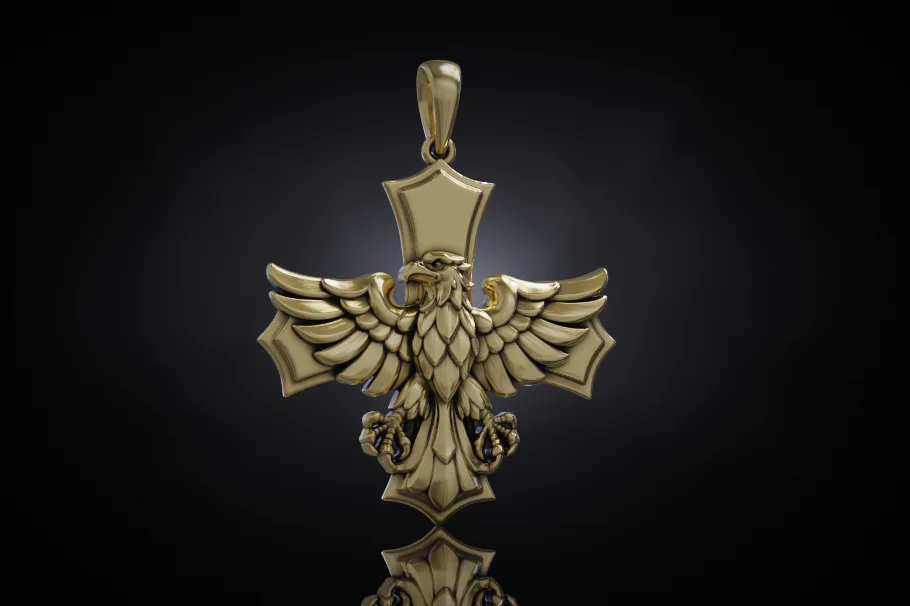

This pendant's construction features a high-relief heraldic eagle figure mounted centrally on a flared, cross-shaped backplate. The eagle is rendered with detailed, layered feathers across its spread wings and a sharply defined head and talons, creating significant visual depth against the beveled-edge base. A simple jump ring connects the body to a tapered bail, which has an inner diameter suitable for various chain sizes. The design is provided as a detailed CAD asset, allowing for the creation of a 3D printed master pattern for subsequent lost-wax investment casting.

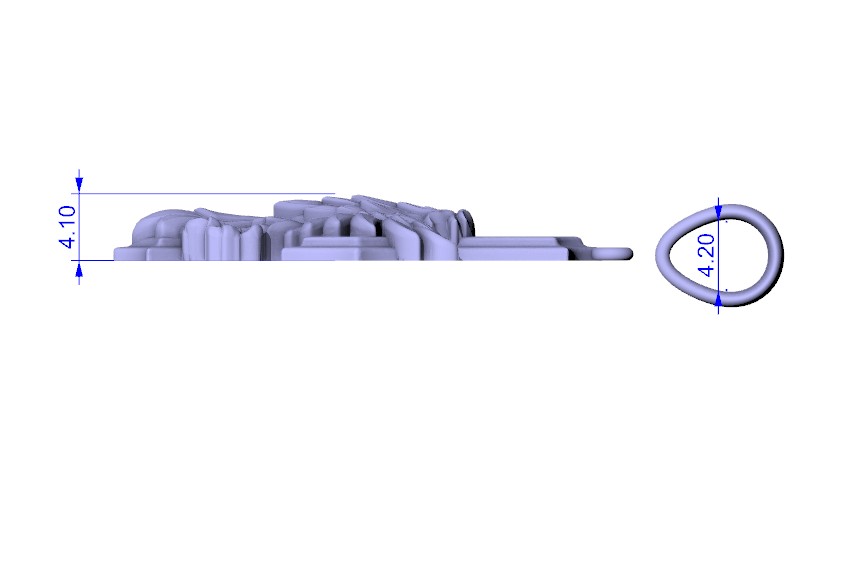

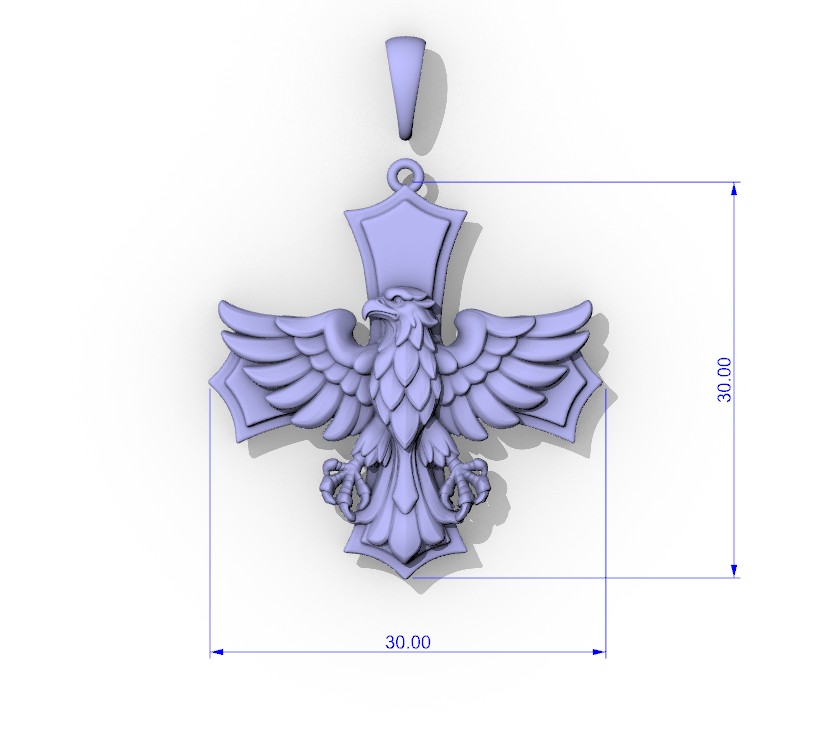

Pendant Body: 30.00 mm x 30.00 mm Max Thickness: 4.10 mm Bail Inner Clearance: 4.20 mm

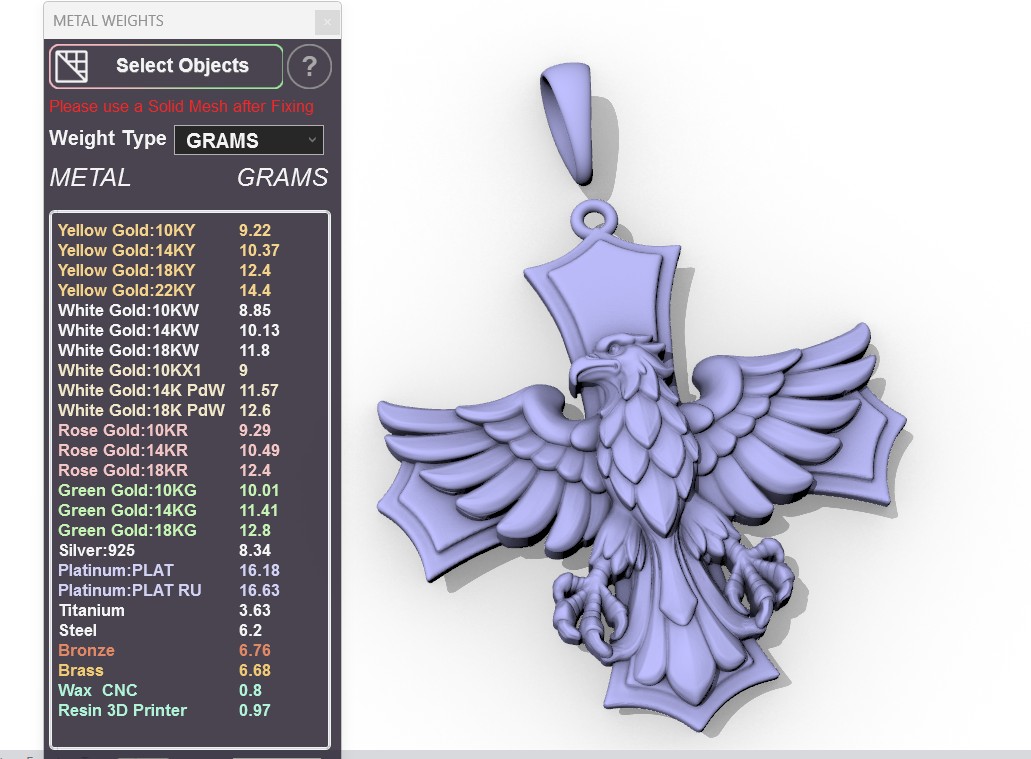

Yellow Gold - 10K: 9.22 g - 14K: 10.37 g - 18K: 12.4 g - 22K: 14.4 g

White Gold - 10K (W): 8.85 g - 14K (W): 10.13 g - 18K (W): 11.8 g - 10K (X1): 9.0 g - 14K (PdW): 11.57 g - 18K (PdW): 12.6 g

Rose Gold - 10K: 9.29 g - 14K: 10.49 g - 18K: 12.4 g

Green Gold - 10K: 10.01 g - 14K: 11.41 g - 18K: 12.8 g

Other Materials - Silver 925: 8.34 g - Platinum (PLAT): 16.18 g - Platinum (PLAT RU): 16.63 g - Titanium: 3.63 g - Steel: 6.2 g - Bronze: 6.76 g - Brass: 6.68 g - Wax CNC: 0.8 g - Resin (3D Printer): 0.97 g

Q: What are the overall dimensions of this eagle pendant? A: The main body of the pendant measures 30.00 mm in width by 30.00 mm in height, with a maximum relief thickness of 4.10 mm.

Q: What size chain will fit through the bail? A: The bail is designed with an inner clearance of 4.20 mm, which can accommodate most standard chain types and clasps up to that size.

Q: What is the calculated weight difference between 18K Yellow Gold and Platinum? A: Based on the model's volume, the estimated weight is 12.4 grams for 18K yellow gold and 16.18 grams for Platinum (PLAT).
