Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: JM
Price: $45.00 USD

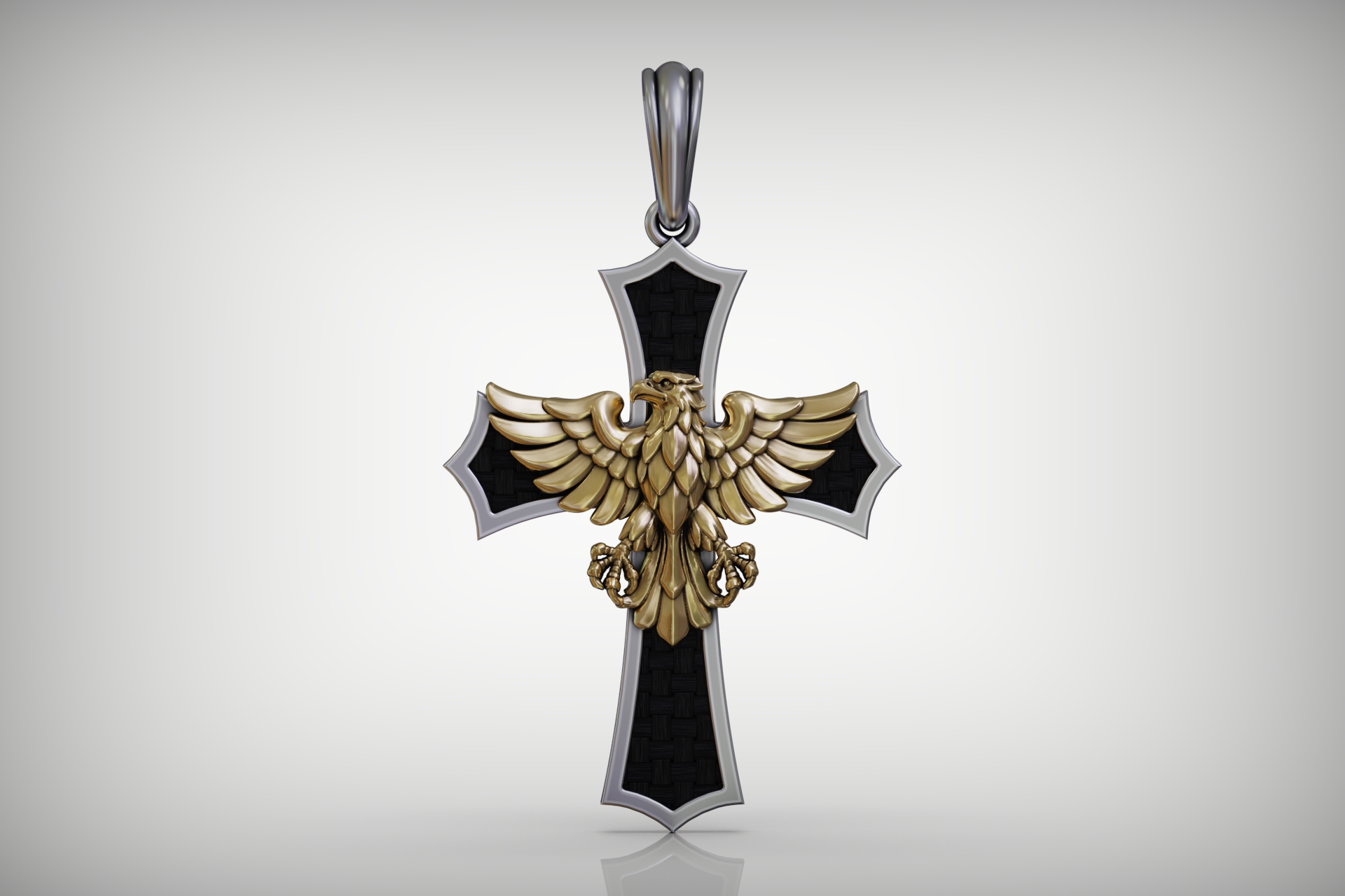

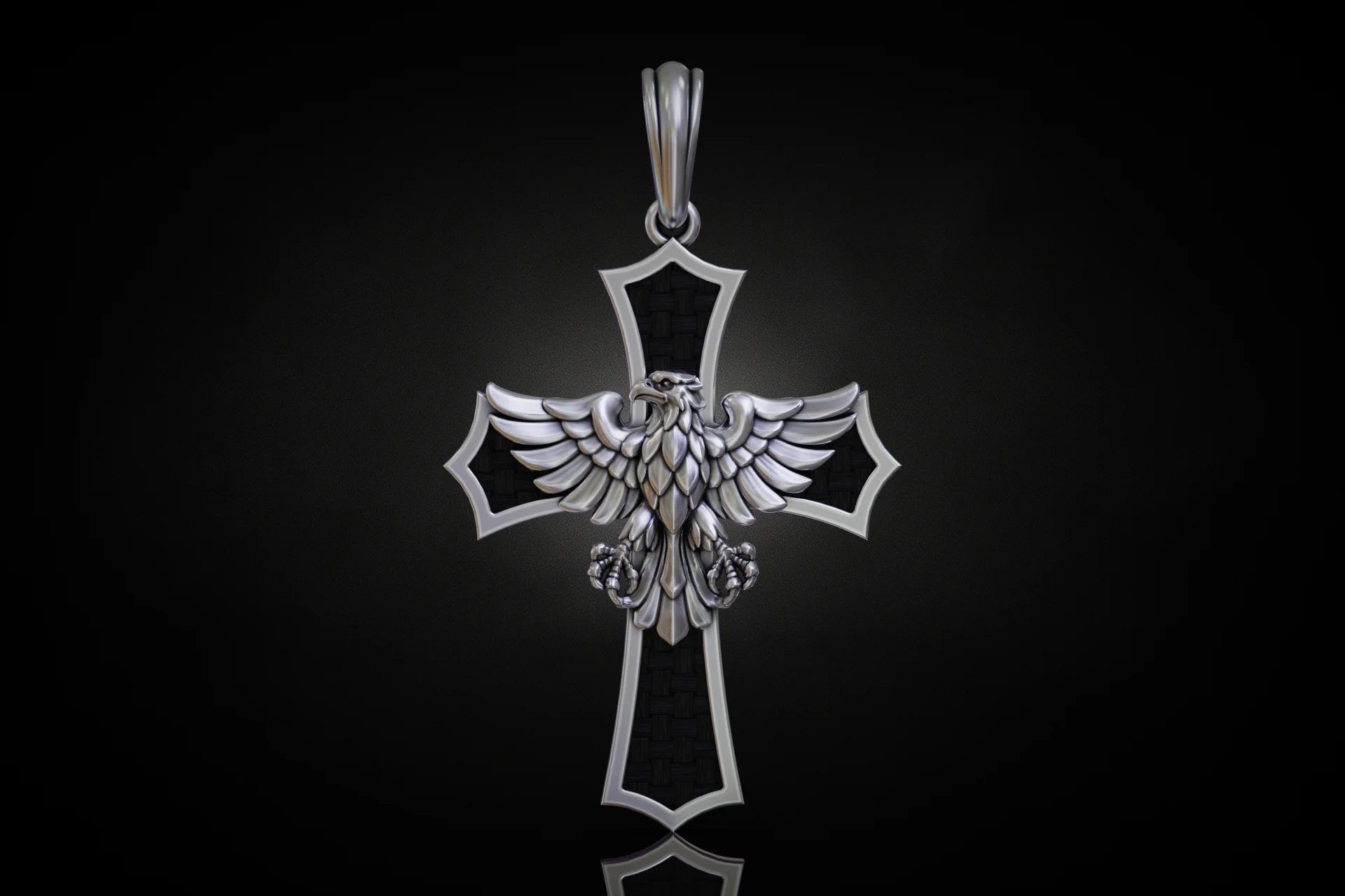

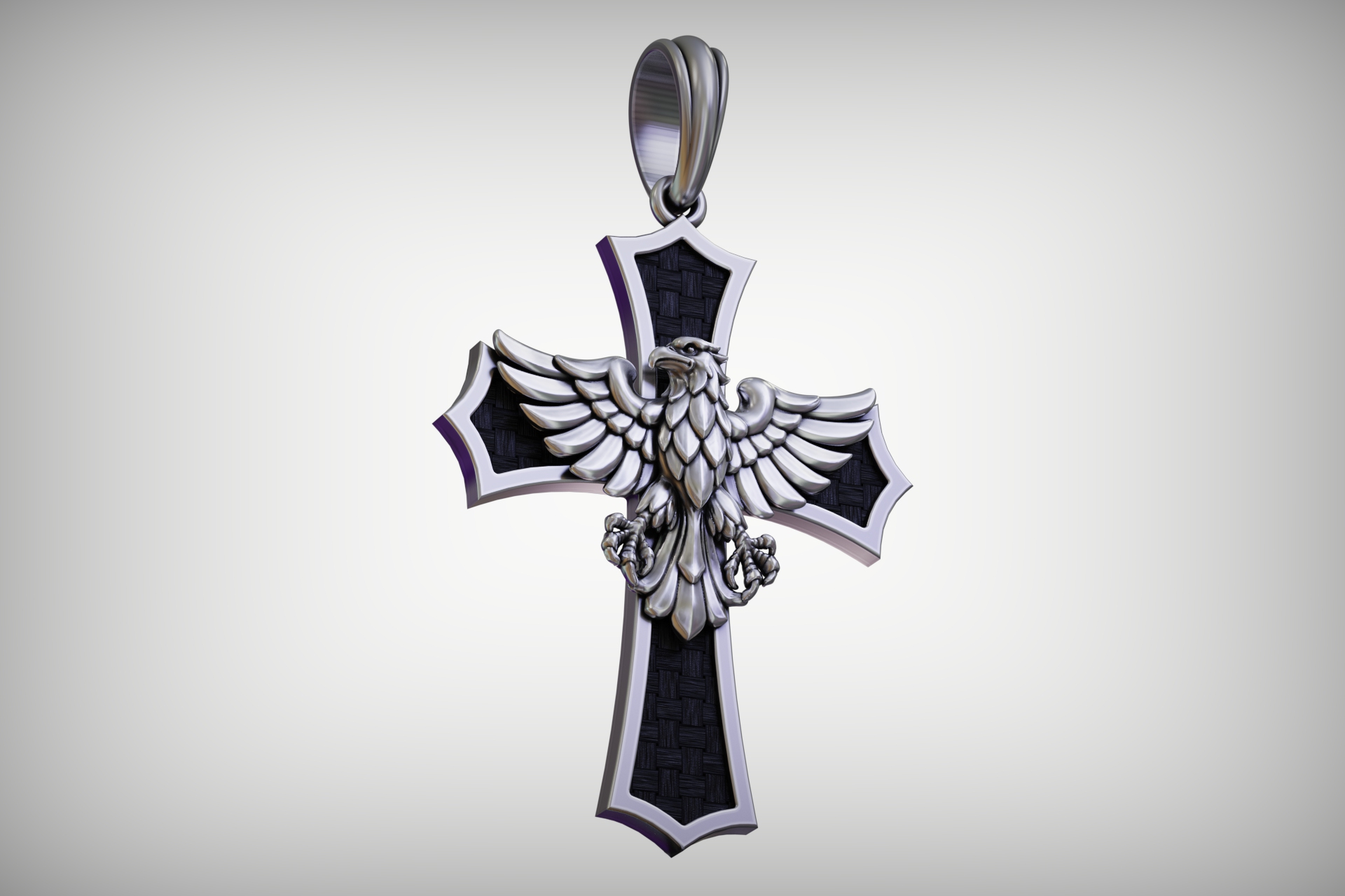

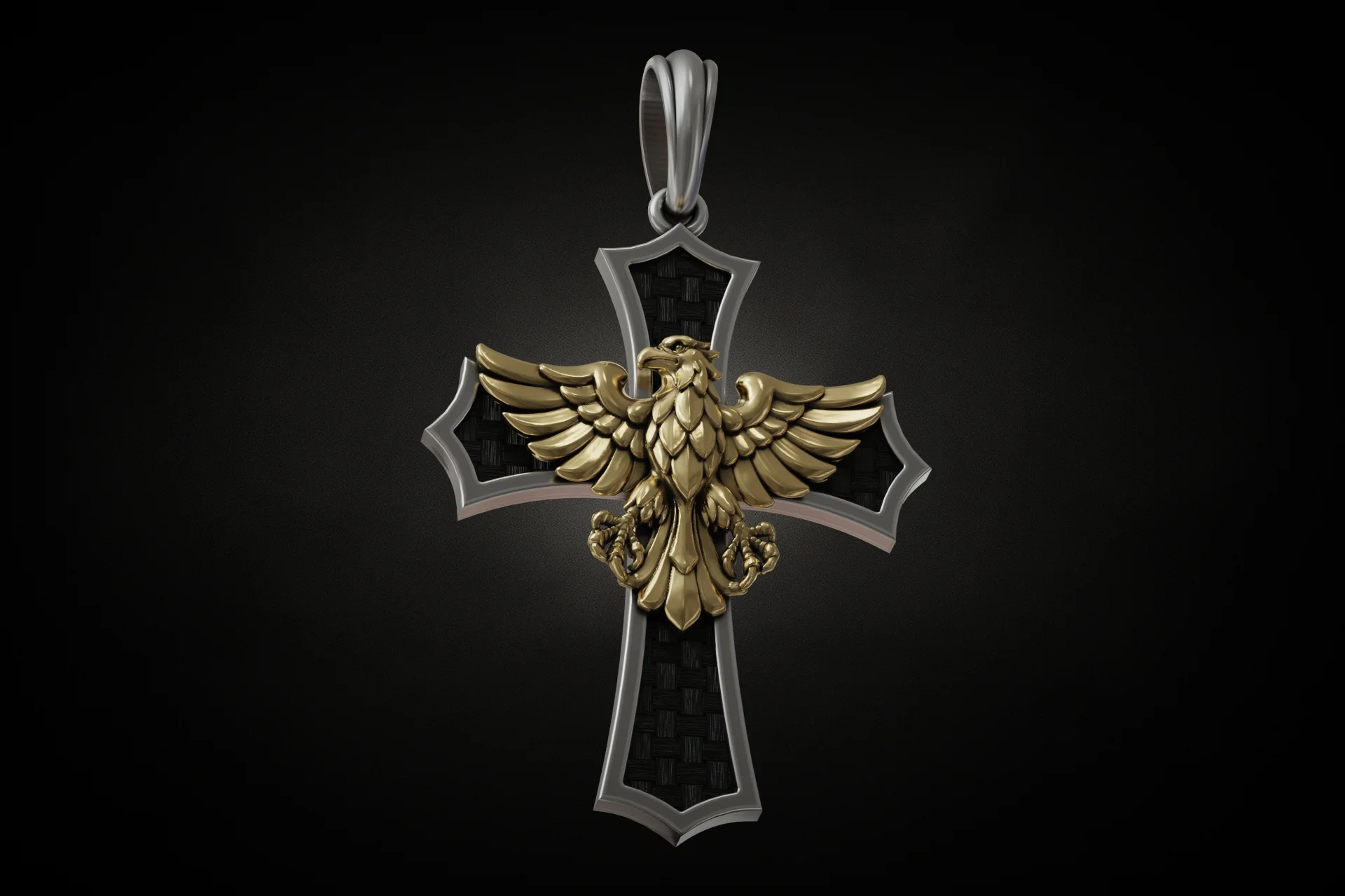

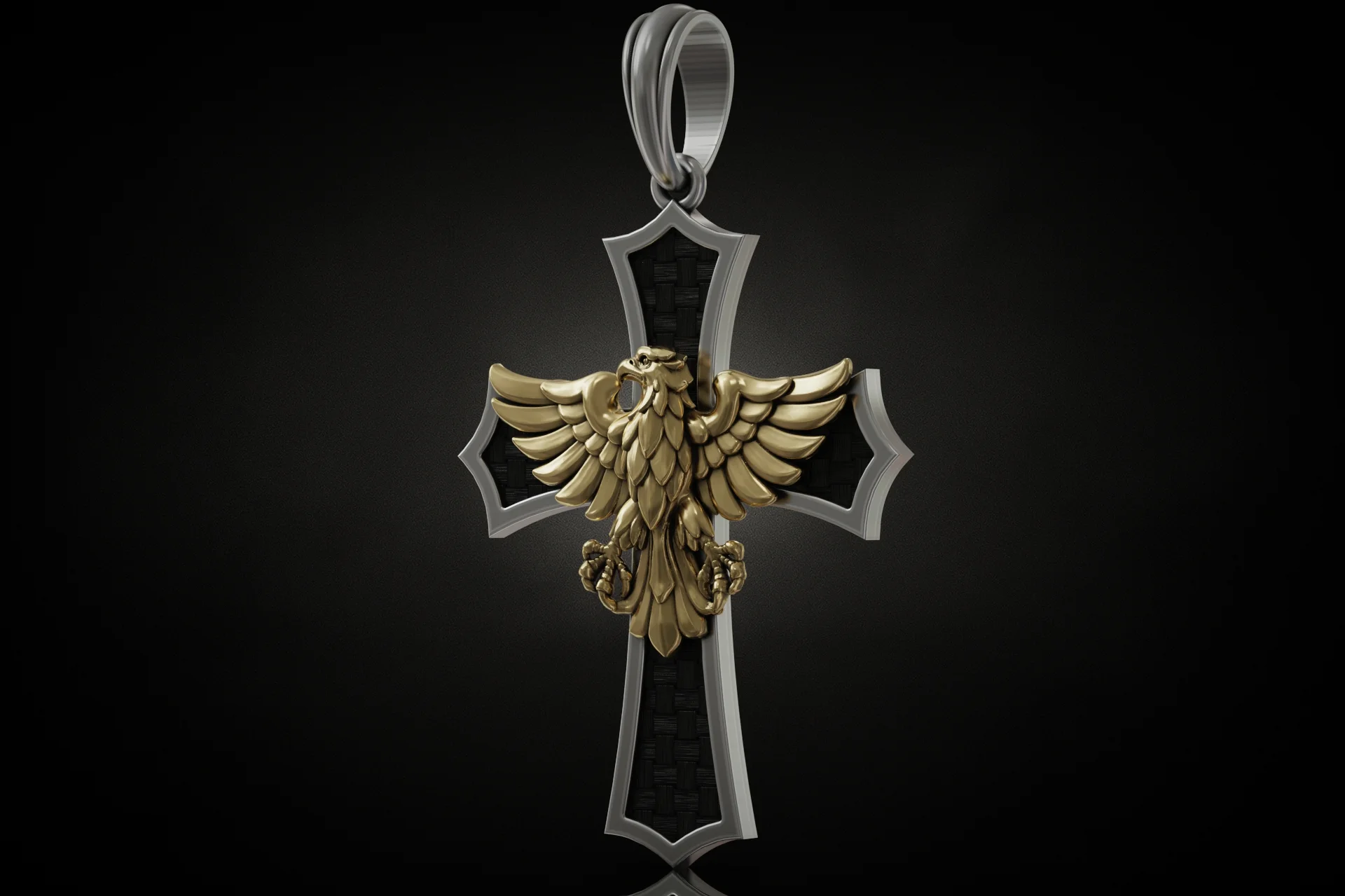

This pendant features a high-relief heraldic eagle figure mounted prominently upon a flared cross. The cross body incorporates recessed panels with a fine, cross-hatched texture set within a raised, beveled frame. Measuring 40.00 mm in total height and 30.00 mm wide, the design is constructed from two main components: the eagle relief and the cross backplate, with the reverse side showing post locations for assembly. This layered CAD asset is structured for a lost-wax casting workflow, where an additively manufactured master can yield a multipart final pendant.
- Total Height: 40.00 mm - Width: 30.00 mm - Cross Thickness: 2.01 mm - Bail Opening: 6.57 mm
Based on the provided 3D model data, estimated weights in various metals are: - Yellow Gold 14K: 10.1 g - Yellow Gold 18K: 12.1 g - White Gold 14K: 9.9 g - White Gold 18K: 11.5 g - Rose Gold 14K: 10.2 g - Silver 925: 8.1 g - Platinum: 15.7 g - Steel: 6.0 g - Bronze: 6.6 g
Q: What is the black center part of the cross made of? A: The black inlay can be made from any suitable black stone such as onyx, agate, black spinel, jet, black jade, or black tourmaline, as well as black African ebony wood or other suitable wood species. This part can also be cast in metal as well.
Q: What is the total height of the pendant, including the bail? A: The pendant measures 40.00 mm from the top of the bail to the bottom of the cross.

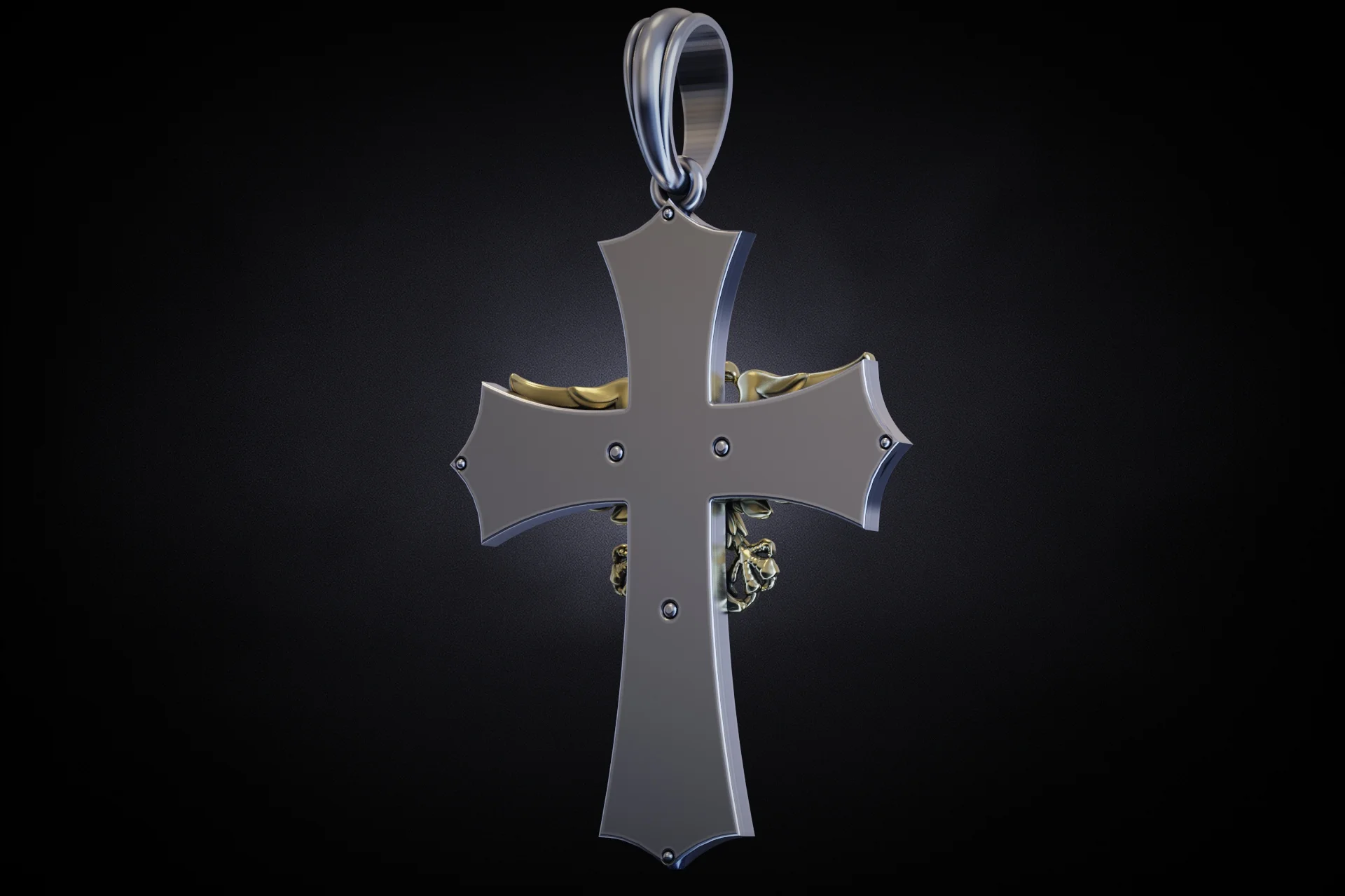

Q: Is the eagle a separate piece from the cross? A: Yes, this is a two-part design. The eagle is a separate relief element intended to be mounted onto the cross backplate, as indicated by the posts visible on the reverse of the 3D model.
