By: JM
Price: $10.00 USD
Rating: 5.0 / 5 (1 reviews)

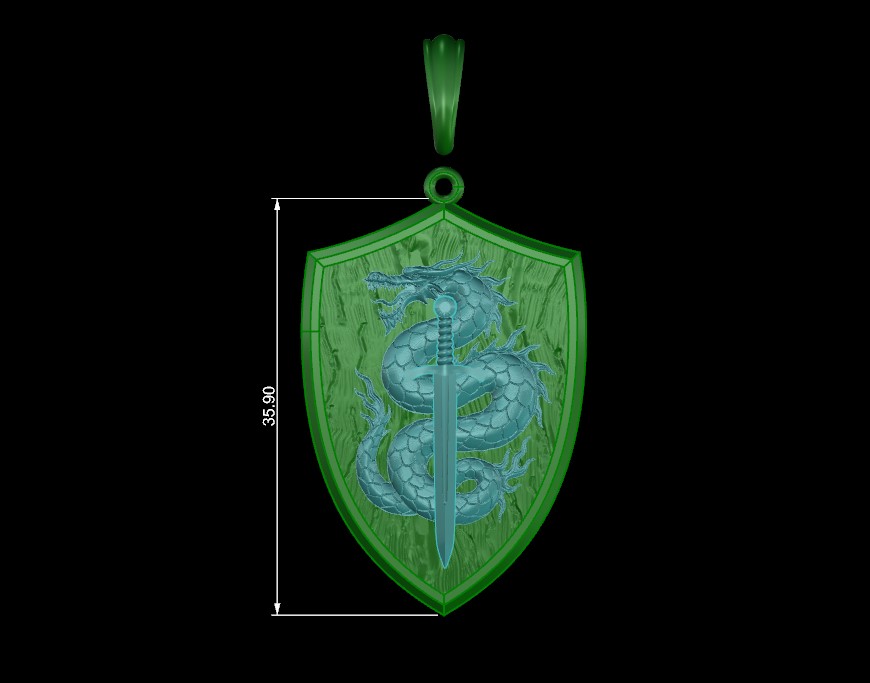

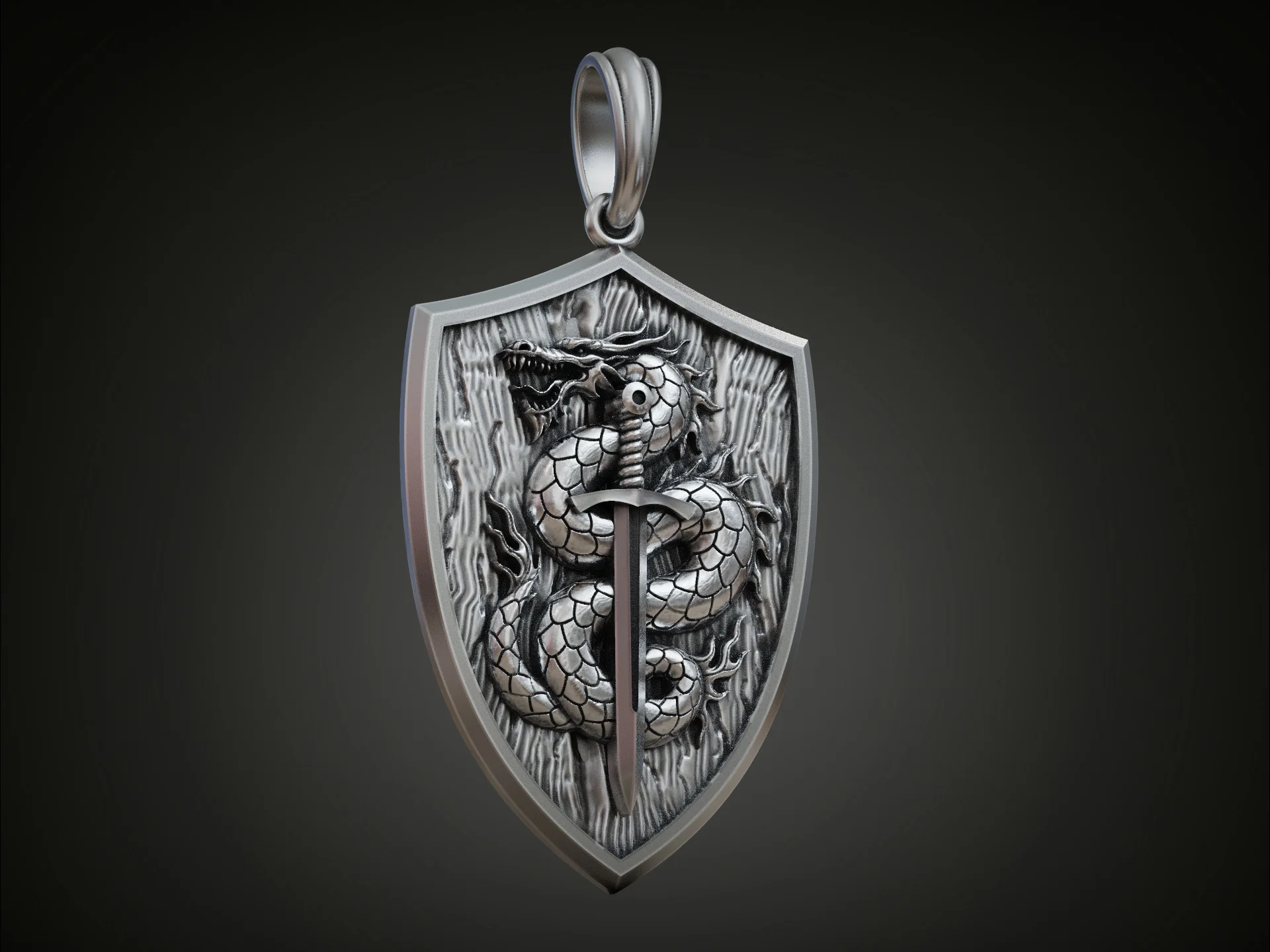

A high-relief Eastern dragon coils defensively around a medieval sword on this detailed shield pendant. The primary relief element, featuring the dragon and sword, sits atop a separate shield backplate, a construction that simplifies two-tone metal finishing. The shield itself measures 35.90 mm in height and has a subtle woodgrain texture across its surface, contained by a clean, beveled perimeter. This background texture creates a distinct contrast with the polished scales and dynamic posture of the mythological creature.

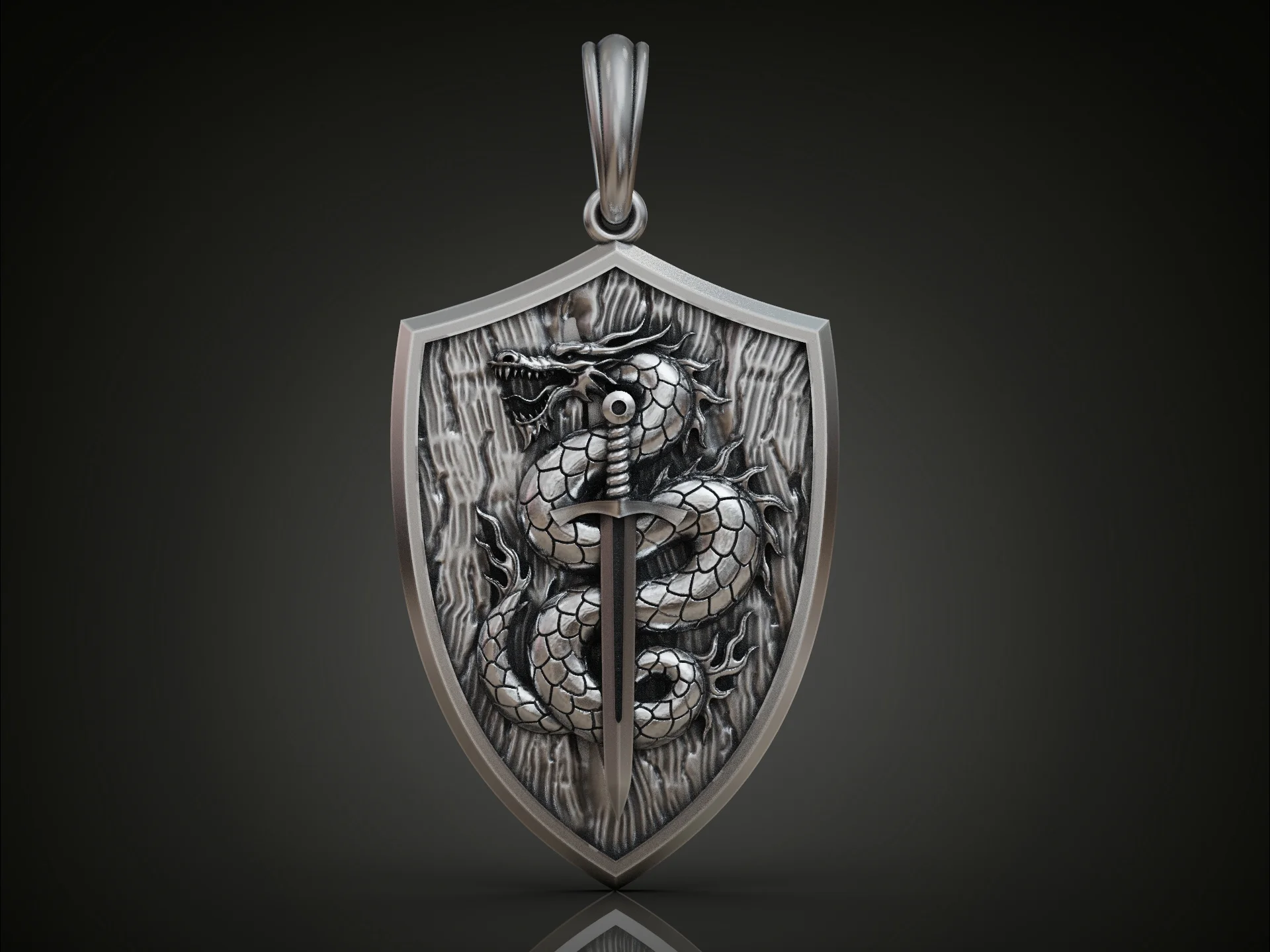

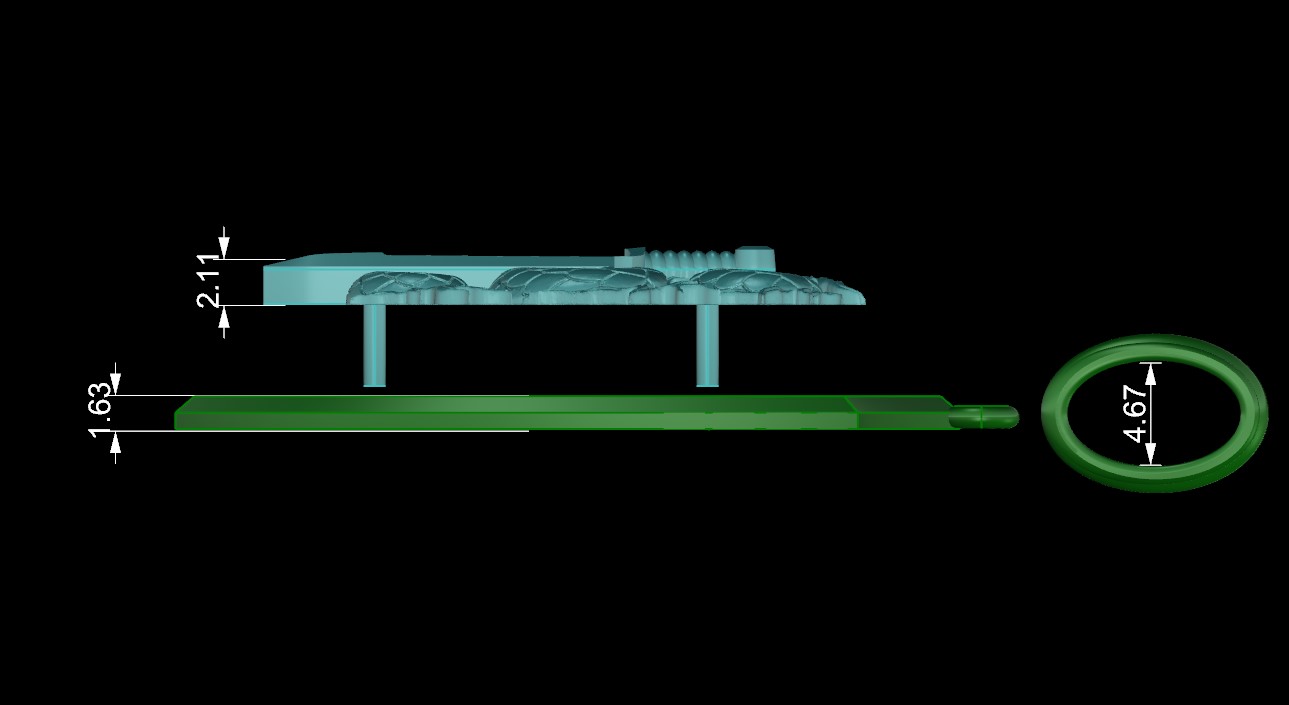

Measuring 2.11 mm in depth, the dragon relief possesses significant volume, allowing for deep recesses that will capture an antique or oxidized finish beautifully. The backplate has a consistent thickness of 1.63 mm, providing structural integrity without adding excessive weight. This 3D print model is engineered with production in mind, with a high-density mesh of over 1.25 million triangles ensuring every scale, horn, and element of the sword's hilt is captured with precision. This density eliminates faceting on curved surfaces for a superior casting pattern.
The simple, grooved bail has an inner clearance of 4.67mm, accommodating a variety of common chain sizes. The jewelry CAD file is ideal for creators looking to produce fantasy-themed or gothic-style pieces. The design's separation makes it a versatile file for generating variations in metal combinations, from sterling silver and bronze to 14K gold accents. The final output is a slicer-ready, manifold mesh suitable for creating master patterns with exceptional detail using SLA, DLP, or wax printing methods.
No gems specified.
Pendant Height (without bail): 35.90 mm Approximate Width: 24.5 mm Shield Thickness: 1.63 mm Relief Depth: 2.11 mm Bail Inner Clearance: 4.67 mm
Not applicable

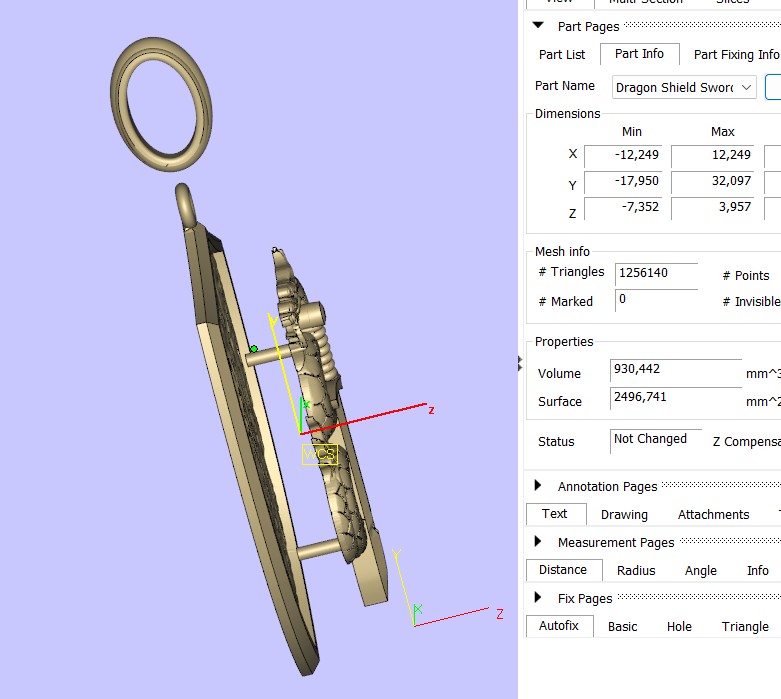

Based on a volume of 930.442 mm³: - Gold 585: 12.7 g - Gold 750: 14.7 g - Silver 925: 9.6 g - Stainless Steel: 7.4 g - Bronze: 8.2 g

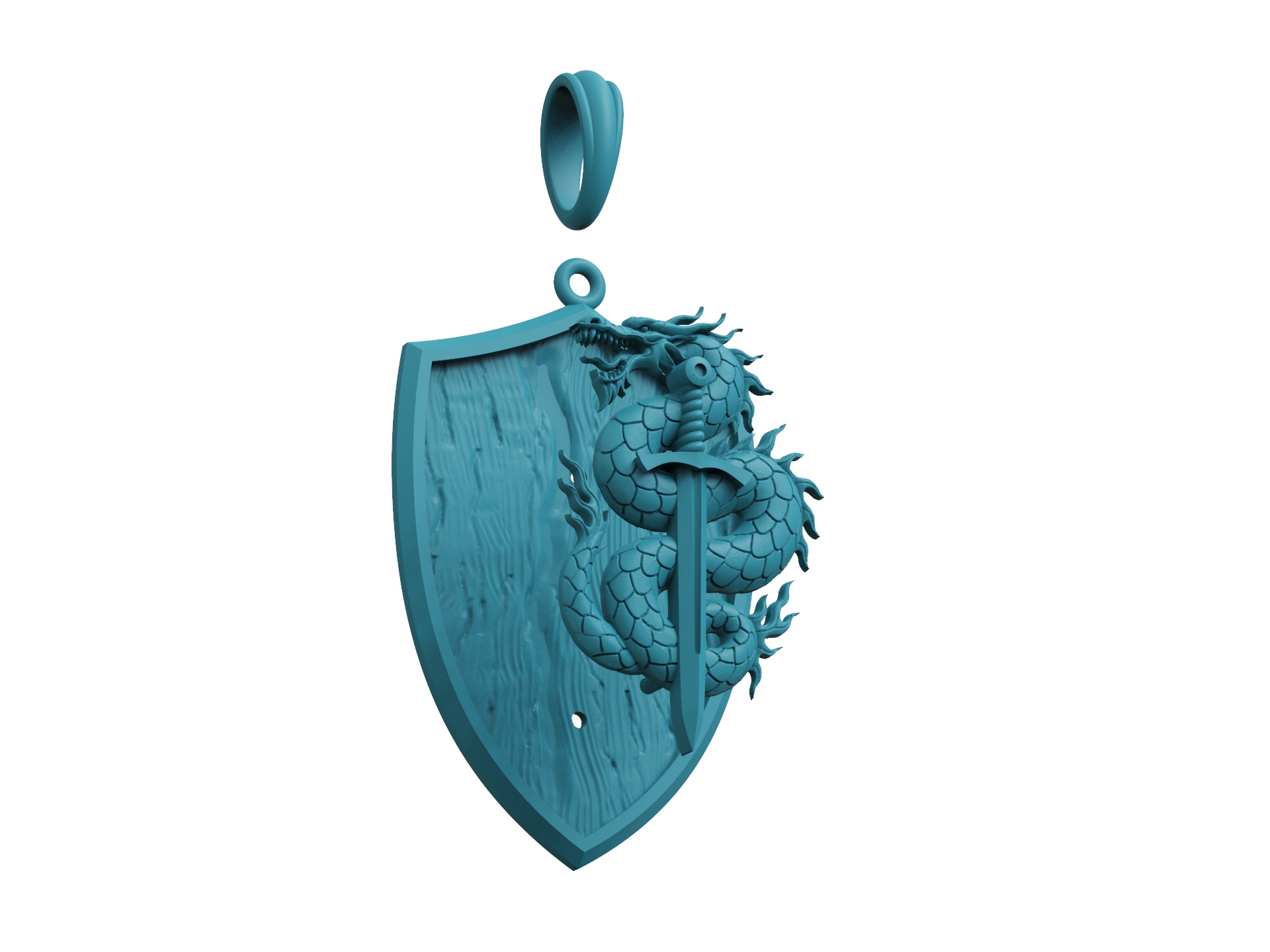

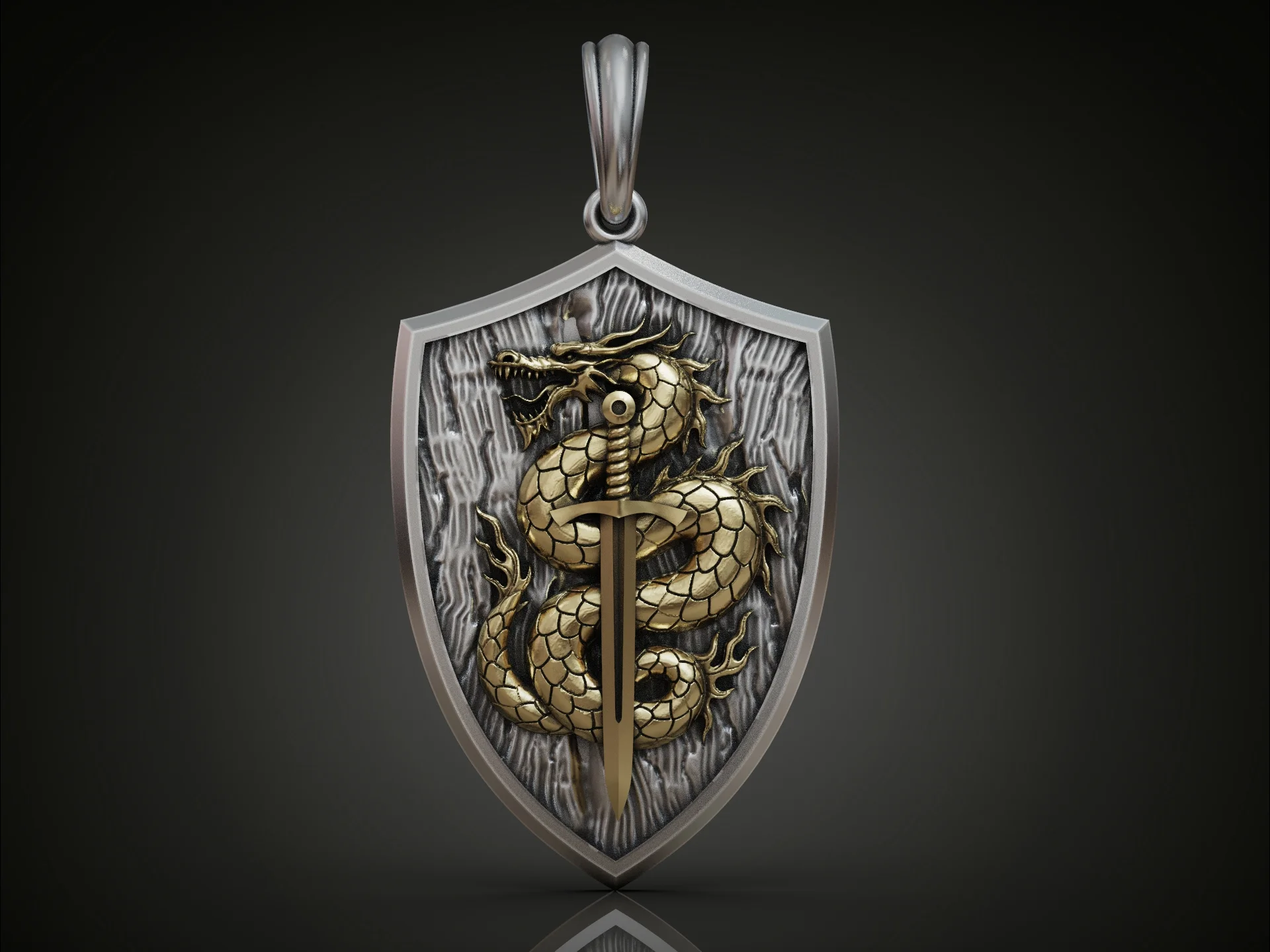

Q: Is this pendant a single solid piece or multiple parts? A: This model is designed in two main parts: the dragon/sword relief and the shield backplate. This allows for easier two-tone finishing and polishing, as shown in the example render. The bail is also a separate piece for assembly.
Q: What is the maximum chain thickness that will fit through the bail? A: The bail features an inner clearance height of 4.67 mm. This will accommodate most standard chains, but it is recommended to use a chain with end caps smaller than this dimension to ensure a good fit.
Q: How deep is the dragon relief from the shield surface? A: The dragon relief element has a depth of 2.11 mm. This provides substantial three-dimensional character and creates deep shadows, which is ideal when applying an antique or oxidized finish.
