Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: AURIVIA3D
Price: $15.00 USD

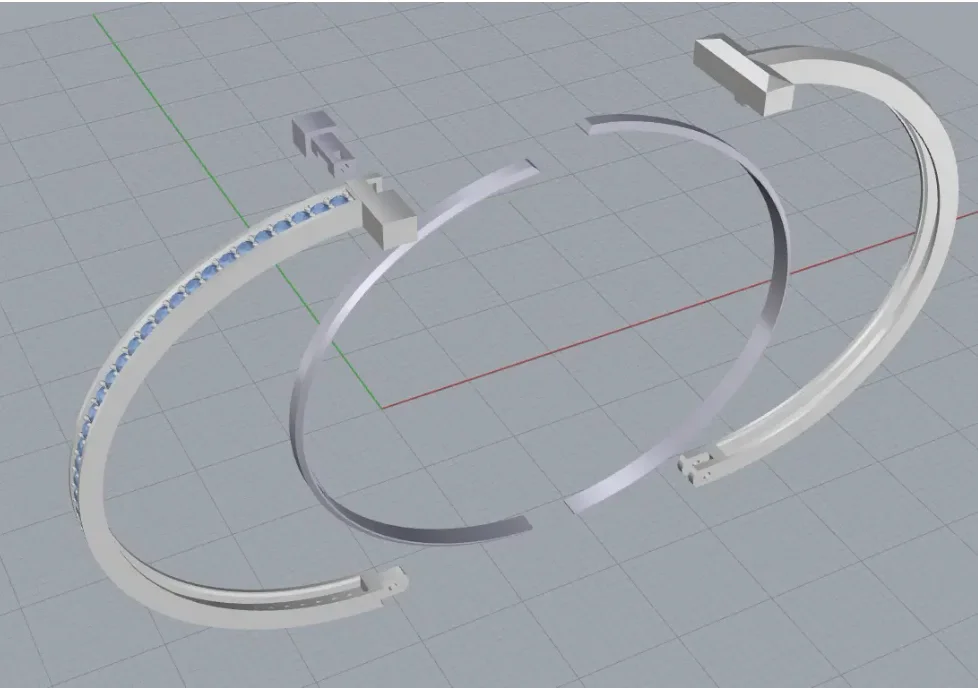

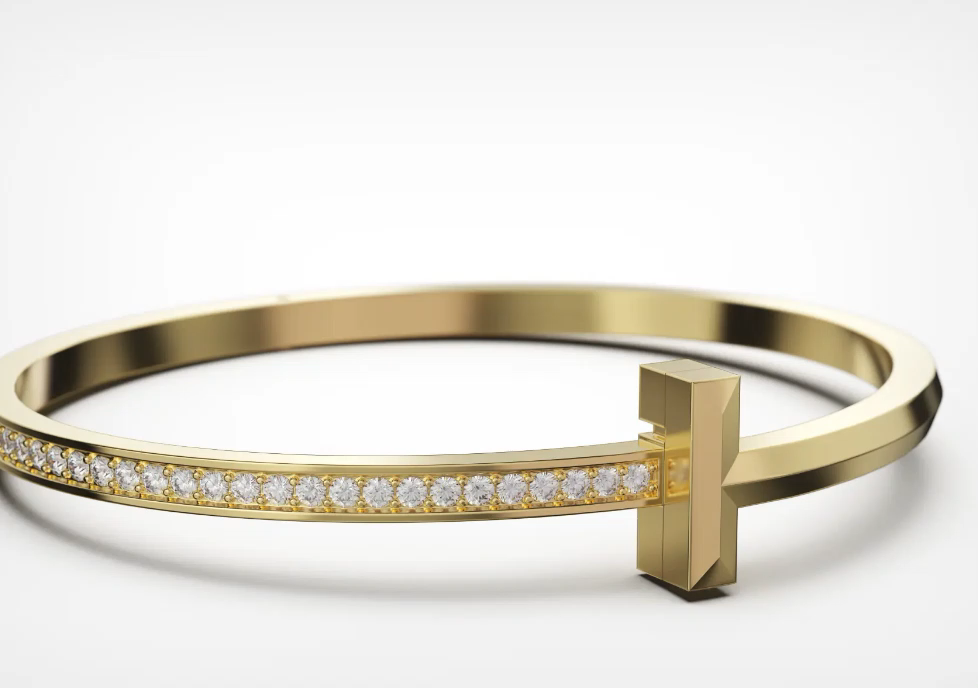

This design is defined by its T-shaped construction, featuring a long, linear bar terminating in a perpendicular head piece. The main body of the bar is distinguished by a continuous channel setting that holds a single row of round-cut stones, secured between two straight gallery rails. The overall dimensions are specified as 9.66mm for the head's height and 2.90mm for the width of both the head and the main bar. This CAD asset provides the digital master needed to produce the precise channel walls and stone seats via a lost-wax casting workflow after generating an additively manufactured pattern.
- Head Height: 9.66 mm - Bar Width: 2.90 mm - Head Piece Width: 2.90 mm

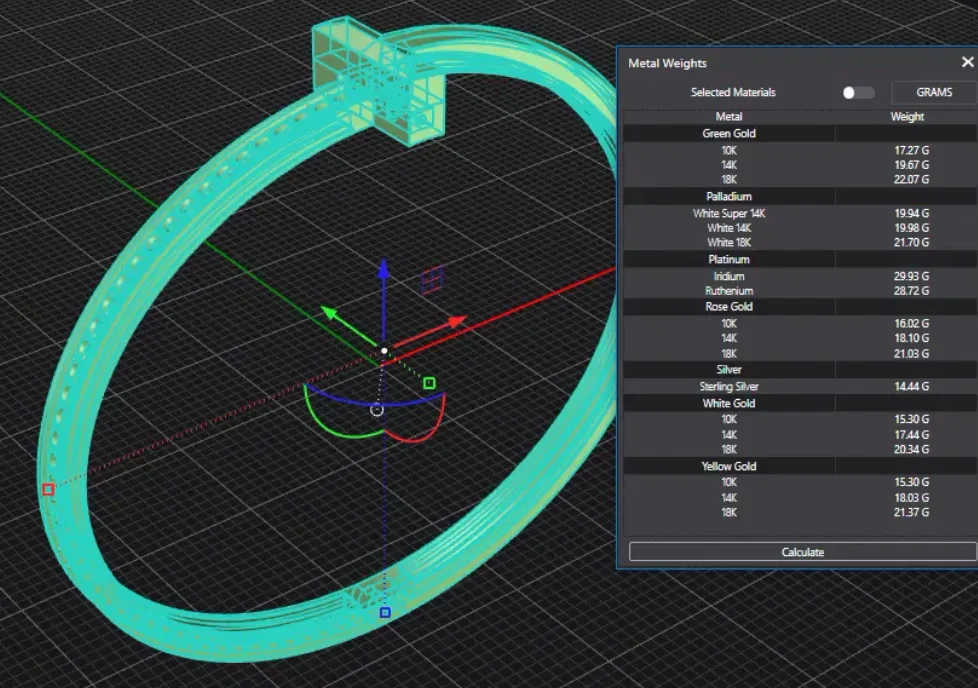

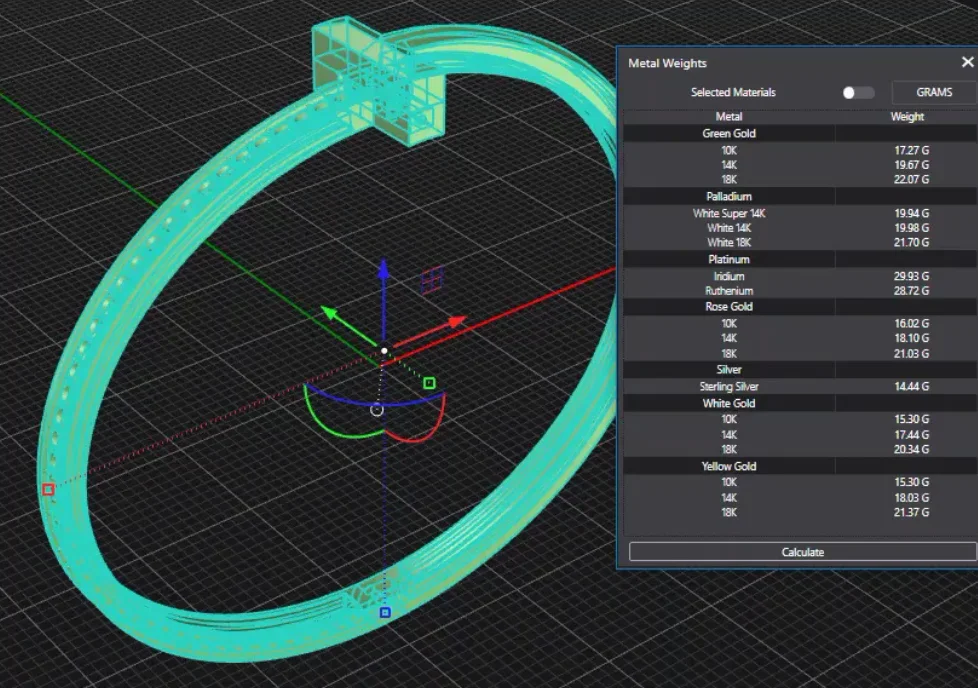

- Estimated Weight: 18.0 g in 14K gold
Q: What is the width of the main bar where the stones are set? A: The main bar has a consistent width of 2.90 mm, as indicated in the technical drawing.

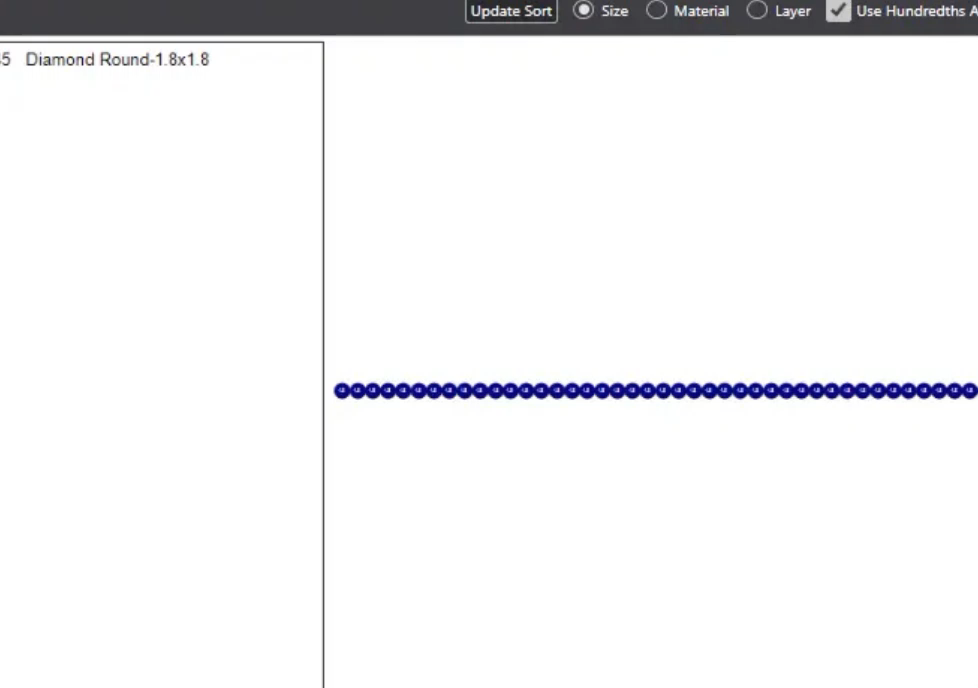

Q: What type of setting is used for the stones in this design? A: The model features a channel setting, with round stones secured in a row between two parallel metal walls.
Q: What is the height of the T-shaped head at the end of the bar? A: The T-shaped head component of the tie clip measures 9.66 mm in height.
