Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: JM
Price: $22.50 USD

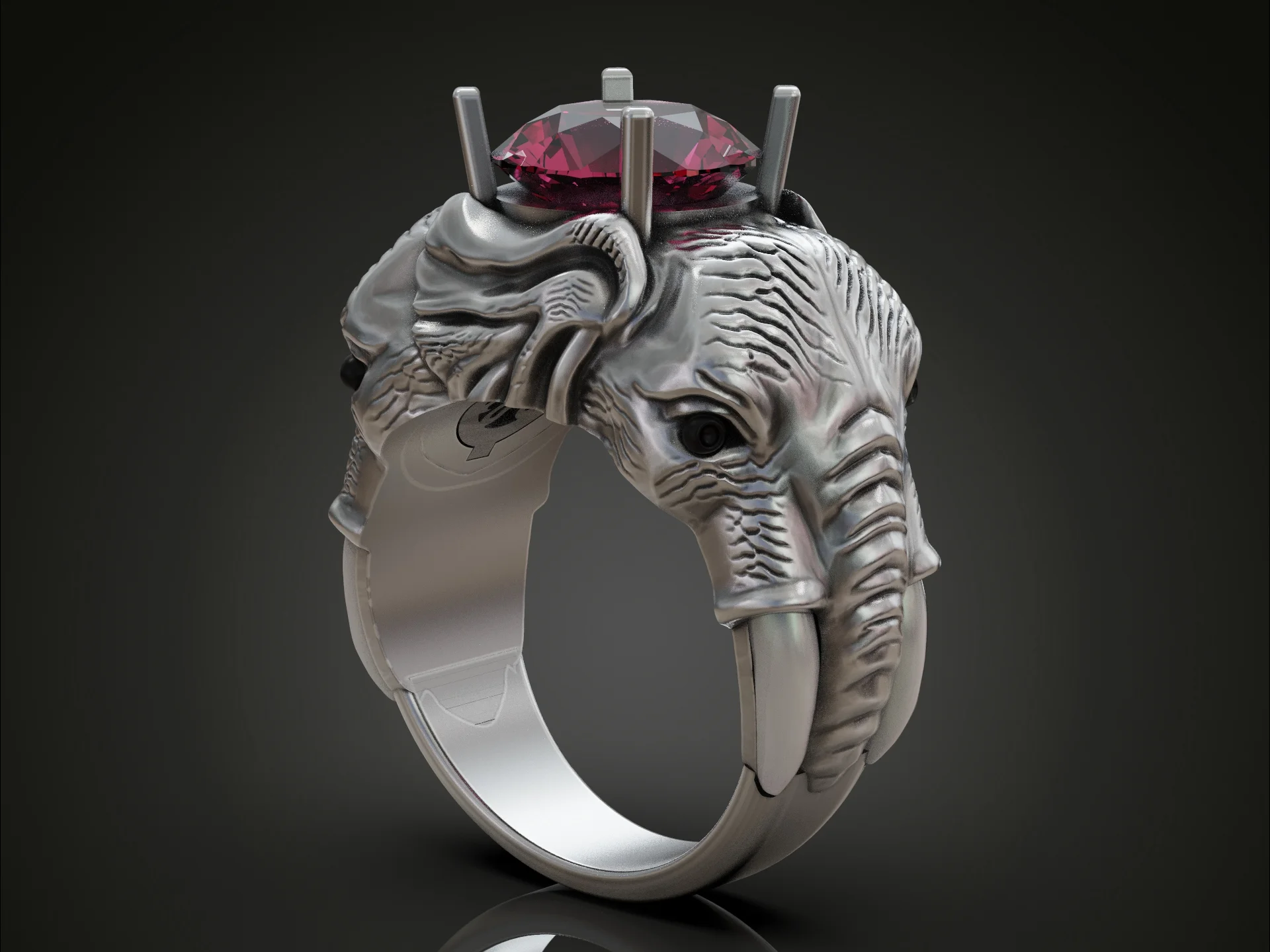

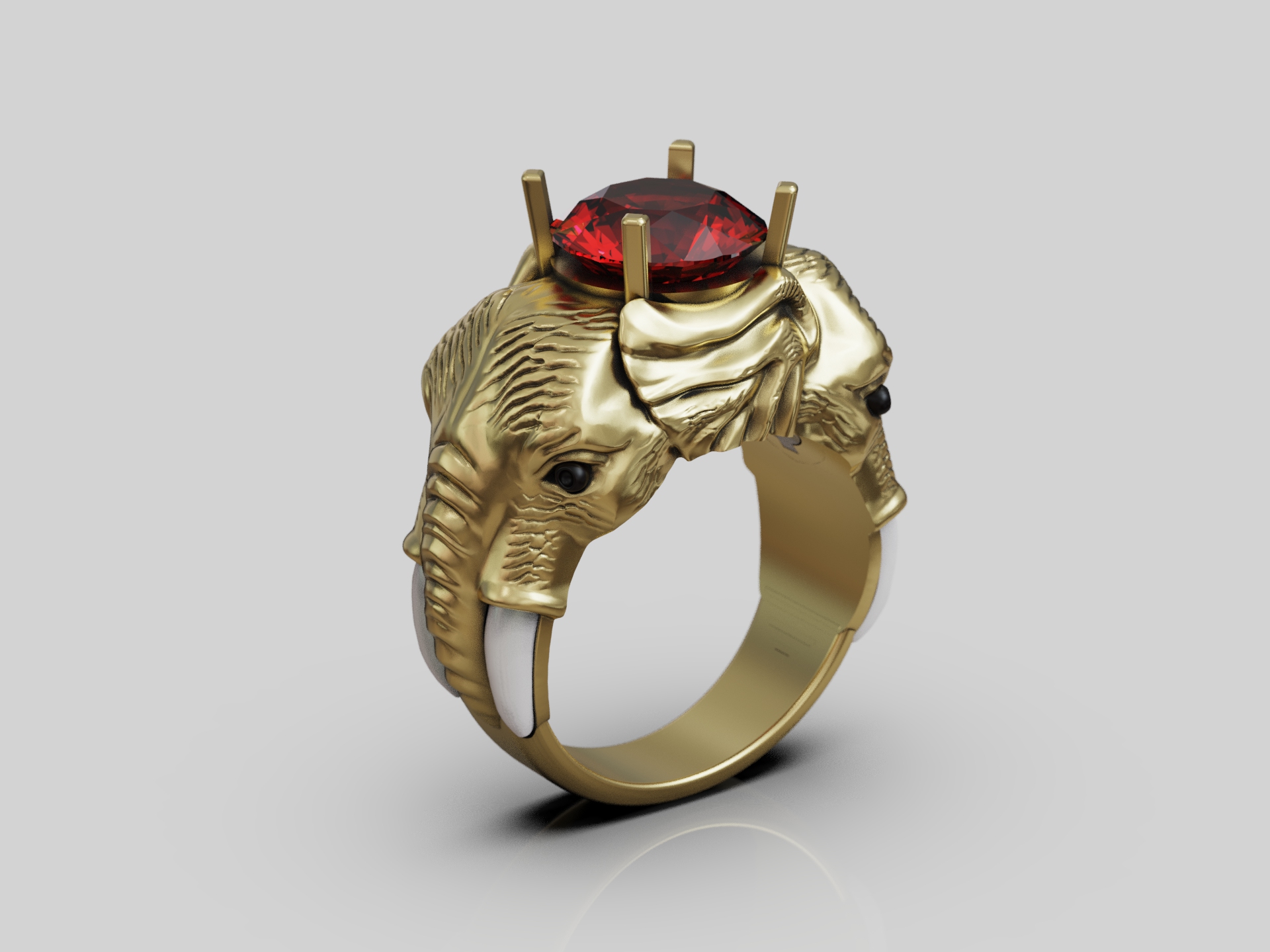

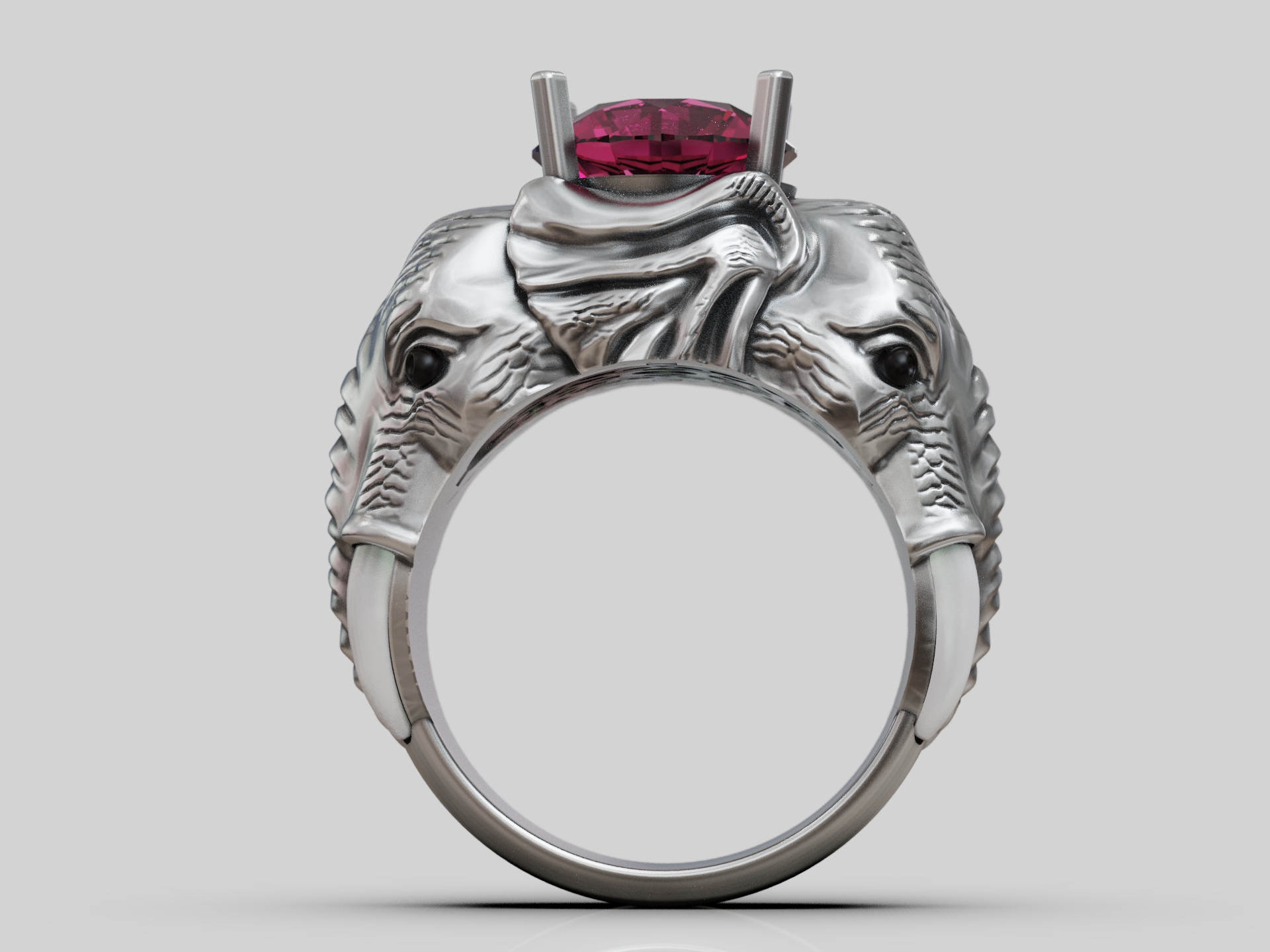

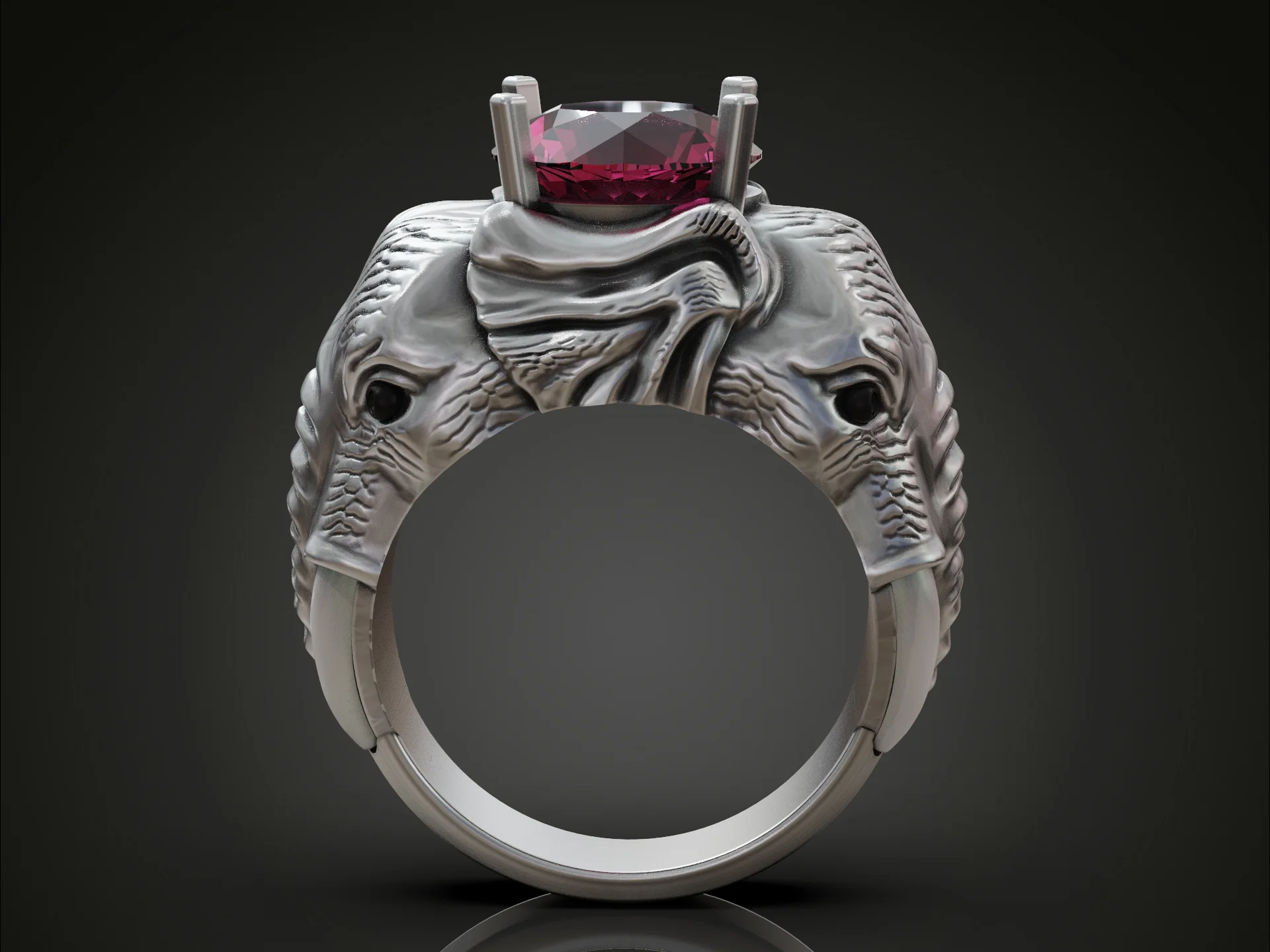

This design file is for a sculptural statement ring featuring a highly detailed elephant head. The main structure forms the ring's shoulders and shank, depicting the elephant's head with wrinkled skin texturing. A prominent feature is the large, crown-like four-prong setting on top, engineered to hold a round center stone with an inner gallery diameter of 9.88mm. The design is a multi-part assembly, with separate components for the two tusks and the perforated gallery plate, facilitating casting in different materials and easier finishing. The small eyes are designed for flush or bezel-set accent stones. The base of the shank has a width of 5.42mm and a thickness of 3.43mm, providing substantial mass. The overall height and width at the top both measure 14.52mm, creating a bold, symmetrical silhouette from the front and side profiles.
Stone 1 (Center): - Quantity: 1 - Cut: Round Brilliant - Size: Fits a setting with an inner diameter of 9.88 mm (stone likely 9.5mm - 9.8mm) - Setting: Four-prong crown setting
Stone 2 (Eyes): - Quantity: 2 (two) - Cut: Round (small accent) - Size: Not specified, scaled for eye sockets - Setting: Bezel / Flush setting

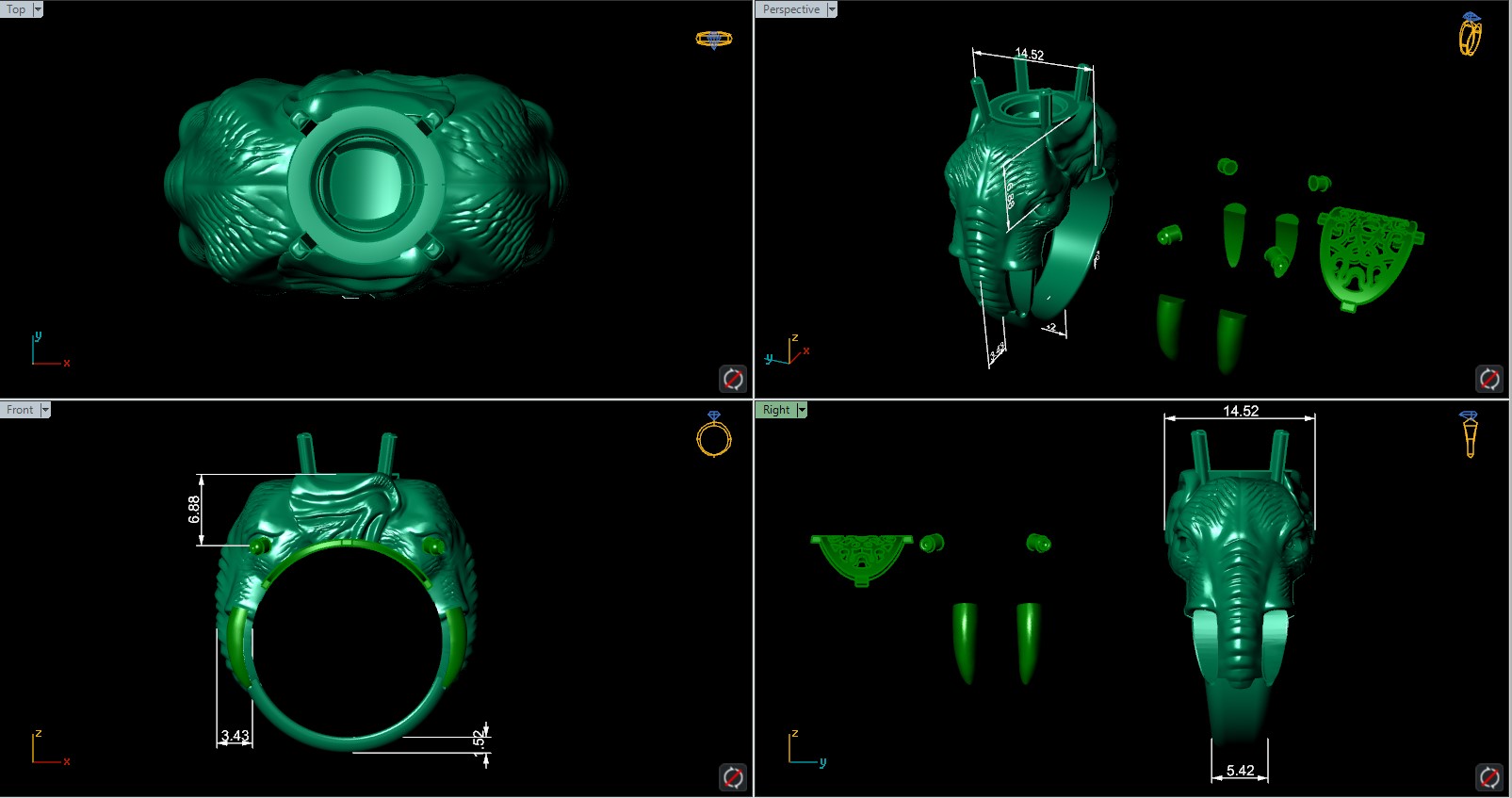

- Overall Height: 14.52 mm - Top Width (across prongs): 14.52 mm - Shank Width (at base): 5.42 mm - Shank Thickness (at base): 3.43 mm - Center Stone Setting Inner Diameter: 9.88 mm

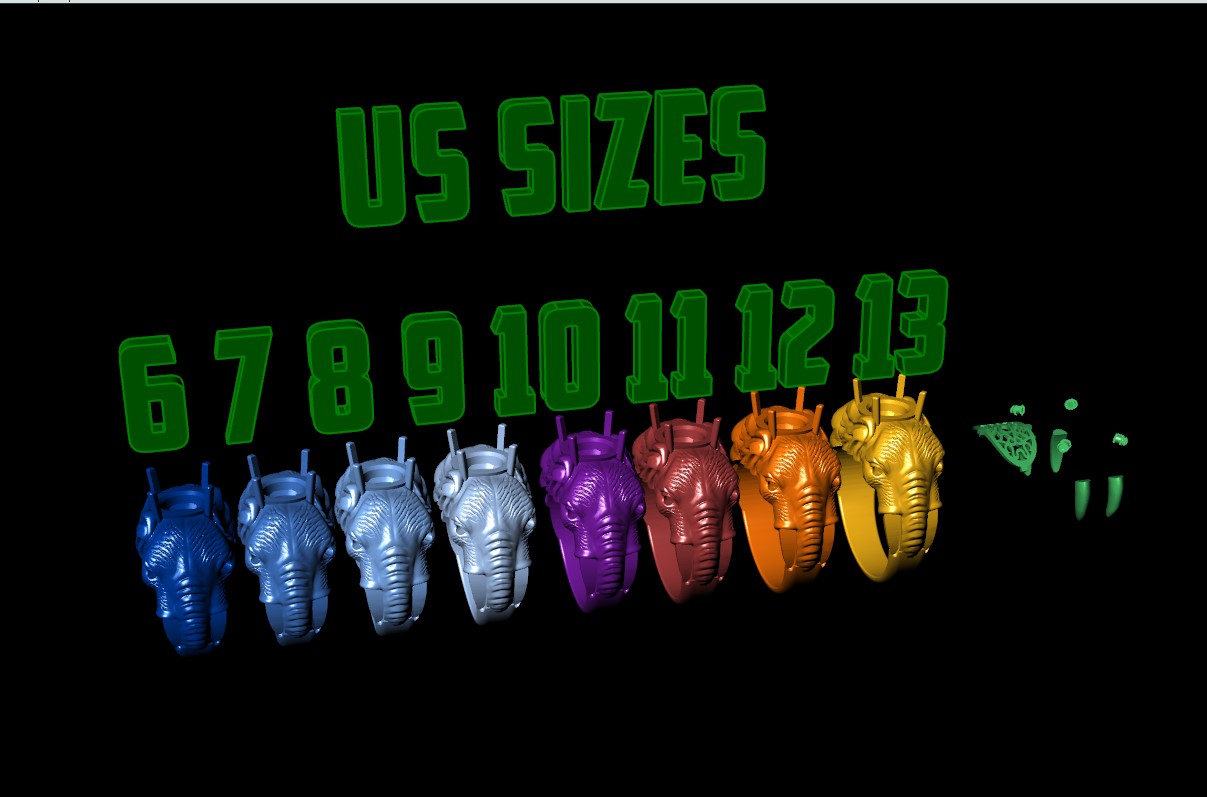

- US: 6, 7, 8, 9, 10, 11, 12, 13 - UK: M, O, Q, S, U, W, Y, Z1 - German: 51.8, 54.7, 57.2, 59.7, 62.5, 65, 67.5, 70.1 - Inner Diameter: 16.5mm, 17.4mm, 18.2mm, 19mm, 19.9mm, 20.7mm, 21.5mm, 22.3mm

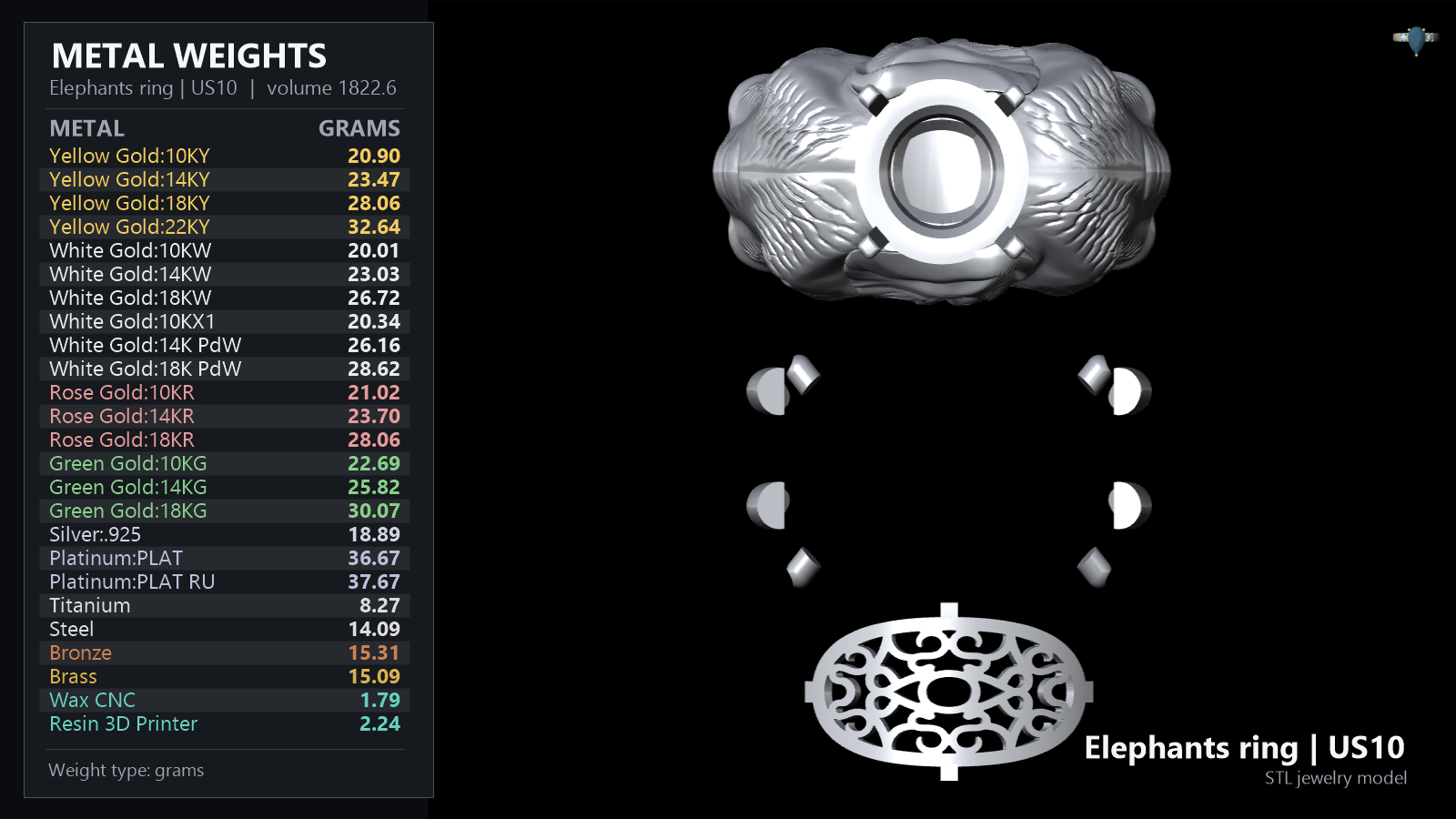

Based on US Size 10 (Volume: 1822.6 mm³). Weights will vary with size. - Gold 585 (14K): 23.5 g - Gold 750 (18K): 28.1 g - Silver 925: 18.9 g - Bronze: 15.3 g - Steel: 14.1 g
Production & Compatibility The model is supplied as a multi-part kit (main body, two tusks, gallery) optimized for professional jewelry manufacturing. This allows for separate casting, potentially using different metals for the tusks and body for a two-tone effect. Lost-wax casting from a high-resolution SLA/DLP printed resin pattern (e.g., from an Anycubic or Formlabs printer) is recommended to preserve the fine skin-fold details. Post-casting, the components require professional bench assembly and soldering. The separate gallery improves stone setting and cleaning.
Q: Can the crown setting accommodate a stone larger than 9.88mm? A: Not without modification. The four-prong setting and gallery are specifically designed for a round stone fitting within a 9.88mm inner diameter. Scaling the model would be required to fit a larger stone.
Q: Are the tusks separate pieces? How are they attached? A: Yes, the two tusks are provided as separate components from the main elephant head ring. They are designed to be cast individually and then attached by a professional jeweler, typically through soldering or laser welding into designated sockets on the ring body.
Q: What size are the stones for the elephant's eyes? A: The specific dimensions for the two eye stones are not detailed, but they are small round accents intended to be flush-set or bezel-set. A jeweler would typically select a small melee stone (e.g., 1.0mm-1.5mm) that best fits the pre-drilled sockets.
