Round Bezel Library - 132 Precision CAD Bezels for Jewelry

Description

Professional Round Bezel Library

Improve your jewelry design workflow with this professional collection of 132 precision-modeled round bezels, developed specifically for Jewelry CAD.Rather than remodeling the same settings for every new project, simply select the required diameter, choose the preferred bezel profile and integrate it directly into your design.This collection has been created with real jewelry manufacturing workflows in mind, providing consistent construction parameters and production-oriented geometry.

What's Included

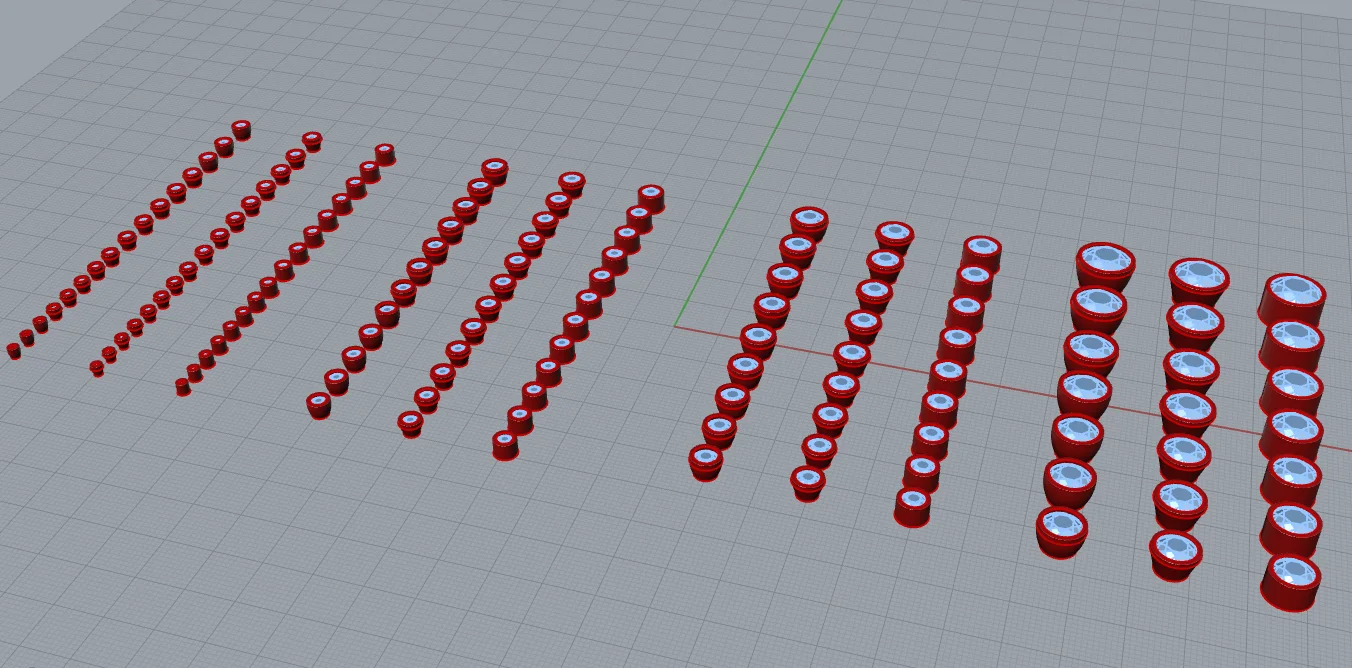

132 individual round bezels 3 bezel profiles Straight Domed Tapered Real-world dimensions Clean NURBS geometry Closed polysurfaces Organized library Production-oriented construction Bezel Sizes Included The library includes the following diameters:

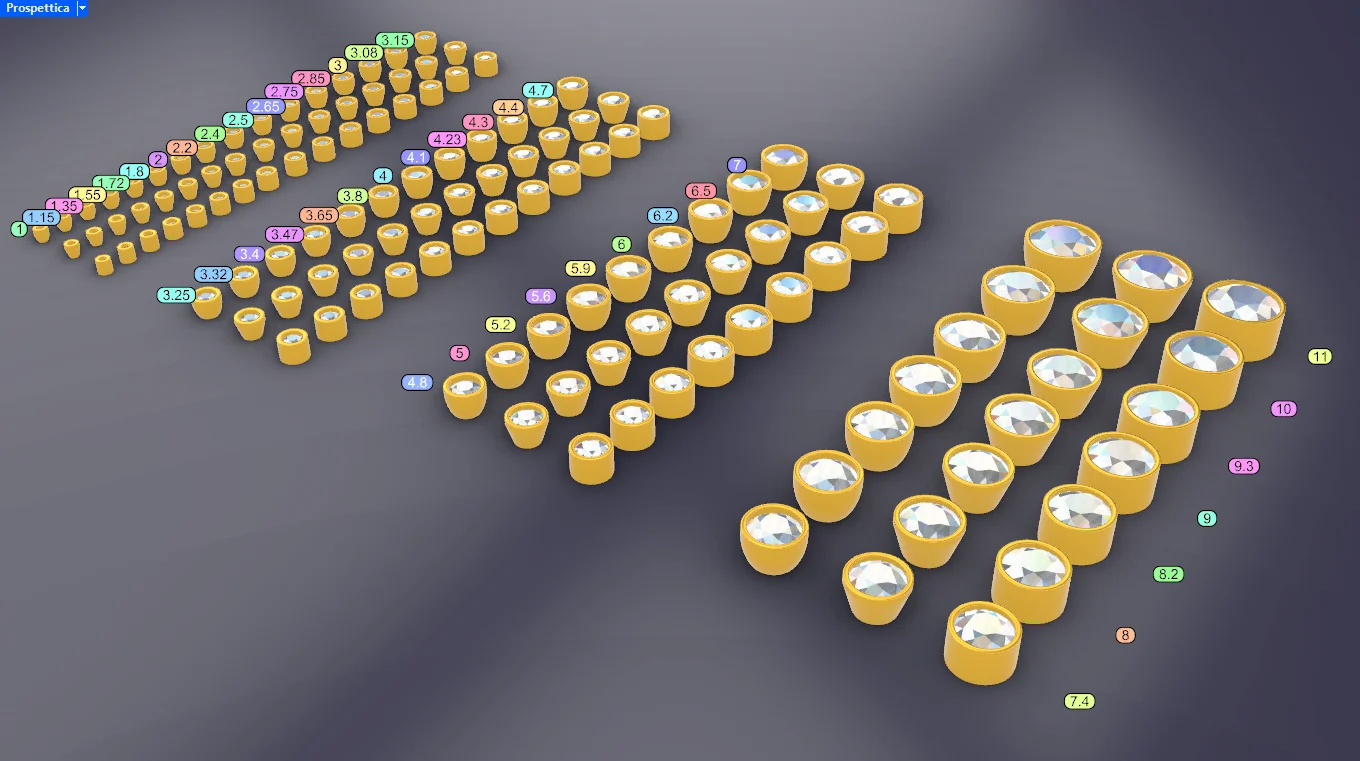

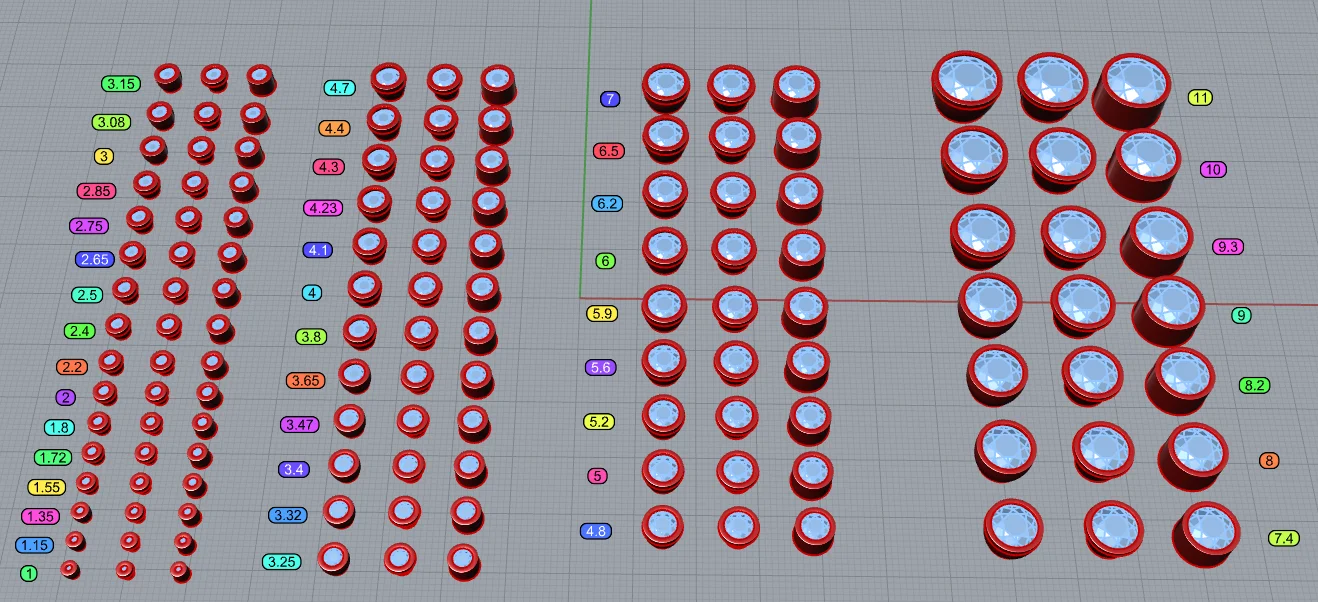

1.00 • 1.15 • 1.35 • 1.56 • 1.72 • 1.80 • 2.00 • 2.20 • 2.40 • 2.50 • 2.65 • 2.75 • 2.85 • 3.00 • 3.08 • 3.16 • 3.24 • 3.32 • 3.40 • 3.47 • 3.65 • 3.80 • 4.00 • 4.10 • 4.23 • 4.30 • 4.40 • 4.70 • 4.80 • 5.00 • 5.20 • 5.60 • 5.90 • 6.00 • 6.20 • 6.50 • 7.00 • 7.40 • 8.00 • 8.20 • 9.00 • 9.30 • 10.00 • 11.00 mm

Each diameter is available in three different profiles:

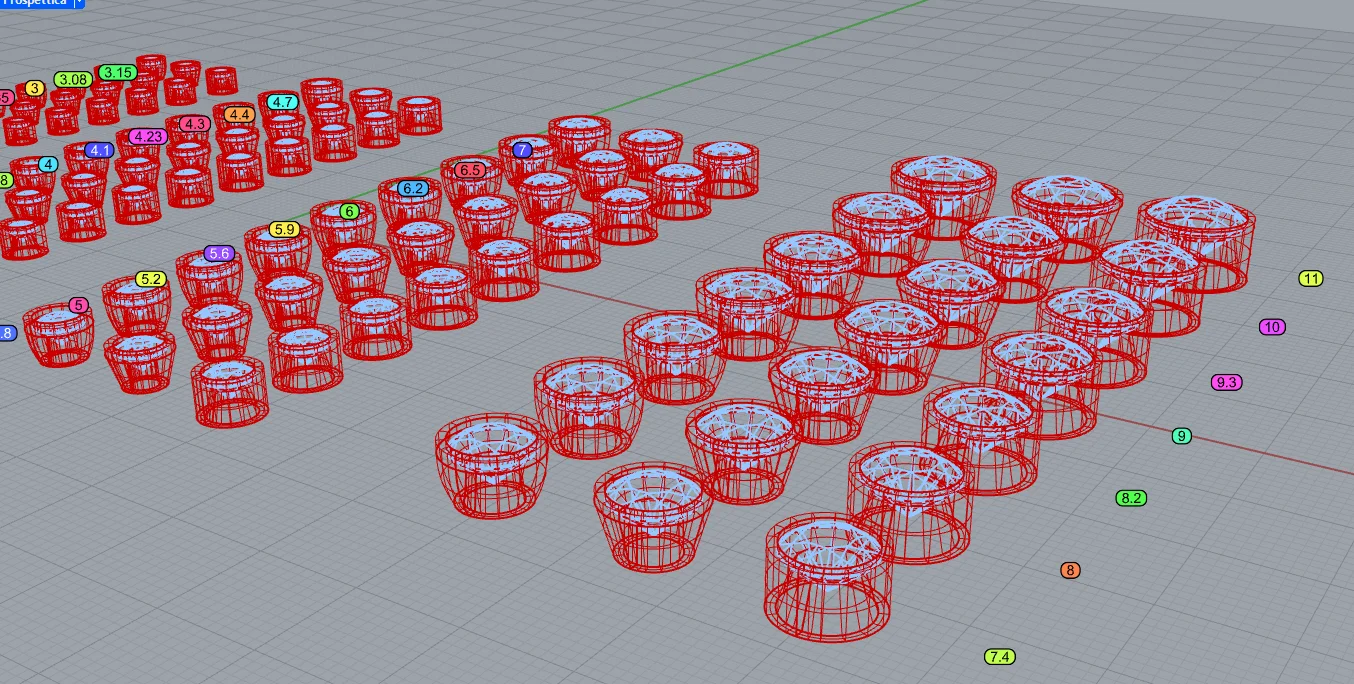

Straight Domed Tapered Design Specifications Every bezel in this collection has been designed using identical construction principles to ensure consistency across the entire library.

Construction Parameters

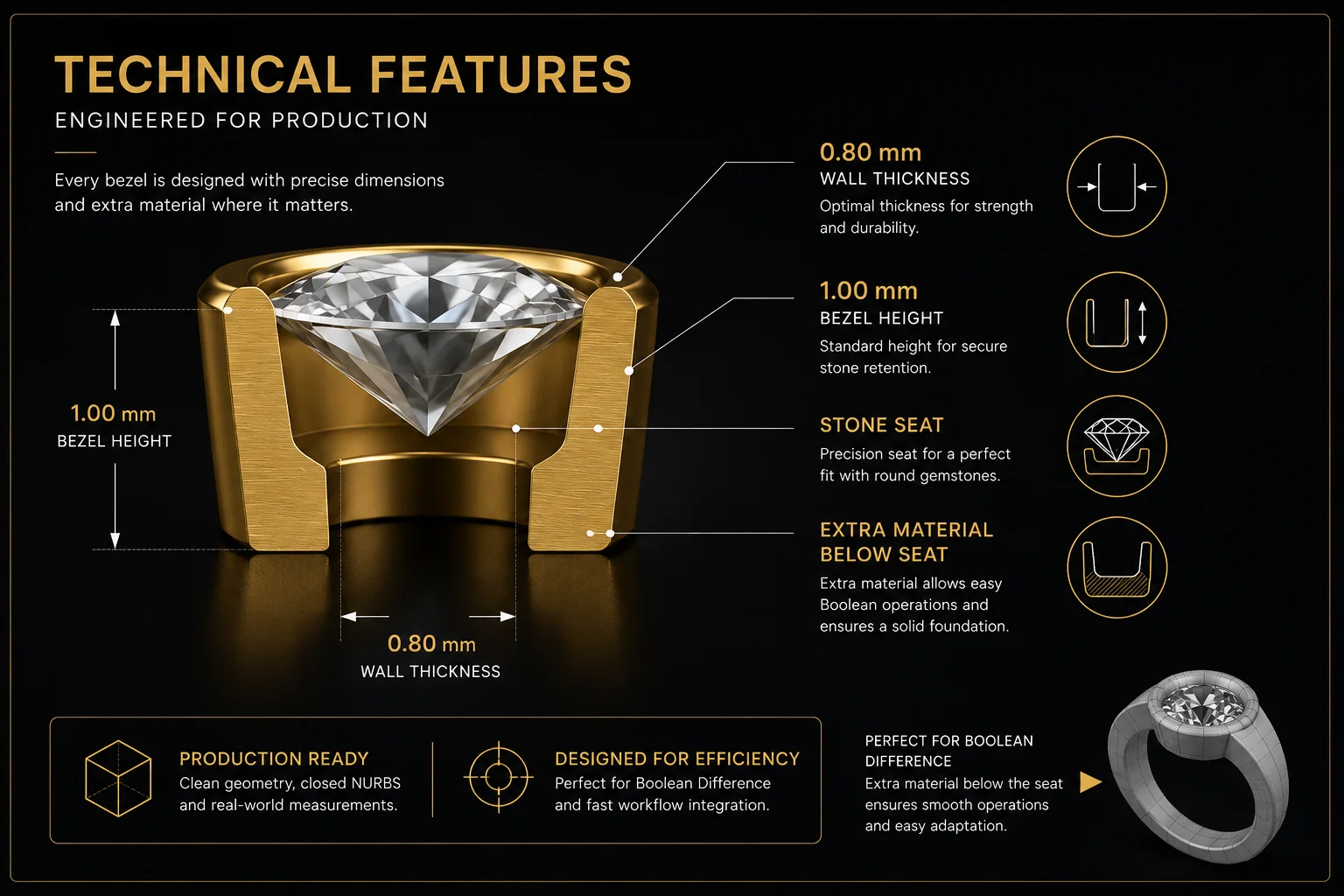

Wall Thickness: 0.80 mm Bezel Height: 1.00 mm Stone seat modeled with material thickness Stone seat can easily be lowered without rebuilding the bezel Uniform proportions throughout the collection Unlike generic bezel libraries, additional material has intentionally been left beneath the stone seat. This extra depth allows the bezel to be easily adapted to different ring shanks, pendants or custom jewelry components using Boolean Difference operations while maintaining sufficient material for clean and reliable intersections. This approach offers maximum flexibility while significantly reducing modeling time.

Fully Compatible with the Round Gem Library

Every bezel has been designed to match the corresponding gemstone available in the Round Gem Library. Simply:

Select the gemstone diameter Insert the matching bezel Continue designing No scaling. No rebuilding. No manual adjustments. Why This Library?

Most bezel libraries simply provide scaled models.This collection has been designed specifically for professional jewelry production.Every bezel follows the same construction philosophy:

Uniform wall thickness Consistent bezel height Properly modeled stone seat Additional material for Boolean operations Real-world dimensions Clean NURBS geometry Production-oriented proportions Rather than being simple geometric models, these bezels are practical production components designed to integrate quickly into professional CAD workflows.

Professional Workflow

This library allows jewelry designers to spend less time modeling repetitive components and more time creating new designs.

Typical workflow:

Choose the gemstone diameter. Select the preferred bezel profile. Insert the bezel into the design. Adapt it to the ring shank or jewelry component using Boolean Difference. Continue designing.

Perfect for:

Engagement Rings Wedding Rings Solitaire Rings Halo Rings Pendants Earrings Bracelets Custom Jewelry Production Jewelry Quality Standards

Every bezel provides:

Closed polysurface geometry Clean NURBS construction Uniform dimensions Consistent proportions Production-oriented design Easy Boolean integration Simple customization Professional CAD workflow compatibility File Formats Included

Rhino 8 (.3dm) STEP (.step) IGES (.igs) STL (.stl) OBJ (.obj)

Technical Specifications

Property Value Models 132 Profiles 3 Diameters 44 Geometry Closed NURBS / Brep Units Millimeters Scale Real World Wall Thickness 0.80 mm Bezel Height 1.00 mm Stone Seat Modeled with thickness Additional Material Below Seat Included Individual Models Yes

Created by a Professional Jewelry Designer

Developed by a professional Jewelry Designer with extensive experience in Jewelry CAD and manufacturing workflows.Every bezel has been designed to be practical, efficient and immediately usable in professional production environments.The objective of this library is simple: reduce repetitive CAD work while maintaining professional manufacturing standards.

Important

This product contains bezel models only.Gemstones shown in promotional images are for demonstration purposes and are not included.Matching gemstones are available separately in the Round Gem Library.
