Minimalist Orb Gemstone Cage Ring

Description

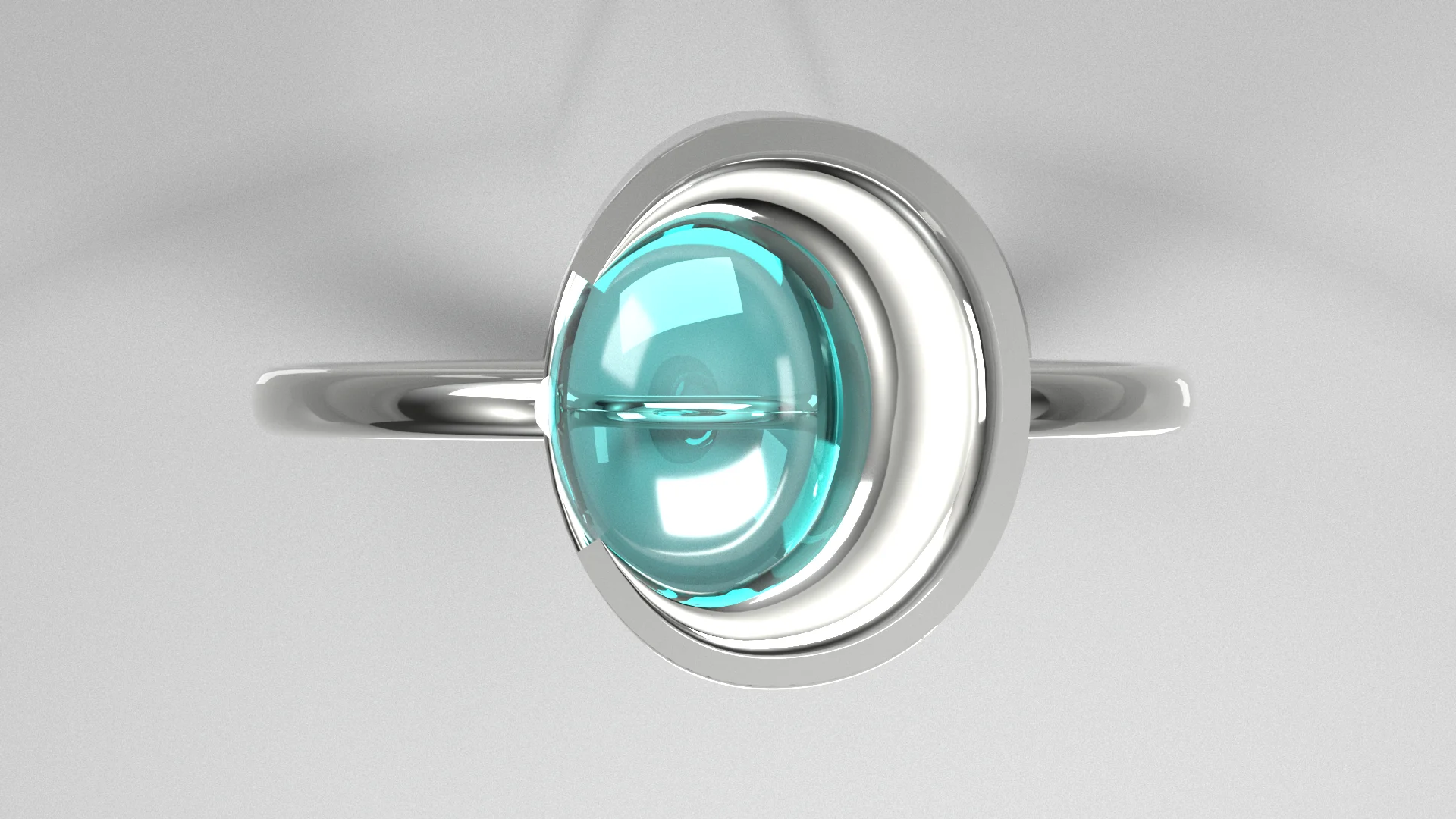

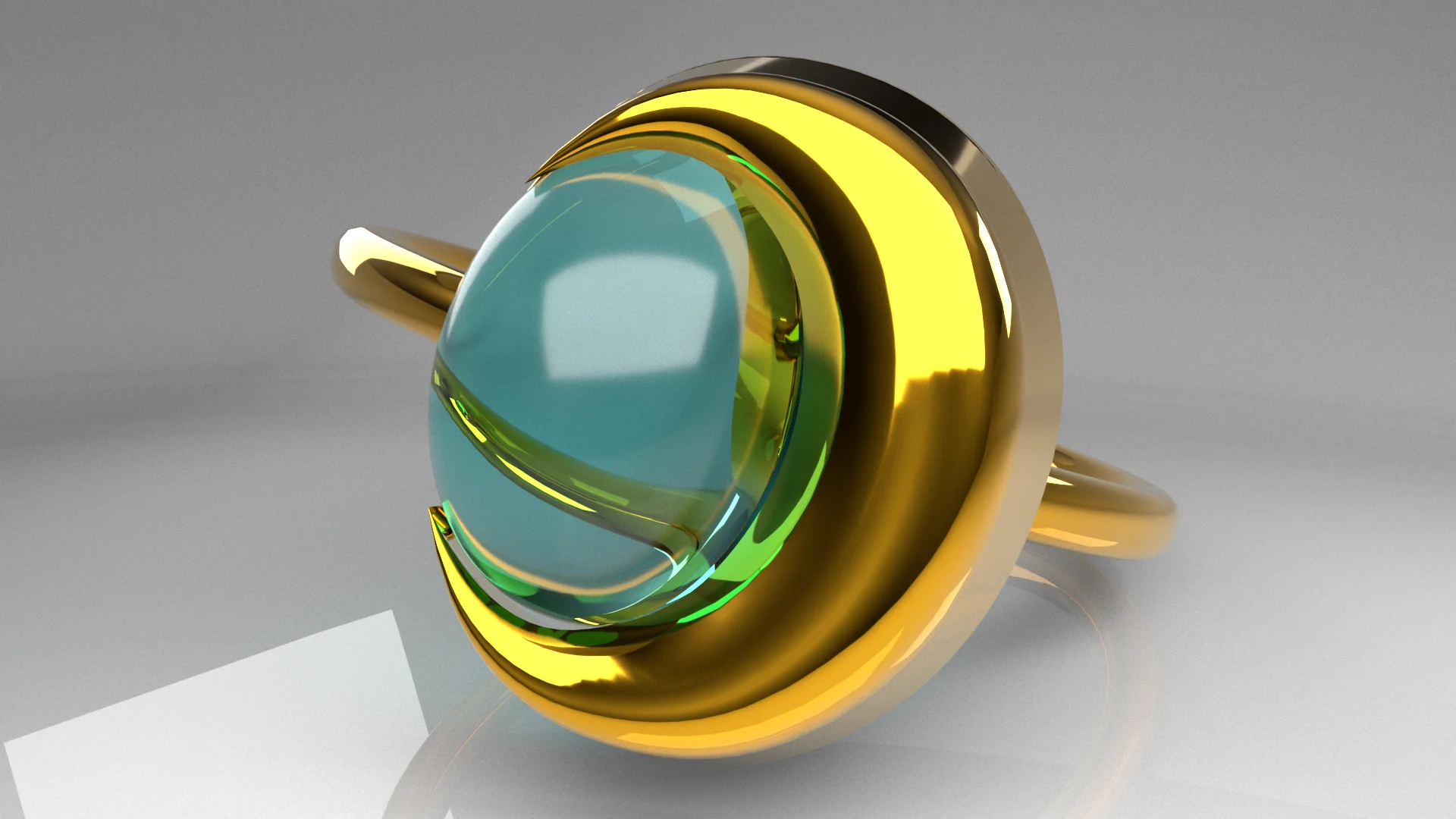

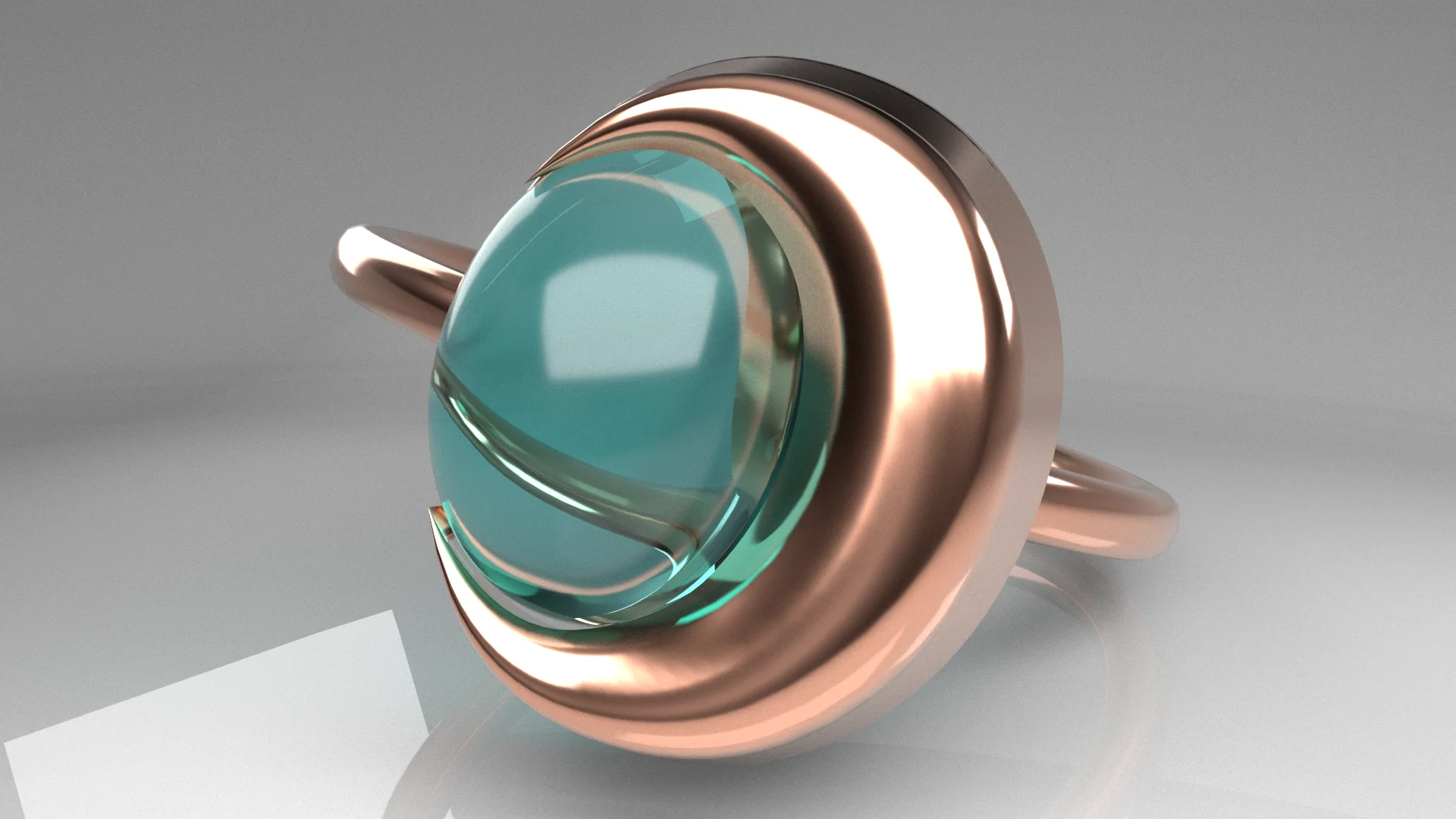

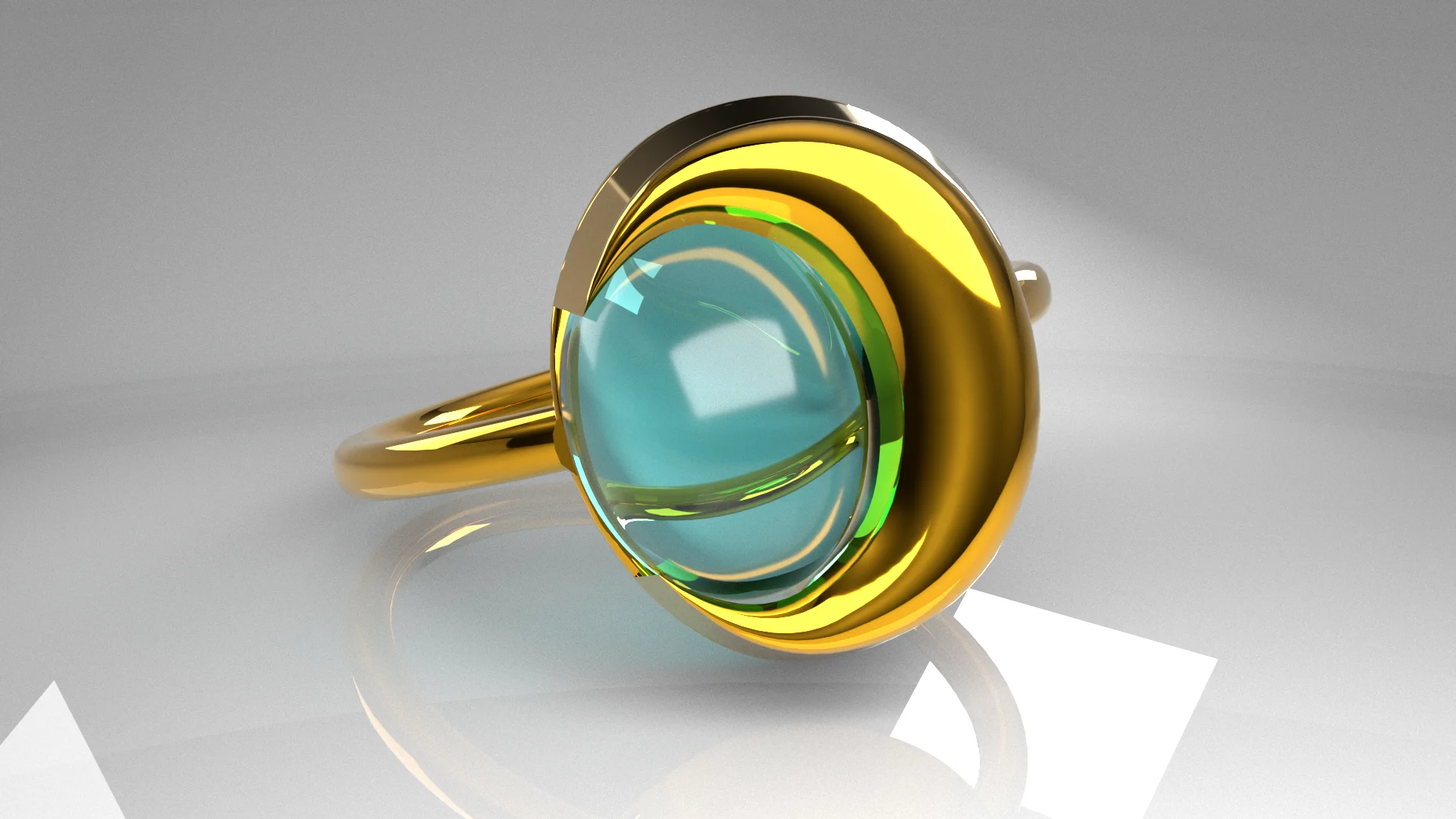

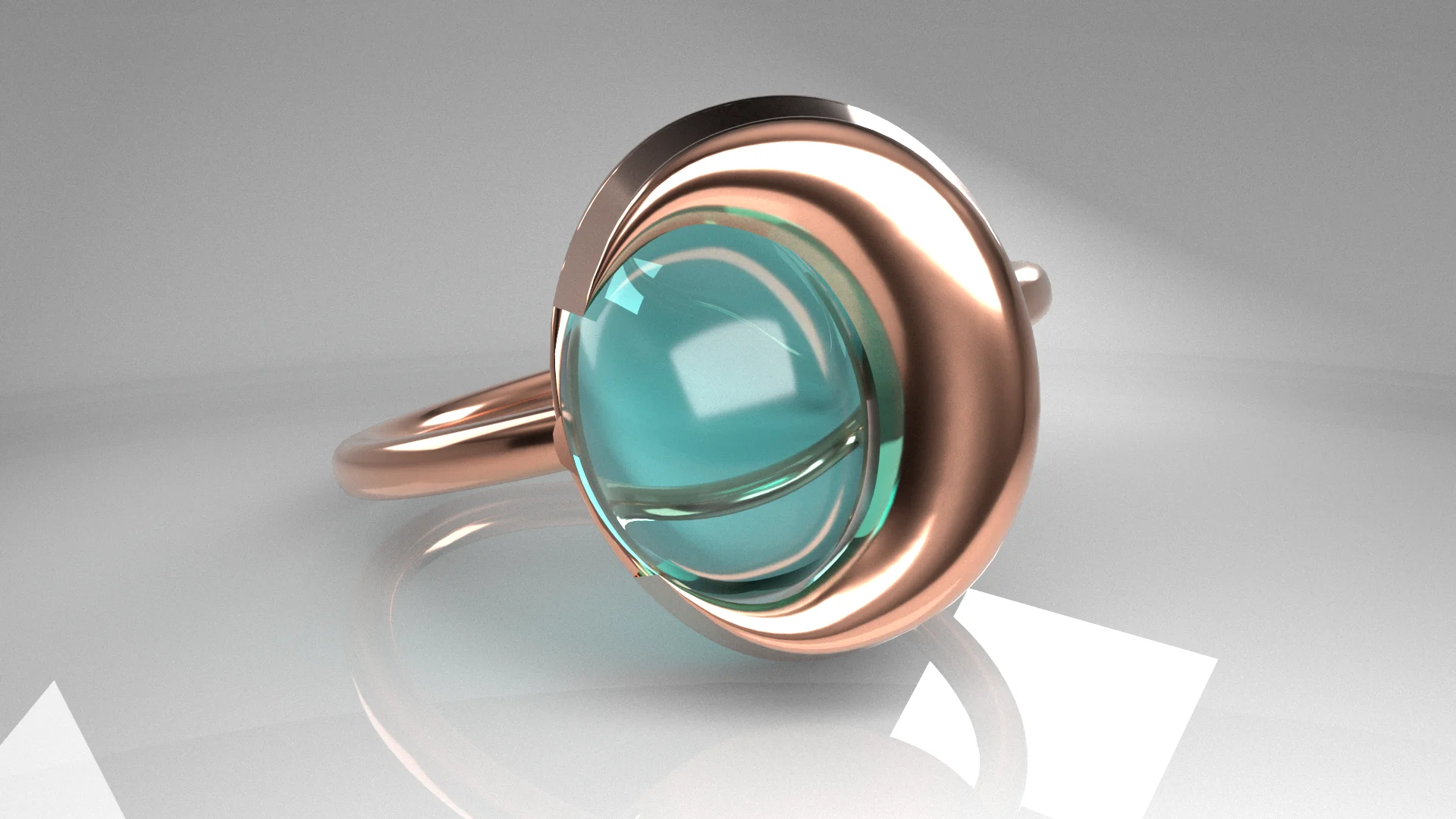

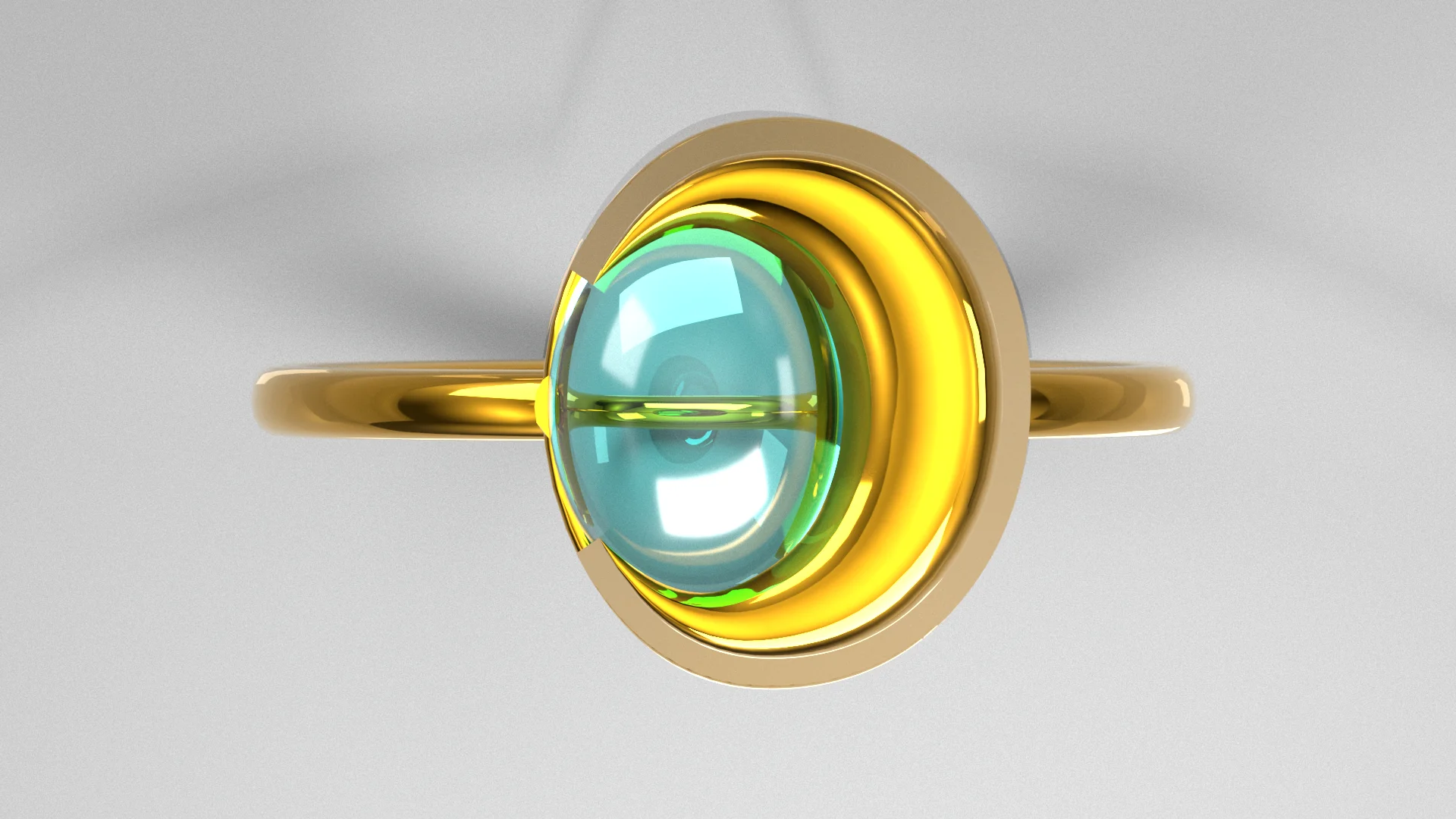

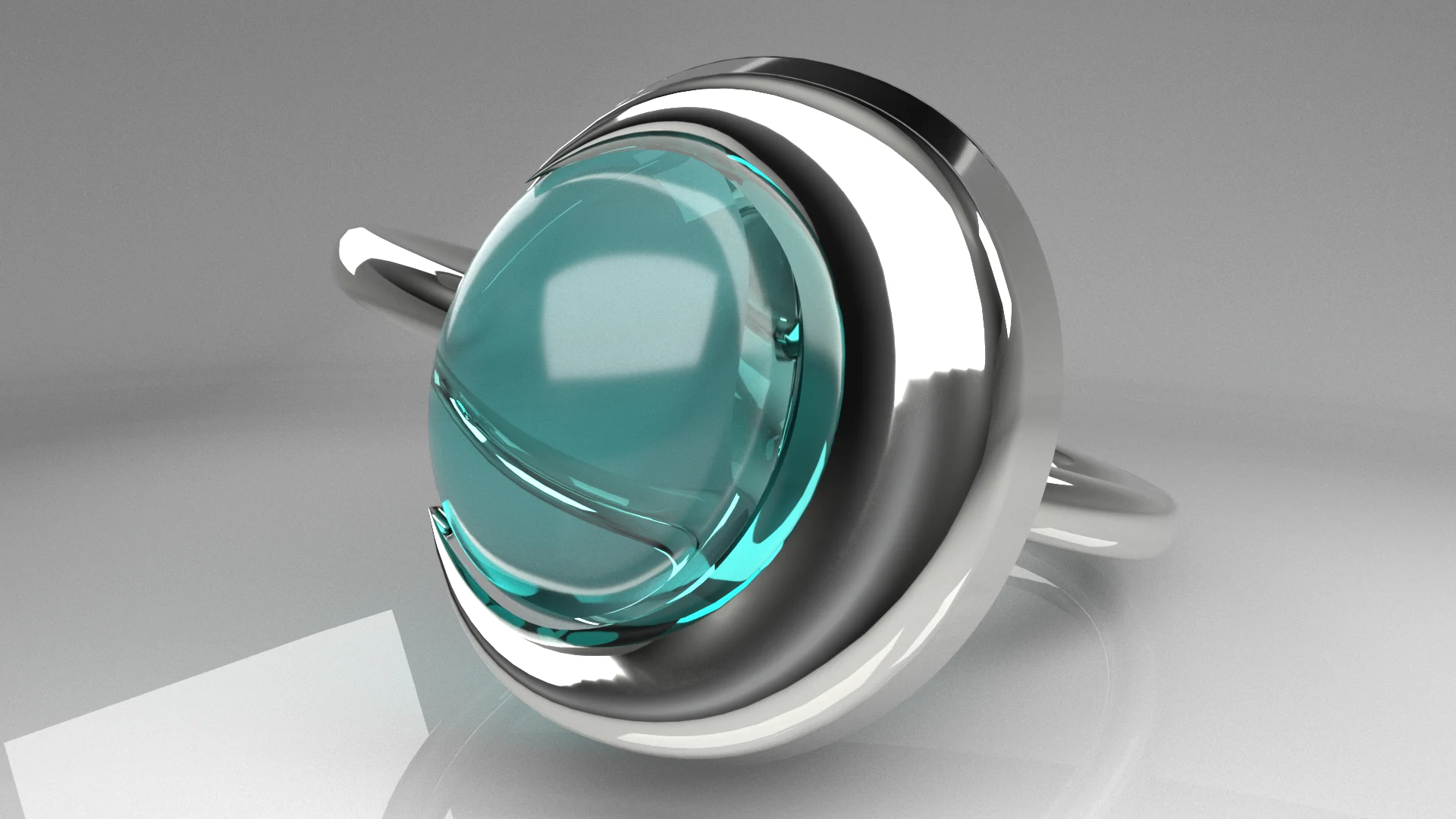

Design Inspiration & Visual Details This Modern Minimalist Orb Gemstone Cage Ring presents a captivating interplay of curves and negative space, housing a vibrant aqua gemstone within its flowing, protective structure. The design emphasizes a contemporary elegance with a sculptural jewelry aesthetic, characterized by its smooth, futuristic silhouette. The open-band structure provides exceptional comfort, while the high-polish reflective surfaces highlight the clean geometry and unique floating appearance of the gemstone. Notice the delicate yet strong embrace of the prongs, allowing maximum light into the 7.9mm x 6mm x 3.8mm orb stone, ensuring its brilliance is fully captured. The sleek 1.42mm band thickness maintains a refined profile, suitable for a striking central focus without excessive bulk.

Production-Ready Geometry & Casting Considerations Engineered for seamless production, this 3D model features clean, watertight geometry, making it ideal for both additive manufacturing and traditional casting processes. When 3D printing, consider a fine resin resolution (e.g., 25-50 microns) to accurately capture the subtle curvature and precise prong work. Strategic support placement will be crucial around the gemstone's enclosure to ensure clean removal without marring the high-polish surfaces. For casting, the open-cage design may benefit from a vacuum-assisted process to ensure full metal flow into thin sections and detailed nooks. Sprue placement should be carefully considered to minimize flash and facilitate post-cast finishing, particularly given the intent for a high-polish finish. The design is robust enough for various precious metals, including silver, 14k/18k gold, and platinum, with estimated weights of 2.2g (14k Gold), 2.7g (18k Gold), and 3.7g (Platinum) for a US-6 size.

Sizing & Software Compatibility Currently sized at US-6, this ring model's parametric structure allows for straightforward resizing. Jewelers can easily scale the CAD model to accommodate other standard or half-sizes while maintaining the crucial 1.42mm band thickness and gemstone fit. Designed in Rhino, the file imports cleanly into Matrix, ZBrush, Blender, or JewelCAD, offering flexibility for customization or integrating into a broader collection. This model is optimized for high-quality rendering and rapid prototyping, making it a valuable asset for detailed client presentations or design validation early in 2026.

Q: What type of gemstone is this model designed for, and can it be adapted for other shapes? A: The model is specifically designed for a 7.9mm x 6mm x 3.8mm orb (or slightly rounded oval) aqua gemstone. While the cage structure is tailored to this shape, its clean CAD geometry allows for experienced users to modify the prong and bezel settings to accommodate other similar-sized, non-faceted cabochons or unique fancy cuts.

Q: How can I ensure the delicate cage structure prints correctly without support damage? A: To preserve the delicate cage, print with the ring oriented to minimize overhangs within the cage itself. Use light, easily breakable supports placed strategically on less visible surfaces or temporary structures within the interior that are easy to clean. Post-processing should involve careful support removal and light sanding/polishing to achieve the intended high-polish finish.

Q: Is the open-band design prone to deformation or difficult to size after casting? A: The open-band design is engineered with sufficient material thickness to maintain structural integrity under normal wear. While the inherent flexibility of an open band allows for some minor adjustments, significant resizing after casting should be done by a skilled jeweler to avoid deforming the intricate cage. For precise fit, it's recommended to print and cast in the target size directly or perform CAD-based resizing.

Tags

modern minimalist ring · gemstone cage ring · aqua orb jewelry · 3d printable ring · jewelry cad model · futuristic ring design · sculptural jewelry · high polish ring · minimalist statement ring · rhino jewelry model · precision casting ring · parametric jewelry · us 6 ring stl · contemporary gold ring · platinum ring cad
