By: RedRoseLTD
Price: $49.00 USD

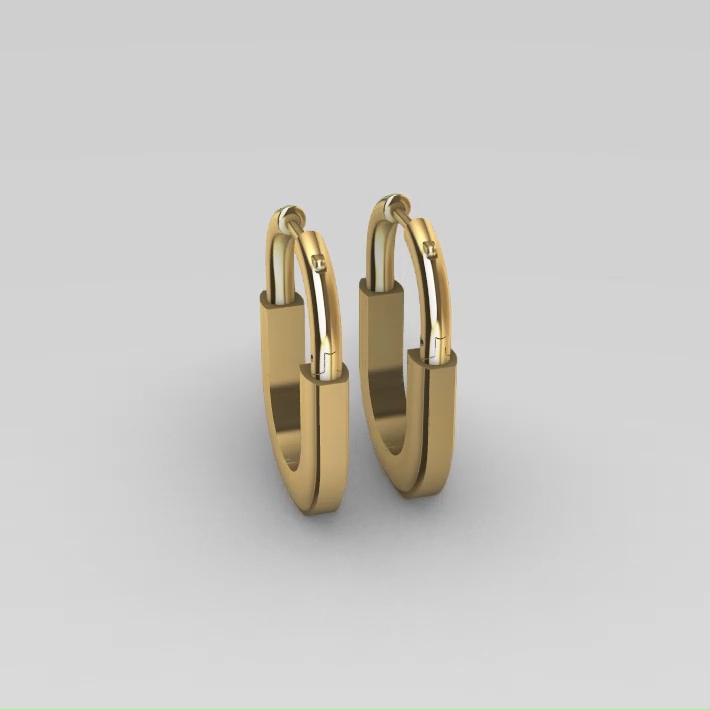

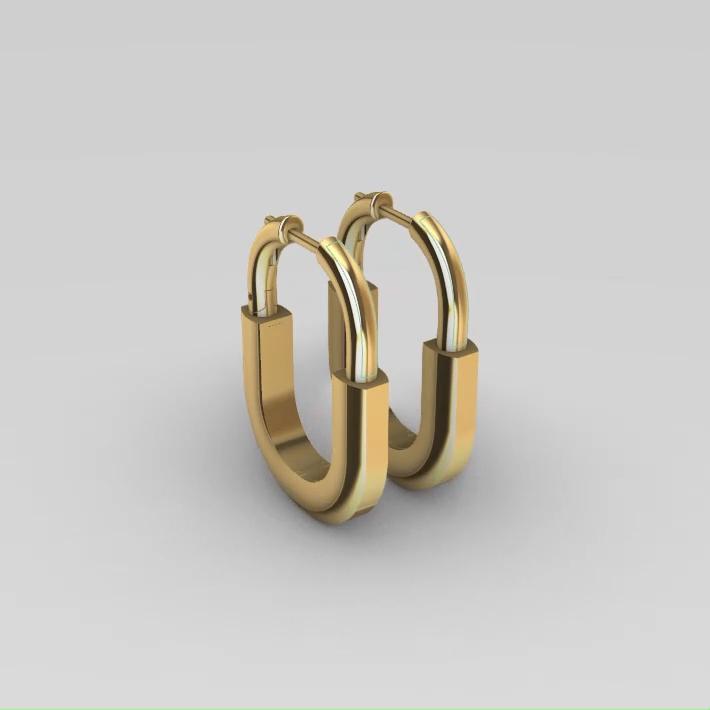

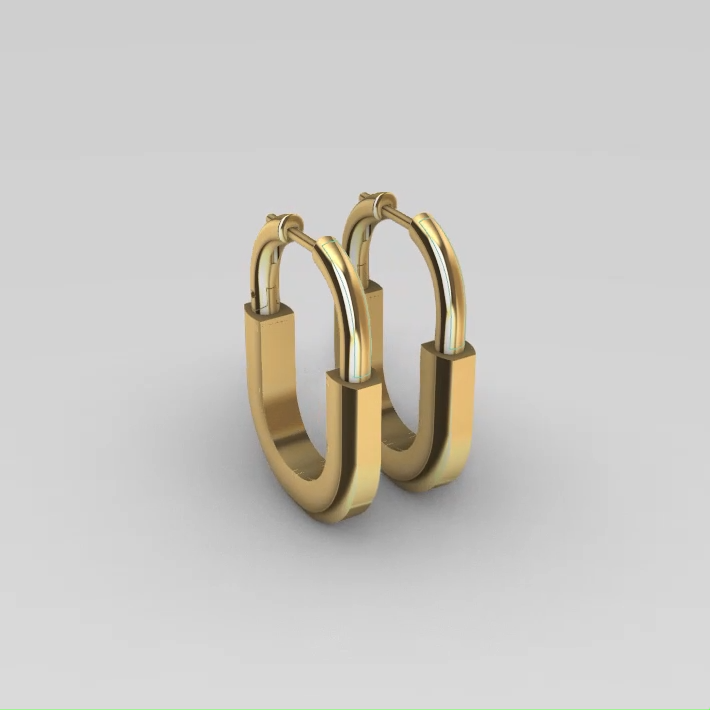

This 3D model details a single, oblong hoop earring designed for manufacturing as a pair. The earring's form is a contemporary U-shape, measuring 25.32mm in height and 17.62mm in width. It features a two-part construction with an integrated hinge and post closure, characteristic of huggie-style hoops. The upper, pivoting arm has a circular cross-section, while the lower body has a D-shaped profile with a maximum width of 3.55mm. This detailed design provides a solid base for creating 3D printable files suitable for direct casting in various precious metals. The clear measurements and defined geometry ensure dimensional accuracy in production.
No gems specified.

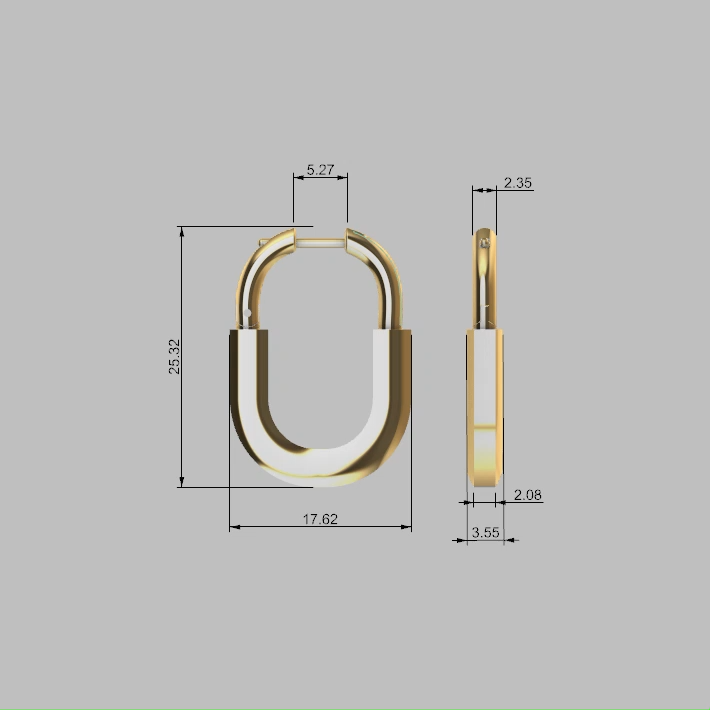

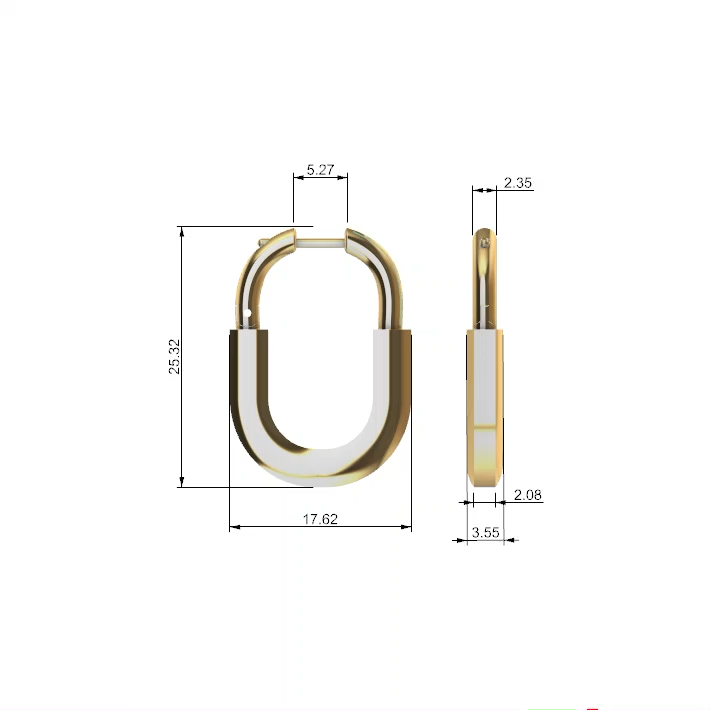

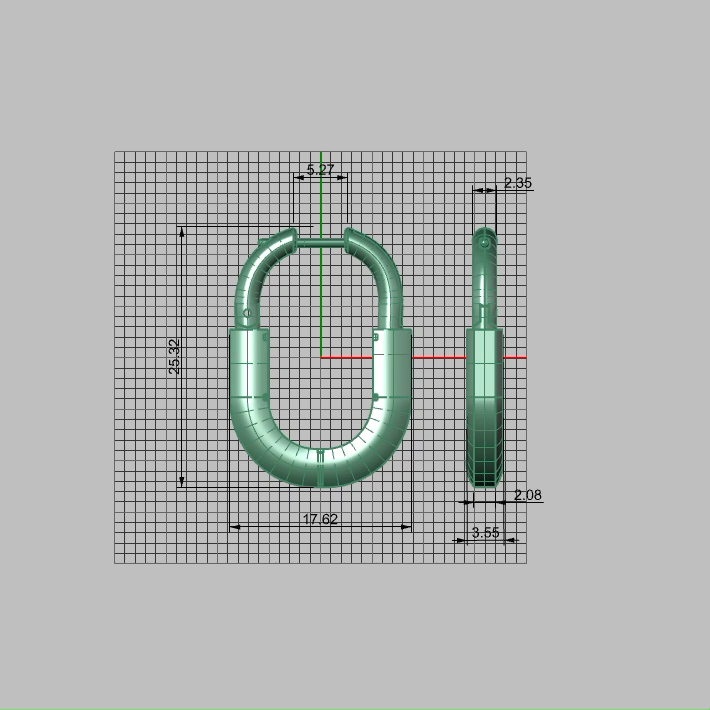

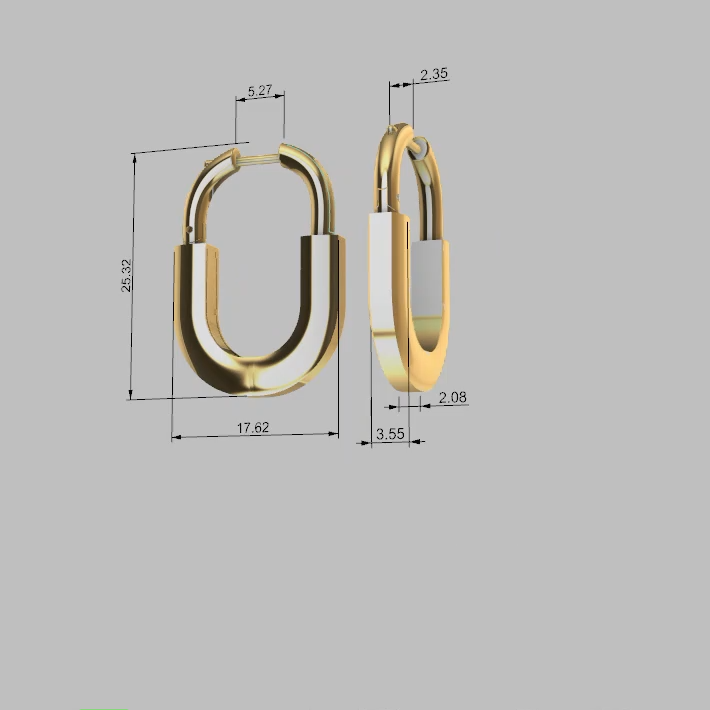

Overall Height: 25.32 mm Overall Width: 17.62 mm Top Section Width: 5.27 mm Top Profile Thickness: 2.35 mm Bottom Profile Thickness: 3.55 mm Inner Channel Width: 2.08 mm
Not applicable
Yellow Gold 10K: 2.46 g Yellow Gold 14K: 2.77 g Yellow Gold 18K: 3.32 g Yellow Gold 22K: 3.85 g White Gold 10KW: 2.36 g White Gold 14KW: 2.71 g White Gold 18KW: 3.15 g White Gold 10KX1: 2.41 g White Gold 14K PdW: 3.09 g White Gold 18K PdW: 3.37 g Rose Gold 10KR: 2.48 g Rose Gold 14KR: 2.80 g Rose Gold 18KR: 3.32 g Green Gold 10KG: 2.68 g Green Gold 14KG: 3.05 g Green Gold 18KG: 3.42 g Silver 925: 2.23 g Platinum PLAT: 4.33 g Platinum PLAT RU: 4.45 g Titanium: 0.97 g Steel: 1.66 g Wax CNC: 0.22 g Resin 3D Printer: 0.26 g
Production & Compatibility This model is optimized for lost-wax casting. It can be 3D printed using high-resolution SLA/DLP machines with castable resins (e.g., from Formlabs or Phrozen) to create the master pattern. The explicit weight for CNC Wax (0.22g) also confirms its suitability for subtractive manufacturing via wax milling. The simple two-part hinged design requires standard finishing and assembly post-casting. No complex spruing is required due to the straightforward geometry.
Q: What is the overall size of the earring when worn? A: The earring has an external height of 25.32 mm and a width of 17.62 mm, creating a noticeable yet refined oblong loop shape.
Q: How much would a single earring weigh in 14K Yellow Gold? A: Based on the provided calculations in the file, a single earring cast in 14K Yellow Gold would weigh approximately 2.77 grams.
Q: Is the hinge part of the 3D model, or does it require separate hardware? A: The hinge mechanism and post are fully integrated into the 3D model, designed to be cast as a functional assembly requiring only a standard pin for the pivot.
