Price: $25.00 USD

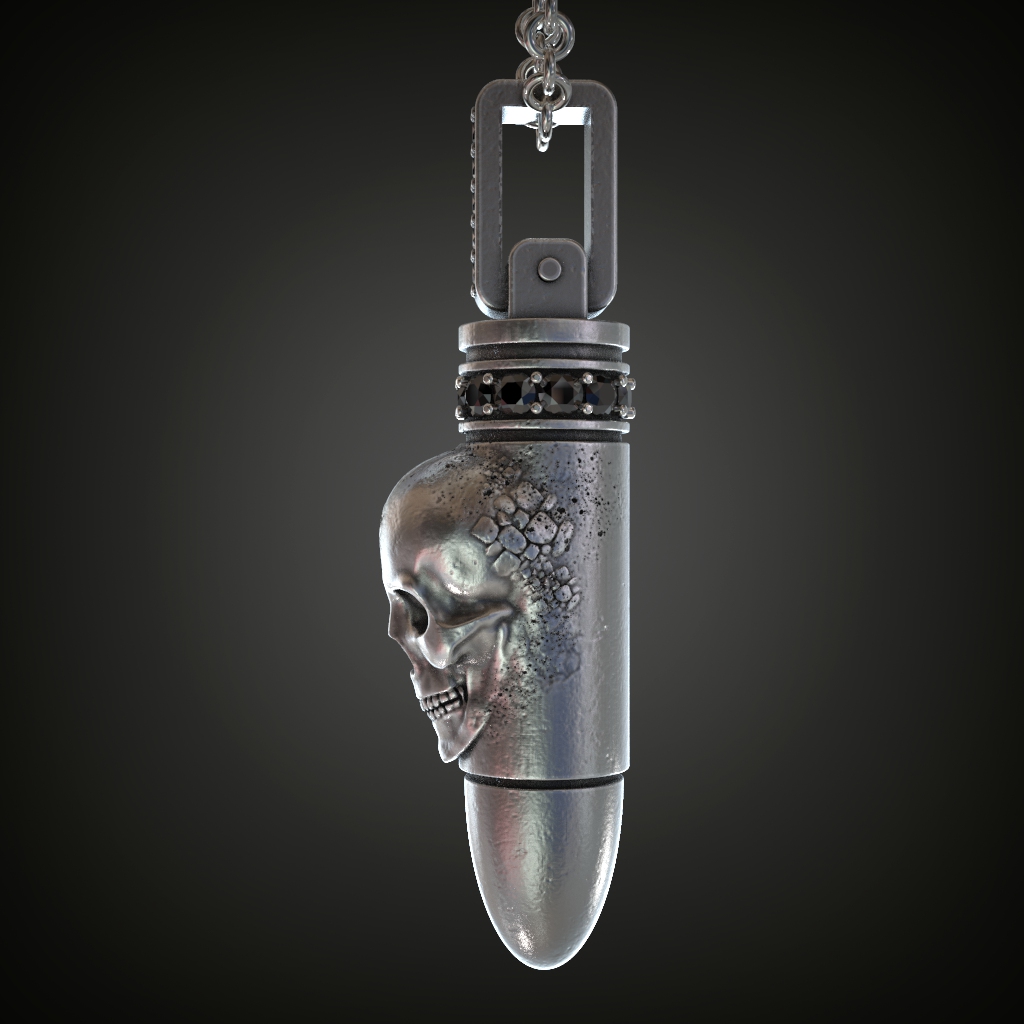

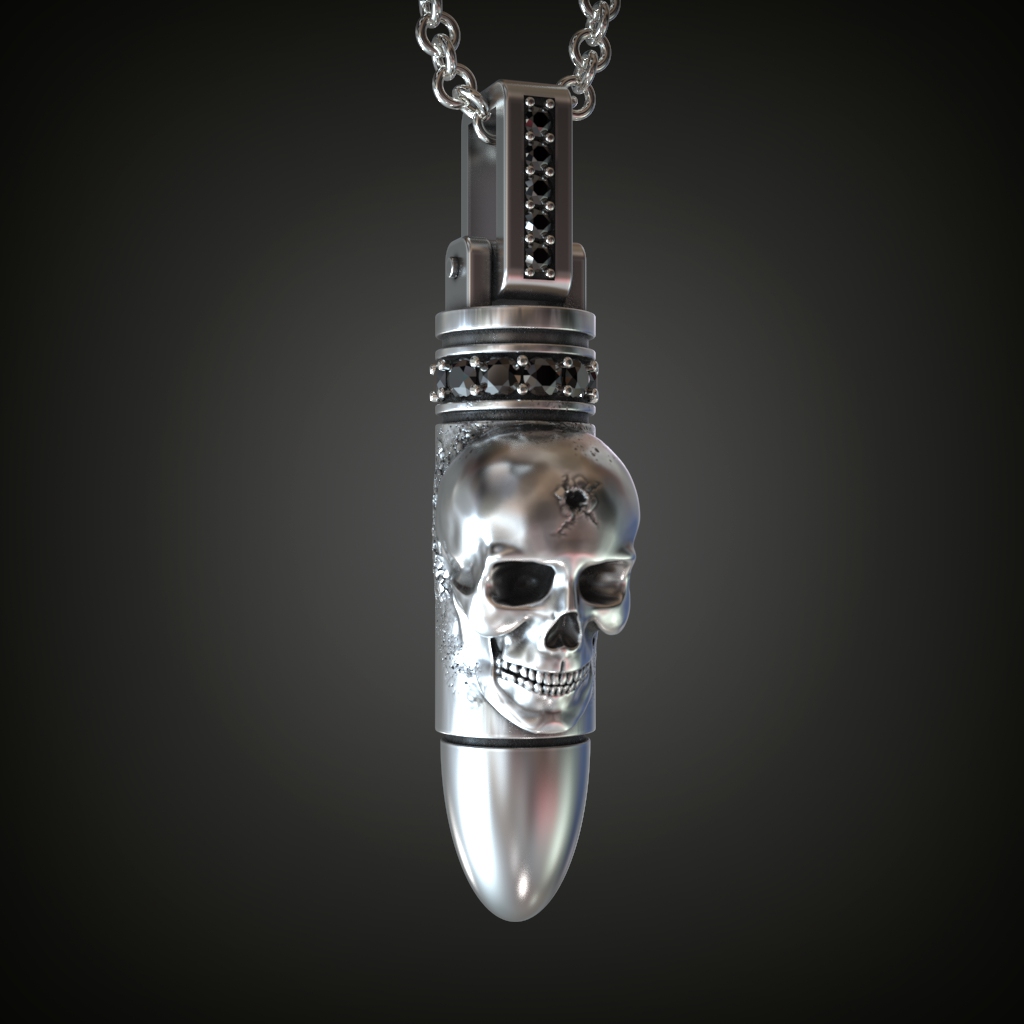

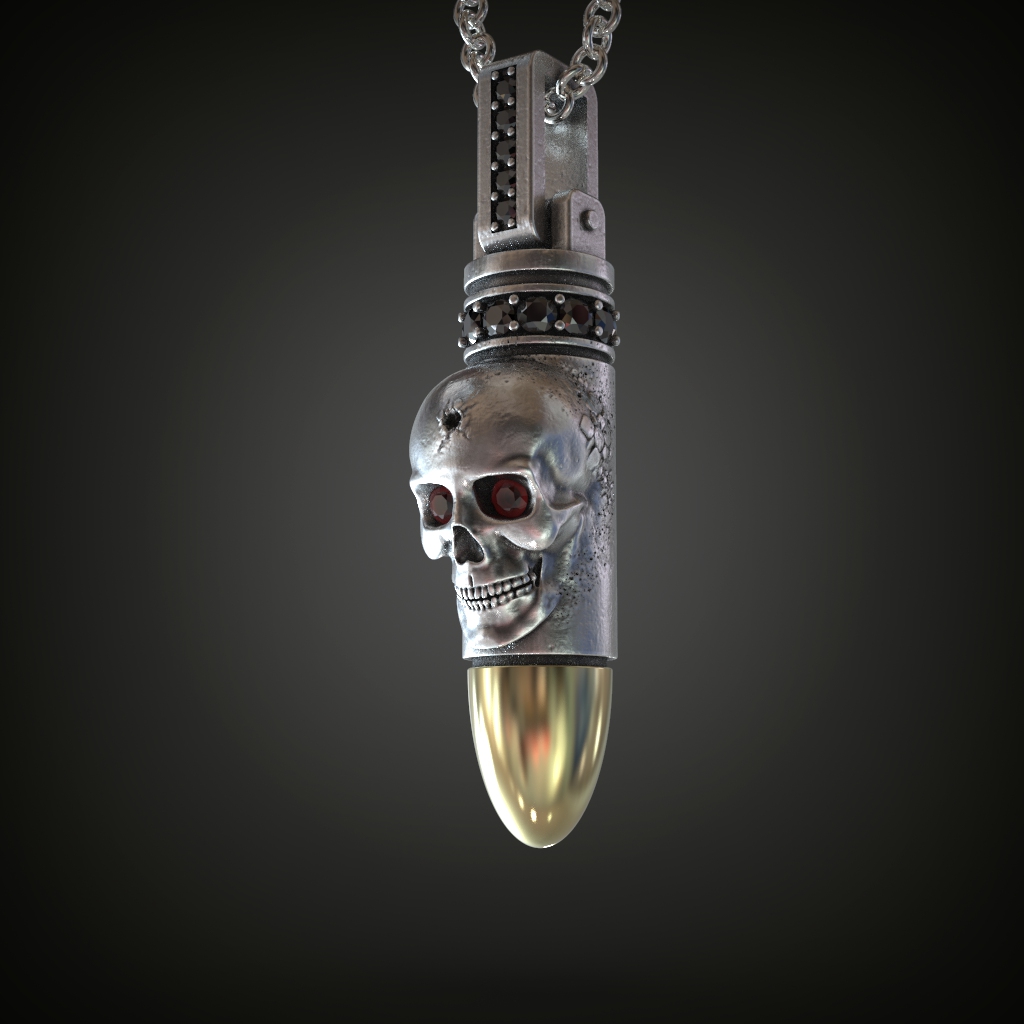

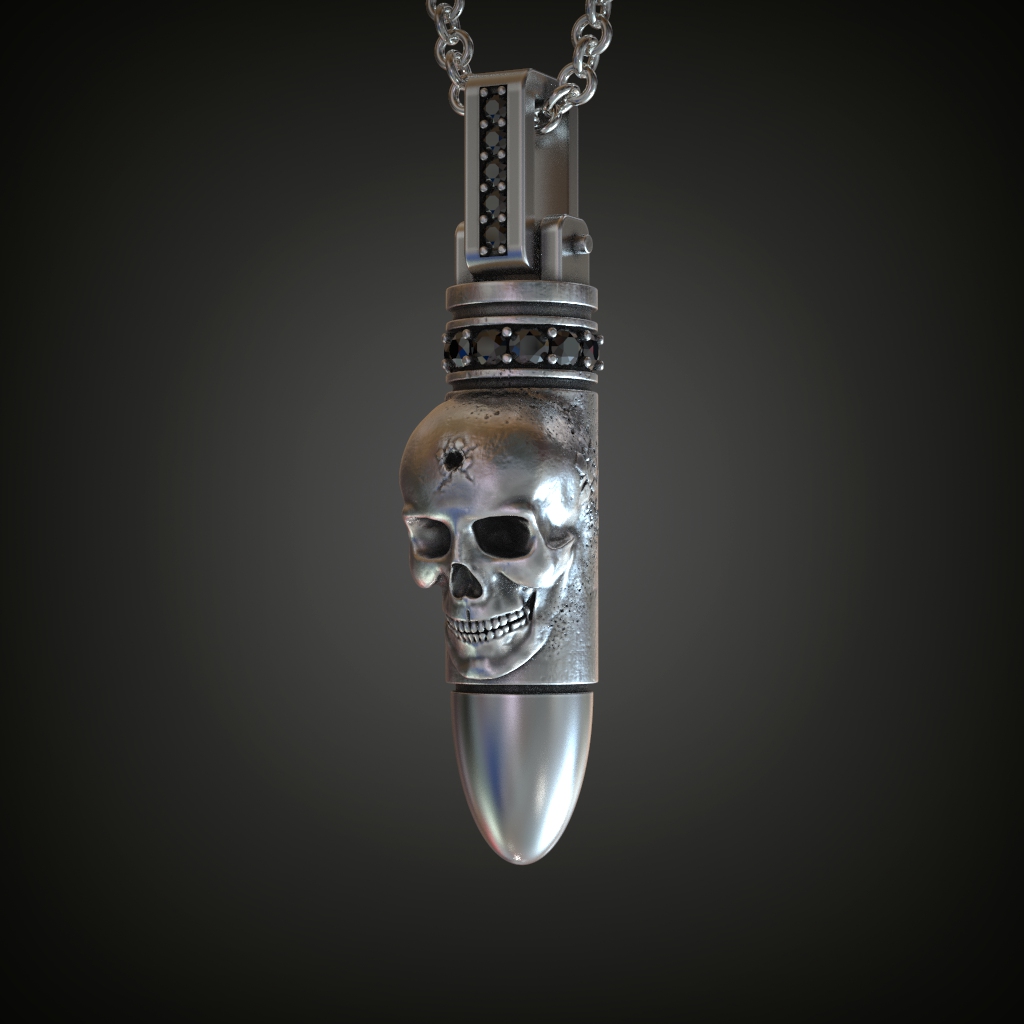

A pendant designed in the form of a bullet cartridge, featuring a high-relief anatomical skull on its casing. The overall dimensions are approximately 29.6mm in height and 11mm in diameter. The design is composed of a main bullet body and an articulated, gem-set bail. A distinct 'memento mori' detail is the simulated bullet hole impact on the skull's forehead. The surface of the casing around the skull has a distressed, pitted texture which contrasts with the high-polish finish of the bullet tip. Two rows of gems adorn the piece: a vertical channel-set row on the bail and a prong-set collar encircling the casing. The CAD model is a high-polygon mesh of 822,518 triangles, ensuring detailed output from 3D printing.
The design includes settings for 21 small round stones, shown in renders with both white (diamond) and black (onyx/black diamond) options. Specific gem data is not provided and should be confirmed by measuring the 3D printed model.
Stone 1: Round Brilliant Cut Quantity: 7 (seven) Setting: Channel setting in the bail Estimated Size: 1.0mm
Stone 2: Round Brilliant Cut Quantity: 14 (fourteen) Setting: Prong setting on the collar Estimated Size: 1.25mm

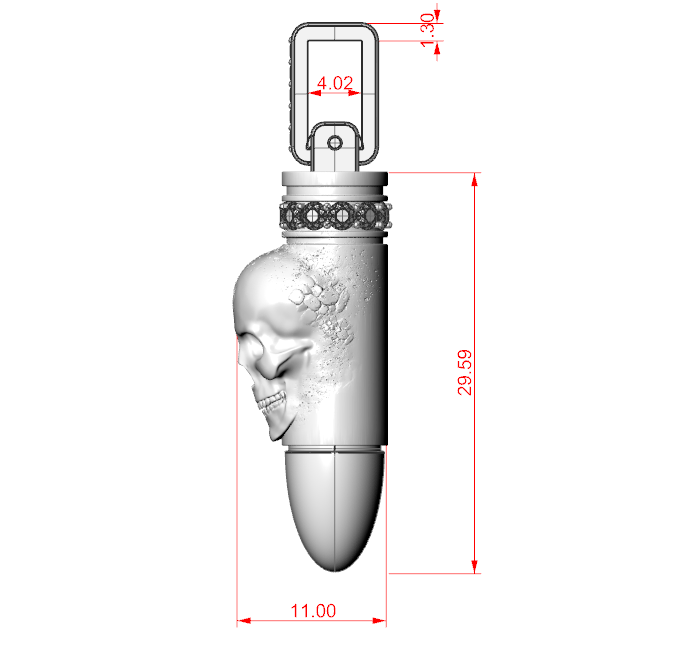

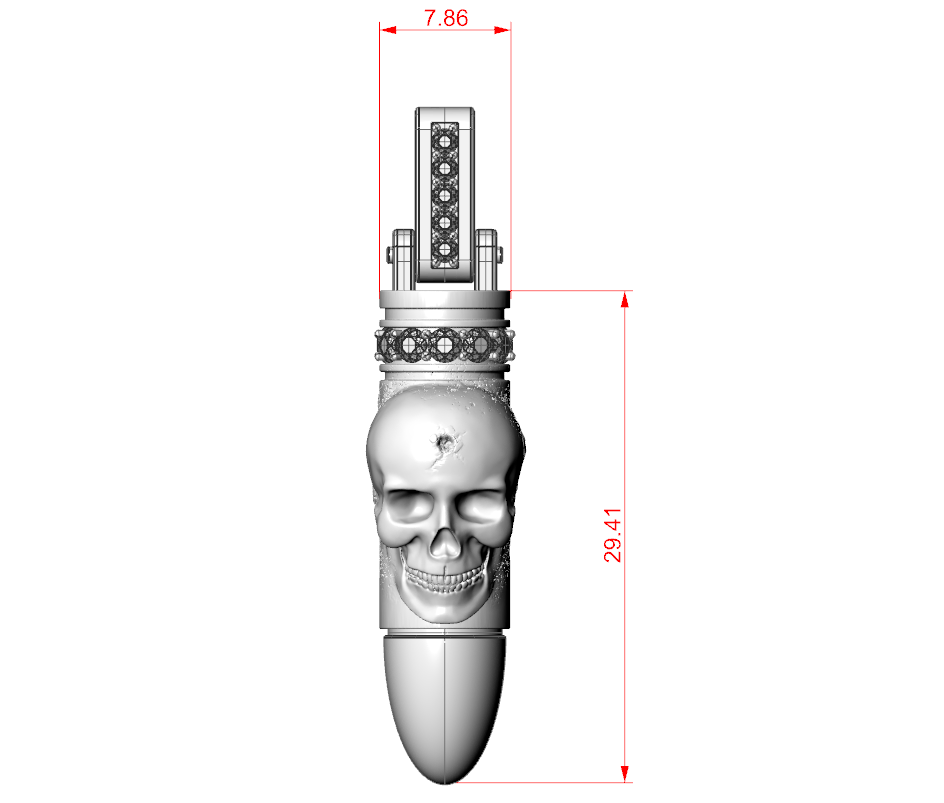

Overall Height: 29.59 mm Bail Width: 7.86 mm Bullet Diameter: 11.00 mm Bail Inner Clearance: 4.02 mm
Not applicable

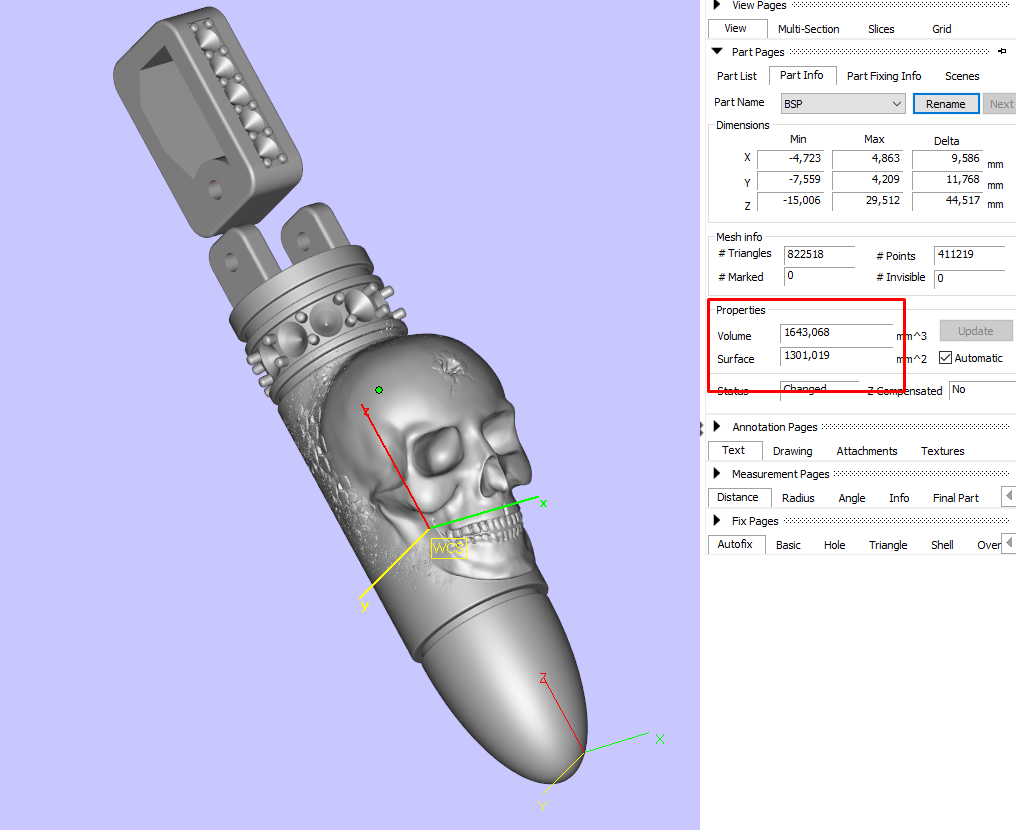

Calculated from a model volume of 1643.068 mm³. Weights are for the metal only and exclude gems. - Gold 585 (14K): 22.5 g - Gold 750 (18K): 26.0 g - Silver 925: 16.9 g - Stainless Steel: 13.1 g - Bronze: 14.5 g
Production & Compatibility This high-detail model is optimized for high-resolution resin 3D printers such as those from Asiga, Formlabs, or Anycubic, using castable wax resins for a crisp finish. The high polygon count (822k triangles) suggests a manifold mesh ready for slicing. The design is well-suited for lost-wax investment casting. The bail is articulated and should be cast as a separate component for assembly. For direct wax milling via CNC, a 4-axis machine is recommended to capture the undercuts of the skull relief.
Q: What is the maximum chain thickness that will fit through the bail? A: The bail's inner clearance is 4.02mm, allowing it to accommodate a variety of small to medium-sized necklace chains.
Q: Is the 'bullet hole' detail on the skull a full piercing? A: No, the feature on the skull's forehead is a sculpted indentation designed to look like an impact. It does not go all the way through the model, which maintains structural integrity for casting and wear.
Q: Are the gems channel-set or prong-set? A: The pendant uses both. The seven gems on the vertical bail are in a channel setting, while the fourteen gems on the collar around the bullet casing are secured in prong settings.
