Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: Model2019
Price: $12.50 USD

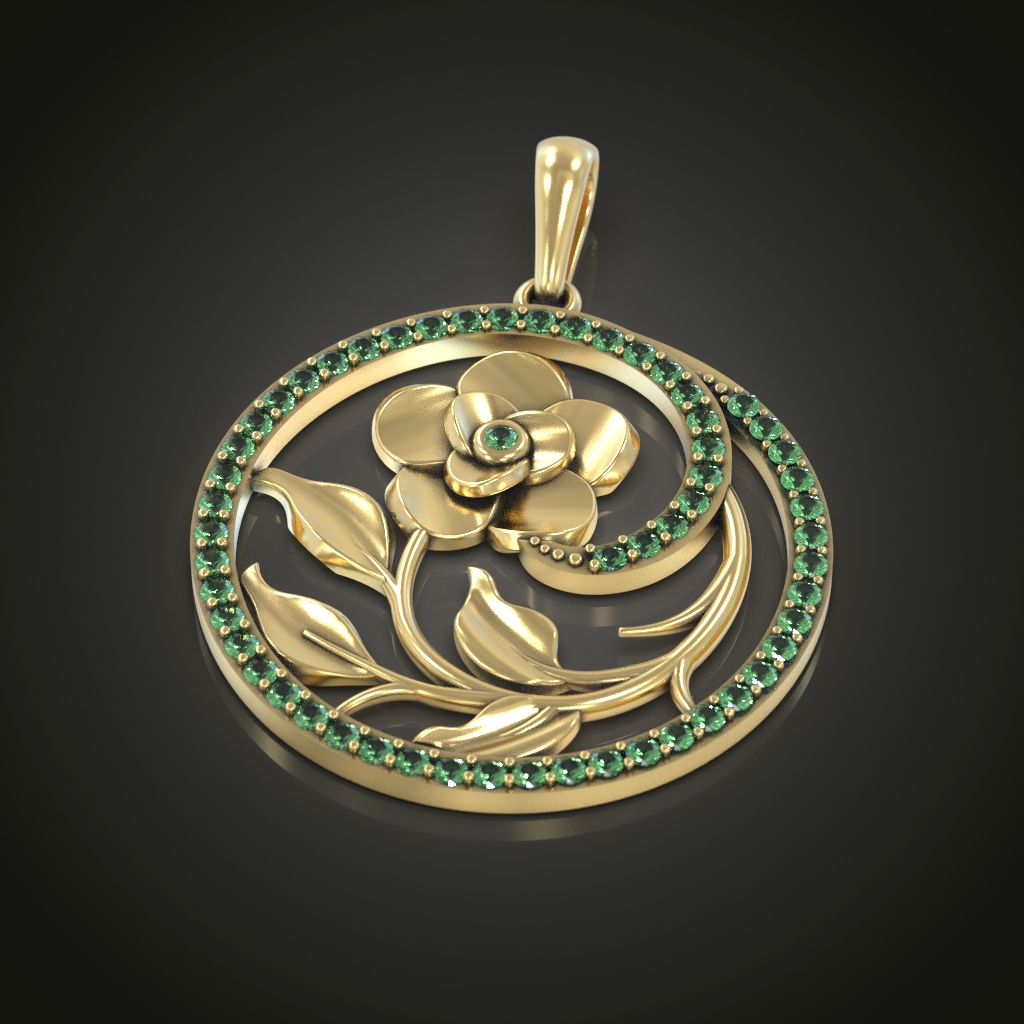

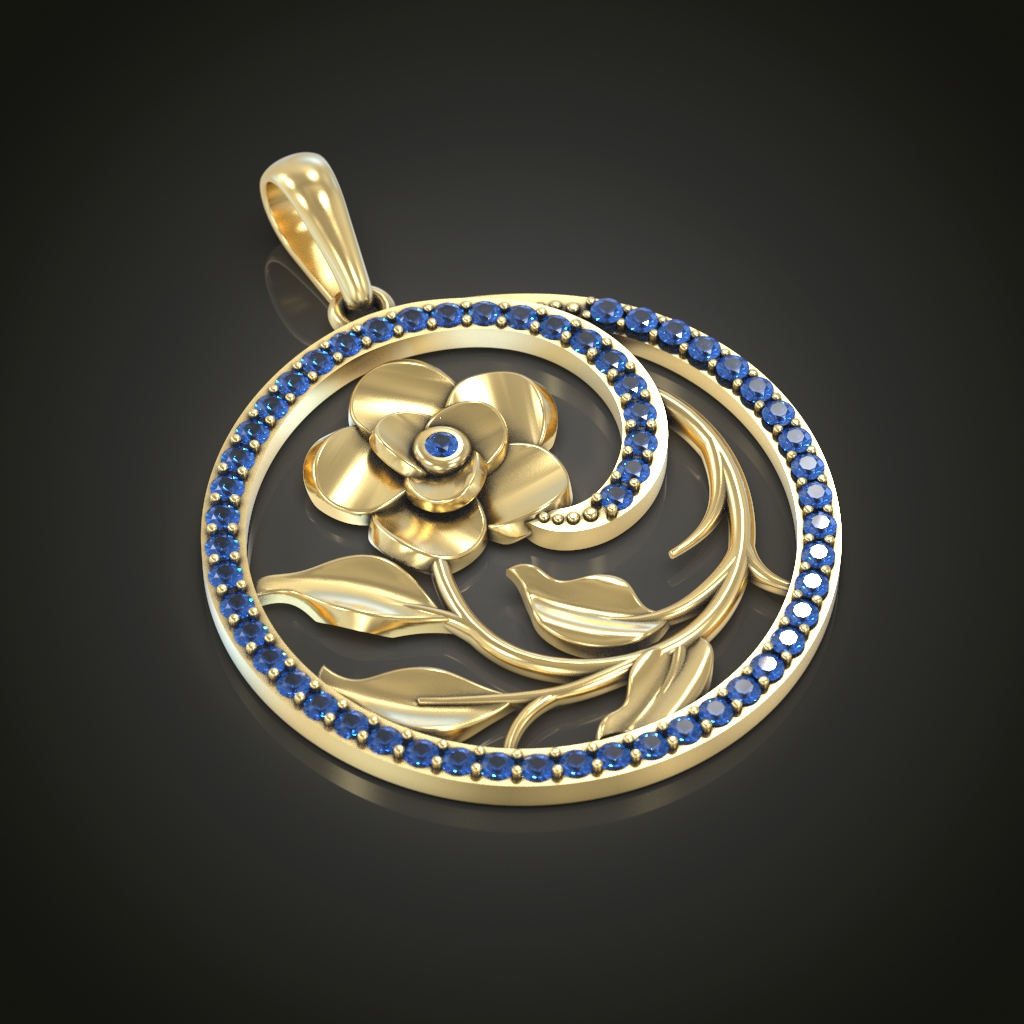

A circular openwork pendant designed around a central five-petal flower, which holds a single bezel-set round stone. From the flower's base, polished leaf and vine elements curve asymmetrically within the frame. The main circular frame is lined with a continuous pavé setting, mirrored by a smaller interior swirl also set with stones. The design utilizes a total of 57 round 1.5mm stones. With an approximate body diameter of 28.3mm, the structure is detailed yet maintains good geometry for production. The provided 3D model is a manifold mesh ready for SLA printing with castable resins.
Stone Type: Diamond (or equivalent) Quantity: 57 (fifty-seven) Cut: Round Size: 1.5mm Total Carat Weight: 0.715ct Setting: Pavé setting for outer frame and swirl; bezel setting for center flower stone.

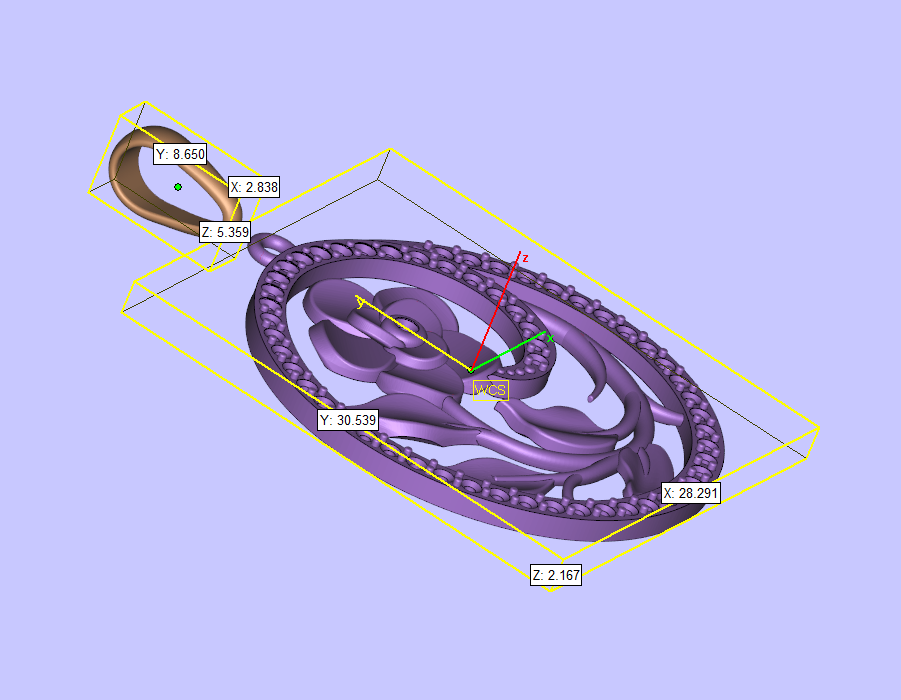

Pendant Body Width: 28.3 mm Pendant Body Height: 30.6 mm Pendant Body Thickness: 2.2 mm Bail Height: 8.7 mm Total Approximate Height (with bail): 39.3 mm
Not applicable

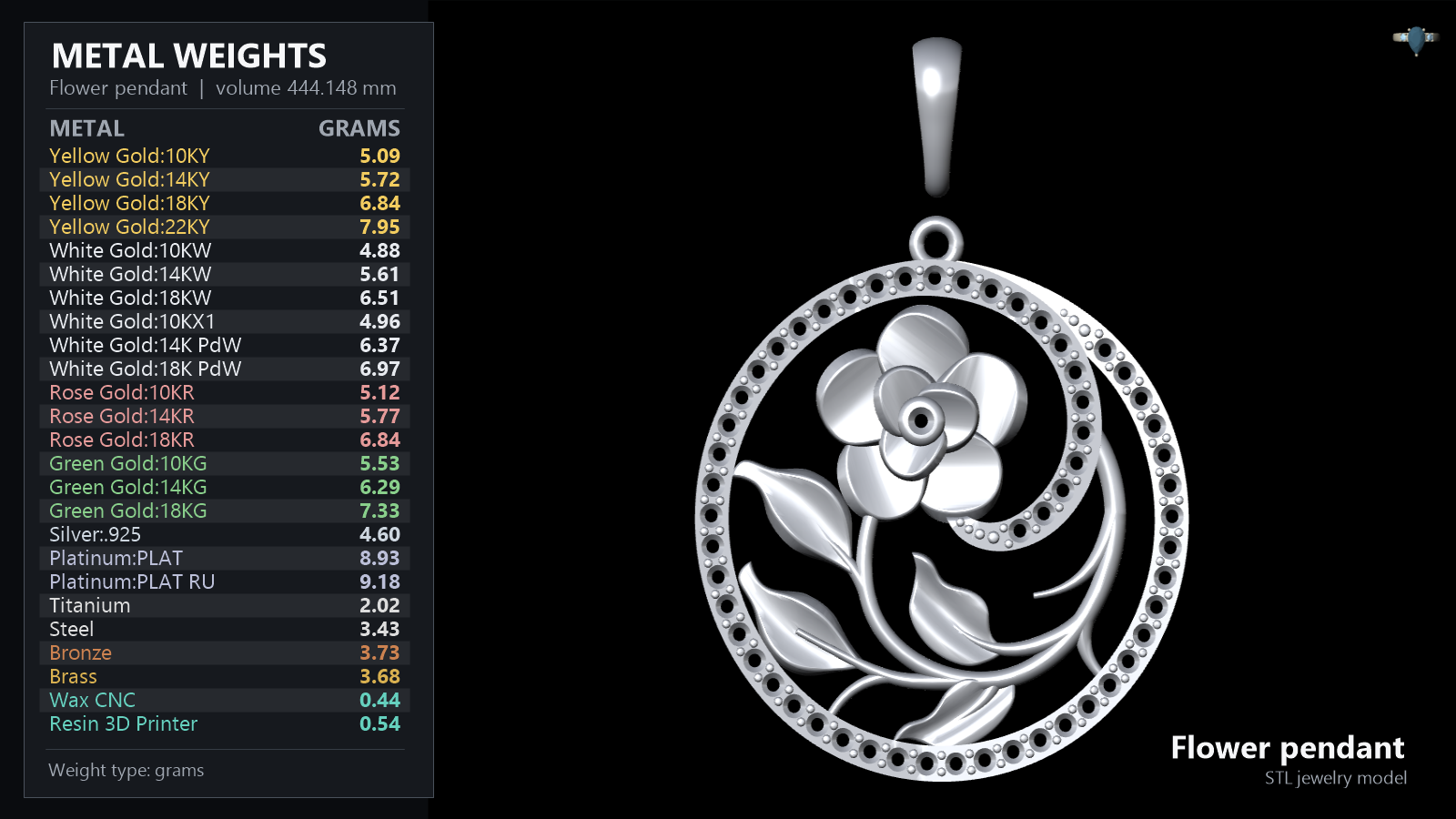

Based on a model volume of 444.148 mm³. Weights are approximate. - White Gold 14K: 5.61 g - White Gold 18K: 6.51 g - Yellow Gold 14K: 5.72 g - Yellow Gold 18K: 6.84 g - Rose Gold 14K: 5.77 g - Rose Gold 18K: 6.84 g - Silver 925: 4.60 g - Platinum 950: 8.93 g - Bronze: 3.73 g - Steel: 3.43 g
Production & Compatibility This model is optimized for high-resolution 3D printing using SLA or DLP technologies, such as those from Formlabs, Anycubic, or Phrozen. For direct casting, use of a castable wax resin is recommended to accurately reproduce the fine pavé settings and floral details. The solid bail and single-piece construction simplify the lost-wax casting process.

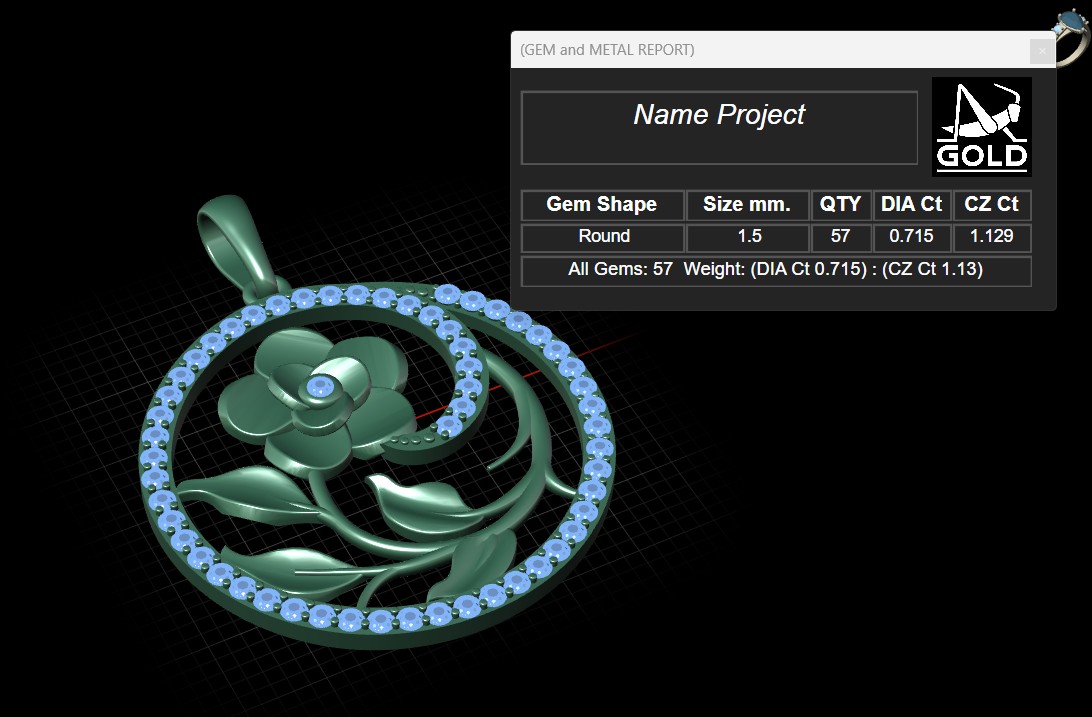

Q: Are all 57 stones the same size? The center stone in the flower looks larger in the render. A: The provided CAD report specifies that all 57 stones are round cuts with a 1.5mm diameter. The total diamond weight for all gems is 0.715ct. While the render may emphasize the center stone, the 3D model is prepared for uniform 1.5mm gems.
Q: What is the total hanging height of the pendant including the bail? A: The main circular body of the pendant measures approximately 30.6mm in height. The separate bail adds another 8.7mm, resulting in a total approximate hanging height of 39.3mm.
Q: Is the design open-back or does it have a solid backing? A: The pendant features an openwork, open-back design. This allows light to pass through the pavé-set gemstones from behind and reduces the overall metal weight, which is approximately 4.6g in Sterling Silver 925.
