Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: JM
Price: $45.00 USD

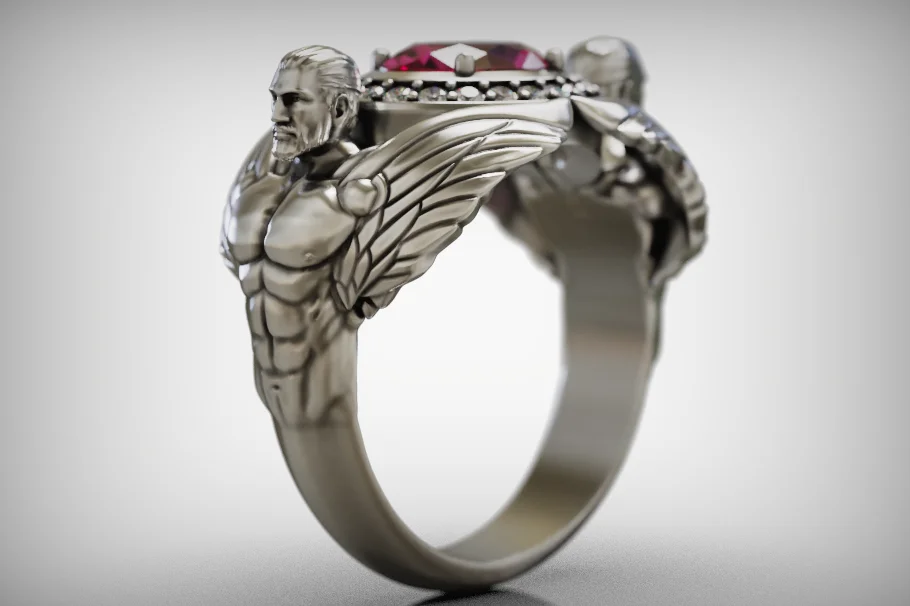

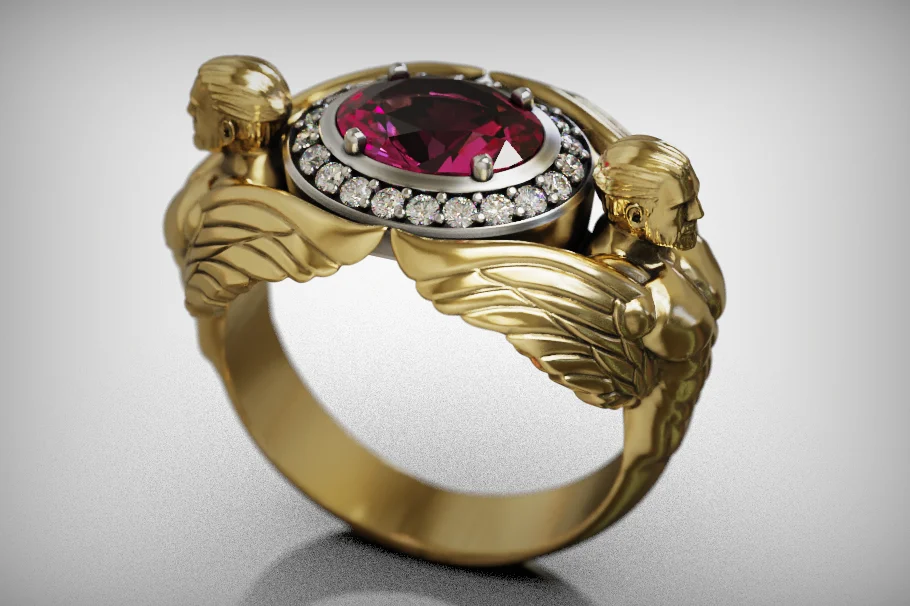

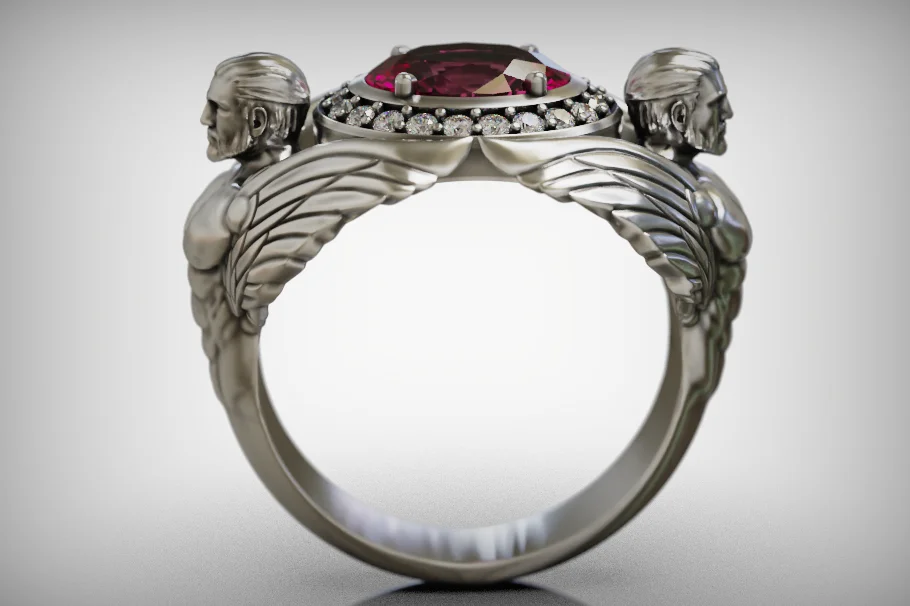

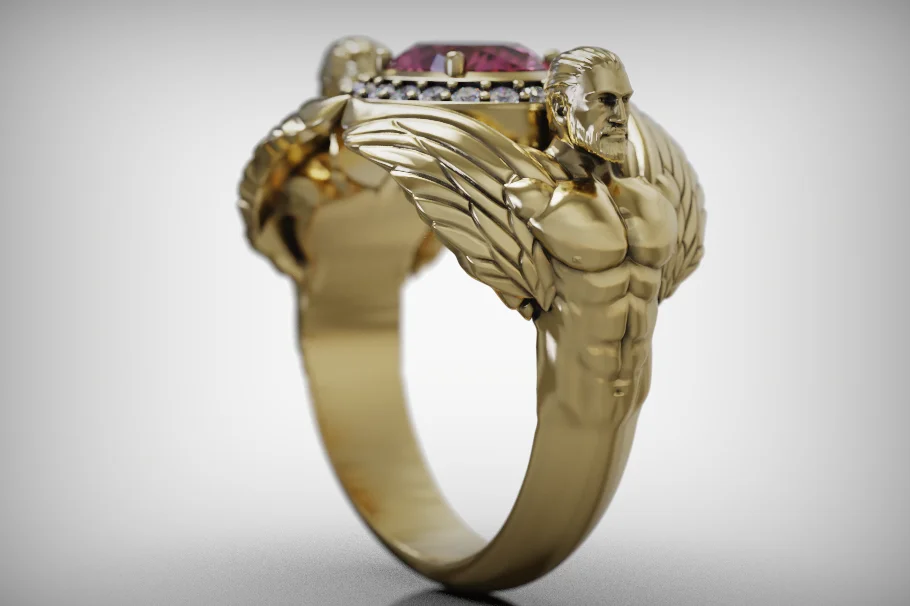

The ring's profile is defined by the transition from a smooth, half-round shank into two prominent, high-relief figural shoulders. Each shoulder is sculpted as a winged male figure, whose wings curve forward to support the central setting. The head is constructed for a large oval center stone secured by substantial prongs, encircled by a halo gallery with prepared seats for small round accent stones. This CAD asset provides the geometry for an additively manufactured master pattern, allowing the intricate feather details and figural forms to be realized through a subsequent lost-wax casting workflow. The underside of the setting is open to allow light to pass through the stones.

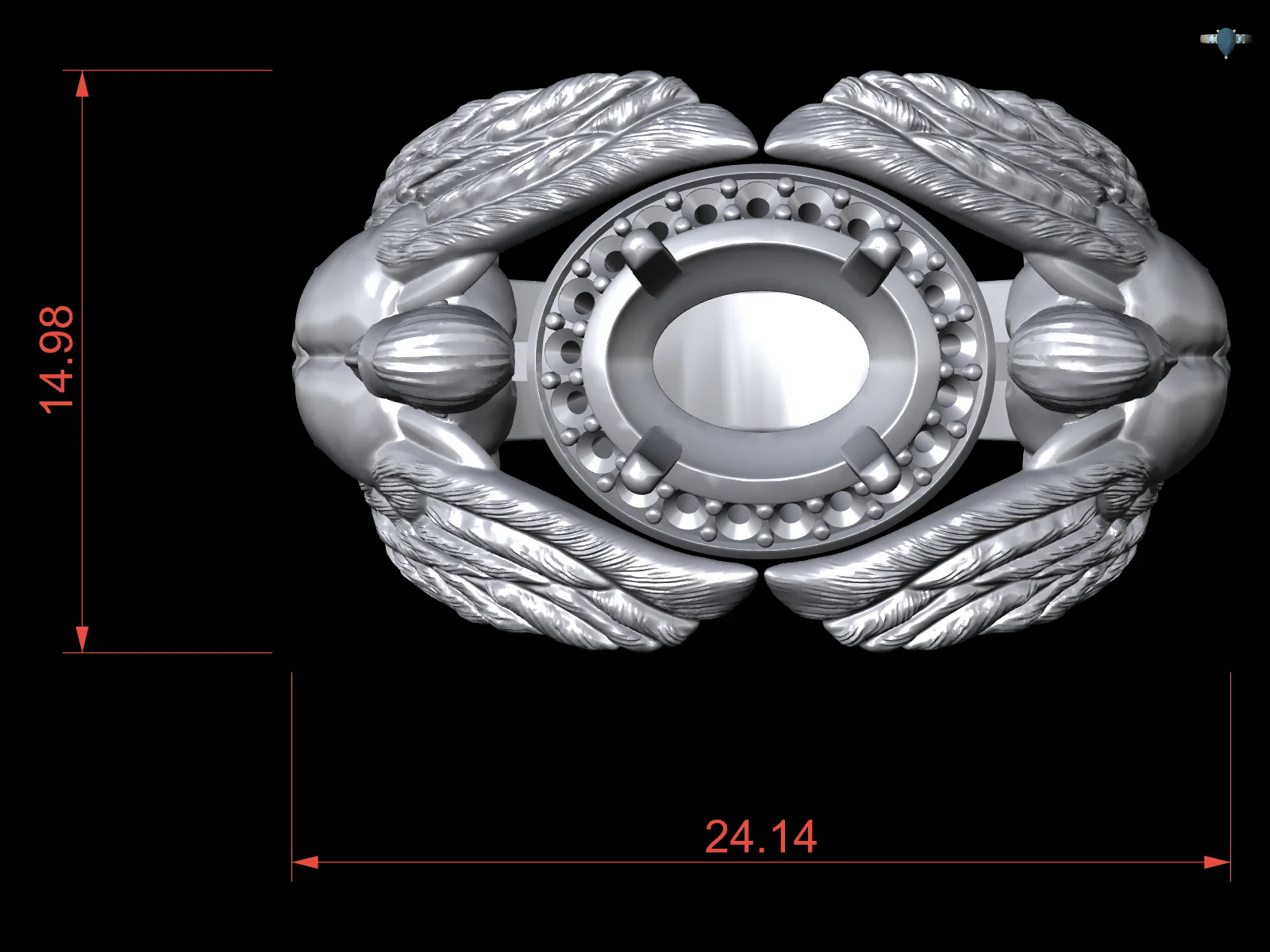

Top Width: 14.91 mm Shank Width (at base): 4.03 mm Shank Thickness (at base): 1.50 mm
US: 6, 7, 8, 9, 10, 11, 12, 13 UK: M, O, Q, S, U, W, Y, Z1 German: 51.8, 54.7, 57.2, 59.7, 62.5, 65, 67.5, 70.1 Inner Diameter: 16.5mm, 17.4mm, 18.2mm, 19.0mm, 19.9mm, 20.7mm, 21.5mm, 22.3mm
Yellow Gold 10K: 10.27 g Yellow Gold 14K: 11.53 g Yellow Gold 18K: 13.79 g Yellow Gold 22K: 16.04 g White Gold 10K: 9.83 g White Gold 14K: 11.32 g White Gold 18K: 13.13 g White Gold 10K X1: 10.00 g White Gold 14K PdW: 12.85 g White Gold 18K PdW: 14.06 g Rose Gold 10K: 10.33 g Rose Gold 14K: 11.64 g Rose Gold 18K: 13.79 g Green Gold 10K: 11.15 g Green Gold 14K: 12.69 g Green Gold 18K: 14.78 g Silver 925: 9.28 g Platinum PLAT: 18.02 g Platinum PLAT RU: 18.51 g Titanium: 4.07 g Steel: 6.92 g Bronze: 7.52 g Brass: 7.42 g Wax CNC: 0.88 g Resin 3D Printer: 1.10 g
Q: The design features a prominent halo setting. What are the overall dimensions at the top? A: The ring measures 14.91 mm across the top, a dimension that encompasses the central halo setting and the tips of the figural wings on the shoulders.
Q: What is the thickness and width of the ring's shank at its narrowest point? A: The shank has a minimum thickness of 1.50 mm and a width of 4.03 mm at the base, as indicated in the technical drawings, before it widens into the sculpted shoulders.

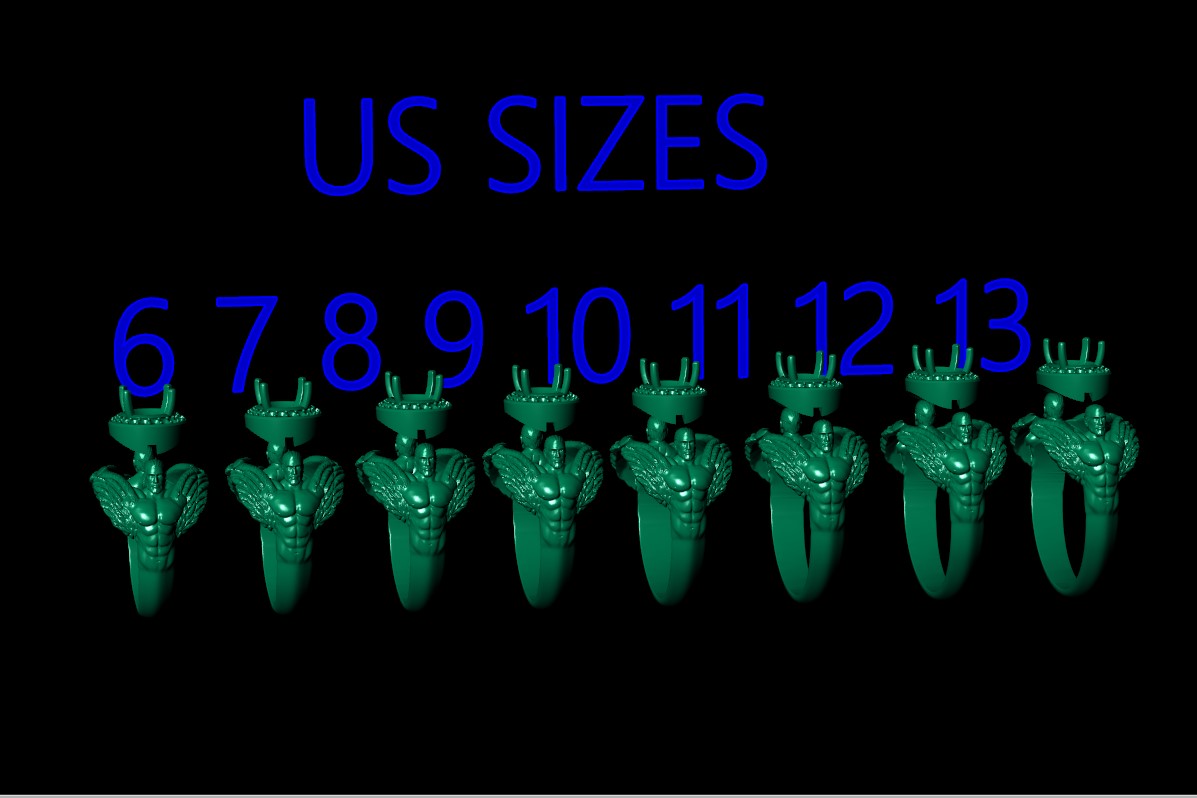

Q: Is the 3D model provided in a full range of sizes? A: Yes, this model is provided in eight distinct US sizes, from size 6 through size 13, allowing for production across a common range.
