Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: JM
Price: $45.00 USD

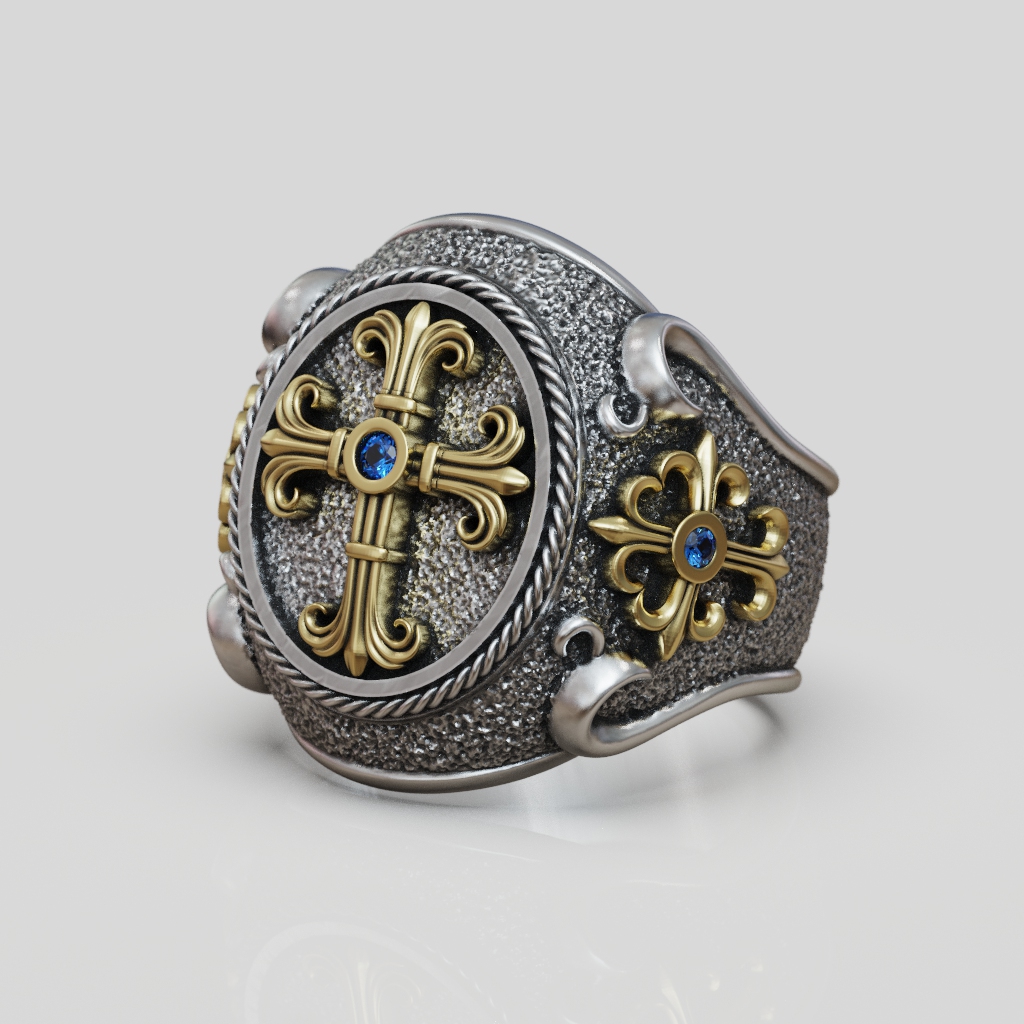

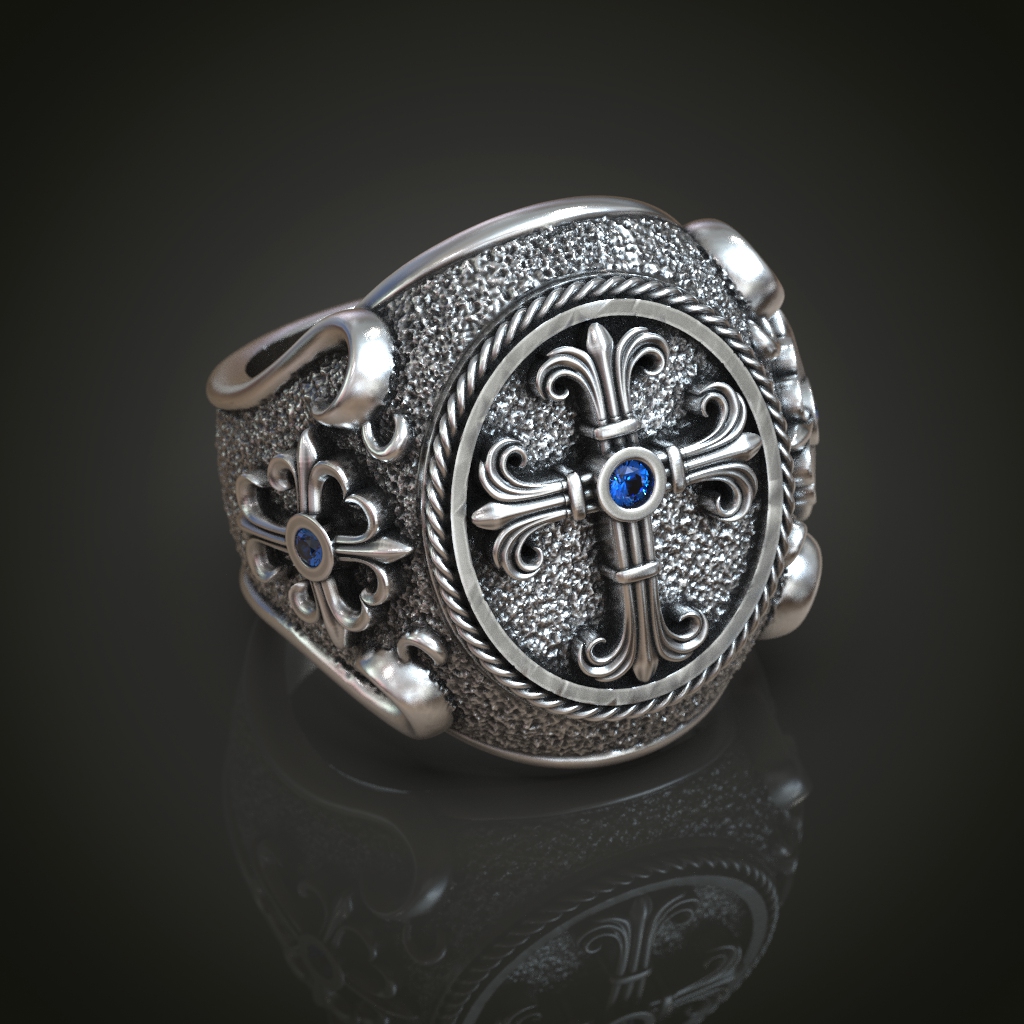

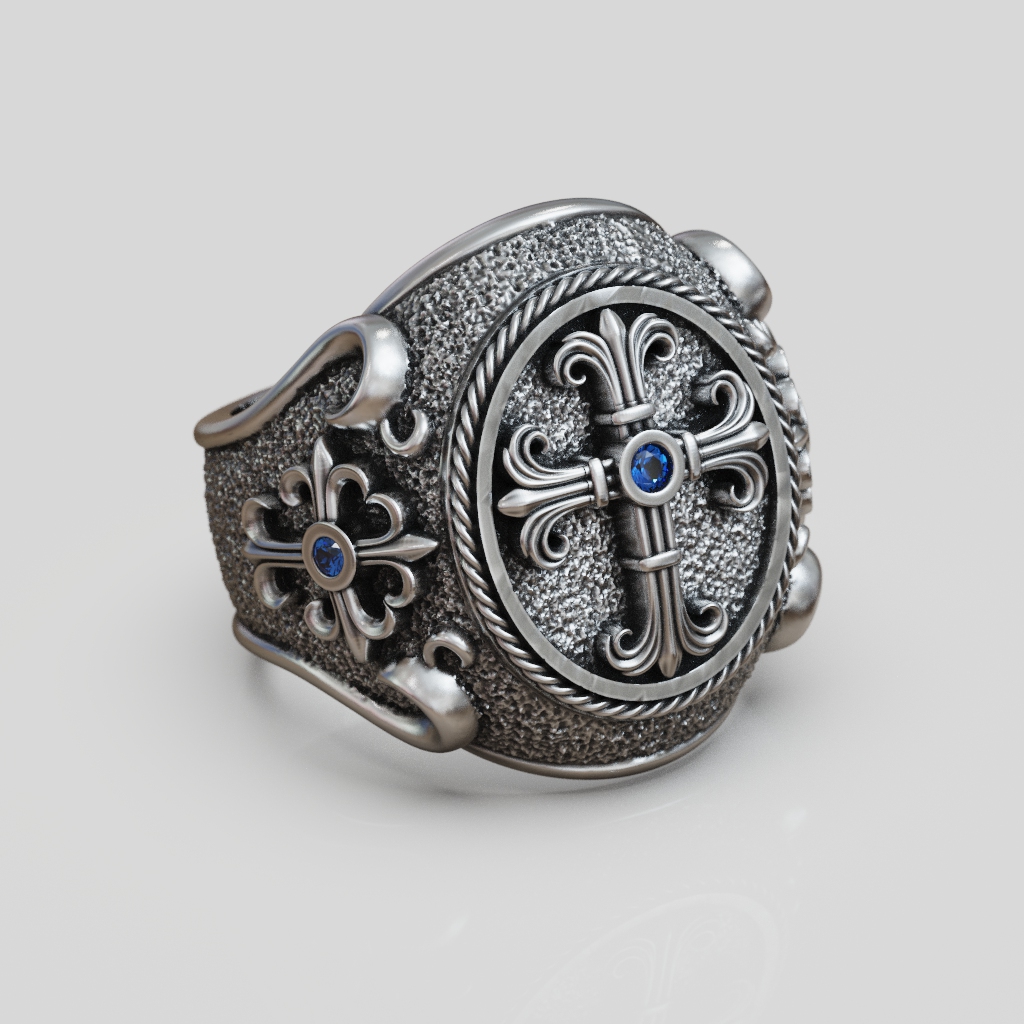

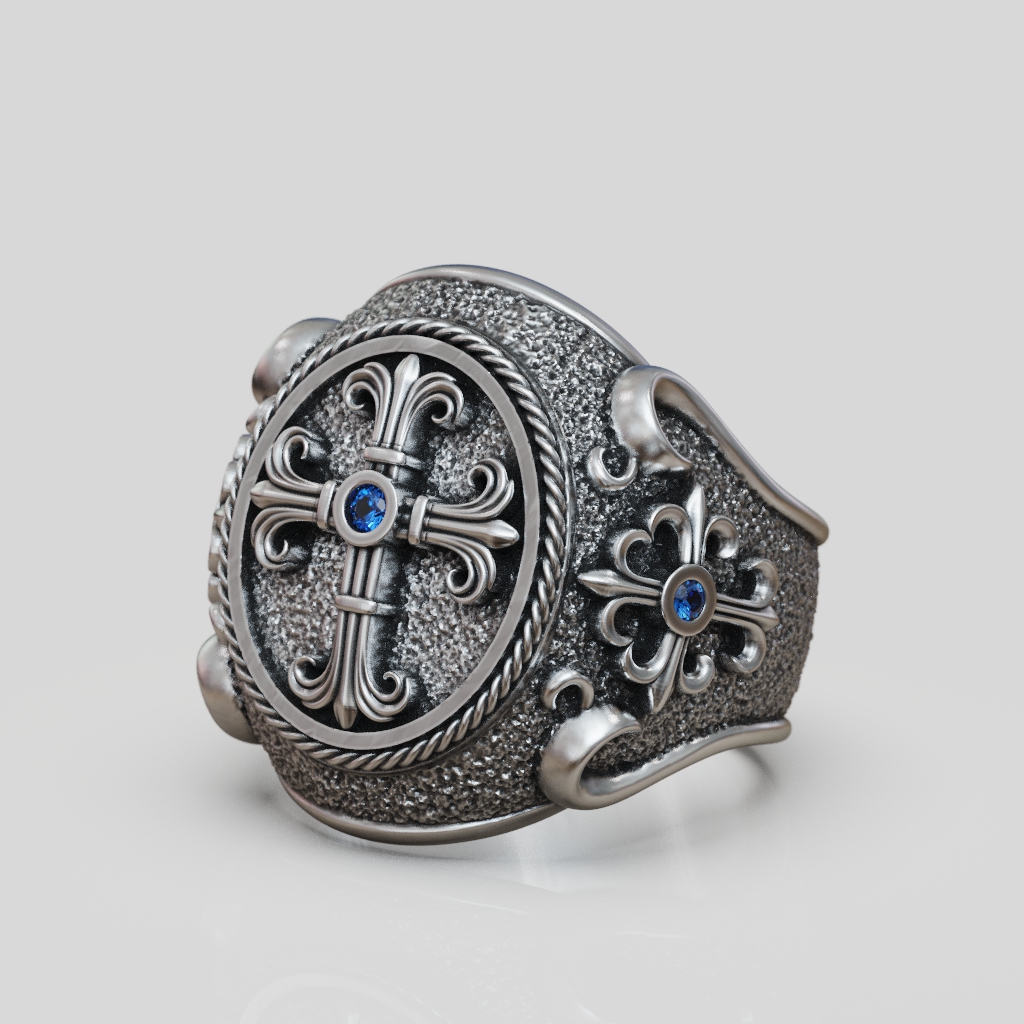

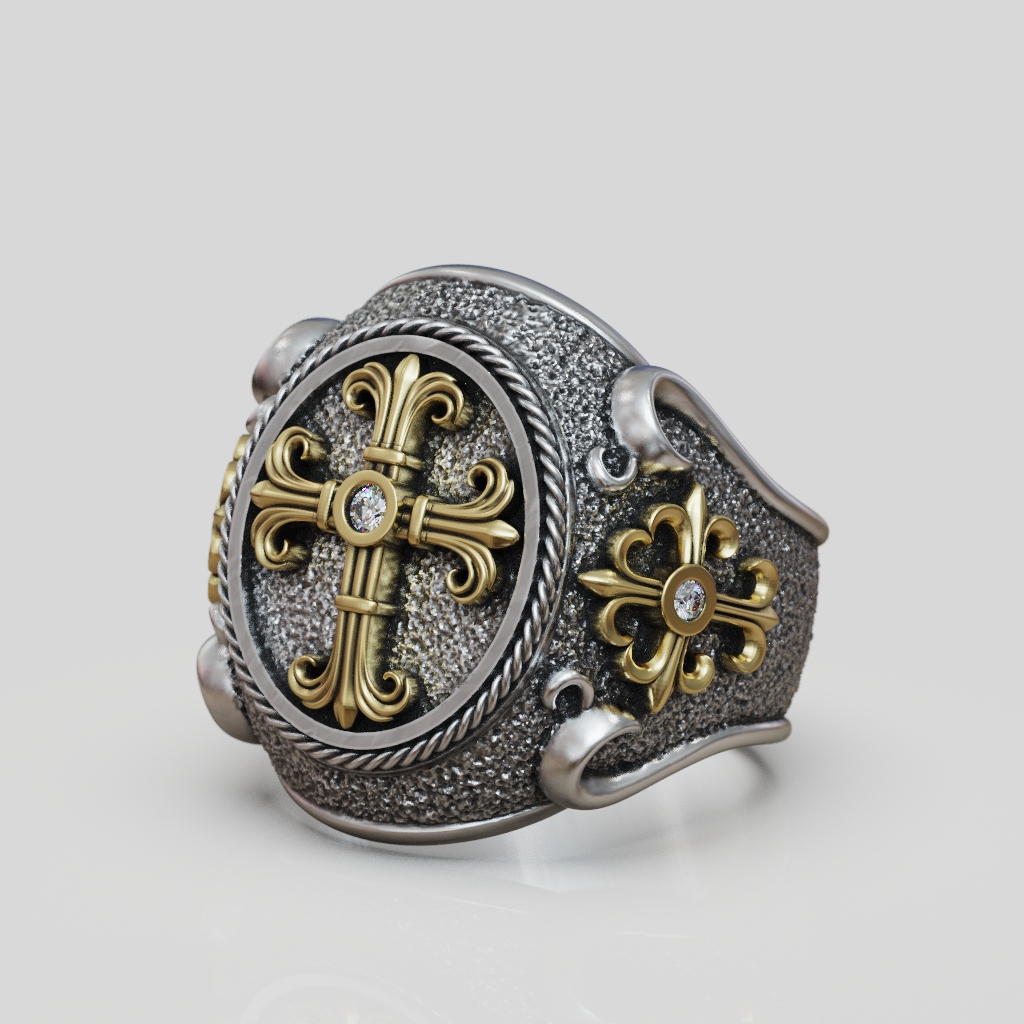

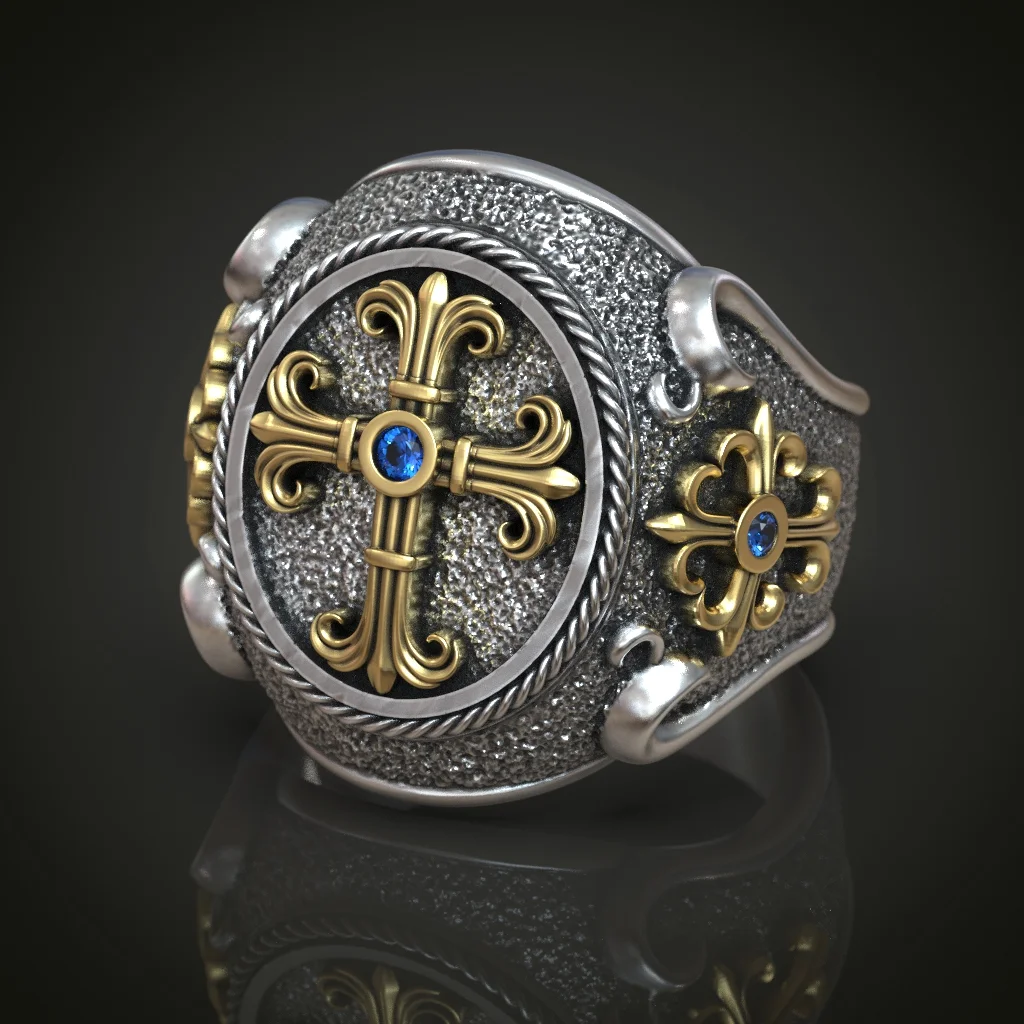

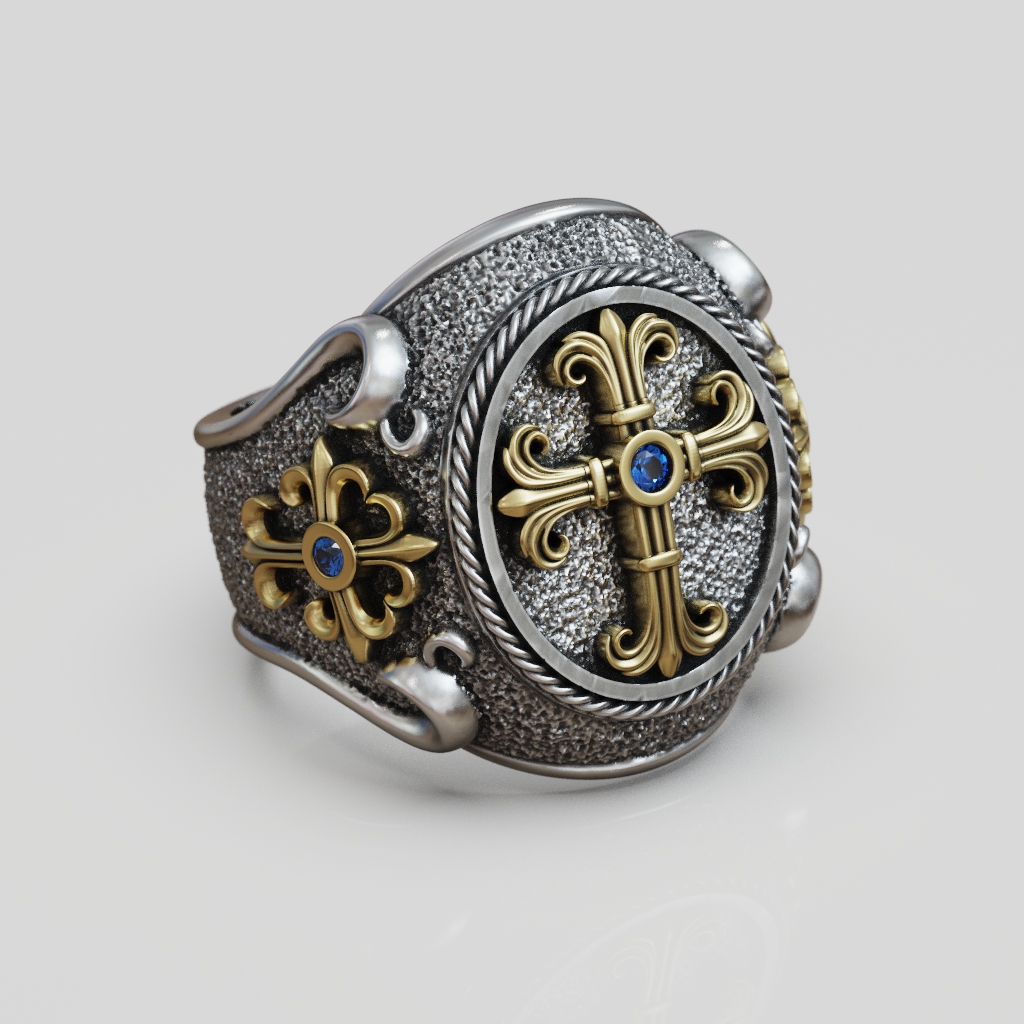

This signet ring features a broad, tapered band that expands from 9.66 mm at the base to 24.85 mm at its widest point. The top presents a prominent oval face with a central cross fleury, framed by a detailed rope twist border. Two smaller, matching crosses adorn the shoulders, continuing the motif along the shank. The background field of the ring has a coarse, stippled texture that provides contrast to the smooth relief of the crosses and borders. The detailed relief and textured fields of this digital jewelry model are designed to retain their definition through a lost-wax casting process using a 3D-printed pattern.
- Top Width: 24.85 mm - Shank Base Width: 9.66 mm - Shank Base Thickness: 1.86 mm - Center Cross Element Width: 15.58 mm - Center Cross Element Height: 2.32 mm
- US: 8, 9, 10, 11, 12, 13 - UK: Q, S, U, W, Y, Z1 - German: 57.2, 59.7, 62.5, 65, 67.5, 70.1 - Inner Diameter: 18.2mm, 19mm, 19.9mm, 20.7mm, 21.5mm, 22.3mm
Weight (for US size 10, volume 1825.42 mm³): - Gold 585 (14K): 23.5 g - Gold 750 (18K): 28.1 g - Silver 925: 18.9 g - Stainless Steel: 14.1 g - Bronze: 15.3 g
Q: What is the width of the ring at its widest point? A: The ring measures 24.85 mm across the top and tapers down to a 9.66 mm width at the base of the shank.
Q: Are the crosses on the shoulders separate components? A: Yes, the technical drawings show the central cross and the two shoulder crosses as separate components with posts, designed to be set into the main body of the ring.
Q: Is the listed weight information for all included sizes? A: No, the provided metal weights are calculated specifically for the US size 10 model, which has a volume of 1825.42 mm³.
