Casting Tree with Woven Leaf Motif Rings

Description

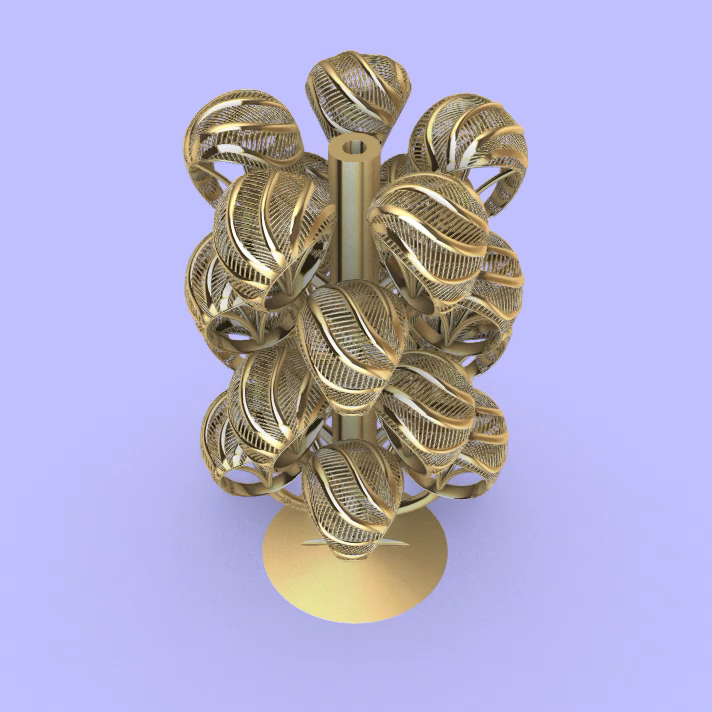

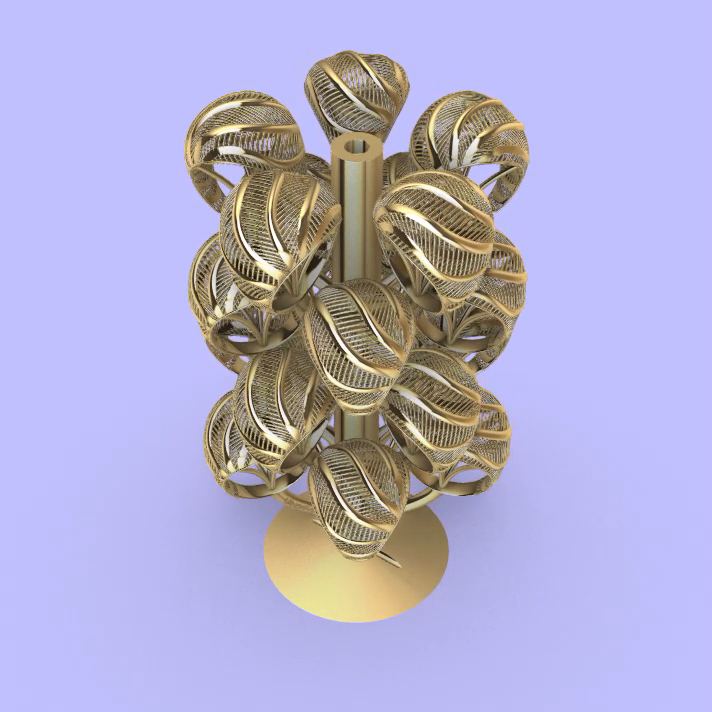

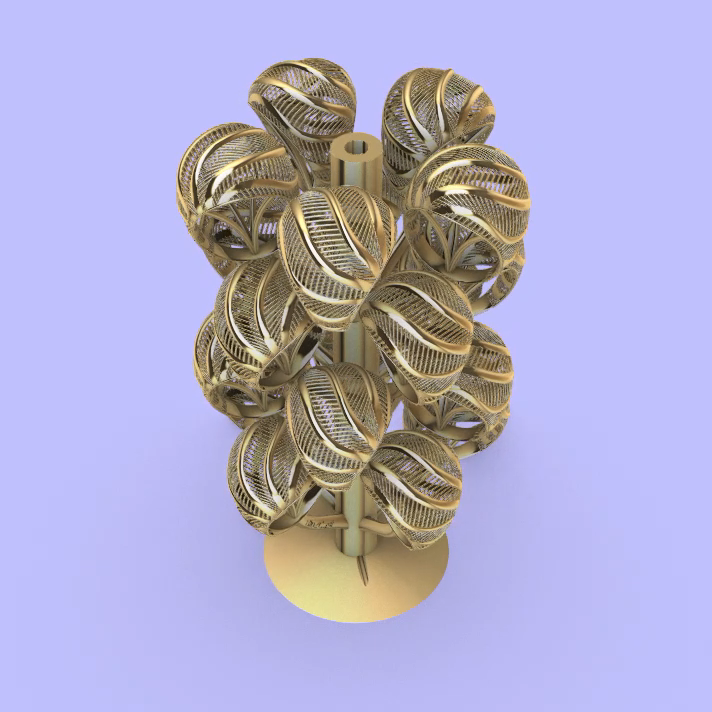

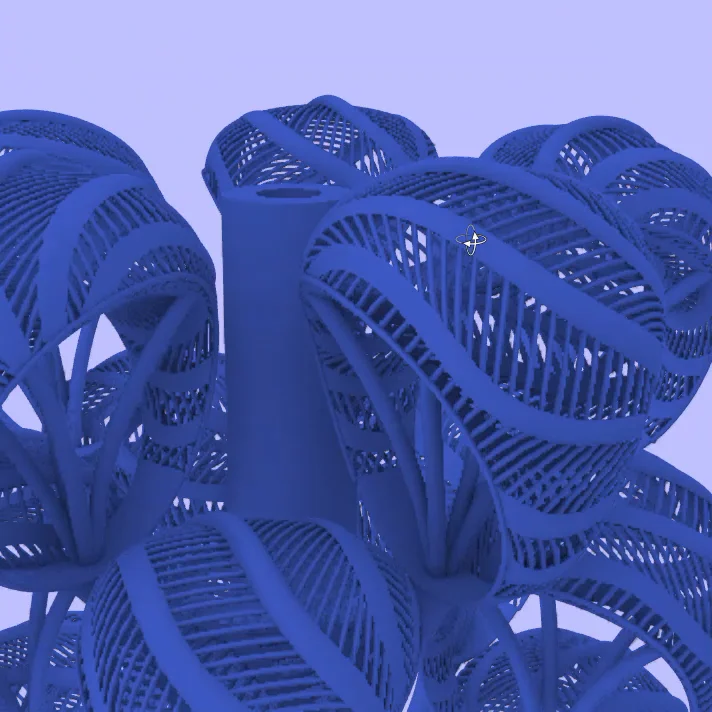

This digital model presents a complete casting tree populated with multiple rings, each defined by a bombé profile and intricate, leaf-style filigree openwork. The rings are arranged in a dense cluster around a central sprue, connected by individual runners designed to facilitate metal flow. This complete CAD asset, standing 120.33 mm tall, provides a ready-to-print master pattern for an investment casting process, enabling the efficient production of an entire batch of these openwork rings from a single pour.

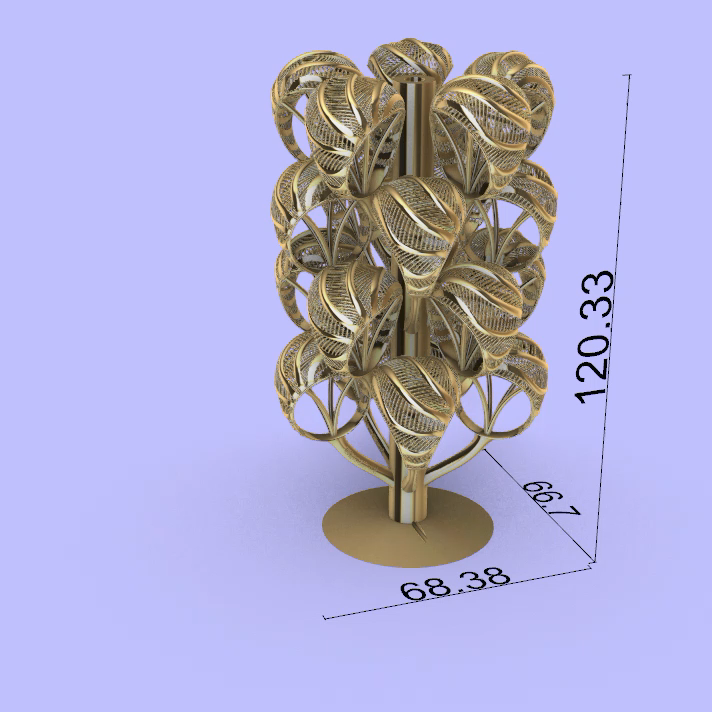

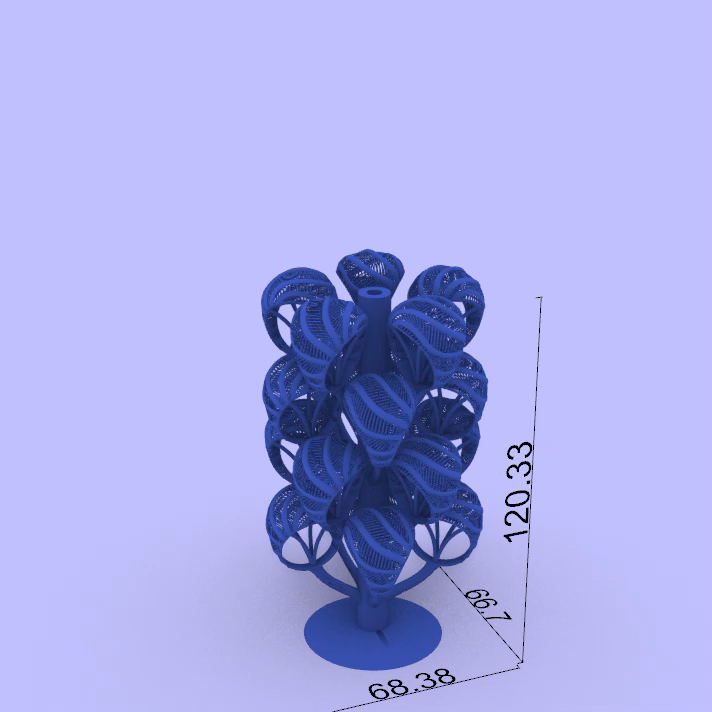

Overall Height: 120.33 mm Base Diameter: 68.38 mm Cluster Width: 66.7 mm

Q: What are the overall dimensions of this casting tree model? A: The model has a total height of 120.33 mm, a base diameter of 68.38 mm, and the cluster of rings has a maximum width of 66.7 mm.

Q: Is this model for a single ring or multiple rings? A: This 3D model is a complete casting tree configured for the simultaneous production of multiple identical rings, all featuring the same woven leaf openwork pattern.

Q: What is the design style of the rings on the tree? A: The rings have a bombé (domed) shape and are characterized by their detailed, filigree-style openwork that creates a woven leaf-like texture across the surface.

Tags

casting tree · investment casting · lost wax casting · jewelry production · ring tree · filigree ring · openwork jewelry · leaf pattern · bomb ring · nature motif ring · batch production
