Digital 3D Jewelry Model — No Physical Item
Downloadable model intended for jewelry CAD, 3D printing, and lost-wax casting workflows. Verify the listing specifications before production.
By: RedRoseLTD
Price: $24.50 USD

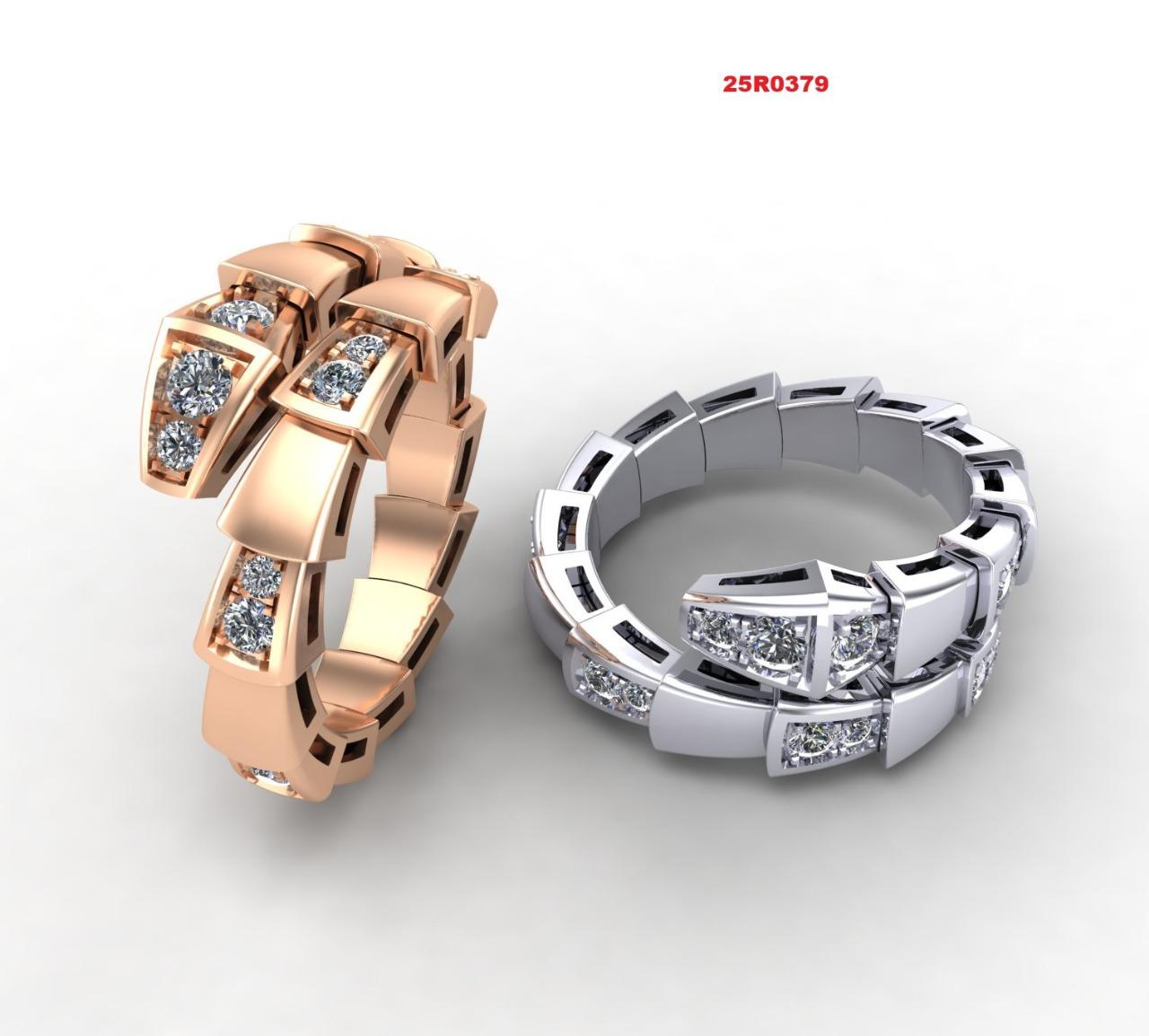

A segmented profile defines this articulated serpent ring, which achieves flexibility through a series of hinged links. The ring is constructed from distinct components-a head, a tail, and two sets of seven repeating body segments-each featuring faceted top surfaces with flush-set round stones. This modular CAD asset provides the individual patterns necessary for 3D printing and investment casting, allowing for size customization by altering the number of links in the assembly. The base model is configured for a 16.5mm inner diameter and requires a 1.6 x 0.65mm steel core for articulation.
Based on the provided stone report, this model requires a total of 18 stones, with a total carat weight of approximately 0.45 ct.
Type: Round Diamond Setting: Flush / Bead Set
- Quantity: 1 (one), Size: 2.50mm - Quantity: 1 (one), Size: 2.30mm - Quantity: 2 (two), Size: 2.00mm - Quantity: 1 (one), Size: 1.80mm - Quantity: 7 (seven), Size: 1.60mm - Quantity: 2 (two), Size: 1.10mm - Quantity: 2 (two), Size: 1.00mm - Quantity: 2 (two), Size: 0.80mm

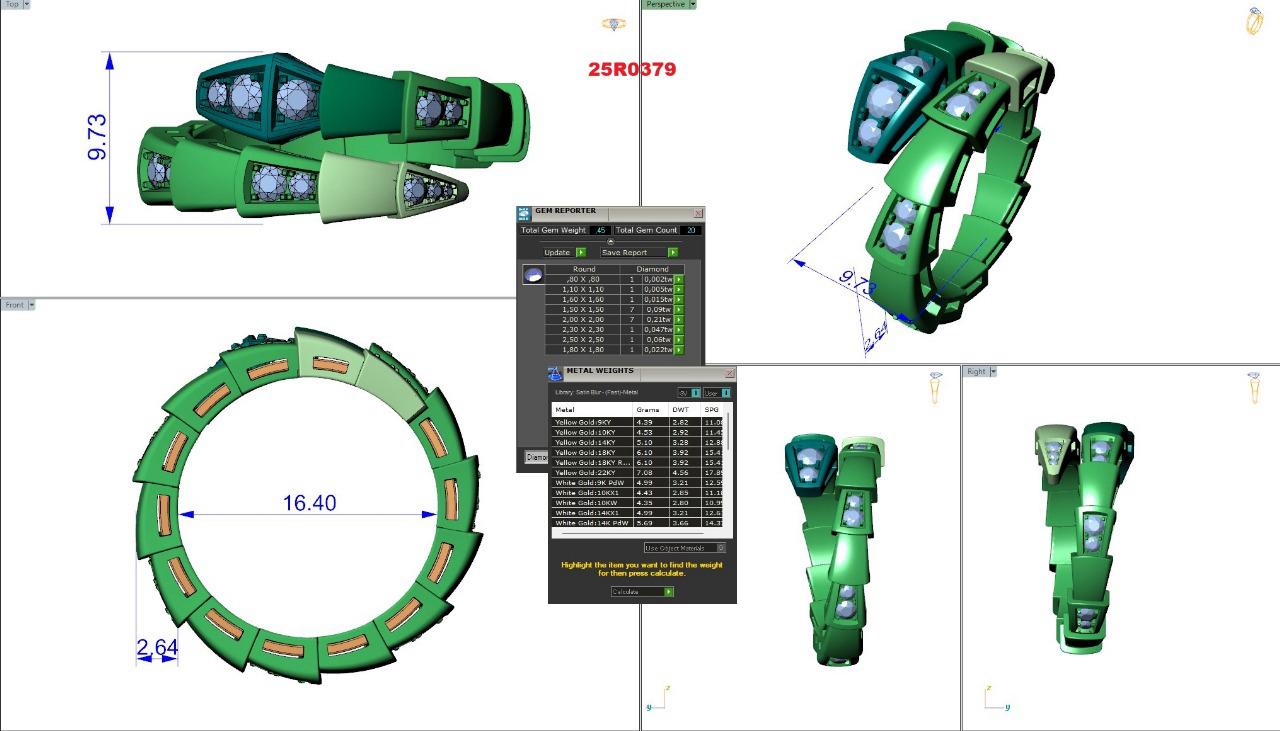

- Outer Width: 9.73 mm - Shank Height (at bottom): 2.64 mm - Base Inner Diameter: 16.5 mm (Corresponds to approx. US Size 6) - Required Steel Core: 1.6 mm x 0.65 mm - Core Length (for base size): 67 mm
Estimated weights for the base size (16.5mm inner diameter) as provided in the design file: - Yellow Gold 14K: 1.7 g - Yellow Gold 18K: 1.9 g - White Gold 14K: 1.5 g - White Gold 18K (Palladium): 1.7 g - Platinum (90% Iridium): 2.6 g

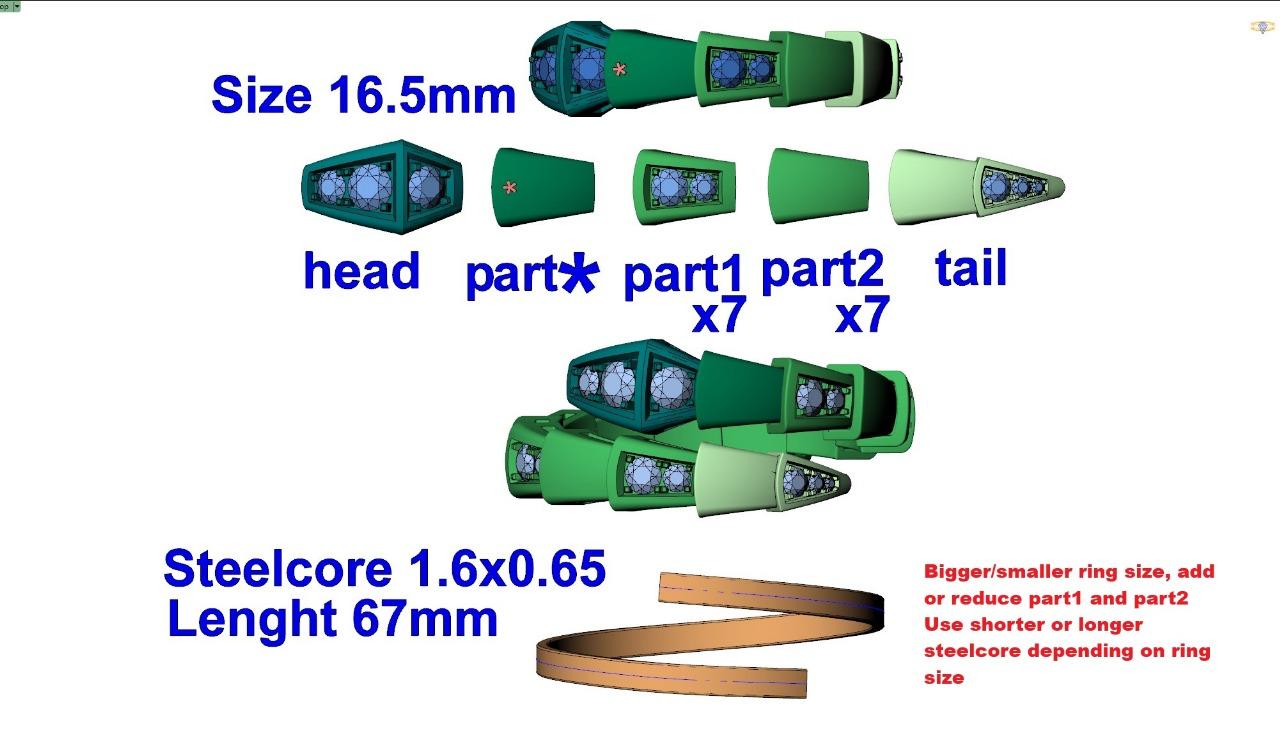

Q: What is the base size of this ring model and can it be adjusted? A: The model is provided for a base size with a 16.5mm inner diameter (approx. US Size 6). It is designed to be adjustable by adding or removing the 'part1' and 'part2' segments before assembly to create different sizes.
Q: How many stones are required and what are their sizes? A: A total of 18 round stones are specified, with diameters ranging from 0.80mm to 2.50mm. The largest stone is a single 2.50mm round cut for the serpent's head.
Q: What are the specifications for the internal steel core? A: The design requires a 1.6mm x 0.65mm rectangular steel core to create the articulation. For the base 16.5mm ring size, the specified core length is 67mm, which would need to be adjusted for different ring sizes.
serpent ring · snake jewelry · articulated ring · flexible ring · segmented jewelry · modular design · animal jewelry · diamond ring · flush set stones · modern jewelry
